Bosch GMB 32 / 0601193032 / CH 230 Volt Spare Parts

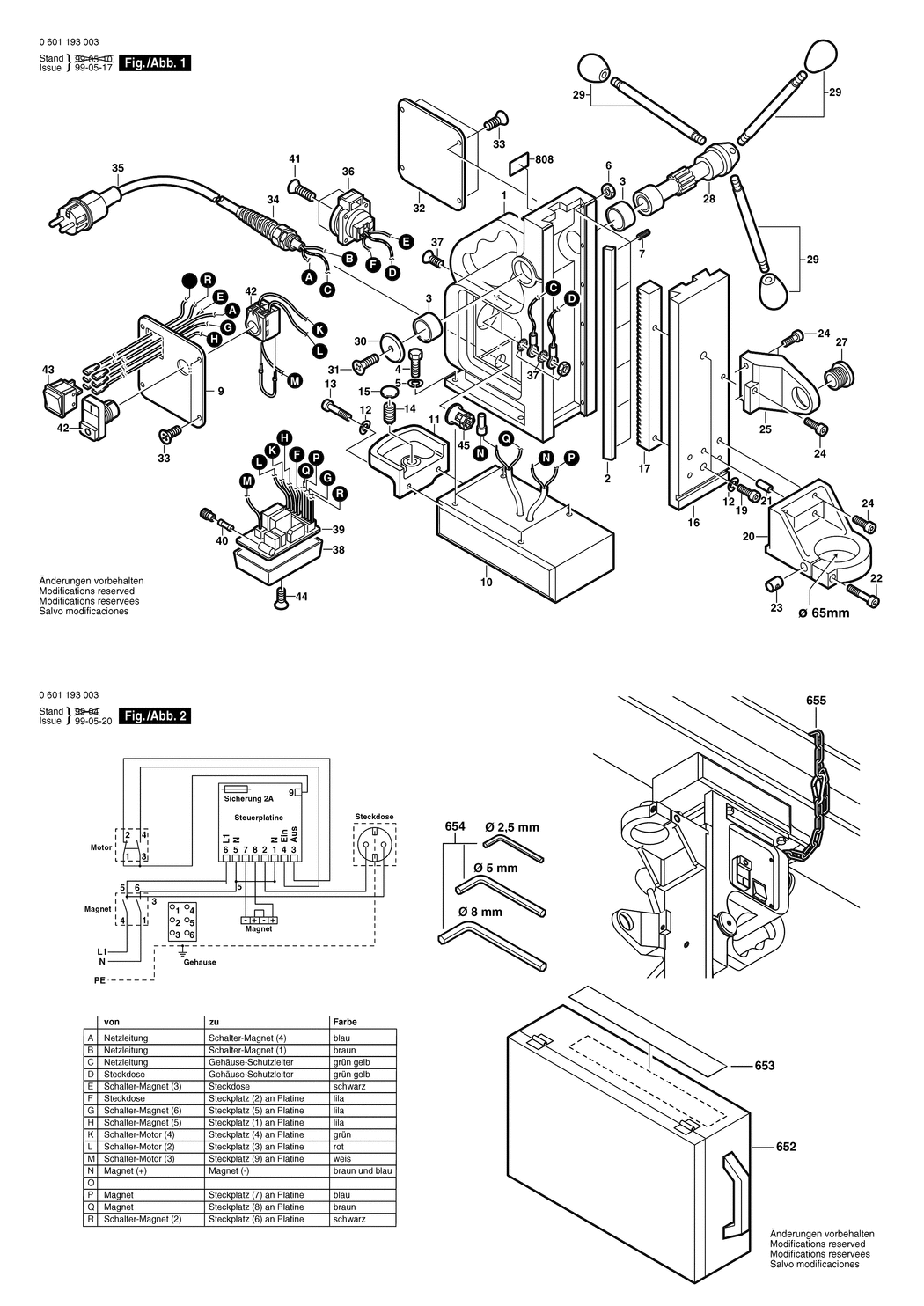

An exploded drawing and listing for the Bosch GMB 32 / 0601193032 / CH 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-3609201501.A1 3609201501	£685.64	£822.77
2 - CLAMPING TAPE BSD-3609201502.A0 3609201502	£33.74	£40.49
3 - PLAIN BEARING BSD-3609201503.A2 3609201503	£48.38	£58.06
4 - HEX SCREW ISO 4017-M8x35-8.8-A BSD-2911061248.A2 2911061248	-
5 - SPRING LOCK WASHER DIN 128-A8-FST BSD-2916690007.A39 2916690007	£1.75	£2.10
6 - HEX NUT DIN 934-M 5-m-8 BSD-2915011006.A66 2915011006	-
7 - SET SCREW DIN 913-M5x22 BSD-2912040163.A0 2912040163	£14.91	£17.89
9 - MANUFACTURER'S NAMEPLATE BSD-3609201504.A0 3609201504	£54.42	£65.30
10 - MAGNETIC BASE BSD-3609201505.A2 3609201505	£608.95	£730.74
11 - RETAINING BRACKET BSD-3609201506.A0 3609201506	£81.81	£98.17
12 - SPRING LOCK WASHER M6 BSD-2916690005.A52 2916690005	-
13 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x20-8.8 BSD-2910141201.A75 2910141201	£2.61	£3.13
14 - BALL THRUST SCREW BSD-3609201507.A2 3609201507	£18.96	£22.75
15 - COVER BSD-3609201508.A0 3609201508	£5.30	£6.36
16 - GUIDE BLOCK BSD-3609201509.A2 3609201509	£18.96	£22.75
17 - TOOTHED RACK BSD-3609201510.A0 3609201510	£135.25	£162.30
19 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x25-8.8 BSD-2910141203.A91 2910141203	£1.75	£2.10
20 - MOTOR CRADLE BSD-3609201511.A2 3609201511	£218.41	£262.09
21 - STRAIGHT PIN 6x16 MM BSD-2917891147.A1 2917891147	£6.52	£7.83
22 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x60-8.8 BSD-2910141217.A2 2910141217	£5.30	£6.36
23 - BOLT BSD-3609201512.A2 3609201512	£16.41	£19.69
24 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910145197.A0 2910145197	£1.75	£2.10
25 - SIDE HOLDER BSD-3609201513.A0 3609201513	£120.11	£144.13
27 - SCREW BSD-3609201514.A2 3609201514	£14.91	£17.89
28 - PINION SHAFT BSD-3609201515.A0 3609201515	£218.41	£262.09
29 - ROTARY HANDLE BSD-3609201516.A2 3609201516	£63.50	£76.20
30 - COVER DISC BSD-3609201517.A0 3609201517	£45.67	£54.80
31 - RAISED COUNTERS HEAD SCRE DIN 966-M6x16-8.8 BSD-2910901197.A2 2910901197	£1.75	£2.10
32 - REAR PANEL BSD-3609201518.A2 3609201518	£59.53	£71.44
33 - RAISED COUNTERS HEAD SCRE DIN 966-M4x6-4.8 BSD-2910891116.A2 2910891116	£1.75	£2.10
34 - CORD GUARD BSD-3609201519.A0 3609201519	£27.23	£32.68
35 - POWER SUPPLY CORD BSD-3609201534.A0 3609201534	-
36 - SOCKET-OUTLET UNIT BSD-3609201535.A0 3609201535	-
37 - SET OF EARTLING MATERIAL BSD-3609201522.A2 3609201522	-
38 - SWITCH HOUSING BSD-3609201523.A0 3609201523	£40.80	£48.96
39 - CONTROL UNIT BSD-3609201524.A2 3609201524	£410.78	£492.94
40 - FUSE BSD-3609201525.A0 3609201525	£3.72	£4.47
41 - RAISED COUNTERS HEAD SCRE DIN 966-M4x12-4.8 BSD-2910891122.A0 2910891122	£1.75	£2.10
42 - MOTOR PROTECTION SWITCH BSD-3609201526.A2 3609201526	£102.57	£123.08
43 - ON-OFF SWITCH BSD-3609201527.A0 3609201527	£33.74	£40.49
44 - SCREW BSD-3609201528.A2 3609201528	£5.58	£6.70
45 - CABLE CLEAT BSD-3609201533.A0 3609201533	£18.96	£22.75
652 - CARRYING CASE BSD-3609201529.A0 3609201529	£218.41	£262.09
653 - STICKER BSD-3609201530.A2 3609201530	-
654 - HEXAGON SOCKET SCREW KEY BSD-3609201532.A2 3609201532	£30.28	£36.33
655 - CHAIN BSD-3609201531.A0 3609201531	£31.64	£37.97
808 - NAMEPLATE BSD-160111A3H3.A2400 160111A3H3	£2.61	£3.13
