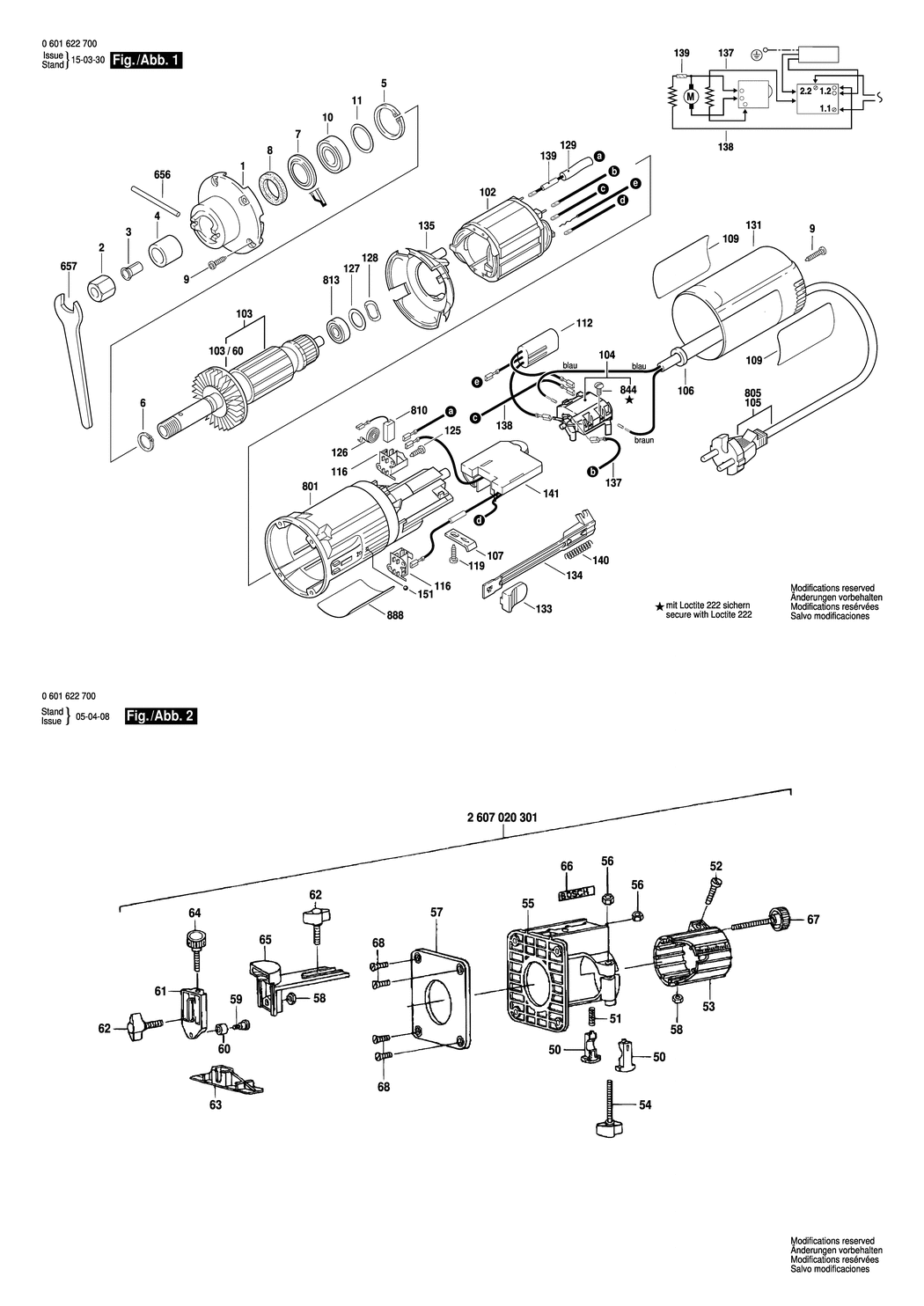

1 - SPINDLE HOUSING
BSD-2605806375.A1
2605806375
|
£22.76
|
£27.31
|
|
|
2 - UNION NUT SW 17. dia 18.5 MM
BSD-2603312006.A47
2603312006
|
£6.85
|
£8.22
|
|
|
3 - COLLET
BSD-2608570005.A12
2608570005
|
£15.65
|
£18.78
|
|
|
4 - SEAL BUSHING
BSD-2600300073.A45
2600300073
|
£6.52
|
£7.83
|
|
|
5 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A610
2916660013
|
£2.16
|
£2.59
|
|
|
6 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A218
2916650006
|
£1.75
|
£2.10
|
|
|
7 - CUPPED WASHER
BSD-2600500033.A48
2600500033
|
£2.74
|
£3.29
|
|
|
8 - FELT WASHER
BSD-2600108033.A84
2600108033
|
£1.84
|
£2.21
|
|
|
9 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A696
2603490023
|
£1.84
|
£2.21
|
|
|
10 - GROOVE BALL BEARING 15x32x9
BSD-2600905017.A56
2600905017
|
£10.61
|
£12.73
|
|
|
11 - SHIM 0.1 MM
BSD-1600102626.A10
1600102626
|
£2.27
|
£2.72
|
|
|
50 - DETENT PIN
BSD-2602305045.A29
2602305045
|
-
|
|
|
|
51 - COMPRESSION SPRING
BSD-2604612003.A2
2604612003
|
-
|
|
|
|
52 - SOCKET HEAD CAP SCREW DIN 84-AM6x14-5.8
BSD-2910011195.A6
2910011195
|
-
|
|
|
|
53 - GUIDE SLEEVE
BSD-2608040022.A0
2608040022
|
-
|
|
|
|
54 - WING SCREW
BSD-2603480002.A6
2603480002
|
-
|
|
|
|
55 - HOUSING
BSD-2608000008.A0
2608000008
|
-
|
|
|
|
56 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A416
2915011007
|
-
|
|
|
|
57 - COVER PLATE
BSD-2601039003.A7
2601039003
|
-
|
|
|
|
58 - HEX NUT DIN 439-AM6-04
BSD-2915051106.A15
2915051106
|
£1.84
|
£2.21
|
|
|
59 - PAN HEAD SCREW DIN 923-M4x5-5.8
BSD-2910271115.A6
2910271115
|
-
|
|
|
|
60 - GUIDE BUSHING
BSD-2600328015.A2
2600328015
|
-
|
|
|
|
61 - GUIDE ARM
BSD-2608030004.A0
2608030004
|
-
|
|
|
|
62 - WING SCREW M6x20 MM
BSD-1613480008.A326
1613480008
|
£1.84
|
£2.21
|
|
|
63 - GUIDE
BSD-2608030008.A7
2608030008
|
£1.75
|
£2.10
|
|
|
64 - KNURLED THUMBSCREW
BSD-2603481017.A6
2603481017
|
-
|
|
|
|
65 - GUIDE SUPPORT
BSD-2608010001.A2
2608010001
|
-
|
|
|
|
66 - MANUFACTURER'S NAMEPLATE
BSD-2601110601.A9
2601110601
|
-
|
|
|
|
67 - KNURLED THUMBSCREW
BSD-2603481016.A1
2603481016
|
£2.74
|
£3.29
|
|
|
68 - THREAD-FORMING TAP. SCREW 4x10 MM
BSD-2914431046.A6
2914431046
|
-
|
|
|
|
102 - FIELD 240V
BSD-1604220194.A17
1604220194
|
£23.86
|
£28.63
|
|
|
103 - ARMATURE 240V
BSD-2604010770.A0
2604010770
|
£66.68
|
£80.01
|
|
|
103/60 - FAN
BSD-2606610029.A365
2606610029
|
£2.74
|
£3.29
|
|
|
104 - ON-OFF SWITCH
BSD-1607200086.A14
1607200086
|
£11.87
|
£14.24
|
|
|
105 - POWER SUPPLY CORD GB 240V 2.65m 2 x 1.0mm H05 VV-F
BSD-1604460150.A31
1604460150
|
£16.41
|
£19.69
|
|
|
106 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A478
2600703012
|
£2.94
|
£3.53
|
|
|
107 - FASTENING CLAMP
BSD-1601302017.A377
1601302017
|
£1.84
|
£2.21
|
|
|
109 - MANUFACTURER'S NAMEPLATE
BSD-2601115026.A2
2601115026
|
-
|
|
|
|
112 - SUPPRESSION FILTER
BSD-2607329124.A40
2607329124
|
£10.61
|
£12.73
|
|
|
116 - BRUSH HOLDER
BSD-1600A003G4.A2
1600A003G4
|
£3.72
|
£4.47
|
|
|
116 - BRUSH HOLDER
BSD-2601323022.A40
2601323022
|
£2.94
|
£3.53
|
|
|
119 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A201
2603490021
|
£1.84
|
£2.21
|
|
|
125 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A761
2603490017
|
£2.27
|
£2.72
|
|
|
126 - SPIRAL SPRING
BSD-2604652009.A30
2604652009
|
£1.84
|
£2.21
|
|
|
127 - SHIM
BSD-2600150033.A10
2600150033
|
£2.27
|
£2.72
|
|
|
128 - SHIM WASHER 0.5 MM
BSD-2600101667.A44
2600101667
|
£1.84
|
£2.21
|
|
|
128 - SHIM WASHER 0.3 MM
BSD-2600101027.A244
2600101027
|
£1.84
|
£2.21
|
|
|
128 - SHIM WASHER 0.2 MM
BSD-2600101665.A32
2600101665
|
£1.84
|
£2.21
|
|
|
129 - SHRINKABLE TUBE
BSD-1610712034.A28
1610712034
|
£1.74
|
£2.09
|
|
|
131 - HOUSING COVER
BSD-1600508011.A28
1600508011
|
£9.11
|
£10.93
|
|
|
133 - SWITCH HANDLE
BSD-1602026057.A0
1602026057
|
£2.07
|
£2.48
|
|
|
134 - ADJUSTING SLIDE
BSD-1602319002.A249
1602319002
|
£2.74
|
£3.29
|
|
|
135 - COVER DISC
BSD-2601328045.A270
2601328045
|
£2.16
|
£2.59
|
|
|
137 - CONNECTING CABLE L=52MM
BSD-2604448016.A66
2604448016
|
£1.75
|
£2.10
|
|
|
138 - CABLE
BSD-2604448149.A2
2604448149
|
£1.75
|
£2.10
|
|
|
139 - SUPPRESSION FILTER
BSD-2604465096.A23
2604465096
|
£5.30
|
£6.36
|
|
|
140 - COMPRESSION SPRING
BSD-1604611026.A229
1604611026
|
£1.84
|
£2.21
|
|
|
141 - SPEED GOVERNOR 240V
BSD-2607230014.A0
2607230014
|
-
|
|
|
|
151 - BALL
BSD-2603230002.A2
2603230002
|
£1.75
|
£2.10
|
|
|
656 - STRAIGHT PIN 4x60 MM
BSD-2603101035.A14
2603101035
|
£2.94
|
£3.53
|
|
|
657 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A85
2607950511
|
£4.48
|
£5.37
|
|
|
801 - MOTOR HOUSING
BSD-2605108908.A19
2605108908
|
£24.45
|
£29.34
|
|
|
810 - CARBON-BRUSH SET
BSD-2604320910.A5
2604320910
|
£10.10
|
£12.12
|
|
|
813 - BALL BEARING 7x22x7
BSD-1900905018.A83
1900905018
|
£19.91
|
£23.89
|
|
|
844 - PAN HEAD SCREW DIN 85-AM3x6-CUZN
BSD-2910110048.A168
2910110048
|
£1.84
|
£2.21
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A4787
160111A3H3
|
£2.74
|
£3.29
|
|
