Bosch GFF 22 A / 0601620061 / GB 110 Volt Spare Parts

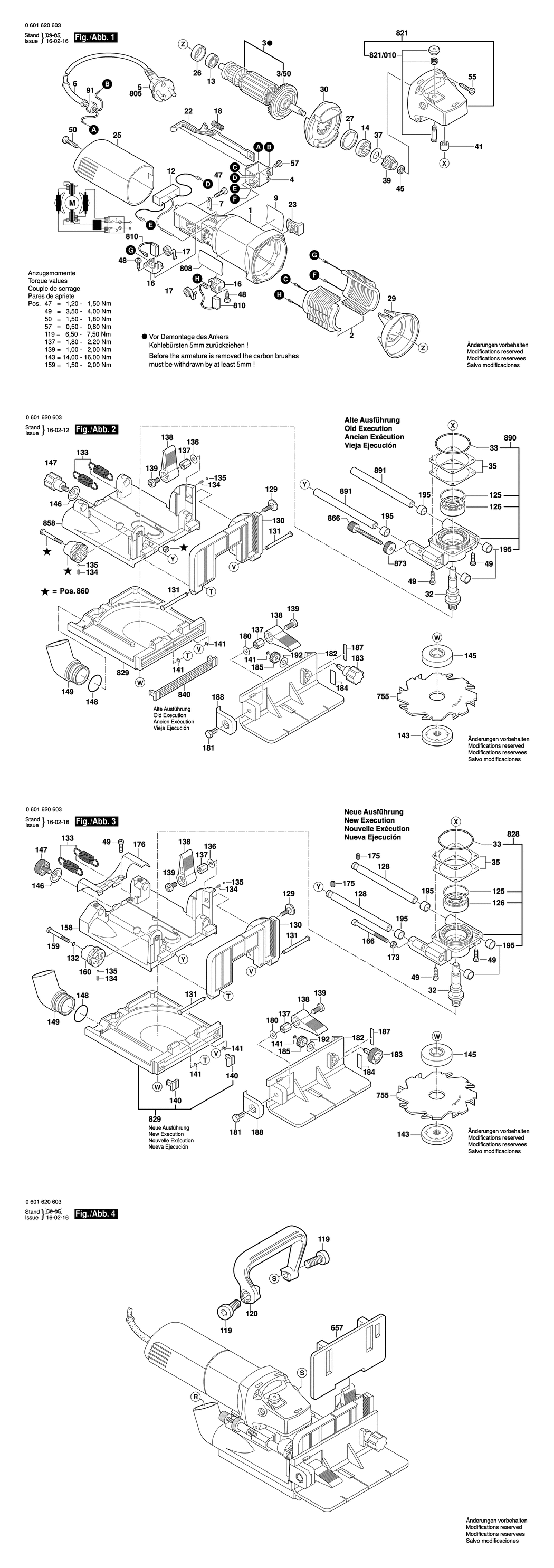

An exploded drawing and listing for the Bosch GFF 22 A / 0601620061 / GB 110 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1619P09772.A6 1619P09772	£13.12	£15.75
2 - FIELD 110-115V BSD-1604220330.A2 1604220330	£21.52	£25.83
3 - ARMATURE 110-115V BSD-1604010628.A1 1604010628	£27.23	£32.68
3/50 - FAN BSD-1606610141.A102 1606610141	£4.26	£5.11
4 - ON-OFF SWITCH BSD-1607200179.A68 1607200179	£10.59	£12.71
5 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F BSD-1604460333.A1 1604460333	£27.31	£32.77
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A767 2600703012	£2.80	£3.36
7 - FASTENING CLAMP BSD-1601302017.A43 1601302017	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-3601110610.A0 3601110610	£2.61	£3.13
12 - SUPPRESSION FILTER BSD-1607328042.A56 1607328042	£6.52	£7.83
13 - BALL BEARING 7x19x6 BSD-2600905032.A1555 2600905032	£5.30	£6.36
14 - GROOVE BALL BEARING BSD-1619P11240.A16 1619P11240	£3.94	£4.73
16 - BRUSH HOLDER BSD-1619P01811.A154 1619P01811	£2.80	£3.36
17 - SPIRAL SPRING BSD-1604652013.A299 1604652013	£1.75	£2.10
18 - COMPRESSION SPRING BSD-1604611031.A164 1604611031	£2.80	£3.36
22 - ADJUSTING SLIDE BSD-1602319009.A93 1602319009	£2.80	£3.36
23 - SWITCH HANDLE BSD-1602026068.A11 1602026068	£2.61	£3.13
25 - HOUSING COVER BSD-1605500194.A69 1605500194	£5.30	£6.36
26 - INTERMEDIATE RING BSD-1600502024.A57 1600502024	£2.16	£2.59
27 - RUBBER RING BSD-1600206025.A316 1600206025	£2.16	£2.59
29 - AIR-DEFLECTOR RING BSD-1600591023.A111 1600591023	£2.61	£3.13
30 - AIR-DEFLECTOR RING BSD-1600591024.A5 1600591024	£3.72	£4.47
32 - SPINDLE M10 BSD-3606120040.A8 3606120040	£11.30	£13.56
33 - O-RING 42.0x1.0 MM BSD-3600210136.A16 3600210136	-
35 - SHIM 0.1 MM BSD-1600136016.A85 1600136016	£2.61	£3.13
35 - SHIM 0.2 MM BSD-1600136017.A27 1600136017	£2.61	£3.13
37 - COVER DISC BSD-1600100033.A145 1600100033	£2.61	£3.13
38 - CONVERSION GEAR BSD-2609110150.A96 2609110150	£6.52	£7.83
39 - PINION BSD-2609110149.A16 2609110149	£4.26	£5.11
41 - PLAIN BEARING BSD-1600200029.A39 1600200029	£4.26	£5.11
45 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A312 2915011007	-
47 - SPECIAL SCREW BSD-2609110052.A7 2609110052	£1.75	£2.10
48 - TORX OVAL-HEAD SCREW 3x10 BSD-1619P00220.A11 1619P00220	£1.75	£2.10
49 - THREAD-FORMING TAP. SCREW M4x16 BSD-2914491410.A5 2914491410	£1.75	£2.10
50 - TAPPING SCREW DIN 7981-ST3.9x19-C-H BSD-2910611020.A53 2910611020	£1.75	£2.10
55 - TAPPING SCREW DIN 7981-ST3.9x25-C-H BSD-2910611022.A0 2910611022	-
57 - OVAL-HEAD SCREW DIN7985-M3.5x5-4.8-H BSD-2910641081.A101 2910641081	-
91 - FERRITE CORE BSD-3602317039.A9 3602317039	£5.30	£6.36
119 - HEX SOCKET HEAD CAP SCREW DIN 7984-M10x20 BSD-2910135289.A4 2910135289	£1.75	£2.10
120 - HANDLE BSD-3602025015.A0 3602025015	£10.10	£12.12
125 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A710 2916660013	£2.16	£2.59
126 - GROOVE BALL BEARING 12x32x10 BSD-3600905130.A17 3600905130	£12.04	£14.45
128 - STRAIGHT PIN BSD-3609202C01.A3 3609202C01	-
129 - ROUND-HEAD BOLT DIN 603-M6x16 BSD-2910281197.A4 2910281197	£1.75	£2.10
130 - FRAME BSD-3609202C19.A3 3609202C19	£48.38	£58.06
131 - STRAIGHT PIN BSD-3609202376.A6 3609202376	£3.72	£4.47
132 - O-RING BSD-3609202C15.A3 3609202C15	-
133 - EXTENSION SPRING BSD-3609202378.A3 3609202378	£4.26	£5.11
134 - COMPRESSION SPRING BSD-3609202379.A6 3609202379	£2.61	£3.13
135 - BALL BSD-3609202380.A3 3609202380	£2.61	£3.13
136 - SHIM RING DIN 988-6x12x0.5 BSD-2916190012.A4 2916190012	£1.75	£2.10
137 - HEX NUT M 6x13. SW10 BSD-3603300018.A5 3603300018	£2.80	£3.36
138 - TENSIONING LEVER BSD-3601923020.A9 3601923020	£2.61	£3.13
139 - OVAL-HEAD SCREW DIN 7985-M6x10-4.8 BSD-2910641191.A5 2910641191	£1.75	£2.10
140 - RUBBER PLUG BSD-3609202C03.A6 3609202C03	£4.76	£5.71
141 - SPRING RETAINING RING BSD-3609202382.A4 3609202382	£2.61	£3.13
143 - ROUND NUT BSD-3603376009.A8 3603376009	£21.68	£26.01
144 - RING PIECE BSD-3600200047.A4 3600200047	£2.80	£3.36
145 - CLAMPING-FLANGE dia 22 MM BSD-3605700154.A8 3605700154	£18.96	£22.75
146 - LEAF SPRING BSD-3609202384.A5 3609202384	£3.72	£4.47
147 - SCREW PLUG BSD-3609202C05.A3 3609202C05	£1.75	£2.10
148 - O-RING BSD-3609202386.A4 3609202386	£1.75	£2.10
149 - VACUUM CONNECTION BSD-3609202387.A5 3609202387	£6.52	£7.83
158 - UPPER HOUSING BSD-3609202C06.A6 3609202C06	£59.53	£71.44
159 - SOCKET HEAD CAP SCREW BSD-3609202C07.A3 3609202C07	-
160 - STOPPER BSD-3609202C08.A6 3609202C08	-
166 - ADJUSTING SCREW BSD-3603410022.A1 3603410022	-
173 - ROUND NUT BSD-3603376010.A0 3603376010	-
175 - SET SCREW BSD-3609202C14.A5 3609202C14	-
176 - COVER BSD-3609202C16.A4 3609202C16	-
180 - SHIM RING DIN 988 6x12x1 BSD-2916190013.A8 2916190013	£1.75	£2.10
181 - HEX SCREW DIN 933-M6x16-5.6-A BSD-2911051197.A0 2911051197	£1.75	£2.10
182 - ANGLE FRAME BSD-3609202C09.A4 3609202C09	£48.38	£58.06
183 - KNURLED THUMBSCREW BSD-3609202C10.A5 3609202C10	£2.61	£3.13
184 - LEAF SPRING BSD-3609202C11.A4 3609202C11	£1.75	£2.10
185 - TOOTHED GEAR BSD-3609202394.A5 3609202394	£2.61	£3.13
187 - SCALE BSD-3609202C12.A5 3609202C12	£1.75	£2.10
188 - CLAMPING PIECE BSD-3609202C13.A4 3609202C13	£10.10	£12.12
192 - PLAIN WASHER BSD-3609202396.A4 3609202396	£1.75	£2.10
195 - PLAIN BEARING BSD-3600905123.A8 3600905123	£1.95	£2.34
657 - INTERMEDIATE PLATE BSD-3609202397.A5 3609202397	£14.91	£17.89
808 - NAMEPLATE BSD-3601110451.A12 3601110451	£4.26	£5.11
810 - CARBON-BRUSH SET BSD-1607014144.A17 1607014144	£10.10	£12.12
821 - GEAR HOUSING BSD-1605806466.A1 1605806466	£16.41	£19.69
821/010 - PUSH-BUTTON BSD-1607000298.A85 1607000298	£4.26	£5.11
828 - INTERMEDIATE FLANGE BSD-3607031855.A5 3607031855	£48.38	£58.06
829 - HOUSING BASE BSD-3607031856.A4 3607031856	£63.50	£76.20
840 - RUBBER BAR BSD-3609202C03.A15 3609202C03	£4.76	£5.71
858 - UPPER HOUSING BSD-3609202431.A8 3609202431	£72.18	£86.62
860 - STOPPER BSD-3607031857.A5 3607031857	-
866 - ADJUSTING SCREW BSD-3603410021.A9 3603410021	£6.52	£7.83
873 - ROUND NUT BSD-3603376005.A0 3603376005	£2.80	£3.36
890 - INTERMEDIATE FLANGE BSD-3607031514.A4 3607031514	£45.67	£54.80
891 - STRAIGHT PIN BSD-3609202374.A5 3609202374	£10.10	£12.12
