Bosch GFF 22 A / 0601620041 / GB 110 Volt Spare Parts

Home Details Reviews Delivery

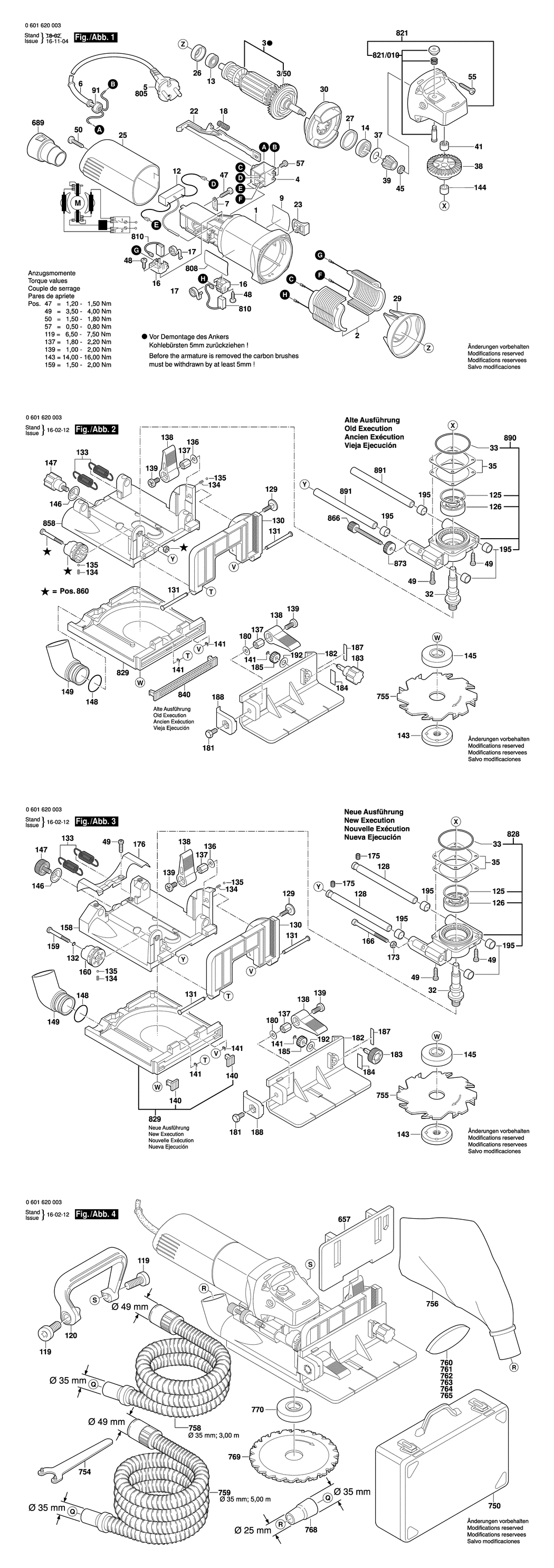

An exploded drawing and listing for the Bosch GFF 22 A / 0601620041 / GB 110 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1619P09772.A8 1619P09772	£13.78	£16.54
2 - FIELD 110-115V BSD-1604220330.A3 1604220330	£21.52	£25.83
3 - ARMATURE 110-115V BSD-1604010628.A0 1604010628	£27.23	£32.68
3/50 - FAN BSD-1606610141.A108 1606610141	£4.26	£5.11
4 - SWITCH BSD-1607200146.A8 1607200146	£10.61	£12.73
5 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F BSD-1604460333.A0 1604460333	£27.31	£32.77
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A771 2600703012	£2.94	£3.53
7 - FASTENING CLAMP BSD-1601302017.A48 1601302017	£1.84	£2.21
9 - MANUFACTURER'S NAMEPLATE BSD-3601110610.A4 3601110610	£2.74	£3.29
12 - SUPPRESSION FILTER BSD-1607328042.A57 1607328042	£6.85	£8.22
13 - BALL BEARING 7x19x6 BSD-2600905032.A1558 2600905032	£5.57	£6.68
14 - GROOVE BALL BEARING 8x22x7 BSD-1600905016.A3 1600905016	£10.10	£12.12
16 - BRUSH HOLDER BSD-1619P01811.A159 1619P01811	£2.80	£3.36
17 - SPIRAL SPRING BSD-1604652013.A305 1604652013	£1.84	£2.21
18 - COMPRESSION SPRING BSD-1604611031.A168 1604611031	£2.94	£3.53
22 - ADJUSTING SLIDE BSD-1602319009.A92 1602319009	£2.94	£3.53
23 - SWITCH HANDLE BSD-1602026068.A12 1602026068	£2.74	£3.29
25 - HOUSING COVER BSD-1605500194.A73 1605500194	£5.57	£6.68
26 - INTERMEDIATE RING BSD-1600502024.A54 1600502024	£2.16	£2.59
27 - RUBBER RING BSD-1600206025.A323 1600206025	£2.16	£2.59
29 - AIR-DEFLECTOR RING BSD-1600591023.A114 1600591023	£2.74	£3.29
30 - AIR-DEFLECTOR RING BSD-1600591024.A2 1600591024	£3.72	£4.47
32 - SPINDLE M10 BSD-3606120040.A7 3606120040	£11.87	£14.24
33 - O-RING 42.0x1.0 MM BSD-3600210136.A20 3600210136	-
35 - SHIM 0.1 MM BSD-1600136016.A87 1600136016	£2.74	£3.29
35 - SHIM 0.2 MM BSD-1600136017.A25 1600136017	£2.74	£3.29
37 - COVER DISC BSD-1600100033.A149 1600100033	£2.74	£3.29
38 - CONVERSION GEAR BSD-2609110150.A92 2609110150	£6.52	£7.83
39 - PINION BSD-2609110149.A20 2609110149	£4.48	£5.37
41 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A198 1600910018	£5.57	£6.68
45 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A313 2915011007	-
47 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A102 2603490021	£1.84	£2.21
48 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A141 2603490017	£2.27	£2.72
49 - THREAD-FORMING TAP. SCREW M4x16 BSD-2914491410.A4 2914491410	£1.84	£2.21
50 - TAPPING SCREW DIN7981-ST3.9x19-F-Z BSD-2912401420.A373 2912401420	£1.84	£2.21
55 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A907 2603490024	£1.84	£2.21
57 - OVAL-HEAD SCREW DIN7985-M3.5x5-4.8-H BSD-2910641081.A106 2910641081	-
91 - FERRITE CORE BSD-3602317039.A5 3602317039	£5.30	£6.36
119 - HEX SOCKET HEAD CAP SCREW DIN 7984-M10x20 BSD-2910135289.A9 2910135289	£1.84	£2.21
120 - HANDLE BSD-3602025015.A4 3602025015	£10.61	£12.73
125 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A716 2916660013	£2.16	£2.59
126 - GROOVE BALL BEARING 12x32x10 BSD-3600905130.A21 3600905130	£12.04	£14.45
128 - STRAIGHT PIN BSD-3609202C01.A5 3609202C01	-
129 - ROUND-HEAD BOLT M6x15 DIN 603 BSD-2910281196.A36 2910281196	-
130 - FRAME BSD-3609202C19.A5 3609202C19	£50.80	£60.96
131 - STRAIGHT PIN BSD-3609202376.A4 3609202376	£3.72	£4.47
132 - O-RING BSD-3609202C15.A5 3609202C15	-
133 - EXTENSION SPRING BSD-3609202378.A5 3609202378	£4.26	£5.11
134 - COMPRESSION SPRING BSD-3609202379.A4 3609202379	£2.61	£3.13
135 - BALL BSD-3609202380.A5 3609202380	£2.61	£3.13
136 - SHIM RING DIN 988-6x12x0.5 BSD-2916190012.A10 2916190012	£1.84	£2.21
137 - HEX NUT M 6x13. SW10 BSD-3603300018.A4 3603300018	£2.94	£3.53
138 - TENSIONING LEVER BSD-3601923020.A5 3601923020	£2.74	£3.29
139 - OVAL-HEAD SCREW DIN 7985-M6x10-4.8 BSD-2910641191.A0 2910641191	£1.84	£2.21
140 - RUBBER PLUG BSD-3609202C03.A4 3609202C03	£4.76	£5.71
141 - SPRING RETAINING RING BSD-3609202382.A6 3609202382	£2.61	£3.13
143 - ROUND NUT BSD-3603376009.A6 3603376009	£22.76	£27.31
144 - RING PIECE BSD-3600200047.A8 3600200047	£2.94	£3.53
145 - CLAMPING-FLANGE dia 22 MM BSD-3605700154.A6 3605700154	£19.91	£23.89
146 - LEAF SPRING BSD-3609202384.A3 3609202384	£3.72	£4.47
147 - SCREW PLUG BSD-3609202C05.A6 3609202C05	£1.75	£2.10
148 - O-RING BSD-3609202386.A6 3609202386	£1.84	£2.21
149 - VACUUM CONNECTION BSD-3609202387.A3 3609202387	£6.85	£8.22
158 - UPPER HOUSING BSD-3609202C06.A3 3609202C06	£62.51	£75.01
159 - SOCKET HEAD CAP SCREW BSD-3609202C07.A6 3609202C07	-
160 - STOPPER BSD-3609202C08.A3 3609202C08	-
166 - ADJUSTING SCREW BSD-3603410022.A2 3603410022	-
173 - ROUND NUT BSD-3603376010.A2 3603376010	-
175 - SET SCREW BSD-3609202C14.A3 3609202C14	-
176 - COVER BSD-3609202C16.A3 3609202C16	-
180 - SHIM RING DIN 988 6x12x1 BSD-2916190013.A4 2916190013	£1.84	£2.21
181 - HEX SCREW DIN 933-M6x16-5.6-A BSD-2911051197.A5 2911051197	£1.84	£2.21
182 - ANGLE FRAME BSD-3609202C09.A6 3609202C09	£50.80	£60.96
183 - KNURLED THUMBSCREW BSD-3609202C10.A3 3609202C10	£2.74	£3.29
184 - LEAF SPRING BSD-3609202C11.A6 3609202C11	£1.75	£2.10
185 - TOOTHED GEAR BSD-3609202394.A6 3609202394	£2.61	£3.13
187 - SCALE BSD-3609202C12.A3 3609202C12	£1.84	£2.21
188 - CLAMPING PIECE BSD-3609202C13.A6 3609202C13	£10.61	£12.73
192 - PLAIN WASHER BSD-3609202396.A3 3609202396	£1.75	£2.10
195 - PLAIN BEARING BSD-3600905123.A6 3600905123	£2.05	£2.46
657 - INTERMEDIATE PLATE BSD-3609202397.A6 3609202397	£14.91	£17.89
689 - ADAPTER BSD-1600A00B8V.A2 1600A00B8V	£8.54	£10.25
750 - CARRYING CASE BSD-3605438043.A1 3605438043	-
754 - PIN-TYPE FACE-WRENCH BSD-1607950043.A8 1607950043	£4.02	£4.83
755 - SIDE-MILLING CUTTER dia 105x22x4 MM. Z=8-HM BSD-3608641013.A4 3608641013	£32.69	£39.23
756 - DUST BAG BSD-3605411003.A4 3605411003	£10.49	£12.59
758 - AIR HOSE dia35MM.3M.1 BSD-2607000837.A2 2607000837	£62.47	£74.96
759 - AIR HOSE dia 35 MM. L=5 M BSD-1609202230.A126 1609202230	£85.74	£102.89
760 - FLAT KEY 50 ST..GR.0 BSD-2607000796.A2 2607000796	-
761 - FLAT KEY 50 ST..GR.10 BSD-2607000797.A3 2607000797	-
762 - FLAT KEY BSD-2607000103.A2 2607000103	£5.36	£6.43
763 - FLAT KEY GR. 0 BSD-2607000147.A2 2607000147	£44.25	£53.10
764 - FLAT KEY GR.10 BSD-2607000148.A3 2607000148	£47.05	£56.46
765 - FLAT KEY GR.20 BSD-2607000149.A2 2607000149	£47.37	£56.84
768 - FITTING dia 25x35 MM BSD-1600499005.A29 1600499005	£6.99	£8.39
769 - SIDE-MILLING CUTTER dia 105x20x2.8 MM. Z=22 BSD-3608641002.A2 3608641002	£41.12	£49.34
770 - CLAMPING-FLANGE dia 20 MM BSD-3605700155.A1 3605700155	£20.28	£24.34
808 - NAMEPLATE BSD-3601110451.A10 3601110451	£4.48	£5.37
810 - CARBON-BRUSH SET BSD-1607014144.A18 1607014144	£10.10	£12.12
821 - GEAR HOUSING BSD-1605806466.A2 1605806466	£17.22	£20.67
821/010 - PUSH-BUTTON BSD-1607000298.A86 1607000298	£4.48	£5.37
828 - INTERMEDIATE FLANGE BSD-3607031855.A3 3607031855	£50.80	£60.96
829 - HOUSING BASE BSD-3607031856.A6 3607031856	£63.50	£76.20
840 - RUBBER BAR BSD-3609202C03.A12 3609202C03	£4.76	£5.71
858 - UPPER HOUSING BSD-3609202431.A7 3609202431	£72.18	£86.62
860 - STOPPER BSD-3607031857.A2 3607031857	-
866 - ADJUSTING SCREW BSD-3603410021.A6 3603410021	£6.85	£8.22
873 - ROUND NUT BSD-3603376005.A3 3603376005	£2.80	£3.36
890 - INTERMEDIATE FLANGE BSD-3607031514.A7 3607031514	£47.95	£57.54
891 - STRAIGHT PIN BSD-3609202374.A6 3609202374	£10.10	£12.12
