Bosch GEF 7 E / 3601HA8000 / EU 230 Volt Spare Parts

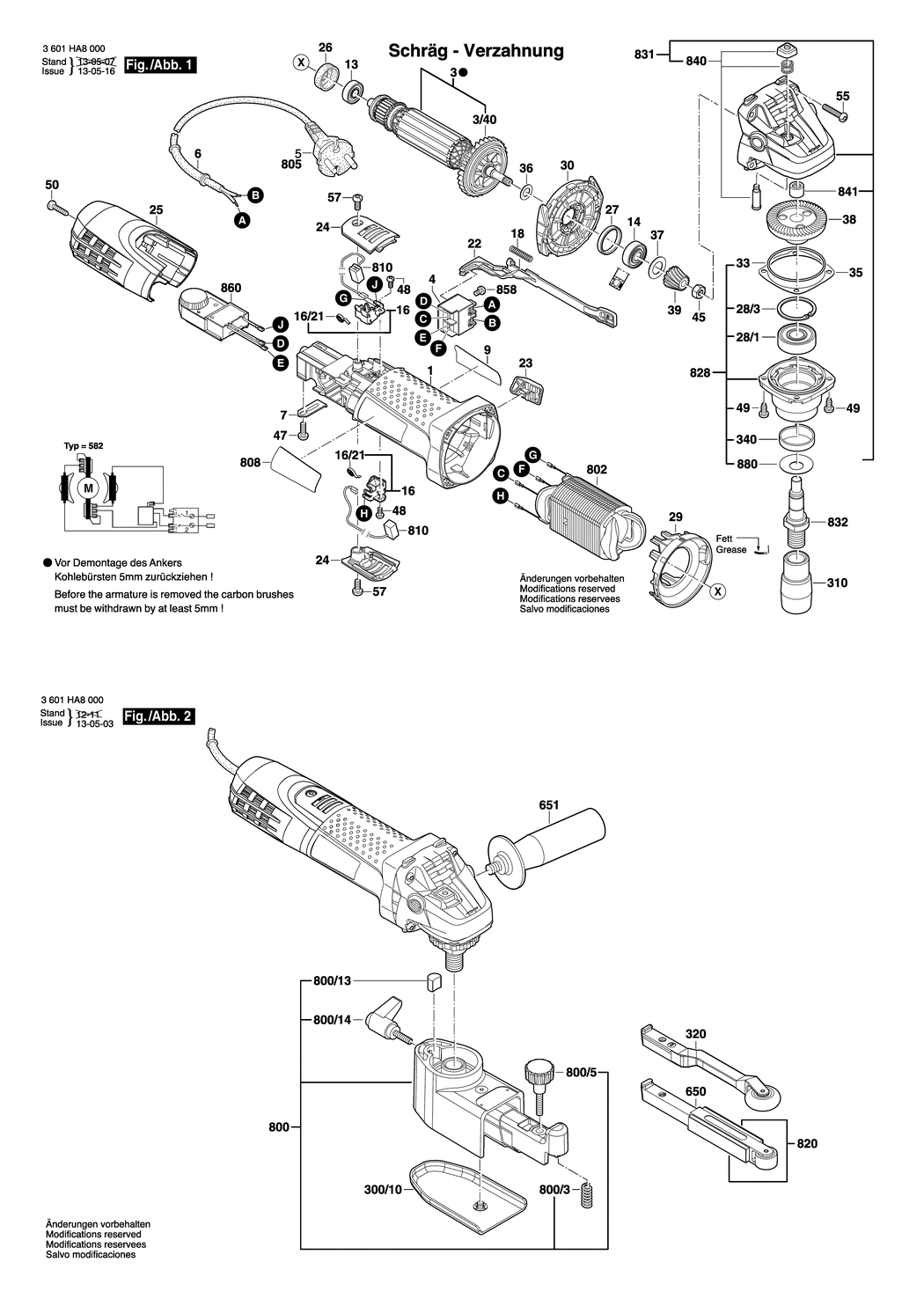

An exploded drawing and listing for the Bosch GEF 7 E / 3601HA8000 / EU 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1619P09415.A0 1619P09415	£8.67	£10.41
3 - ARMATURE 220-230V BSD-1619P05210.A27 1619P05210	£30.28	£36.33
3/40 - FAN BSD-1619P02801.A31 1619P02801	£1.75	£2.10
4 - ON-OFF SWITCH BSD-1607200179.A46 1607200179	£10.59	£12.71
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A937 2600703012	£2.80	£3.36
7 - FASTENING CLAMP BSD-1601302017.A830 1601302017	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-3601110607.A1 3601110607	£2.80	£3.36
13 - BALL BEARING 7x19x6 MM BSD-1619P00456.A67 1619P00456	£2.80	£3.36
14 - BALL BEARING BSD-1619P00455.A4 1619P00455	£3.72	£4.47
16 - BRUSH HOLDER BSD-1619P02845.A0 1619P02845	£2.80	£3.36
16/21 - SPIRAL SPRING BSD-1619P02809.A0 1619P02809	£1.75	£2.10
18 - COMPRESSION SPRING BSD-1604611031.A69 1604611031	£2.80	£3.36
22 - ADJUSTING SLIDE BSD-1619P02811.A32 1619P02811	£1.75	£2.10
23 - SWITCH BUTTON BSD-1619P09290.A23 1619P09290	-
24 - BRUSH-COVER BSD-1619P02828.A1 1619P02828	£1.75	£2.10
25 - HOUSING COVER BSD-1619P10072.A5 1619P10072	£3.72	£4.47
26 - INTERMEDIATE RING BSD-1600502023.A135 1600502023	£2.16	£2.59
27 - RUBBER RING BSD-1600206025.A825 1600206025	£2.16	£2.59
28/1 - BALL BEARING BSD-1619P07440.A10 1619P07440	£6.52	£7.83
28/3 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A422 2916660013	£2.16	£2.59
29 - AIR-DEFLECTOR RING BSD-1619P02818.A0 1619P02818	£1.75	£2.10
30 - AIR DISTRIBUTOR BSD-1619P02819.A21 1619P02819	£1.75	£2.10
33 - O-RING 44.0x1.0 MM BSD-1619P02820.A0 1619P02820	£1.75	£2.10
35 - SHIM 0.1 MM BSD-1619P02821.A73 1619P02821	£1.75	£2.10
35 - SHIM 0.2 MM BSD-1619P02822.A0 1619P02822	£1.75	£2.10
36 - WASHER BSD-1619P00987.A1 1619P00987	£1.75	£2.10
37 - COVER DISC BSD-1600100033.A121 1600100033	£2.61	£3.13
38 - CROWN GEAR BSD-1619P02823.A54 1619P02823	£8.67	£10.41
39 - BEVEL GEAR BSD-1619P02825.A0 1619P02825	£5.30	£6.36
45 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1514 2915011007	-
47 - SPECIAL SCREW BSD-2609110052.A135 2609110052	£1.75	£2.10
48 - TORX OVAL-HEAD SCREW 3x8 BSD-1619P02849.A0 1619P02849	£1.75	£2.10
49 - THREAD-FORMING TAP. SCREW DIN 7500. M4x10. SR10.2 BSD-1603435068.A85 1603435068	£1.75	£2.10
50 - TORX OVAL-HEAD SCREW 4x20 BSD-1619P00105.A153 1619P00105	£1.75	£2.10
55 - TORX OVAL-HEAD SCREW 4x25 BSD-1619P01066.A0 1619P01066	£1.75	£2.10
57 - TORX OVAL-HEAD SCREW 4x12 BSD-1619P02848.A46 1619P02848	£1.75	£2.10
300/10 - SAFETY COVER BSD-3600508042.A1 3600508042	£48.38	£58.06
310 - DRIVE ROLLER BSD-3600300067.A1 3600300067	£63.50	£76.20
320 - SANDING ARM BSD-3602013008.A1 3602013008	£120.11	£144.13
340 - SLEEVE BSD-3600409012.A0 3600409012	£5.30	£6.36
650 - SANDING ARM BSD-3602013009.A0 3602013009	£93.88	£112.65
651 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A1027 160202509T	£3.72	£4.47
800 - GRINDING FIXTURE BSD-3607031735.A0 3607031735	£251.67	£302.00
800/3 - SPRING BSD-3604613002.A1 3604613002	£4.26	£5.11
800/5 - ADJUSTING SCREW BSD-3603435050.A1 3603435050	£21.52	£25.83
800/13 - CLAMPING ELEMENT BSD-3600700058.A0 3600700058	£5.58	£6.70
800/14 - CLAMPING LEVER BSD-3602001008.A0 3602001008	£63.50	£76.20
802 - FIELD 220-230V BSD-1619P07239.A0 1619P07239	£21.52	£25.83
805 - POWER SUPPLY CORD EU 2.6m 2 x 1.0 mm BSD-1607000385.A113 1607000385	£14.91	£17.89
808 - NAMEPLATE BSD-160111A4EA.A0 160111A4EA	£27.23	£32.68
810 - CARBON-BRUSH SET BSD-1619P02870.A1 1619P02870	£8.67	£10.41
820 - SLIP COATING BSD-3607031736.A1 3607031736	£5.58	£6.70
828 - BEARING FLANGE BSD-3607031748.A0 3607031748	£54.42	£65.30
831 - GEAR HOUSING BSD-1619P02872.A24 1619P02872	£16.41	£19.69
832 - GRINDING SPINDLE BSD-1607000D6A.A145 1607000D6A	£7.36	£8.83
840 - PUSH-BUTTON BSD-1619P02873.A1 1619P02873	£2.16	£2.59
841 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A850 1600910018	£5.30	£6.36
858 - OVAL-HEAD SCREW DIN7985-M3.5x5-4.8-H BSD-2910641081.A44 2910641081	-
860 - SPEED GOVERNOR BSD-1619P07277.A4 1619P07277	£27.23	£32.68
880 - SEALING DISK BSD-3600150021.A218 3600150021	£3.80	£4.56
