Bosch GBL 620 / 3601J805F0 / EU 230 Volt Spare Parts

Bosch GBL 620 / 3601J805F0 / EU 230 Volt Spare Parts

Home Details Reviews Delivery

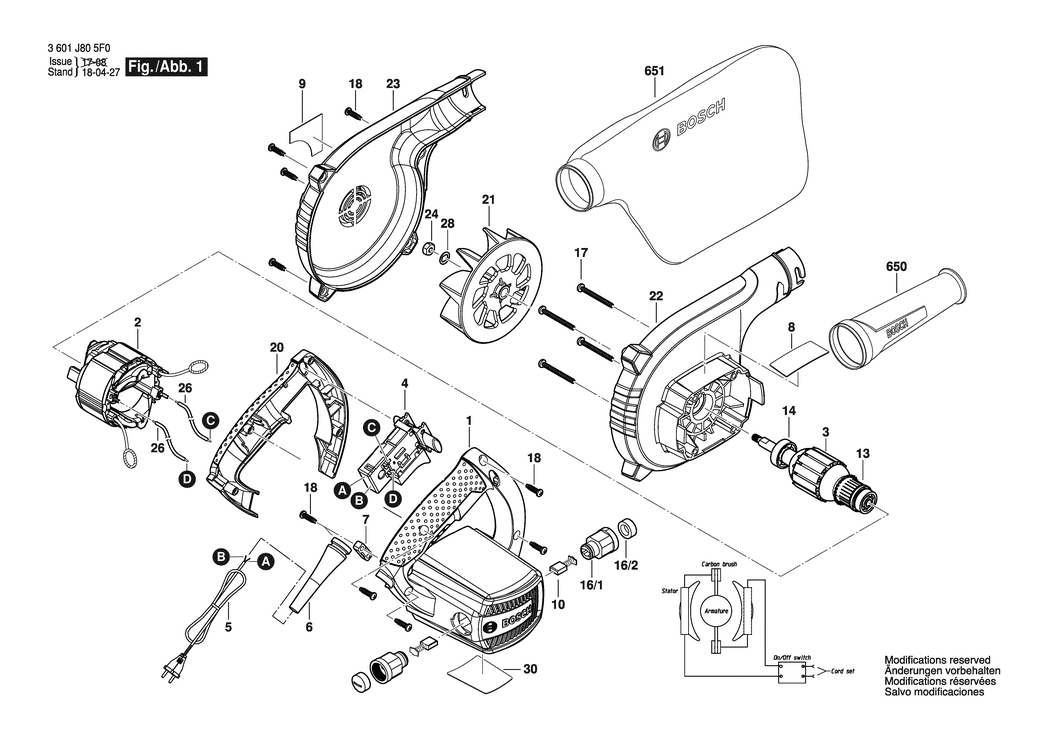

An exploded drawing and listing for the Bosch GBL 620 / 3601J805F0 / EU 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-160510829C.A0 160510829C	-
2 - FIELD BSD-160422056J.A0 160422056J	-
3 - ARMATURE BSD-1604010B92.A0 1604010B92	-
4 - ON-OFF SWITCH BSD-2607200637.A6 2607200637	£5.87	£7.04
5 - POWER SUPPLY CORD BSD-160446075F.A0 160446075F	-
6 - GROMMET dia6.4-dia7.2x76 MM BSD-2600703017.A691 2600703017	£2.61	£3.13
7 - CABLE CLIP BSD-2601035001.A891 2601035001	£1.75	£2.10
8 - NAMEPLATE BSD-160111A5BY.A0 160111A5BY	-
9 - LABEL GBL 620 BSD-160111C2A4.A0 160111C2A4	-
10 - CARBON BRUSH BSD-1604321129.A1 1604321129	£8.67	£10.41
13 - BALL BEARING 7x22x7 BSD-1900905018.A941 1900905018	£18.96	£22.75
14 - BALL BEARING 9x26x8 BSD-1900905025.A195 1900905025	£21.52	£25.83
16/1 - BRUSH HOLDER BSD-1600A00187.A0 1600A00187	£5.30	£6.36
16/2 - BRUSH HOLDER BSD-1600A00188.A0 1600A00188	-
17 - SCREW 4x40MM BSD-2914201712.A0 2914201712	-
18 - SCREW BSD-F002G31025.A1 F002G31025	£1.75	£2.10
20 - HANDLE BSD-160513215A.A0 160513215A	-
21 - FAN BSD-160661016T.A0 160661016T	-
22 - FAN HOUSING BSD-1600A0145B.A0 1600A0145B	-
23 - FAN COVER BSD-1600A0015P.A1 1600A0015P	£8.67	£10.41
24 - HEX NUT M6 BSD-1613300006.A111 1613300006	£1.32	£1.58
26 - CONNECTING CABLE BSD-1604413007.A1 1604413007	£1.75	£2.10
28 - COVER DISC BSD-1600100036.A1 1600100036	£1.75	£2.10
30 - WARNING PLATE BSD-1601118N89.A0 1601118N89	-
650 - NOZZLE BSD-1605190265.A0 1605190265	£11.30	£13.56
651 - DUST BAG BSD-1605411034.A1 1605411034	£13.12	£15.75
