Bosch BACMC 10.8 V LI / 3601H58B00 / EU 10.8 Volt Spare Parts

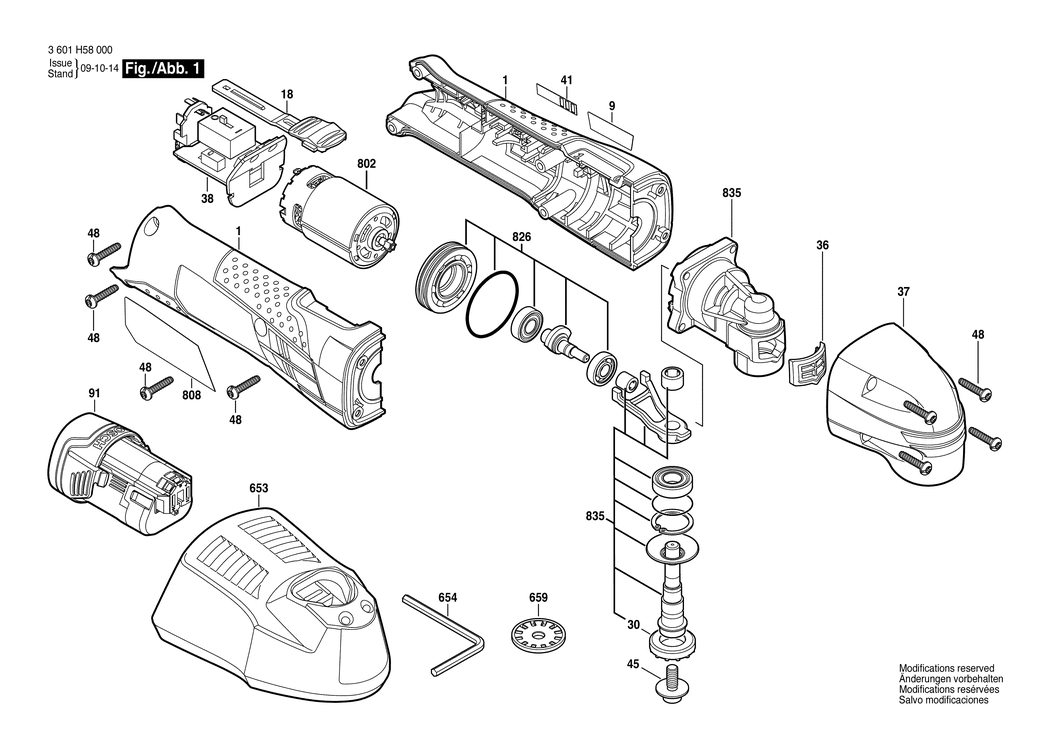

An exploded drawing and listing for the Bosch BACMC 10.8 V LI / 3601H58B00 / EU 10.8 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609100812.A0 2609100812	£21.52	£25.83
9 - NAMEPLATE BACMC 10.8 V LI BSD-2609132348.A0 2609132348	£2.33	£2.80
18 - SWITCH SLIDE BSD-2609100814.A0 2609100814	£2.16	£2.59
30 - TOOLHOLDER BSD-2609110769.A11 2609110769	£10.10	£12.12
36 - SEALING CAP BSD-2609170083.A3 2609170083	£1.75	£2.10
37 - CAP BSD-2609100651.A5 2609100651	£8.67	£10.41
38 - ELECTRONICS MODULE BSD-1607233456.A0 1607233456	£70.24	£84.29
41 - LABEL BSD-2609131677.A8 2609131677	£2.61	£3.13
45 - HEX SOCKET HEAD CAP SCREW BSD-2609000295.A8 2609000295	£2.62	£3.14
48 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1378 2603490023	£1.75	£2.10
91 - BATTERY PACK 10.8V 1.3Ah. Li BSD-2607336669.A3 2607336669	£58.76	£70.51
91 - BATTERY PACK 10.8V 2.0 Ah BACP 10.8 V LII BSD-2607336979.A4 2607336979	£58.76	£70.51
653 - FAST CHARGER BERNER EU 230/10.8V. 30 MIN. BSD-2607225295.A6 2607225295	£51.22	£61.47
654 - KEY BSD-2609110831.A7 2609110831	£3.72	£4.47
659 - ADAPTER BSD-2609110788.A1 2609110788	£13.12	£15.75
802 - DC MOTOR BSD-2609199180.A4 2609199180	£40.80	£48.96
808 - TYPE LABEL BSD-2609132352.A0 2609132352	£2.61	£3.13
826 - BEARING FLANGE BSD-2609199185.A5 2609199185	£40.80	£48.96
835 - GEAR UNIT BSD-2609199186.A0 2609199186	£54.42	£65.30
