Bosch ASG 3 / 0603920003 / EU 3.6 Volt Spare Parts

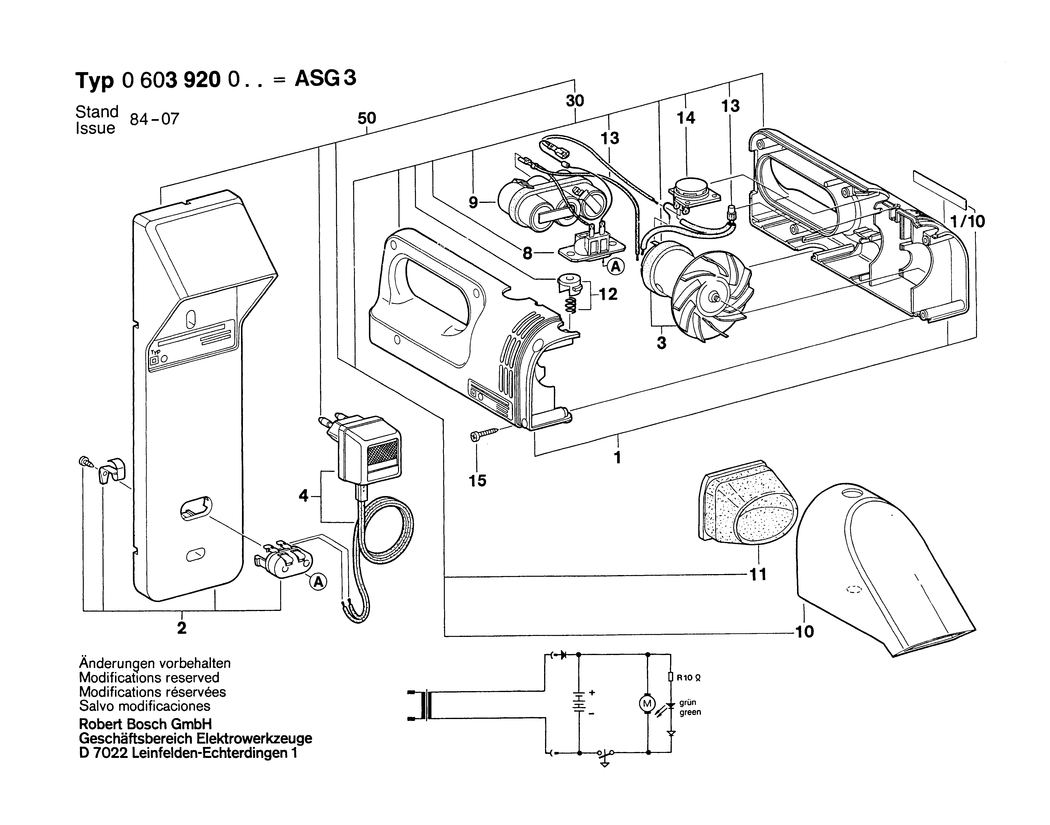

An exploded drawing and listing for the Bosch ASG 3 / 0603920003 / EU 3.6 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1609201423.A1 1609201423	-
1/10 - REFERENCE PLATE BSD-1601110298.A1 1601110298	-
2 - MOUNTING PIECE BSD-1609201434.A0 1609201434	-
3 - DC MOTOR 3.6V BSD-1609201425.A0 1609201425	-
4 - BATTERY CHARGER EU 220/3.6V BSD-1607224010.A0 1607224010	-
8 - SOCKET-OUTLET UNIT BSD-1609201427.A0 1609201427	-
9 - BATTERY SET BSD-1609201430.A1 1609201430	-
10 - SUCTION NOZZLE BSD-1609201431.A0 1609201431	-
11 - DUST BAG BSD-1609201398.A1 1609201398	-
12 - PUSH-BUTTON BSD-1609201424.A0 1609201424	-
13 - CONNECTING CABLE BSD-1609201426.A1 1609201426	-
14 - ON-OFF SWITCH BSD-1609201432.A1 1609201432	-
15 - TAPPING SCREW BSD-1609201567.A1 1609201567	-
50 - BATTERY VACUUM CLEANER 3.6V BSD-0603920003.A0 0603920003	-
