Bosch ALS 25 / 3600HA1030 / CH 230 Volt Spare Parts

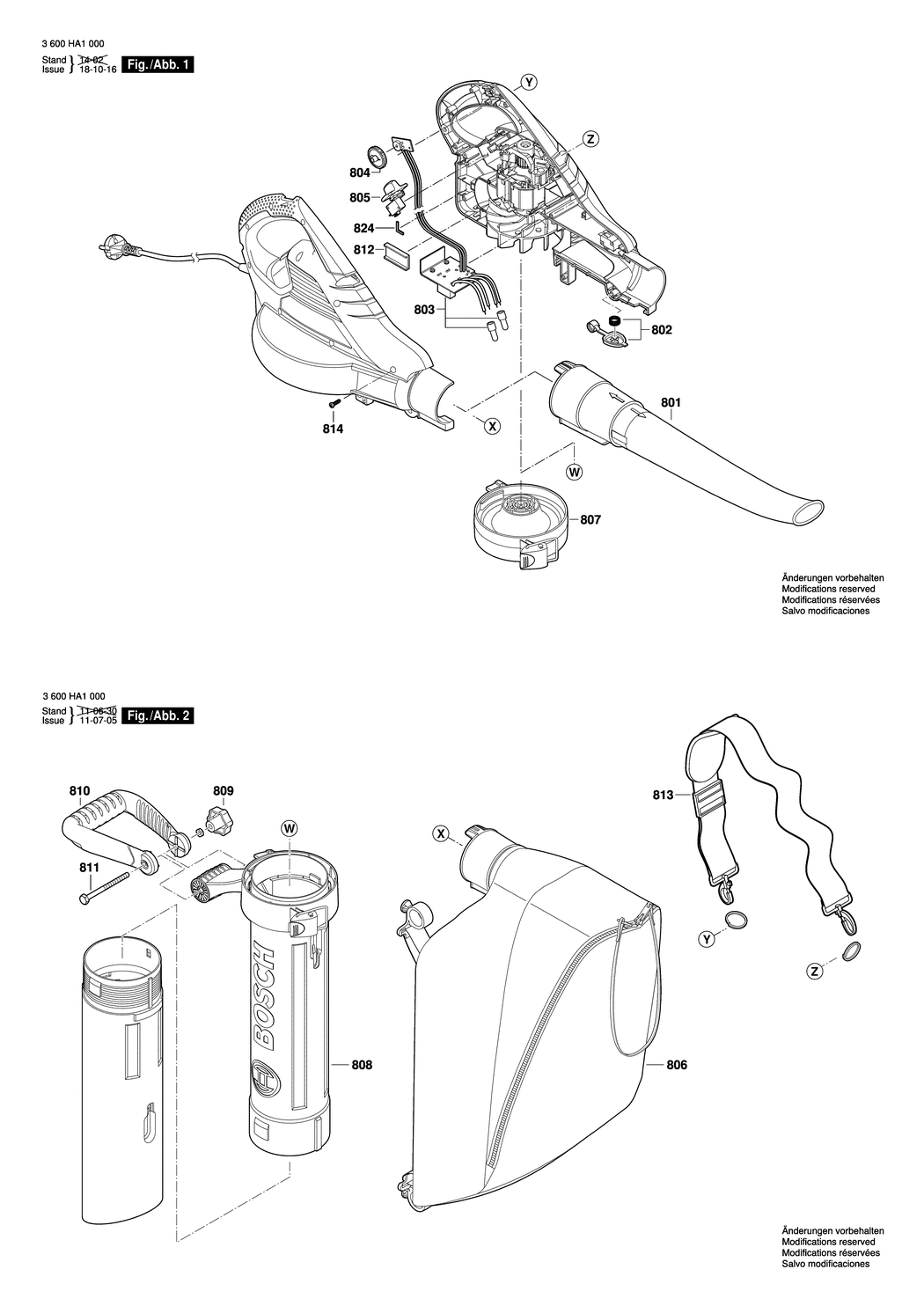

An exploded drawing and listing for the Bosch ALS 25 / 3600HA1030 / CH 230 Volt

	Ex VAT	Inc VAT
801 - BLOWER TUBE BSD-F016F04202.A11 F016F04202	£21.52	£25.83
802 - BUTTON BSD-F016F04180.A10 F016F04180	£2.80	£3.36
803 - ELECTRONICS MODULE BSD-F016F04890.A5 F016F04890	£21.68	£26.01
804 - ADJUSTMENT KNOB BSD-F016F04203.A3 F016F04203	£1.95	£2.34
805 - SWITCH BSD-F016F04181.A3 F016F04181	£11.30	£13.56
806 - COLLECTION BAG BSD-F016F04200.A11 F016F04200	£45.67	£54.80
807 - SAFETY GUARD BSD-F016F04204.A4 F016F04204	-
808 - SUCTION PIPE BSD-F016F04201.A2 F016F04201	-
809 - WING NUT BSD-F016L71118.A55 F016L71118	£2.80	£3.36
810 - SET OF HANDLES BSD-F016L71116.A56 F016L71116	£8.67	£10.41
811 - BOLT BSD-F016L71117.A5 F016L71117	-
812 - RING BSD-F016F04205.A3 F016F04205	£1.95	£2.34
813 - SHOULDER STRAP BSD-F016F04199.A2 F016F04199	£12.04	£14.45
814 - SCREW BSD-F016F04198.A13 F016F04198	£1.75	£2.10
824 - PAD BSD-F016L72917.A7 F016L72917	£1.75	£2.10

Attribute Name	Value
Brand	Bosch
