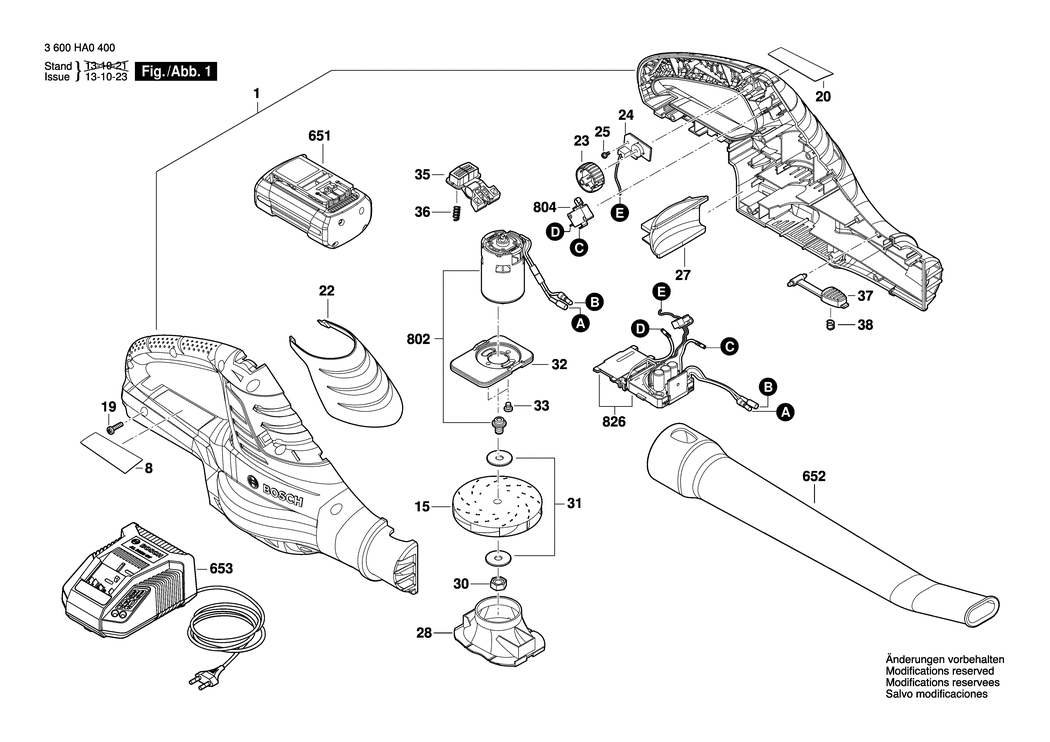

1 - MOTOR HOUSING
BSD-F016L72486.A0
F016L72486
|
£45.67
|
£54.80
|
|
|
8 - NAMEPLATE
BSD-F016L73913.A0
F016L73913
|
£2.61
|
£3.13
|
|
|
15 - FAN
BSD-F016L72490.A1
F016L72490
|
£7.36
|
£8.83
|
|
|
19 - SCREW
BSD-F016L72491.A0
F016L72491
|
£1.75
|
£2.10
|
|
|
20 - WARNING LABEL
BSD-F016L72492.A1
F016L72492
|
£2.61
|
£3.13
|
|
|
22 - COVER
BSD-F016L72493.A0
F016L72493
|
£10.10
|
£12.12
|
|
|
23 - ROLLER
BSD-F016L72494.A1
F016L72494
|
-
|
|
|
|
24 - POTENTIOMETER
BSD-F016L72495.A0
F016L72495
|
£10.10
|
£12.12
|
|
|
25 - SCREW
BSD-F016L72496.A1
F016L72496
|
£1.75
|
£2.10
|
|
|
27 - AIR PATH
BSD-F016L72497.A0
F016L72497
|
£3.72
|
£4.47
|
|
|
28 - AIR-DEFLECTOR RING
BSD-F016L72498.A1
F016L72498
|
£4.26
|
£5.11
|
|
|
30 - NUT
BSD-F016L72500.A0
F016L72500
|
£1.75
|
£2.10
|
|
|
31 - WASHER
BSD-F016L72501.A1
F016L72501
|
£1.75
|
£2.10
|
|
|
32 - HOLDER
BSD-F016L72502.A0
F016L72502
|
£5.30
|
£6.36
|
|
|
33 - SCREW
BSD-F016L72503.A1
F016L72503
|
£1.75
|
£2.10
|
|
|
35 - RELEASE LEVER
BSD-F016L72505.A0
F016L72505
|
£2.16
|
£2.59
|
|
|
36 - COMPRESSION SPRING
BSD-F016L72506.A1
F016L72506
|
£1.75
|
£2.10
|
|
|
37 - BUTTON
BSD-F016L71704.A0
F016L71704
|
£1.75
|
£2.10
|
|
|
38 - COMPRESSION SPRING
BSD-F016L71713.A1
F016L71713
|
£1.75
|
£2.10
|
|
|
651 - SLIDE-IN ACCU PACKAGE 36V 2.0 Ah Li
BSD-2607336913.A23
2607336913
|
£195.26
|
£234.31
|
|
|
652 - BLOWER TUBE
BSD-F016L72507.A1
F016L72507
|
£14.91
|
£17.89
|
|
|
653 - CHARGER EU 230V/14.4-36V
BSD-2607225657.A11
2607225657
|
£70.24
|
£84.29
|
|
|
653 - CHARGER AUS 240/10.8-36V
BSD-2607225661.A1
2607225661
|
£70.24
|
£84.29
|
|
|
653 - CHARGER GB 230/10.8-36V
BSD-2607226275.A17
2607226275
|
£59.53
|
£71.44
|
|
|
802 - MOTOR ASSEMBLY
BSD-F016F04384.A0
F016F04384
|
£72.18
|
£86.62
|
|
|
804 - SWITCH
BSD-F016F04387.A0
F016F04387
|
£13.12
|
£15.75
|
|
|
826 - PRINTED-BOARD ASSEMBLY
BSD-F016F04385.A1
F016F04385
|
£120.11
|
£144.13
|
|
