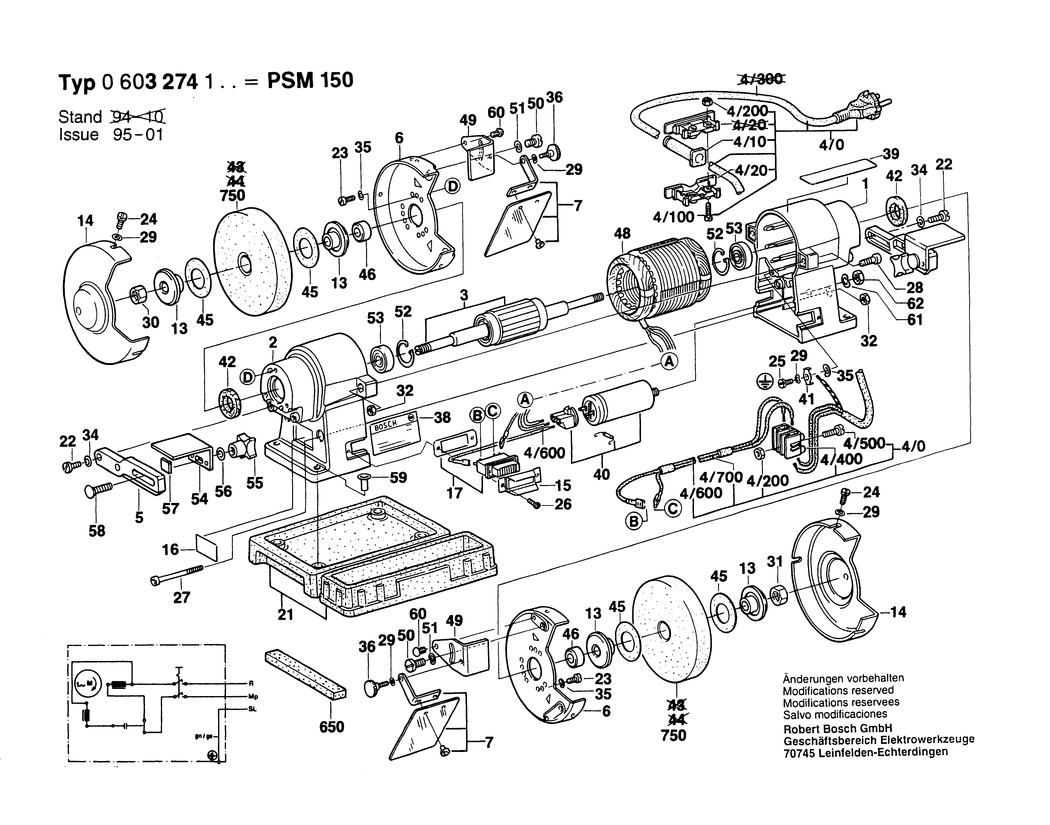

1 - HOUSING HALF
BSD-1609201439.A2
1609201439
|
-
|
|
|
|
2 - HOUSING HALF
BSD-1609201440.A5
1609201440
|
-
|
|
|
|
3 - ROTOR WITHOUT WINDING
BSD-1609201441.A2
1609201441
|
-
|
|
|
|
4 - CABLE
BSD-1609201477.A1
1609201477
|
-
|
|
|
|
4/10 - GROMMET dia6.4-dia7.5x75 MM
BSD-1600703016.A260
1600703016
|
£1.75
|
£2.10
|
|
|
4/100 - SOCKET HEAD CAP SCREW DIN 84-AM3x12-8.8
BSD-2910021054.A36
2910021054
|
£1.75
|
£2.10
|
|
|
4/200 - HEX NUT DIN 934-M 3-m-8
BSD-2915011003.A0
2915011003
|
£1.75
|
£2.10
|
|
|
4/400 - SLEEVE TERMINAL
BSD-1609201562.A2
1609201562
|
-
|
|
|
|
4/500 - SOCKET HEAD CAP SCREW DIN 84-AM3X14-5.8
BSD-2910011058.A4
2910011058
|
-
|
|
|
|
4/600 - CONNECTING CABLE
BSD-1609201563.A5
1609201563
|
-
|
|
|
|
4/700 - CONNECTING CABLE
BSD-1609201564.A2
1609201564
|
-
|
|
|
|
5 - SECURING STRIP
BSD-1609201753.A2
1609201753
|
-
|
|
|
|
6 - PROTECTIVE COVER dia 150 MM
BSD-1609201754.A1
1609201754
|
-
|
|
|
|
7 - COVER DISC
BSD-1609201445.A6
1609201445
|
-
|
|
|
|
13 - CLAMPING FLANGE
BSD-1609201755.A2
1609201755
|
-
|
|
|
|
14 - PROTECTIVE COVER dia 150 MM
BSD-1609201756.A1
1609201756
|
-
|
|
|
|
15 - HOLDING PLATE
BSD-1609201449.A5
1609201449
|
-
|
|
|
|
16 - NAMEPLATE
BSD-1601107019.A0
1601107019
|
-
|
|
|
|
17 - ON-OFF SWITCH
BSD-1609201452.A4
1609201452
|
-
|
|
|
|
21 - BASE PLATE
BSD-1609201652.A1
1609201652
|
-
|
|
|
|
22 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8
BSD-2910011157.A126
2910011157
|
-
|
|
|
|
23 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A701
2910021122
|
£2.16
|
£2.59
|
|
|
24 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1467
2910021118
|
£1.75
|
£2.10
|
|
|
25 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-CuZn
BSD-2910034118.A7
2910034118
|
-
|
|
|
|
26 - SOCKET HEAD CAP SCREW DIN 84-AM3x8-8.8
BSD-2910021050.A295
2910021050
|
£1.75
|
£2.10
|
|
|
27 - HEX SOCKET HEAD CAP SCREW
BSD-1617000121.A35
1617000121
|
-
|
|
|
|
28 - HEX SOCKET HEAD CAP SCREW DIN 912-M5X16-8.8
BSD-2910141158.A11
2910141158
|
£1.75
|
£2.10
|
|
|
29 - SPRING WASHER DIN 137-A 4-ST
BSD-2916060005.A176
2916060005
|
£1.75
|
£2.10
|
|
|
30 - HEX NUT DIN 934-M12
BSD-1609201457.A5
1609201457
|
-
|
|
|
|
31 - HEX NUT DIN 934-M12-m-8
BSD-2915011011.A4
2915011011
|
-
|
|
|
|
32 - HEX NUT DIN 934-M 5-m-8
BSD-2915011006.A17
2915011006
|
-
|
|
|
|
34 - SPRING WASHER DIN 137-A5-FST
BSD-2916060006.A46
2916060006
|
£1.32
|
£1.58
|
|
|
35 - SPRING WASHER DIN 137-A 4-ST
BSD-2916060005.A177
2916060005
|
£1.75
|
£2.10
|
|
|
36 - KNURLED THUMBSCREW M 4x6 DIN 464-5.8
BSD-2912501116.A7
2912501116
|
-
|
|
|
|
38 - STICKER
BSD-1601110382.A2
1601110382
|
-
|
|
|
|
39 - REFERENCE PLATE
BSD-1601110299.A2
1601110299
|
-
|
|
|
|
40 - MOTOR CAPACITOR
BSD-1609202554.A7
1609202554
|
-
|
|
|
|
41 - EARTH TERMINAL
BSD-1609202381.A5
1609202381
|
-
|
|
|
|
42 - FELT WASHER
BSD-1609201458.A2
1609201458
|
-
|
|
|
|
45 - CONICAL SPRING WASHER
BSD-1609201758.A1
1609201758
|
-
|
|
|
|
46 - SPACER BUSHING
BSD-1609201759.A2
1609201759
|
-
|
|
|
|
48 - POLE SHOE 220-240V
BSD-1609201456.A3
1609201456
|
-
|
|
|
|
49 - PROTECTING ANGLE
BSD-1609201455.A4
1609201455
|
-
|
|
|
|
50 - PAN HEAD SCREW DIN 85-AM6x8-4.8
BSD-2910095189.A0
2910095189
|
-
|
|
|
|
51 - SPRING WASHER DIN 137-A 6-ST
BSD-2916060007.A53
2916060007
|
£1.75
|
£2.10
|
|
|
52 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A266
2916660013
|
£2.16
|
£2.59
|
|
|
53 - GROOVE BALL BEARING 12x32x10
BSD-1900905231.A41
1900905231
|
-
|
|
|
|
54 - SUPPORT PLATE
BSD-1609201760.A1
1609201760
|
-
|
|
|
|
55 - PALM GRIP M5
BSD-1603349016.A26
1603349016
|
-
|
|
|
|
56 - PLAIN WASHER DIN 433-5.3-ST
BSD-2916011011.A162
2916011011
|
£1.75
|
£2.10
|
|
|
57 - SOCKET-TERMINAL STRIP
BSD-1609201761.A2
1609201761
|
-
|
|
|
|
58 - ROUND-HEAD BOLT DIN 603-M5x20
BSD-2910281162.A24
2910281162
|
-
|
|
|
|
59 - HOLLOW RIVET
BSD-1609201762.A1
1609201762
|
-
|
|
|
|
60 - ROUND-HEAD GROOVED PIN DIN 1476-3x5-ST
BSD-2917720073.A3
2917720073
|
-
|
|
|
|
61 - SPRING WASHER DIN 6797-J8.2-FST
BSD-2916040008.A8
2916040008
|
-
|
|
|
|
62 - HEX NUT DIN 439-BM8-04
BSD-2915051107.A65
2915051107
|
£1.75
|
£2.10
|
|
|
750 - ABRASIVE PRODUCT dia 150xdia20x20 MM DIN 69 100-A46-M 5V
BSD-1609201649.A0
1609201649
|
-
|
|
|
|
751 - ABRASIVE PRODUCT dia 150x dia 20x20 MM A60 P4 V6
BSD-1609201650.A6
1609201650
|
-
|
|
|
|
752 - ABRASIVE PRODUCT dia 150xdia20x20 MM DIN 69 120-C80-JOT 6V
BSD-1609201651.A0
1609201651
|
-
|
|
|
|
753 - WHETSTONE
BSD-1607929000.A16
1607929000
|
-
|
|
|
