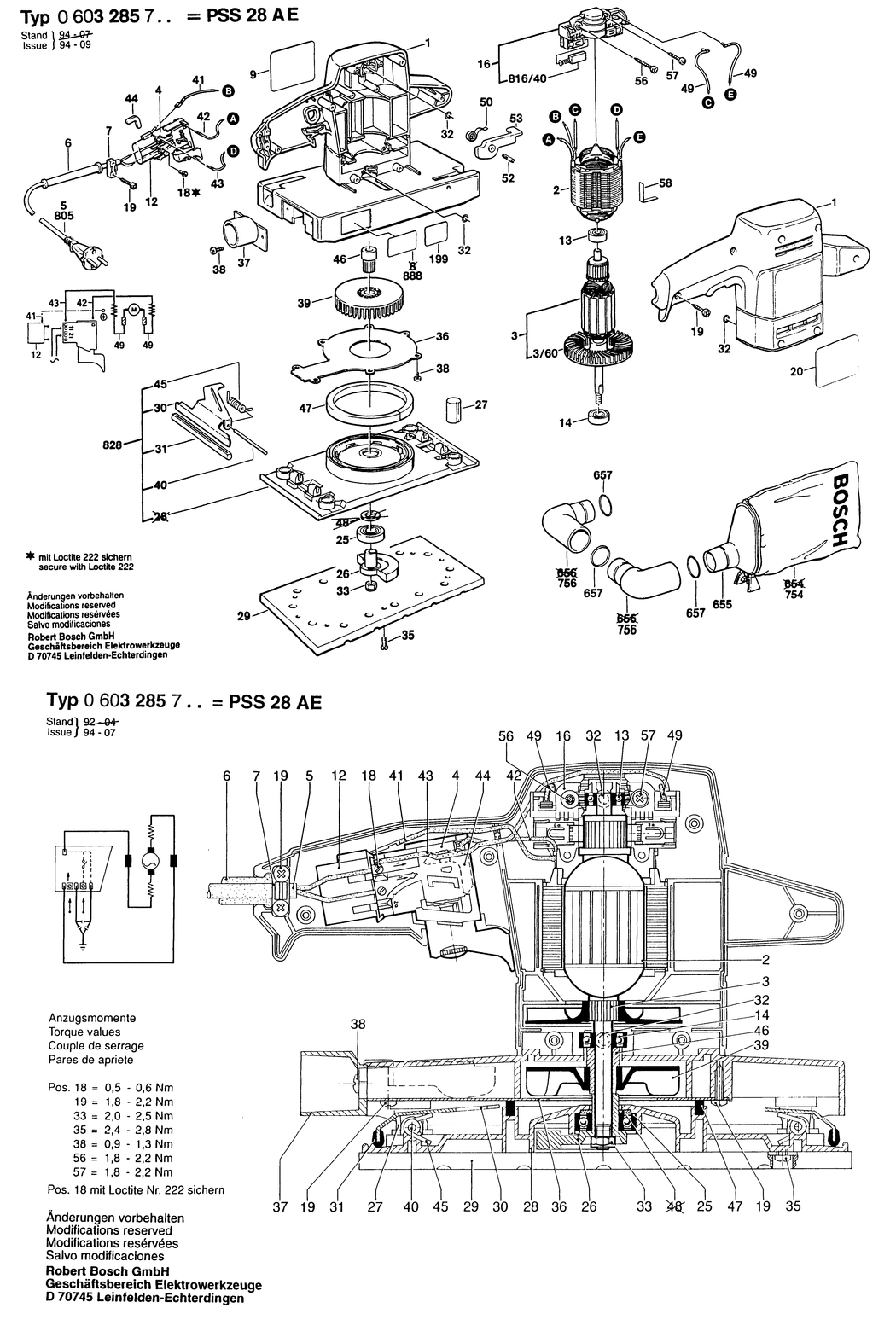

1 - MOTOR HOUSING
BSD-2605104542.A18
2605104542
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220476.A25
2604220476
|
-
|
|
|
|
3 - ARMATURE 220-240V
BSD-2604010876.A6
2604010876
|
-
|
|
|
|
3/60 - FAN
BSD-2606610062.A17
2606610062
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200358.A2
2607200358
|
-
|
|
|
|
6 - GROMMET dia7 MM
BSD-2600703007.A259
2600703007
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2705
2601035001
|
£1.84
|
£2.21
|
|
|
9 - STICKER
BSD-2601110965.A2
2601110965
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329114.A459
2607329114
|
-
|
|
|
|
13 - GROOVE BALL BEARING 7x19x6
BSD-1900905044.A86
1900905044
|
£7.72
|
£9.27
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-1900905041.A84
1900905041
|
£13.78
|
£16.54
|
|
|
16 - BRUSH PLATE
BSD-2609992604.A56
2609992604
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2020
2603410001
|
£1.84
|
£2.21
|
|
|
19 - SCREW 4x16
BSD-2603490022.A2592
2603490022
|
£1.84
|
£2.21
|
|
|
20 - CONTACT SPRING
BSD-2601110966.A1
2601110966
|
-
|
|
|
|
25 - GROOVE BALL BEARING 12x28x8
BSD-2600905045.A3
2600905045
|
£17.22
|
£20.67
|
|
|
26 - ECCENTRIC DISC
BSD-2600499024.A2
2600499024
|
-
|
|
|
|
27 - ROUND RUBBER
BSD-2603100050.A5
2603100050
|
-
|
|
|
|
29 - CLOSING PLATE
BSD-2608000103.A5
2608000103
|
-
|
|
|
|
30 - TENSIONING LEVER
BSD-2601923007.A6
2601923007
|
£3.99
|
£4.79
|
|
|
31 - PRESSURE BAR
BSD-2601099030.A4
2601099030
|
-
|
|
|
|
32 - O-RING 5.0x1.5 MM
BSD-1900210000.A33
1900210000
|
£1.84
|
£2.21
|
|
|
33 - HEX NUT DIN 985-M6-8
BSD-2603300013.A12
2603300013
|
-
|
|
|
|
35 - THREAD-FORMING TAP. SCREW M4x8
BSD-2603410048.A139
2603410048
|
£1.84
|
£2.21
|
|
|
36 - SHEET METAL COVER
BSD-2600034004.A1
2600034004
|
-
|
|
|
|
37 - FITTING
BSD-2605702018.A18
2605702018
|
-
|
|
|
|
38 - TORX OVAL-HEAD SCREW 4x8
BSD-2603490020.A75
2603490020
|
£1.84
|
£2.21
|
|
|
39 - FAN
BSD-2606610026.A31
2606610026
|
-
|
|
|
|
40 - STRAIGHT PIN
BSD-2603201085.A7
2603201085
|
£1.84
|
£2.21
|
|
|
41 - EARTH CONDUCTOR
BSD-2604448097.A20
2604448097
|
£1.84
|
£2.21
|
|
|
42 - CABLE L=98 MM
BSD-2604448045.A256
2604448045
|
-
|
|
|
|
43 - CABLE L=249 MM
BSD-2604448057.A66
2604448057
|
£1.38
|
£1.66
|
|
|
44 - DAMPING PLATE
BSD-2601022000.A60
2601022000
|
£1.75
|
£2.10
|
|
|
45 - COILED SPRING
BSD-2604651008.A4
2604651008
|
-
|
|
|
|
46 - SPACER SLEEVE
BSD-2600320018.A6
2600320018
|
-
|
|
|
|
47 - FELT STRIP
BSD-2601005014.A6
2601005014
|
-
|
|
|
|
49 - CONNECTING CABLE L=115 MM
BSD-2604448109.A54
2604448109
|
£1.84
|
£2.21
|
|
|
50 - SPIRAL SPRING
BSD-1604652004.A107
1604652004
|
£2.74
|
£3.29
|
|
|
51 - SLEEVE
BSD-2600202006.A3
2600202006
|
-
|
|
|
|
52 - SPLIT PIN
BSD-2604681001.A30
2604681001
|
-
|
|
|
|
53 - CONTROL LEVER
BSD-2602010000.A0
2602010000
|
-
|
|
|
|
54 - CYLINDRICAL ROLLER
BSD-2603200022.A3
2603200022
|
-
|
|
|
|
56 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A956
2603490024
|
£1.84
|
£2.21
|
|
|
57 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A285
2603490023
|
£1.84
|
£2.21
|
|
|
58 - CONTACT SPRING
BSD-2601329057.A176
2601329057
|
-
|
|
|
|
199 - STICKER
BSD-1601110265.A283
1601110265
|
-
|
|
|
|
655 - FITTING
BSD-2605702009.A21
2605702009
|
£2.80
|
£3.36
|
|
|
657 - O-RING 20.0x1.5 MM
BSD-1610210075.A48
1610210075
|
£2.74
|
£3.29
|
|
|
706 - PUNCHING TOOL
BSD-2608190017.A3
2608190017
|
£14.92
|
£17.90
|
|
|
753 - SANDER PLATE
BSD-2608000106.A3
2608000106
|
-
|
|
|
|
753 - CLOSING PLATE
BSD-2608000107.A8
2608000107
|
-
|
|
|
|
754 - DUST BAG
BSD-2605411009.A43
2605411009
|
£12.24
|
£14.69
|
|
|
756 - ELBOW
BSD-2605702019.A0
2605702019
|
-
|
|
|
|
805 - POWER SUPPLY CORD EU 2.65m 2 x 1.0mm H05 RN-F
BSD-1607000388.A235
1607000388
|
£12.04
|
£14.45
|
|
|
816/40 - CARBON-BRUSH SET
BSD-2604321905.A170
2604321905
|
£11.87
|
£14.24
|
|
|
816/50 - COMPRESSION SPRING
BSD-2604610026.A95
2604610026
|
£2.61
|
£3.13
|
|
|
816/60 - RATCHET CAP
BSD-2601322013.A375
2601322013
|
£1.84
|
£2.21
|
|
|
816/60 - RATCHET CAP
BSD-2601329051.A108
2601329051
|
£2.33
|
£2.80
|
|
|
828 - SWING-PLATE
BSD-2608000916.A3
2608000916
|
£51.22
|
£61.47
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A3405
160111A3H3
|
£2.74
|
£3.29
|
|
