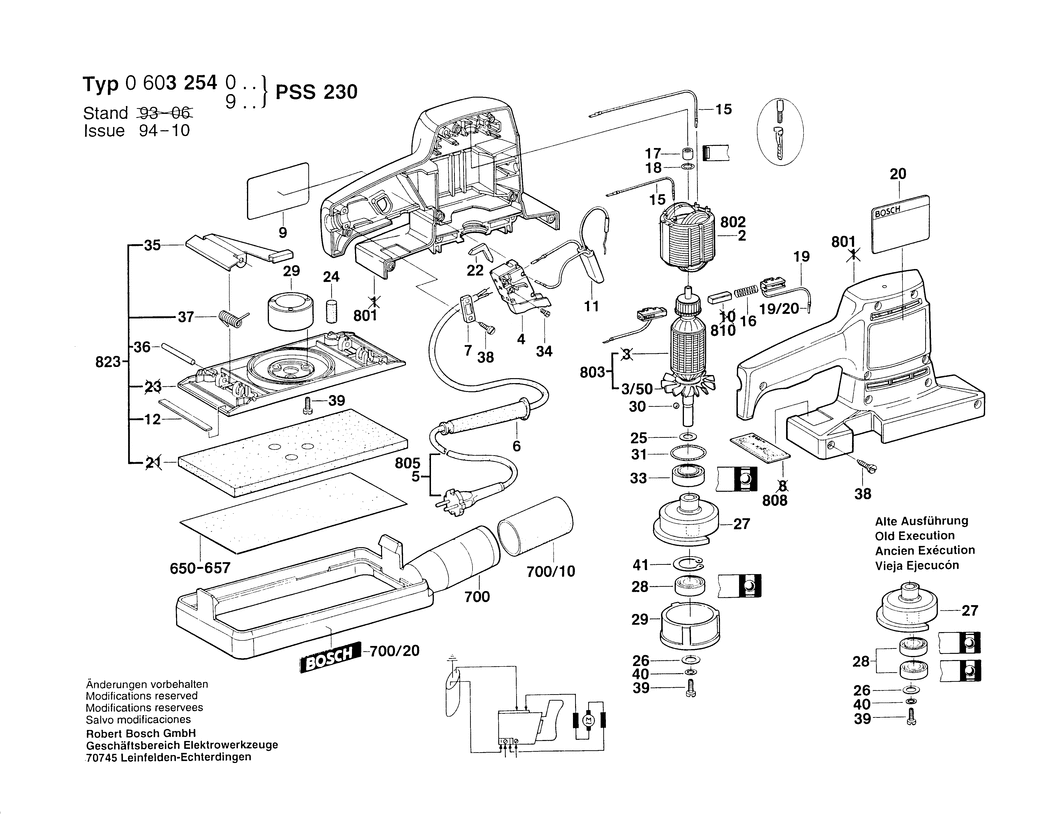

2 - FIELD 220-230V
BSD-1604220149.A16
1604220149
|
-
|
|
|
|
3/50 - FAN
BSD-2606610027.A120
2606610027
|
£2.80
|
£3.36
|
|
|
4 - SWITCH
BSD-2607200084.A91
2607200084
|
£10.10
|
£12.12
|
|
|
4 - SWITCH
BSD-2607200260.A365
2607200260
|
£11.87
|
£14.24
|
|
|
5 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05VV-F
BSD-2604460125.A44
2604460125
|
£8.49
|
£10.19
|
|
|
6 - GROMMET dia7 MM
BSD-2600703007.A312
2600703007
|
-
|
|
|
|
6 - GROMMET dia9.5 MM
BSD-2600703006.A52
2600703006
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2149
2601035001
|
£1.84
|
£2.21
|
|
|
11 - SUPPRESSION FILTER
BSD-1607328028.A287
1607328028
|
£5.57
|
£6.68
|
|
|
12 - PRESSURE BAR
BSD-2605510008.A23
2605510008
|
-
|
|
|
|
15 - CONNECTING CABLE L=184 MM
BSD-2604448001.A13
2604448001
|
£2.05
|
£2.46
|
|
|
16 - COMPRESSION SPRING
BSD-2604610009.A19
2604610009
|
-
|
|
|
|
17 - NEEDLE BEARING
BSD-2600910005.A53
2600910005
|
-
|
|
|
|
18 - O-RING 8.0x2.5 MM
BSD-1610210014.A183
1610210014
|
-
|
|
|
|
19 - CARB BRUSH HOLD W-SUPR
BSD-2604465081.A37
2604465081
|
-
|
|
|
|
20 - STICKER
BSD-2601110981.A4
2601110981
|
-
|
|
|
|
22 - DAMPING PLATE
BSD-2601022000.A290
2601022000
|
£1.75
|
£2.10
|
|
|
24 - ROUND RUBBER dia 11.3x23.5 MM
BSD-1603101018.A34
1603101018
|
-
|
|
|
|
25 - PLAIN WASHER DIN 315-M8-GT-C
BSD-2600100041.A164
2600100041
|
£1.84
|
£2.21
|
|
|
26 - PLAIN WASHER
BSD-1600100020.A20
1600100020
|
-
|
|
|
|
27 - ECCENTRIC DISC
BSD-2602210009.A17
2602210009
|
-
|
|
|
|
28 - GROOVE BALL BEARING 12x28x8
BSD-2600905013.A60
2600905013
|
-
|
|
|
|
29 - BEARING FLANGE
BSD-2600501004.A14
2600501004
|
-
|
|
|
|
30 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A396
1903230004
|
£2.27
|
£2.72
|
|
|
31 - O-RING 28x2.5 MM
BSD-1900210128.A48
1900210128
|
£2.61
|
£3.13
|
|
|
34 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1648
2603410001
|
£1.84
|
£2.21
|
|
|
35 - CLAMPING SADDLE
BSD-1601329009.A15
1601329009
|
-
|
|
|
|
36 - STRAIGHT PIN
BSD-1603201023.A10
1603201023
|
-
|
|
|
|
37 - COMPRESSION SPRING
BSD-1604651004.A3
1604651004
|
-
|
|
|
|
38 - SCREW 4x16
BSD-2603490022.A1770
2603490022
|
£1.84
|
£2.21
|
|
|
39 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8
BSD-2910021154.A309
2910021154
|
£1.75
|
£2.10
|
|
|
40 - SPRING WASHER DIN 137-A5-FST
BSD-2916060006.A329
2916060006
|
£1.38
|
£1.66
|
|
|
41 - SPRING RETAINING RING DIN 472-28x1.2 MM
BSD-2916660011.A141
2916660011
|
£1.75
|
£2.10
|
|
|
653 - SET OF SANDING PAPERS KORN 80
BSD-1608604139.A10
1608604139
|
-
|
|
|
|
654 - SANDING SHEET KORN 120
BSD-1608604140.A3
1608604140
|
-
|
|
|
|
655 - SET OF SANDING PAPERS KORN 180
BSD-1608604141.A10
1608604141
|
-
|
|
|
|
656 - SET OF SANDING PAPERS KORN 240
BSD-1608604142.A3
1608604142
|
-
|
|
|
|
657 - SET OF SANDING PAPERS KORN 320
BSD-1608604143.A10
1608604143
|
-
|
|
|
|
801 - HOUSING SECTION
BSD-2605104997.A10
2605104997
|
-
|
|
|
|
803 - ARMATURE 220-230V
BSD-1604010228.A14
1604010228
|
-
|
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A4525
160111A3H3
|
£2.74
|
£3.29
|
|
|
810 - CARBON BRUSH
BSD-1604321900.A149
1604321900
|
-
|
|
|
|
823 - PARTS SET
BSD-1607000902.A16
1607000902
|
-
|
|
|
