Bosch PSS 150 A / 0603367185 / GB 230 Volt Spare Parts

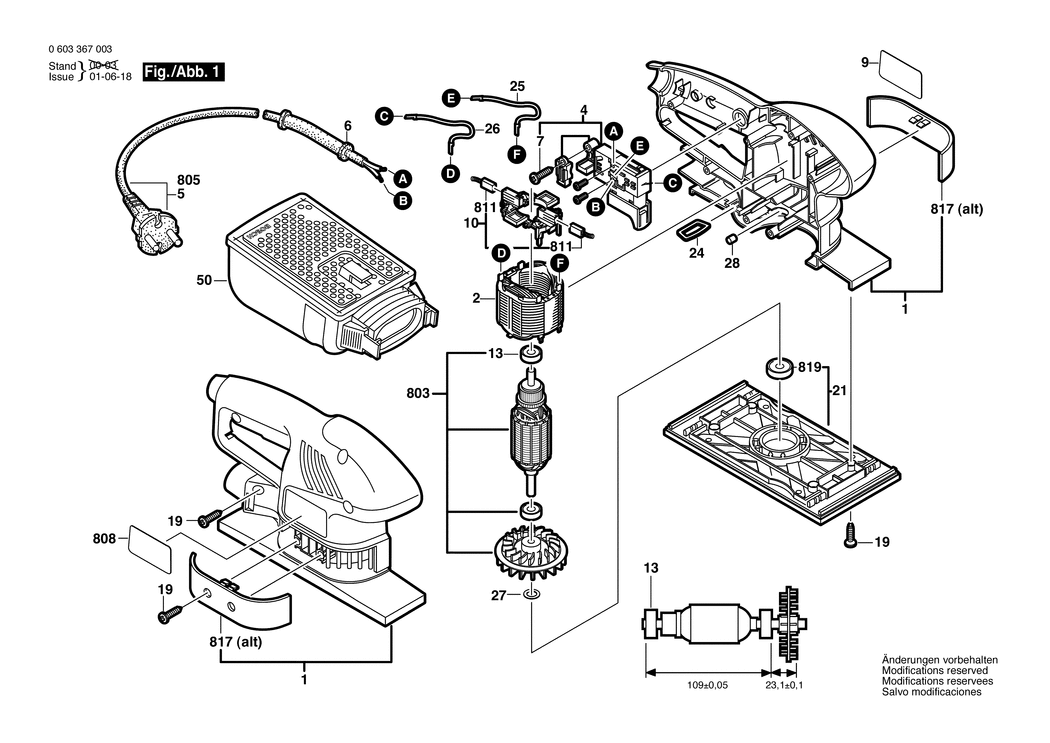

An exploded drawing and listing for the Bosch PSS 150 A / 0603367185 / GB 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104643.A7 2605104643	-
2 - FIELD 230-240V BSD-2604220673.A11 2604220673	£14.75	£17.70
4 - SWITCH BSD-2607200526.A22 2607200526	-
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F BSD-2604460243.A6 2604460243	£13.12	£15.75
6 - GROMMET BSD-2609002019.A50 2609002019	£2.74	£3.29
7 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A189 2603490017	£2.27	£2.72
9 - MANUFACTURER'S NAMEPLATE BSD-2601117530.A1 2601117530	-
10 - BRUSH PLATE BSD-2604337088.A0 2604337088	£11.87	£14.24
13 - GROOVE BALL BEARING BSD-2600905078.A74 2600905078	£6.52	£7.83
19 - SCREW 4x16 BSD-2603490022.A2500 2603490022	£1.84	£2.21
21 - SANDER PLATE BSD-2608000240.A10 2608000240	-
24 - SEAL RING BSD-2600290039.A15 2600290039	£1.84	£2.21
25 - CONNECTING CABLE L=160 MM BSD-2604448247.A5 2604448247	-
26 - CONNECTING CABLE L=63 MM BSD-3604440527.A17 3604440527	£1.75	£2.10
27 - SHIM BSD-2600105001.A15 2600105001	£1.95	£2.34
28 - RUBBER BUFFER BSD-2609000549.A20 2609000549	£1.84	£2.21
50 - DUST CONTAINER BSD-2605411121.A19 2605411121	-
803 - ARMATURE 230-240V BSD-2604010980.A1 2604010980	-
808 - NAMEPLATE BSD-2601116608.A0 2601116608	-
811 - CARBON-BRUSH SET BSD-2604321925.A104 2604321925	£9.11	£10.93
817 - COVER PANEL BSD-2605500910.A24 2605500910	£5.26	£6.31
819 - GROOVE BALL BEARING 12x28x8 BSD-2600905045.A25 2600905045	£17.22	£20.67

Attribute Name	Value
Brand	Bosch
