Bosch PSM Primo / 3603CB8070 / GB 230 Volt Spare Parts

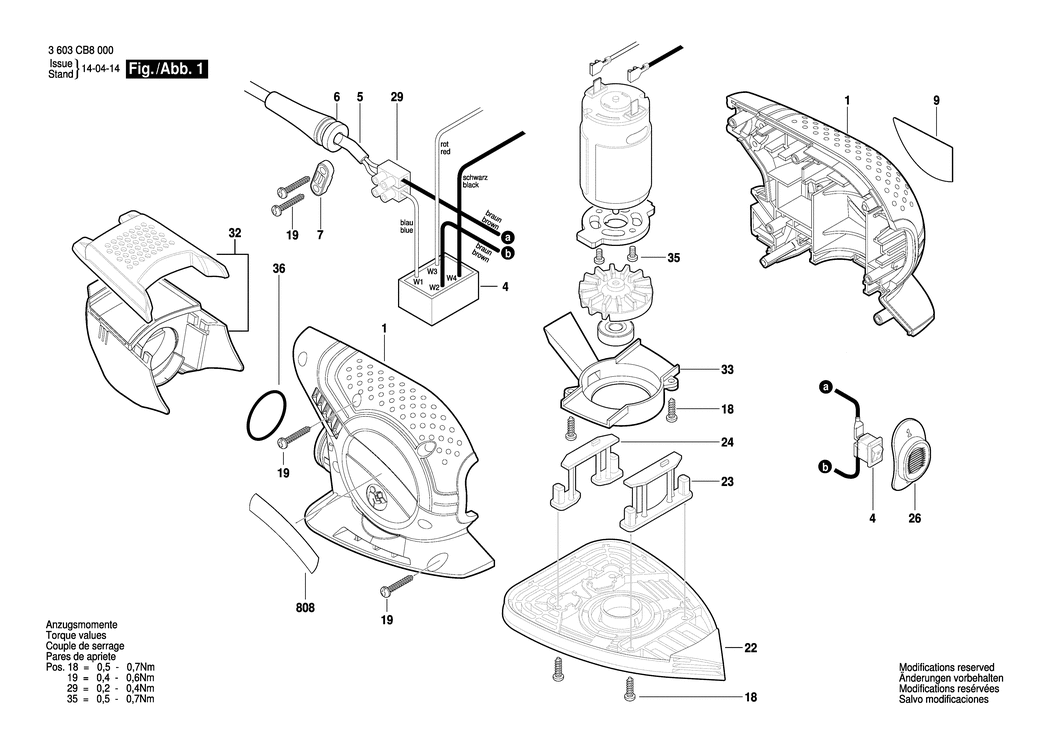

An exploded drawing and listing for the Bosch PSM Primo / 3603CB8070 / GB 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING PART BSD-2609007385.A0 2609007385	£14.91	£17.89
4 - ELECTRONIC ASSEMBLY BSD-2609007831.A0 2609007831	£16.41	£19.69
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F BSD-2604460243.A66 2604460243	£13.12	£15.75
6 - GROMMET BSD-2609007396.A1 2609007396	£1.75	£2.10
7 - CABLE CLIP BSD-2609005869.A1 2609005869	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE PSM Prismo BSD-2609007399.A0 2609007399	£2.61	£3.13
18 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A952 2603490017	£2.16	£2.59
19 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A309 2603490018	£1.75	£2.10
22 - SANDER PLATE BSD-2609007400.A1 2609007400	£11.30	£13.56
23 - OSCILLATION INSERT BSD-2609007389.A1 2609007389	£1.75	£2.10
24 - OSCILLATION INSERT BSD-2609007388.A0 2609007388	£1.75	£2.10
26 - SLIDE BUTTON BSD-2609007387.A1 2609007387	£1.75	£2.10
29 - SOCKET-TERMINAL STRIP BSD-2609000399.A1 2609000399	£1.75	£2.10
32 - DUST CONTAINER BSD-2609007390.A0 2609007390	£5.58	£6.70
33 - FAN HOUSING BSD-2609007397.A0 2609007397	£1.75	£2.10
35 - TORX SH CAP SCREW M3x5-8.8-Z BSD-2603414048.A153 2603414048	£1.75	£2.10
36 - O-RING 24.0x1.5 MM BSD-1610210013.A1 1610210013	£2.16	£2.59
808 - NAMEPLATE BSD-160111A1C3.A0 160111A1C3	£2.61	£3.13
