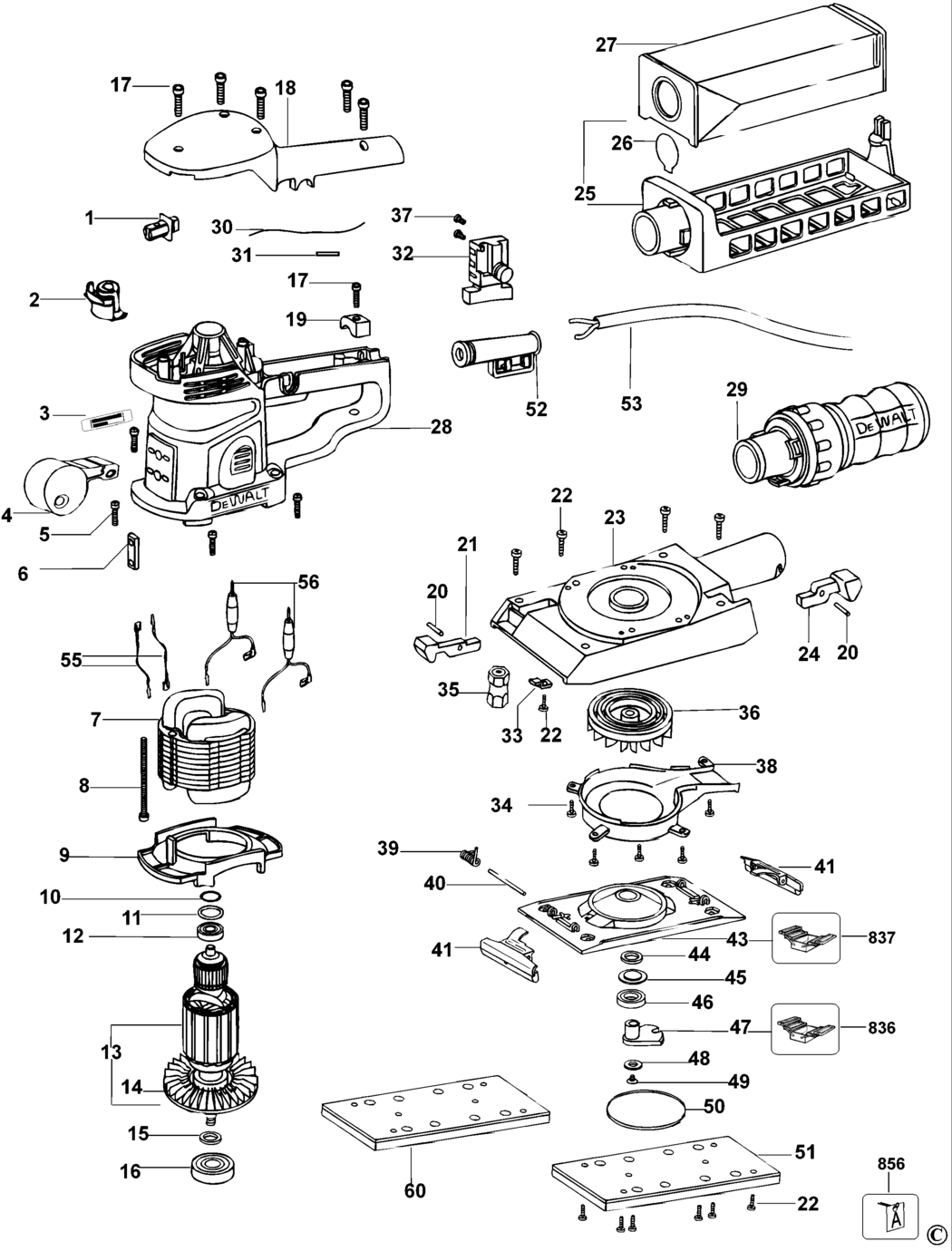

2 - INSERT
BDE-596296-00.A0
596296-00
|
£1.50
|
£1.80
|
|
|
4 - HANDLE SA
BDE-596114-00.A2
596114-00
|
£16.03
|
£19.24
|
|
|
5 - SCREW
BDE-596113-00.A1
596113-00
|
£7.85
|
£9.42
|
|
|
6 - PLATE
BDE-596115-00.A1
596115-00
|
£3.30
|
£3.96
|
|
|
8 - SCREW
BDE-596118-00.A3
596118-00
|
£3.30
|
£3.96
|
|
|
9 - BAFFLE FAN
BDE-596119-00.A1
596119-00
|
£7.18
|
£8.62
|
|
|
10 - O RING
BDE-596120-00.A3
596120-00
|
£9.41
|
£11.29
|
|
|
11 - WASHER
BDE-596121-00.A1
596121-00
|
£9.41
|
£11.29
|
|
|
12 - BEARING
BDE-596649-00.A3
596649-00
|
£19.90
|
£23.88
|
|
|
14 - FAN
BDE-596125-00.A3
596125-00
|
£10.85
|
£13.02
|
|
|
15 - WASHER
BDE-596299-00.A3
596299-00
|
£10.85
|
£13.02
|
|
|
16 - BEARING
BDE-596300-00.A0
596300-00
|
£25.70
|
£30.84
|
|
|
17 - SCREW
BDE-596101-00.A2
596101-00
|
£1.50
|
£1.80
|
|
|
18 - COVER
BDE-596102-00.A2
596102-00
|
£37.35
|
£44.82
|
|
|
19 - CORD CLAMP
BDE-596128-00.A2
596128-00
|
£3.30
|
£3.96
|
|
|
20 - PIN
BDE-596301-00.A3
596301-00
|
£1.82
|
£2.19
|
|
|
21 - LEVER
BDE-596302-00.A0
596302-00
|
£9.41
|
£11.29
|
|
|
22 - SCREW
BDE-596303-00.A3
596303-00
|
£7.85
|
£9.42
|
|
|
23 - HOUSING
BDE-596306-00.A1
596306-00
|
£115.77
|
£138.92
|
|
|
24 - LEVER
BDE-596305-00.A2
596305-00
|
£9.41
|
£11.29
|
|
|
25 - SUPPORT SA
BDE-596146-00.A2
596146-00
|
£25.70
|
£30.84
|
|
|
26 - WASHER
BDE-596287-00.A3
596287-00
|
£7.85
|
£9.42
|
|
|
27 - DUSTBAG
BDE-596286-00.A1
596286-00
|
£14.19
|
£17.03
|
|
|
28 - HOUSING MOTOR
BDE-596108-00.A3
596108-00
|
£58.69
|
£70.43
|
|
|
29 - DUST BAG SA
BDE-583319-00.A1
583319-00
|
£25.70
|
£30.84
|
|
|
30 - WIRE
BDE-596308-00.A1
596308-00
|
£3.30
|
£3.96
|
|
|
31 - SLEEVE INSULATING
BDE-596309-00.A0
596309-00
|
£1.50
|
£1.80
|
|
|
32 - SWITCH
BDE-596127-00.A2
596127-00
|
£30.08
|
£36.10
|
|
|
33 - CLAMP
BDE-596311-00.A1
596311-00
|
£1.50
|
£1.80
|
|
|
34 - SCREW
BDE-596312-00.A2
596312-00
|
£1.50
|
£1.80
|
|
|
35 - SUPPORT
BDE-596313-00.A1
596313-00
|
£18.91
|
£22.69
|
|
|
36 - FAN
BDE-596314-00.A2
596314-00
|
£7.18
|
£8.62
|
|
|
37 - SCREW
BDE-596126-00.A1
596126-00
|
£3.30
|
£3.96
|
|
|
38 - COVERPLATE
BDE-596316-00.A1
596316-00
|
£7.85
|
£9.42
|
|
|
39 - SPRING
BDE-596317-00.A2
596317-00
|
£1.50
|
£1.80
|
|
|
40 - ROD
BDE-596318-00.A1
596318-00
|
£1.82
|
£2.19
|
|
|
41 - CLAMP SA
BDE-596319-00.A2
596319-00
|
£7.85
|
£9.42
|
|
|
43 - BASEPLATE
BDE-596333-00.A0
596333-00
|
£44.14
|
£52.97
|
|
|
44 - FELT SEAL
BDE-596321-00.A3
596321-00
|
£9.41
|
£11.29
|
|
|
45 - WASHER. CUP
BDE-596322-00.A0
596322-00
|
£9.41
|
£11.29
|
|
|
46 - BEARING
BDE-596323-00.A3
596323-00
|
£25.70
|
£30.84
|
|
|
47 - COUNTERWEIGHT
BDE-596334-00.A1
596334-00
|
£19.90
|
£23.88
|
|
|
48 - WASHER
BDE-596325-00.A3
596325-00
|
£1.50
|
£1.80
|
|
|
49 - SCREW
BDE-596326-00.A0
596326-00
|
£7.85
|
£9.42
|
|
|
50 - SEAL
BDE-596327-00.A3
596327-00
|
£7.85
|
£9.42
|
|
|
51 - SANDING PLATE
BDE-596335-00.A0
596335-00
|
£55.30
|
£66.36
|
|
|
52 - CORD PROTECTOR
BDE-596329-00.A3
596329-00
|
£2.78
|
£3.34
|
|
|
55 - CABLE SA
BDE-596330-00.A0
596330-00
|
£3.30
|
£3.96
|
|
|
56 - CHOKE SA
BDE-596155-00.A4
596155-00
|
£3.80
|
£4.56
|
|
|
60 - PAD VELCRO
BDE-596342-00.A0
596342-00
|
£65.52
|
£78.62
|
|
|
836 - S.T.LOCKING TOOL
BDE-559646-99.A2
559646-99
|
£125.16
|
£150.19
|
|
|
837 - S.T.BASE REMOVAL TOOL
BDE-559647-99.A1
559647-99
|
£99.47
|
£119.36
|
|
|
856 - PUNCH
BDE-DE2641.A0
DE2641
|
-
|
|
|
