Fein RSs 638-5 (50Hz 240V) / 72322600241 Spare Parts

Fein RSs 638-5 ⡐Hz 240V) / 72322600241 Spare Parts

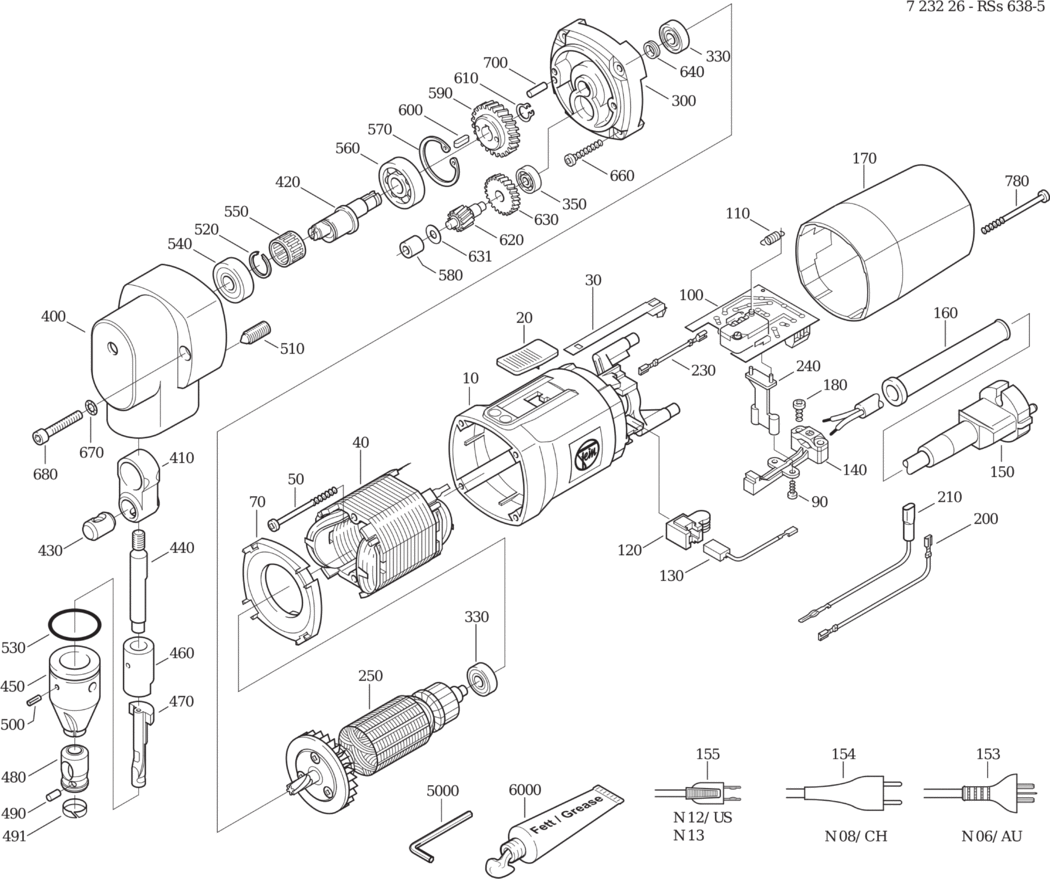

An exploded diagram and spare parts listing for the Fein RSs 638-5 (50Hz 240V) / 72322600241

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901103008.A20 31901103008	£62.53	£75.04
20 - SLIDE SWITCH FEI-32805128003.A5 32805128003	£3.42	£4.10
30 - CONTROL ROD FEI-32816040003.A9 32816040003	£2.88	£3.46
40 - STATOR FEI-51270003240.A2 51270003240	-
50 - SCREW FEI-43070004001.A44 43070004001	£1.60	£1.92
70 - AIR GUIDE RING FEI-31428075007.A21 31428075007	£4.18	£5.01
90 - SHEET METAL SCREW FEI-43046019009.A5 43046019009	-
100 - ELECTRONICS FEI-30762136008.A9 30762136008	-
110 - SPIRAL SPRING FEI-30902040004.A3 30902040004	£3.17	£3.80
120 - BRUSH HOLDER FEI-30712086011.A27 30712086011	£8.42	£10.11
130 - CARBON BRUSH (SOLD SINGLY) FEI-30711127007.A3 30711127007	£18.88	£22.65
140 - CABLE CLAMPING PIECE FEI-32431036008.A20 32431036008	£3.75	£4.50
150 - CABLE WITH PLUG FEI-30707174010.A2 30707174010	£14.58	£17.49
160 - CABLE GROMMET FEI-31413007007.A36 31413007007	£1.60	£1.92
170 - COVER FEI-31201072020.A10 31201072020	£10.81	£12.97
180 - SCREW FEI-43070001006.A80 43070001006	£1.60	£1.92
200 - CONNECTING CABLE FEI-30719339016.A0 30719339016	-
210 - CONNECTING CABLE FEI-30719340018.A18 30719340018	£1.60	£1.92
230 - CONNECTING CABLE FEI-30719448017.A1 30719448017	£2.82	£3.38
240 - HOLDER FEI-31428086009.A1 31428086009	£4.09	£4.91
250 - ARMATURE FEI-53270003242.A1 53270003242	-
300 - INTERMEDIATE GEAR BOX FEI-31506333009.A4 31506333009	£82.21	£98.65
330 - GROOVED BALL BEARING FEI-41701001172.A32 41701001172	£9.63	£11.56
350 - GROOVED BALL BEARING FEI-41701202018.A138 41701202018	£6.92	£8.30
400 - GEARBOX HOUSING FEI-31309062002.A4 31309062002	-
410 - CON ROD FEI-31309063006.A3 31309063006	-
420 - ECCENTRIC SHAFT FEI-31309064004.A4 31309064004	-
430 - BOLT FEI-31309035001.A4 31309035001	-
440 - PUNCH FEI-31309036004.A2 31309036004	£87.28	£104.73
450 - PUNCH GUIDE FEI-31309065008.A2 31309065008	-
460 - SLEEVE FEI-31309038006.A4 31309038006	-
470 - SUPPORTING PIN FEI-31309039000.A5 31309039000	£161.05	£193.26
480 - DIE FEI-31309040002.A4 31309040002	£83.53	£100.24
490 - PIN FEI-40242039000.A8 40242039000	£1.60	£1.92
491 - CIRCLIP FEI-42615105008.A6 42615105008	£7.02	£8.43
500 - PIN FEI-40203010002.A3 40203010002	-
510 - SET SCREW FEI-31309041001.A1 31309041001	-
520 - CIRCLIP FEI-42615104004.A5 42615104004	-
530 - SEALING RING FEI-31309126004.A6 31309126004	£3.61	£4.33
540 - GROOVED BALL BEARING FEI-41701207055.A6 41701207055	£21.58	£25.89
550 - NEEDLE CAGE FEI-41715043006.A6 41715043006	£25.42	£30.51
560 - GROOVED BALL BEARING FEI-41701210021.A25 41701210021	£8.89	£10.67
570 - CIRCLIP FEI-42616002008.A3 42616002008	-
580 - NEEDLE BEARING FEI-41706034001.A12 41706034001	£38.61	£46.33
590 - GEAR-WHEEL FEI-33657151008.A1 33657151008	-
600 - FEATHER KEY FEI-40221003006.A23 40221003006	£1.60	£1.92
610 - CIRCLIP FEI-42616034007.A9 42616034007	-
620 - SHAFT TOOTHED FEI-33757072009.A5 33757072009	-
630 - GEAR-WHEEL FEI-33657150009.A5 33657150009	-
631 - DISC FEI-32408185009.A37 32408185009	£2.94	£3.53
640 - SEALING RING FEI-32612056001.A3 32612056001	£2.69	£3.23
660 - SCREW FEI-43070010006.A7 43070010006	-
670 - CIRCLIP M5 FEI-42443004057.A136 42443004057	£1.60	£1.92
680 - CYLINDER HEAD SCREW FEI-43035019059.A22 43035019059	-
700 - STRAIGHT PIN FEI-40201036006.A12 40201036006	£1.60	£1.92
780 - SCREW FEI-43070004001.A46 43070004001	£1.60	£1.92
5000 - ALLEN KEY SW4 FEI-62907010000.A6 62907010000	£3.35	£4.02
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A431 32160003014	-
