Fein BLK 1.6 E (50/60Hz 220/230V) / 72323824230 Spare Parts

Fein BLK 1.6 E ⡐/60Hz 220/230V) / 72323824230 Spare Parts

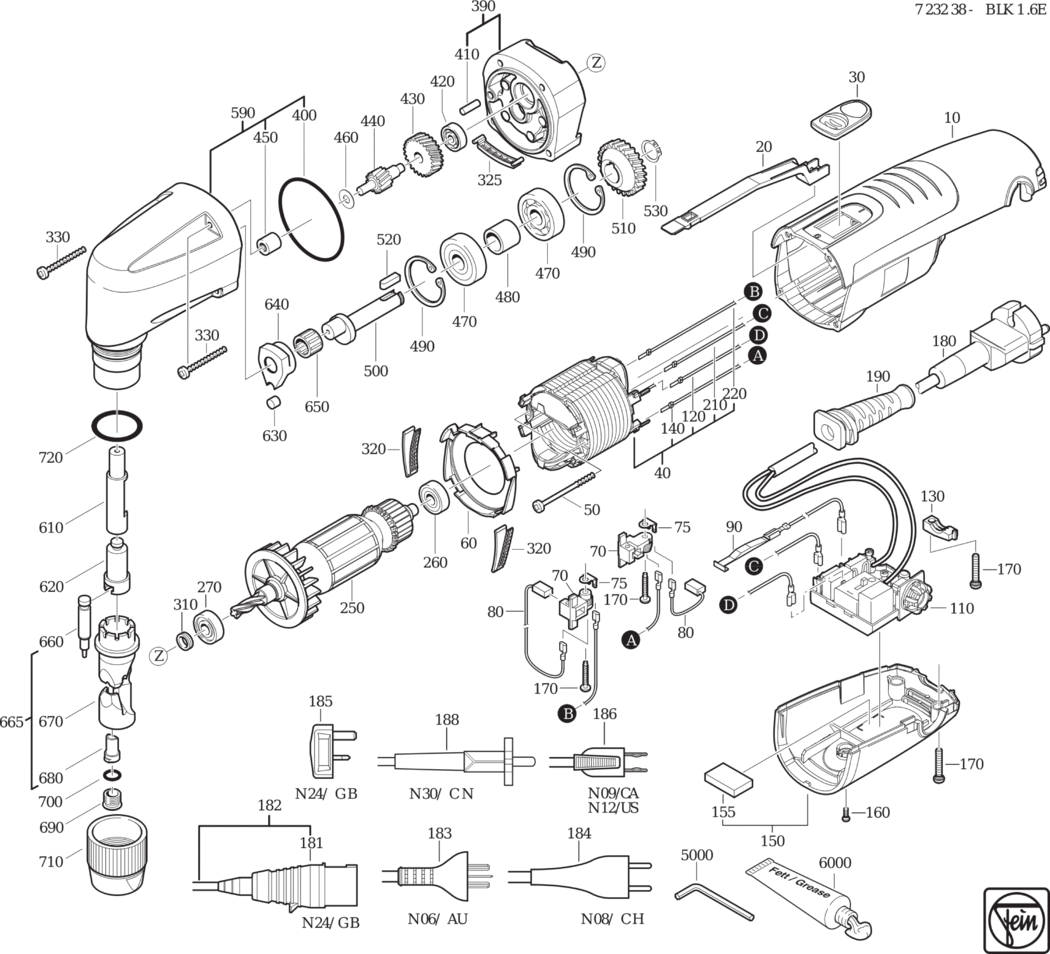

An exploded diagram and spare parts listing for the Fein BLK 1.6 E (50/60Hz 220/230V) / 72323824230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901172000.A15 31901172000	-
20 - CONTROL ROD FEI-32816066000.A49 32816066000	£9.62	£11.54
30 - SLIDE SWITCH FEI-32805226000.A39 32805226000	£2.91	£3.49
40 - STATOR FEI-51278004230.A17 51278004230	£67.46	£80.95
50 - SCREW FEI-43074005000.A21 43074005000	£1.60	£1.92
60 - AIR GUIDE RING FEI-31428161000.A2 31428161000	£4.59	£5.51
70 - BRUSH HOLDER FEI-30712087015.A73 30712087015	£7.02	£8.43
75 - CONNECTOR FEI-30717193000.A8 30717193000	£1.60	£1.92
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711156000.A9 30711156000	£6.47	£7.76
90 - CONTACT SPRING FEI-32803019010.A2 32803019010	£10.44	£12.53
110 - ELECTRONICS 100-230V 50/60HZ FEI-30762412990.A31 30762412990	£68.25	£81.90
120 - CONNECTING CABLE FEI-30719642010.A47 30719642010	£1.60	£1.92
130 - CABLE CLAMPING PIECE FEI-32431045000.A4 32431045000	£1.60	£1.92
140 - CONNECTING CABLE FEI-30719641010.A4 30719641010	£1.60	£1.92
150 - COVER FEI-32427127000.A29 32427127000	£8.25	£9.90
155 - PRESSURE PIECE FEI-31415099000.A31 31415099000	£1.60	£1.92
160 - SCREW FEI-43074003000.A25 43074003000	£1.60	£1.92
170 - SCREW 35X20 FEI-43074002000.A45 43074002000	£1.60	£1.92
185 - CABLE WITH PLUG FEI-30707380017.A7 30707380017	-
190 - PROTECTIVE HOSE FEI-31413251000.A26 31413251000	£2.41	£2.89
210 - CONNECTING CABLE FEI-30719644010.A46 30719644010	£1.60	£1.92
220 - CONNECTING CABLE FEI-30719643010.A5 30719643010	£1.60	£1.92
250 - ARMATURE Z=6 220/230V 50HZ FEI-53278004230.A9 53278004230	£110.31	£132.37
260 - GROOVED BALL BEARING FEI-41701001032.A35 41701001032	£10.89	£13.07
270 - GROOVED BALL BEARING FEI-41701007266.A65 41701007266	£10.67	£12.80
310 - SEALING RING FEI-32612125000.A12 32612125000	£2.39	£2.87
320 - PROTECTIVE GRILLE FEI-32901051000.A0 32901051000	-
325 - PROTECTIVE GRILLE FEI-32901052000.A16 32901052000	-
330 - SCREW FEI-43074015000.A17 43074015000	£1.60	£1.92
390 - FLANGE FEI-31506384010.A9 31506384010	£65.40	£78.48
400 - SEALING RING FEI-40612000000.A10 40612000000	£1.60	£1.92
410 - PIN FEI-40242006007.A11 40242006007	-
420 - GROOVED BALL BEARING FEI-41701202018.A182 41701202018	£6.92	£8.30
430 - GEAR-WHEEL FEI-33657163004.A38 33657163004	£48.54	£58.25
440 - SHAFT TOOTHED Z=15 FEI-33757079004.A10 33757079004	£58.96	£70.75
450 - NEEDLE BEARING FEI-41706034001.A3 41706034001	£38.61	£46.33
460 - DISC FEI-32408185009.A57 32408185009	£2.94	£3.53
470 - GROOVED BALL BEARING FEI-41701010032.A41 41701010032	£13.90	£16.68
480 - SLEEVE FEI-30501342007.A2 30501342007	£4.00	£4.80
490 - CIRCLIP FEI-42616027009.A27 42616027009	£1.60	£1.92
500 - ECCENTRIC SHAFT FEI-33405045007.A2 33405045007	£93.68	£112.41
510 - GEAR-WHEEL FEI-33657168001.A3 33657168001	£58.67	£70.40
520 - FEATHER KEY FEI-40223016005.A9 40223016005	£1.60	£1.92
530 - CIRCLIP FEI-42616006007.A35 42616006007	£1.60	£1.92
590 - GEARBOX HOUSING FEI-31508278130.A16 31508278130	£210.25	£252.30
610 - PLUNGER FEI-30109146005.A1 30109146005	£121.99	£146.39
620 - HOLDER FEI-30109147009.A34 30109147009	£57.58	£69.09
630 - ROLLER FEI-41709001008.A28 41709001008	£11.78	£14.13
640 - CON ROD FEI-32305016008.A2 32305016008	£93.12	£111.75
650 - NEEDLE CAGE FEI-41715049007.A1 41715049007	£17.50	£21.00
660 - PUNCH FEI-63602048004.A2 63602048004	£33.39	£40.07
665 - PUNCHES AND DIES FEI-63602048013.A5 63602048013	£97.38	£116.86
670 - DIE HOLDER FEI-30109154007.A3 30109154007	£166.66	£199.99
680 - DIE FEI-30109141003.A6 30109141003	£83.14	£99.77
690 - SCREW FEI-43013050000.A2 43013050000	£14.00	£16.80
700 - SEALING RING FEI-40612040003.A3 40612040003	£1.60	£1.92
710 - NUT FEI-42015064005.A29 42015064005	£28.94	£34.73
720 - SEALING RING FEI-40612041002.A9 40612041002	£3.50	£4.20
5000 - ALLEN KEY SW6 FEI-62907004005.A1 62907004005	£3.35	£4.02
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003083.A47 32160003083	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A147 34130054061	-
