Fein BLK 1.6 (50/60Hz 220/230V) / 72323200235 Spare Parts

Fein BLK 1.6 ⡐/60Hz 220/230V) / 72323200235 Spare Parts

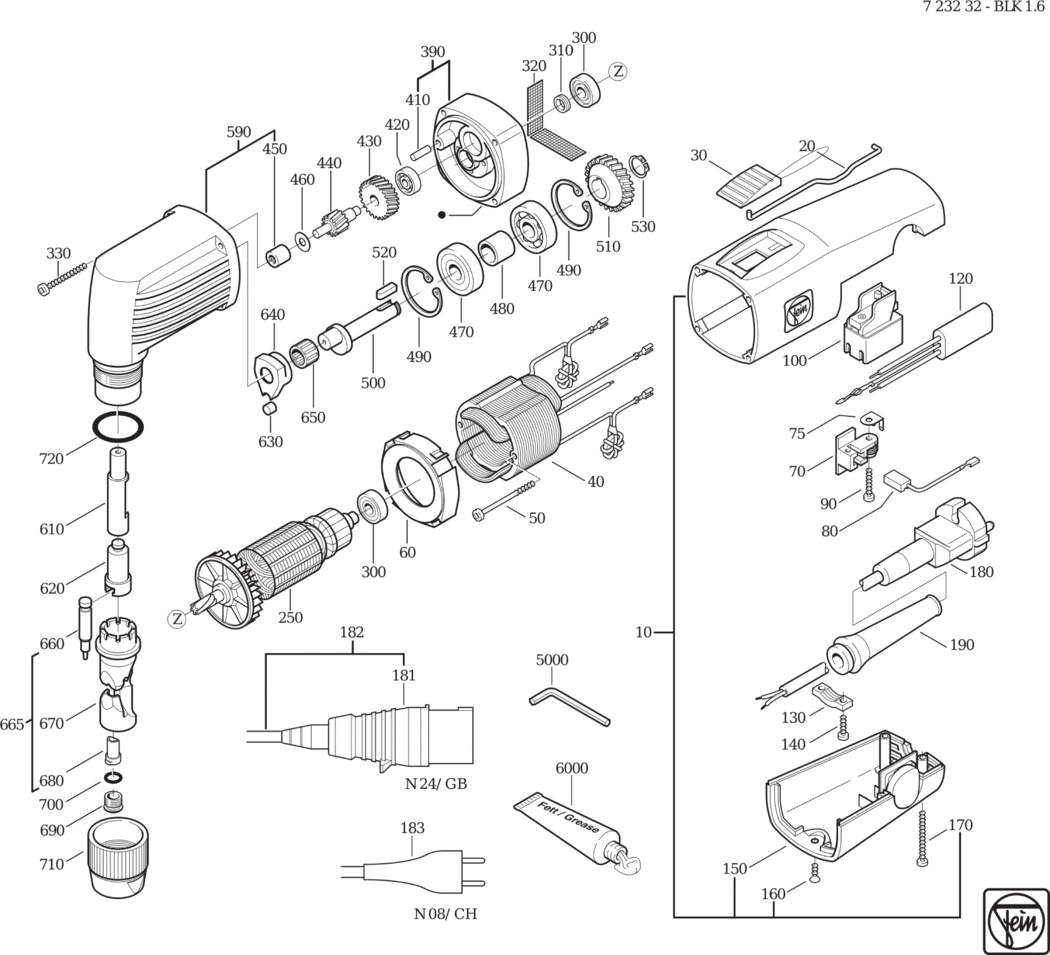

An exploded diagram and spare parts listing for the Fein BLK 1.6 (50/60Hz 220/230V) / 72323200235

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901109024.A8 31901109024	£39.47	£47.36
20 - CONTROL ROD FEI-32816051001.A40 32816051001	£9.34	£11.21
30 - SLIDE SWITCH FEI-32805152009.A39 32805152009	£2.91	£3.49
40 - STATOR FEI-51272004235.A2 51272004235	-
50 - SCREW FEI-43070014000.A31 43070014000	£1.60	£1.92
60 - AIR GUIDE RING FEI-31428114008.A38 31428114008	£3.01	£3.61
70 - BRUSH HOLDER FEI-30712087015.A91 30712087015	£7.02	£8.43
75 - CONNECTOR FEI-30717193000.A15 30717193000	£1.60	£1.92
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711129009.A13 30711129009	£6.73	£8.08
90 - SCREW FEI-43070015004.A35 43070015004	£1.60	£1.92
100 - SWITCH FEI-30701060000.A51 30701060000	£22.32	£26.78
120 - CAPACITOR FEI-30722178016.A25 30722178016	£10.08	£12.10
130 - CABLE CLAMPING PIECE FEI-32431026009.A102 32431026009	£1.60	£1.92
140 - SCREW FEI-43070001006.A82 43070001006	£1.60	£1.92
150 - COVER FEI-32427108016.A29 32427108016	£14.08	£16.90
160 - SCREW FEI-43070036005.A12 43070036005	£1.60	£1.92
170 - SCREW FEI-43070016007.A8 43070016007	£1.60	£1.92
180 - CABLE WITH PLUG FEI-30707373014.A22 30707373014	£19.11	£22.93
190 - CABLE GROMMET FEI-31413164009.A9 31413164009	£2.59	£3.11
250 - ARMATURE 50HZ230V FEI-53272005231.A2 53272005231	£168.29	£201.95
300 - GROOVED BALL BEARING FEI-41701001257.A13 41701001257	£11.35	£13.62
310 - SEALING RING FEI-32612125000.A17 32612125000	£2.39	£2.87
320 - PROTECTIVE GRILLE FEI-32901047000.A11 32901047000	£3.04	£3.65
330 - SCREW FEI-43070024009.A9 43070024009	-
390 - INTERMEDIATE GEAR BOX FEI-31506349018.A10 31506349018	-
410 - PIN FEI-40242006007.A25 40242006007	-
420 - GROOVED BALL BEARING FEI-41701202018.A142 41701202018	£6.92	£8.30
430 - GEAR-WHEEL FEI-33657163004.A27 33657163004	£48.54	£58.25
440 - SHAFT TOOTHED Z=15 FEI-33757079004.A4 33757079004	£58.96	£70.75
450 - NEEDLE BEARING FEI-41706034001.A18 41706034001	£38.61	£46.33
460 - DISC FEI-32408185009.A44 32408185009	£2.94	£3.53
470 - GROOVED BALL BEARING FEI-41701010032.A50 41701010032	£13.90	£16.68
480 - SLEEVE FEI-30501342007.A13 30501342007	£4.00	£4.80
490 - CIRCLIP FEI-42616027009.A37 42616027009	£1.60	£1.92
500 - ECCENTRIC SHAFT FEI-33405045007.A12 33405045007	£93.68	£112.41
510 - GEAR-WHEEL FEI-33657168001.A0 33657168001	£58.67	£70.40
520 - FEATHER KEY FEI-40223016005.A2 40223016005	£1.60	£1.92
530 - CIRCLIP FEI-42616006007.A14 42616006007	£1.60	£1.92
590 - GEARBOX HOUSING FEI-31508244017.A3 31508244017	£242.78	£291.34
610 - PLUNGER FEI-30109146005.A10 30109146005	£121.99	£146.39
620 - HOLDER FEI-30109147009.A25 30109147009	£57.58	£69.09
630 - ROLLER FEI-41709001008.A35 41709001008	£11.78	£14.13
640 - CON ROD FEI-32305016008.A13 32305016008	£93.12	£111.75
650 - NEEDLE CAGE FEI-41715049007.A9 41715049007	£17.50	£21.00
660 - PUNCH FEI-63602048004.A0 63602048004	£33.39	£40.07
665 - PUNCHES AND DIES FEI-63602048013.A7 63602048013	£97.38	£116.86
670 - DIE HOLDER FEI-30109154007.A7 30109154007	£166.66	£199.99
680 - DIE FEI-30109141003.A3 30109141003	£83.14	£99.77
690 - SCREW FEI-43013050000.A0 43013050000	£14.00	£16.80
700 - SEALING RING FEI-40612040003.A7 40612040003	£1.60	£1.92
710 - NUT FEI-42015064005.A25 42015064005	£28.94	£34.73
720 - SEALING RING FEI-40612041002.A0 40612041002	£3.50	£4.20
5000 - ALLEN KEY SW6 FEI-62907004005.A13 62907004005	£3.35	£4.02
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003083.A60 32160003083	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A372 34130054061	-
