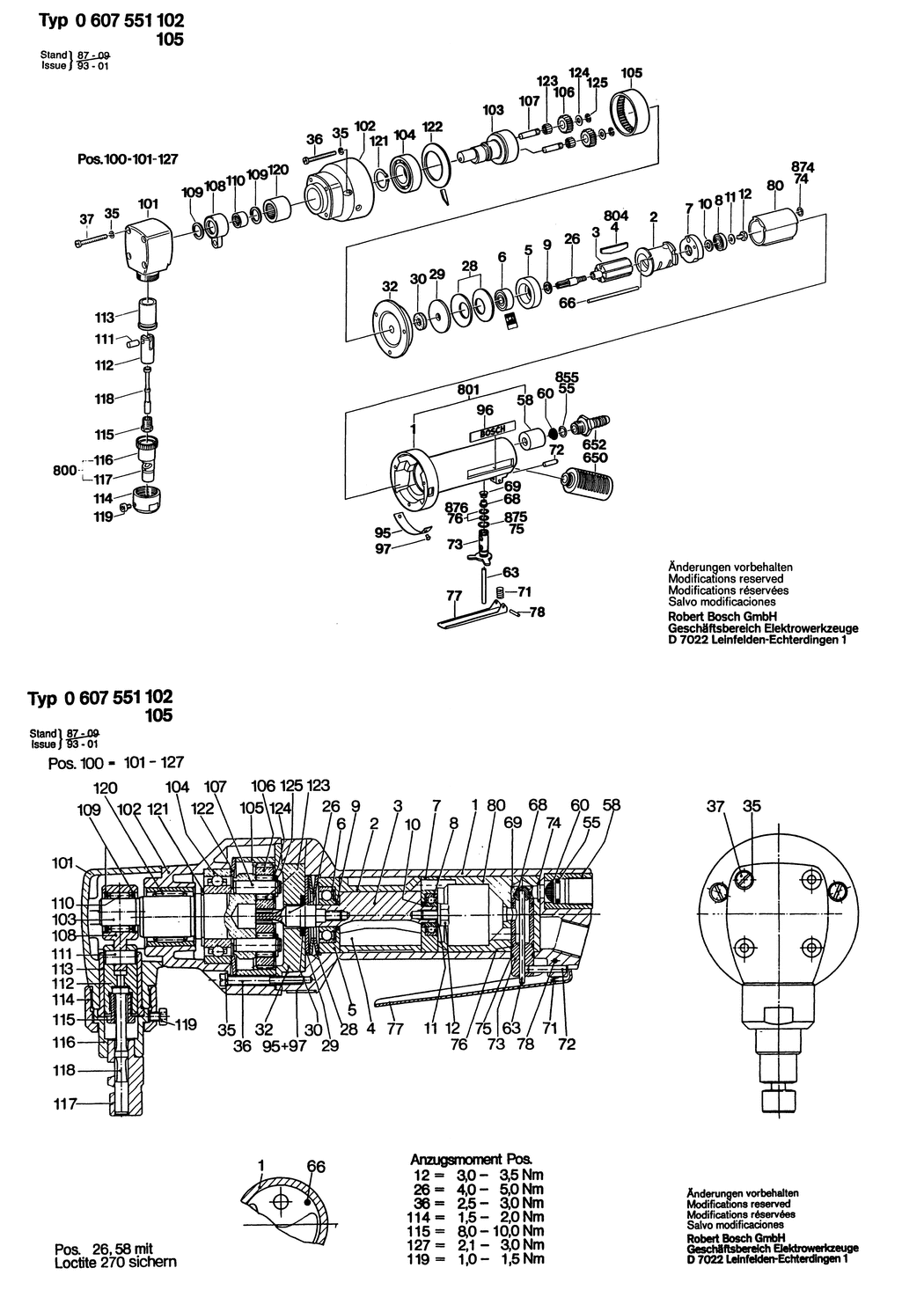

2 - STATOR 370W
BSD-3604090003.A72
3604090003
|
£93.88
|
£112.65
|
|
|
3 - ROTOR
BSD-3604220003.A31
3604220003
|
£81.81
|
£98.17
|
|
|
5 - BEARING FLANGE
BSD-3605700005.A43
3605700005
|
£54.42
|
£65.30
|
|
|
6 - GROOVE BALL BEARING 9x24x7 MM
BSD-3600905039.A254
3600905039
|
£12.04
|
£14.45
|
|
|
7 - BEARING FLANGE
BSD-3605700007.A16
3605700007
|
£63.50
|
£76.20
|
|
|
8 - BALL BEARING 7x19x6
BSD-2600905032.A1263
2600905032
|
£5.30
|
£6.36
|
|
|
9 - SPACER RING
BSD-2600202013.A41
2600202013
|
£8.67
|
£10.41
|
|
|
10 - SPACER RING
BSD-2600202014.A153
2600202014
|
£11.30
|
£13.56
|
|
|
11 - PLAIN WASHER DIN 433-5.3-ST
BSD-2916011011.A242
2916011011
|
£1.75
|
£2.10
|
|
|
12 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A136
2911061150
|
£2.61
|
£3.13
|
|
|
26 - PINION
BSD-3606300047.A2
3606300047
|
-
|
|
|
|
28 - DISC SPRING A 35.5 DIN 2093
BSD-2916160012.A2
2916160012
|
-
|
|
|
|
29 - COVER DISC
BSD-3600100004.A2
3600100004
|
-
|
|
|
|
30 - FELT DISC
BSD-1600108015.A3
1600108015
|
-
|
|
|
|
32 - THRUST RING
BSD-3600120002.A1
3600120002
|
-
|
|
|
|
35 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A586
2916690003
|
£1.75
|
£2.10
|
|
|
36 - SOCKET HEAD CAP SCREW DIN 84-AM4x35-8.8
BSD-2910021136.A22
2910021136
|
-
|
|
|
|
37 - SOCKET HEAD CAP SCREW DIN 84-BM4x40-8.8
BSD-2910021138.A0
2910021138
|
£2.61
|
£3.13
|
|
|
58 - FITTING
BSD-3603373000.A5
3603373000
|
-
|
|
|
|
60 - STRAINER
BSD-3600002000.A268
3600002000
|
£3.72
|
£4.47
|
|
|
63 - STRAIGHT PIN
BSD-3604710019.A4
3604710019
|
-
|
|
|
|
66 - STRAIGHT PIN
BSD-3604710007.A2
3604710007
|
£10.10
|
£12.12
|
|
|
68 - VALVE CONE
BSD-3603212000.A3
3603212000
|
-
|
|
|
|
69 - COMPRESSION SPRING
BSD-3604643003.A5
3604643003
|
£1.75
|
£2.10
|
|
|
71 - COMPRESSION SPRING
BSD-1604611004.A71
1604611004
|
£2.80
|
£3.36
|
|
|
72 - STRAIGHT PIN
BSD-2917550080.A3
2917550080
|
-
|
|
|
|
73 - VALVE BOTTOM
BSD-3600390009.A4
3600390009
|
-
|
|
|
|
77 - CONTROL LEVER
BSD-3601902001.A100
3601902001
|
£6.52
|
£7.83
|
|
|
78 - GROOVED PIN DIN 1475-2x18-ST
BSD-2917700040.A69
2917700040
|
£2.80
|
£3.36
|
|
|
80 - VALVE HOUSING
BSD-3605190063.A5
3605190063
|
-
|
|
|
|
95 - NAMEPLATE
BSD-160111A3H5.A258
160111A3H5
|
£2.61
|
£3.13
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A99
1601110481
|
£2.16
|
£2.59
|
|
|
97 - GROOVED NAIL
BSD-3603133000.A7
3603133000
|
£2.61
|
£3.13
|
|
|
100 - NIBBLER-HEAD
BSD-3607020028.A0
3607020028
|
-
|
|
|
|
101 - GEAR COVER
BSD-2605500042.A2
2605500042
|
£48.38
|
£58.06
|
|
|
102 - GEAR HOUSING
BSD-2605806312.A16
2605806312
|
£48.38
|
£58.06
|
|
|
103 - ECCENTRIC SHAFT
BSD-2606122001.A13
2606122001
|
£102.57
|
£123.08
|
|
|
104 - GROOVE BALL BEARING 20x42x12
BSD-1900900274.A18
1900900274
|
£27.23
|
£32.68
|
|
|
105 - RING GEAR Z=66
BSD-2606334040.A33
2606334040
|
£27.23
|
£32.68
|
|
|
106 - CYLINDRICAL GEAR Z=30
BSD-3606316057.A9
3606316057
|
£7.36
|
£8.83
|
|
|
107 - BEARING BOLT
BSD-2603105021.A20
2603105021
|
£2.61
|
£3.13
|
|
|
108 - CONNECTING ROD
BSD-2602001001.A9
2602001001
|
£54.42
|
£65.30
|
|
|
109 - RETAINING RING
BSD-2600224009.A26
2600224009
|
£1.75
|
£2.10
|
|
|
110 - NEEDLE-ROLLER CAGE
BSD-2600913035.A3
2600913035
|
£11.30
|
£13.56
|
|
|
111 - BEARING BOLT
BSD-2603100003.A31
2603100003
|
£2.61
|
£3.13
|
|
|
112 - POWER PISTON
BSD-2603104001.A1
2603104001
|
£54.42
|
£65.30
|
|
|
113 - BUSHING
BSD-2600422005.A26
2600422005
|
£18.96
|
£22.75
|
|
|
114 - UNION NUT
BSD-3603340017.A1
3603340017
|
£33.74
|
£40.49
|
|
|
115 - HOLLOW BOLT
BSD-2603455006.A1
2603455006
|
£2.80
|
£3.36
|
|
|
118 - NIBBLING PUNCH
BSD-2608639013.A3
2608639013
|
£24.49
|
£29.39
|
|
|
119 - HEX SOCKET HEAD CAP SCREW
BSD-2603414003.A21
2603414003
|
£6.52
|
£7.83
|
|
|
120 - NEEDLE BEARING
BSD-2600914011.A33
2600914011
|
£21.52
|
£25.83
|
|
|
121 - SPRING RETAINING RING DIN 471 20x1.2
BSD-2916650011.A45
2916650011
|
£2.16
|
£2.59
|
|
|
122 - DISC SPRING
BSD-2600550017.A22
2600550017
|
£5.58
|
£6.70
|
|
|
123 - NEEDLE ROLLER
BSD-1903201520.A28
1903201520
|
£1.75
|
£2.10
|
|
|
124 - SHIM 1.2 MM
BSD-1600100611.A5
1600100611
|
£1.75
|
£2.10
|
|
|
125 - LOCKING WASHER 5 DIN 6799
BSD-2916080908.A263
2916080908
|
£1.75
|
£2.10
|
|
|
650 - SILENCER
BSD-3607000074.A8
3607000074
|
£23.86
|
£28.63
|
|
|
652 - HOSE FITTING
BSD-2603386002.A127
2603386002
|
£5.30
|
£6.36
|
|
|
653 - OFFSET SCREWDRIVER DIN 911 SW2.5
BSD-1907950003.A2
1907950003
|
£2.61
|
£3.13
|
|
|
800 - LOWER DIE
BSD-2608639900.A20
2608639900
|
£83.12
|
£99.74
|
|
|
801 - MOTOR HOUSING
BSD-3605102030.A0
3605102030
|
-
|
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030248.A97
3607030248
|
£31.64
|
£37.97
|
|
|
850 - LOWER DIE
BSD-2608639902.A1
2608639902
|
£96.24
|
£115.49
|
|
|
851 - LOWER DIE
BSD-2608639021.A0
2608639021
|
£76.12
|
£91.34
|
|
|
852 - NIBBLING PUNCH
BSD-2608639022.A6
2608639022
|
£26.24
|
£31.49
|
|
|
853 - NIBBLING PUNCH
BSD-2608639016.A1
2608639016
|
£27.12
|
£32.54
|
|
|
855 - O-RING 10x2 MM
BSD-1900210306.A112
1900210306
|
£1.75
|
£2.10
|
|
|
874 - PARTS SET
BSD-3607010000.A51
3607010000
|
£5.58
|
£6.70
|
|
|
875 - PARTS SET
BSD-3607010000.A52
3607010000
|
£5.58
|
£6.70
|
|
|
876 - PARTS SET
BSD-3607010023.A4
3607010023
|
£5.58
|
£6.70
|
|
