Dewalt DCN890 Type 1 Nailer Spare Parts

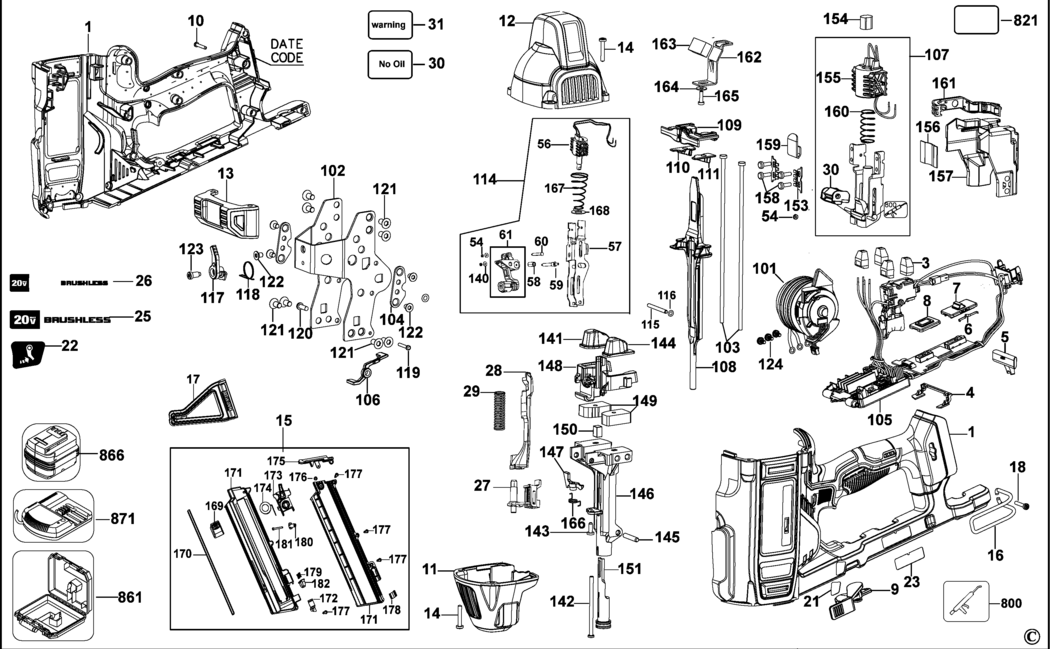

An exploded drawing and spare parts listing for the Dewalt DCN890 Type 1 Nailer

	Ex VAT	Inc VAT
1 - CLAMSHELL BDE-N534155.A0 N534155	£45.14	£54.17
3 - CONNECTOR BDE-650974-00.A9 650974-00	£1.50	£1.80
4 - LENS BDE-N447434.A0 N447434	£1.50	£1.80
5 - SWITCH LOCK OFF BDE-N039287.A7 N039287	£1.50	£1.80
6 - LEAF SPRING BDE-N014681.A30 N014681	£1.50	£1.80
7 - SELECTOR BDE-N403393.A0 N403393	£1.50	£1.80
8 - PLATE BDE-N500491.A0 N500491	£1.50	£1.80
9 - LEVER BDE-N401889.A1 N401889	£1.50	£1.80
10 - SCREW BDE-330019-24.A28 330019-24	£1.50	£1.80
11 - COVER BDE-N389136.A0 N389136	£5.88	£7.06
12 - END CAP SA BDE-N388647.A0 N388647	£18.91	£22.69
13 - STAND BDE-N454225.A0 N454225	£2.26	£2.71
14 - SCREW BDE-330019-13.A270 330019-13	£1.50	£1.80
15 - MAGAZINE SA BDE-N534148 N534148	£71.44	£85.73
16 - HOOK BDE-N412549.A0 N412549	£3.30	£3.96
17 - SUPPORT BDE-N398048 N398048	£5.88	£7.06
18 - SCREW.SPECIAL BDE-330019-52.A66 330019-52	£1.50	£1.80
21 - LABEL BDE-N475982.A0 N475982	£1.50	£1.80
22 - LABEL BDE-N475980.A1 N475980	£1.50	£1.80
23 - LABEL BDE-N475979.A0 N475979	£2.26	£2.71
25 - LABEL BDE-N475976.A1 N475976	£3.80	£4.56
26 - LABEL BDE-N475975.A0 N475975	£3.80	£4.56
27 - TRIP SA BDE-N541801.A0 N541801	£37.35	£44.82
28 - NOSE BDE-N404477.A1 N404477	£2.78	£3.34
29 - SPRING BDE-N384840.A1 N384840	£1.50	£1.80
30 - MAGNET SA BDE-N608536.A1 N608536	£9.41	£11.29
54 - GROMMET BDE-391814-00.A38 391814-00	£1.50	£1.80
56 - SOLENOID ASSEMBLY BDE-N516575.A1 N516575	£38.80	£46.56
57 - CARRIAGE BDE-N340206.A0 N340206	-
58 - SLEEVE BDE-N465069.A0 N465069	£4.69	£5.63
59 - PIN BDE-N450991.A1 N450991	-
60 - PIN BDE-N340201.A1 N340201	-
61 - SPRING SA BDE-N604230.A0 N604230	£135.36	£162.43
101 - MOTOR SA BDE-N534153.A0 N534153	£113.07	£135.68
102 - FRAME BDE-N387214.A1 N387214	£45.14	£54.17
103 - RAIL BDE-N339981.A0 N339981	£16.03	£19.24
104 - LOCATOR BDE-N463410.A0 N463410	£1.50	£1.80
105 - ELECTRONIC & SWITCH GB BDE-N750899 N750899	£209.59	£251.51
106 - LINKAGE SA BDE-N391224.A0 N391224	£1.50	£1.80
107 - RETURN DEVICE ASSEMBLY BDE-N534184.A0 N534184	£108.20	£129.84
108 - PROFILE BDE-N534154.A1 N534154	£78.12	£93.74
109 - RETAINER BDE-N339980.A1 N339980	£1.82	£2.19
110 - BUMPER BDE-N339985.A1 N339985	£1.50	£1.80
111 - BUMPER BDE-N339986.A0 N339986	£1.50	£1.80
114 - CARRIAGE SA BDE-N534149.A0 N534149	£183.42	£220.10
115 - PIN BDE-N389357.A0 N389357	£1.50	£1.80
116 - O RING BDE-N468984.A1 N468984	£1.50	£1.80
117 - LEVER BDE-N465817.A1 N465817	£1.50	£1.80
118 - SPRING TORSION BDE-N086806.A15 N086806	£1.50	£1.80
119 - SCREW BDE-330019-24.A26 330019-24	£1.50	£1.80
120 - LEVER LOCK BDE-N114100.A0 N114100	£1.50	£1.80
121 - SCREW BDE-N477247.A15 N477247	£1.50	£1.80
122 - SCREW BDE-N093608.A14 N093608	£1.50	£1.80
123 - SCREW BDE-N113536.A7 N113536	£1.50	£1.80
124 - SCREW BDE-N400753.A1 N400753	£1.50	£1.80
140 - WASHER BDE-330016-25.A9 330016-25	£1.50	£1.80
141 - BUMPER BDE-N744341.A1 N744341	£3.80	£4.56
142 - GUIDE ROD BDE-N339966.A0 N339966	£12.17	£14.60
143 - PIN BDE-N489384.A0 N489384	£2.78	£3.34
144 - BUMPER BDE-N744342.A0 N744342	£3.80	£4.56
145 - DOWEL BDE-N563121.A0 N563121	£3.80	£4.56
146 - NOSE BDE-N441695.A1 N441695	£113.07	£135.68
147 - LEVER BDE-N384734.A1 N384734	£17.48	£20.97
148 - RETAINER BDE-N340040.A1 N340040	£2.78	£3.34
149 - DAMPER BDE-N718794.A0 N718794	£2.78	£3.34
150 - MAGNET BDE-N446748.A1 N446748	£2.26	£2.71
151 - CONTACT SA BDE-N534151.A1 N534151	£41.24	£49.49
153 - PLATE BDE-N471559.A1 N471559	£1.50	£1.80
154 - DAMPER BDE-N494853.A0 N494853	£1.50	£1.80
155 - SOLENOID ASSEMBLY BDE-N516576.A0 N516576	£38.80	£46.56
156 - PAD BDE-N463179.A1 N463179	£18.91	£22.69
157 - LOCATOR BDE-N387436.A0 N387436	£30.08	£36.10
158 - SCREW BDE-330045-45.A49 330045-45	£1.50	£1.80
159 - SKID BDE-N494832.A1 N494832	£1.50	£1.80
160 - SPRING BDE-N405418.A1 N405418	£1.50	£1.80
161 - WIRE HARNESS BDE-N461432.A0 N461432	£2.26	£2.71
162 - PLATE BDE-N454679.A1 N454679	£1.50	£1.80
163 - DAMPER BDE-N454680.A0 N454680	£1.82	£2.19
164 - WASHER BDE-941633-00.A45 941633-00	£1.50	£1.80
165 - SCREW BDE-330019-02.A71 330019-02	£1.50	£1.80
166 - SPRING TORSION BDE-N393391.A0 N393391	£1.50	£1.80
167 - SPRING BDE-N219872.A14 N219872	£1.50	£1.80
168 - WASHER BDE-N114861.A15 N114861	£1.50	£1.80
169 - LATCH BUTTON BDE-N061505.A8 N061505	£1.50	£1.80
170 - GUARD BDE-N405025 N405025	£3.30	£3.96
171 - HOUSING SA BDE-N534257 N534257	£24.39	£29.27
172 - LEVER LOCK BDE-N114100.A1 N114100	£1.50	£1.80
173 - PUSHER BDE-N339965 N339965	£1.82	£2.19
174 - SPRING BDE-N395217 N395217	£5.88	£7.06
175 - MAGAZINE INTERFACE BDE-N339961.A1 N339961	£37.82	£45.38
176 - SCREW BDE-N123971.A15 N123971	£1.50	£1.80
177 - SCREW BDE-330019-02.A72 330019-02	£1.50	£1.80
178 - CLIP BDE-N464365.A0 N464365	£1.50	£1.80
179 - SPRING BDE-N466546.A0 N466546	£1.50	£1.80
180 - INSERT BDE-N061506.A6 N061506	£1.50	£1.80
181 - SCREW BDE-330019-62.A19 330019-62	-
182 - PUSHER BDE-N464508.A1 N464508	£1.50	£1.80
800 - GREASE 150 GMS BDE-N017298.A16 N017298	£47.08	£56.49
821 - RATING LABEL GB BDE-N475981 N475981	£5.88	£7.06
861 - KITBOX BDE-N466963.A1 N466963	£45.14	£54.17
866 - BATTERY 18V - 5.0AH - 90WH GB BDE-N394624.A8 N394624	£192.14	£230.57
871 - CHARGER 10.8V - 18V GB BDE-N450537.A6 N450537	£157.18	£188.61
