Dewalt DCN694 Type 1 Cordless Nailer Spare Parts

Home Details Reviews Delivery

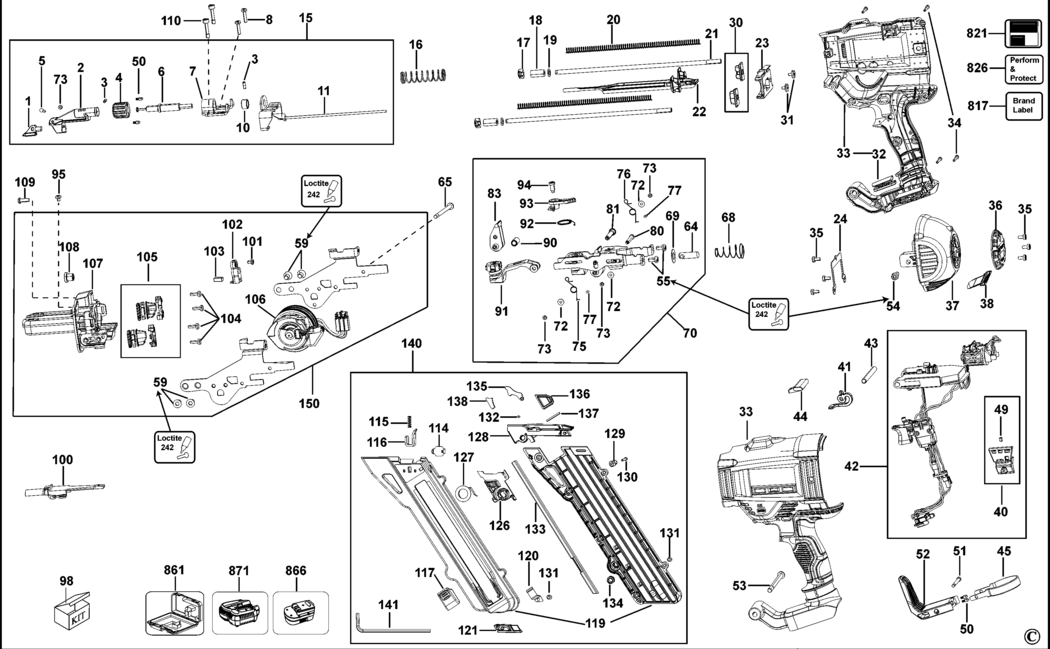

An exploded drawing and spare parts listing for the Dewalt DCN694 Type 1 Cordless Nailer

	Ex VAT	Inc VAT
1 - TIP BDE-N324439.A1 N324439	£6.06	£7.27
2 - ADJUSTER BDE-N324459.A0 N324459	£30.98	£37.18
3 - ROLL PIN BDE-N153045.A11 N153045	£1.66	£1.99
4 - ADJUSTER DEPTH BDE-N402075.A1 N402075	£1.66	£1.99
5 - PIN BDE-N330659.A1 N330659	£1.88	£2.26
6 - SHAFT BDE-N392751.A0 N392751	£8.08	£9.70
7 - SUPPORT BDE-N034374.A2 N034374	£3.92	£4.70
8 - SCREW BDE-N432422.A5 N432422	£1.66	£1.99
10 - SLEEVE BDE-N044294.A2 N044294	£1.88	£2.26
11 - TRIP SA BDE-N380152.A1 N380152	£16.52	£19.82
15 - DEPTH STOP SA BDE-N469513.A1 N469513	£96.44	£115.73
16 - SPRING BDE-N061508.A11 N061508	£1.66	£1.99
17 - CAP BDE-N192671.A10 N192671	£1.66	£1.99
18 - BUMPER BDE-N088831.A10 N088831	£2.87	£3.44
19 - WASHER BDE-N088833.A10 N088833	£1.66	£1.99
20 - SPRING COMPRESSION BDE-N233943.A2 N233943	£18.00	£21.60
21 - RAIL BDE-N036350.A12 N036350	£18.00	£21.60
22 - PROFILE BDE-N469512.A0 N469512	£148.42	£178.11
23 - CAP BDE-N422047.A0 N422047	£1.66	£1.99
24 - PLATE BDE-N121870.A2 N121870	£1.66	£1.99
30 - BUMPER BDE-N469514.A0 N469514	£1.66	£1.99
31 - SCREW BDE-N088832.A3 N088832	£3.92	£4.70
32 - INSERT BDE-N324799.A2 N324799	£1.66	£1.99
33 - HOUSING PAIR BDE-N233946.A4 N233946	£38.48	£46.17
34 - SCREW BDE-330019-24.A14 330019-24	£1.66	£1.99
35 - SCREW BDE-N123731.A3 N123731	£1.66	£1.99
36 - COVER BDE-N061544.A0 N061544	£3.92	£4.70
37 - END CAP BDE-N397360.A0 N397360	£19.48	£23.37
38 - WINDOW BDE-N130853.A12 N130853	£1.66	£1.99
40 - SELECTOR SA BDE-N473185 N473185	£239.35	£287.22
41 - ACTUATOR BDE-N055786.A13 N055786	£2.49	£2.99
42 - ELECTRONIC & SWITCH GB BDE-N512748 N512748	£119.24	£143.09
43 - SPACER BDE-N439401.A0 N439401	£1.66	£1.99
44 - SWITCH LOCK OFF BDE-N039287.A11 N039287	£1.66	£1.99
45 - CLAMP BDE-N080411.A3 N080411	£3.92	£4.70
49 - DETENT BDE-N380148.A0 N380148	£3.92	£4.70
50 - DETENT BDE-326467-00.A160 326467-00	£1.66	£1.99
51 - SCREW BDE-N093728.A3 N093728	£1.66	£1.99
52 - HOOK BDE-N080410.A10 N080410	£6.06	£7.27
53 - SCREW BDE-N123751.A9 N123751	£1.66	£1.99
54 - SCREW BDE-N093611.A10 N093611	£1.88	£2.25
55 - SCREW BDE-N093608.A4 N093608	£1.66	£1.99
59 - SCREW BDE-N477247.A18 N477247	£1.66	£1.99
64 - PIN BDE-N126788.A2 N126788	£30.98	£37.18
65 - SCREW BDE-N093607.A6 N093607	£1.66	£1.99
68 - SPRING BDE-N219872.A5 N219872	£1.66	£1.99
69 - WASHER BDE-N114861.A27 N114861	£1.66	£1.99
70 - AXIS & CARRIAGE SA BDE-N473189.A0 N473189	£76.38	£91.65
72 - WASHER BDE-330016-25.A11 330016-25	£1.66	£1.99
73 - GROMMET BDE-391814-00.A9 391814-00	£1.66	£1.99
75 - SPRING LH BDE-N613043.A4 N613043	£3.32	£3.99
76 - SPRING RH BDE-N613044.A9 N613044	£2.87	£3.44
77 - ISOLATOR BDE-N235059.A0 N235059	£1.66	£1.99
80 - PIN BDE-N083553R.A4 N083553R	£3.39	£4.07
81 - PIN BDE-N034920.A4 N034920	£6.06	£7.27
83 - ROLLER SA BDE-N233950.A10 N233950	£45.47	£54.56
90 - SLEEVE BDE-N259819.A9 N259819	£2.87	£3.44
91 - BEAM BDE-N234259.A0 N234259	£38.48	£46.17
92 - SPRING TORSION BDE-N086806.A4 N086806	£1.66	£1.99
93 - LEVER BDE-N086157.A12 N086157	£1.66	£1.99
94 - SCREW BDE-N113536.A5 N113536	£1.66	£1.99
95 - SCREW BDE-N123971.A5 N123971	£1.66	£1.99
98 - SERVICE KIT inc item 819022 BDE-N473973.A0 N473973	£76.38	£91.65
100 - INSERT BDE-N469515.A1 N469515	£45.47	£54.56
101 - SCREW BDE-949894-06.A65 949894-06	£1.66	£1.99
102 - HOLDER BDE-N390881.A1 N390881	£1.66	£1.99
103 - MAGNET BDE-N089554.A10 N089554	£9.69	£11.63
104 - SCREW BDE-324006-01.A1 324006-01	-
105 - BUMPER BDE-N472113.A0 N472113	£18.00	£21.60
106 - MOTOR SA BDE-N473974.A5 N473974	£86.96	£104.35
107 - CASTING BDE-N481055.A2 N481055	£25.12	£30.15
108 - BUSHING BDE-N061668.A1 N061668	£3.92	£4.70
109 - SCREW.TEMP BDE-330019-11.A53 330019-11	£1.66	£1.99
110 - SCREW BDE-N061605.A1 N061605	£1.66	£1.99
114 - RETAINER BDE-N034726.A10 N034726	£1.66	£1.99
115 - SPRING COMPRESSION BDE-N061545.A12 N061545	£1.66	£1.99
116 - LOCKING DEVICE BDE-N307220.A1 N307220	£1.66	£1.99
117 - LATCH BUTTON BDE-N061505.A13 N061505	£1.66	£1.99
119 - HOUSING BDE-N472115.A1 N472115	£19.48	£23.37
120 - LEVER LOCK BDE-N114100.A11 N114100	£1.66	£1.99
121 - COVERPLATE BDE-N400665 N400665	£1.66	£1.99
126 - PUSHER BDE-N331500.A0 N331500	£1.88	£2.26
127 - SPRING SA BDE-N128653.A1 N128653	£7.40	£8.88
128 - MAGAZINE INTERFACE BDE-N326139.A1 N326139	£48.48	£58.17
129 - INSERT BDE-N061506.A1 N061506	£1.66	£1.99
130 - SCREW BDE-330019-62.A22 330019-62	-
131 - SCREW BDE-330065-06.A145 330065-06	£1.66	£1.99
132 - PIN BDE-N383366.A1 N383366	£1.66	£1.99
133 - LINER BDE-N365856.A0 N365856	£4.83	£5.80
134 - NUT BDE-397893-00.A5 397893-00	£1.88	£2.26
135 - LIFTER BDE-N401907.A1 N401907	£8.08	£9.70
136 - SUPPORT BDE-N401902 N401902	£15.01	£18.01
137 - PIN BDE-590312-00.A10 590312-00	£1.66	£1.99
138 - SHOCK ABSORBER BDE-N401903.A0 N401903	£1.66	£1.99
140 - MAGAZINE SA BDE-N472117 N472117	£161.89	£194.27
141 - HEX KEY BDE-N061664.A12 N061664	£1.66	£1.99
150 - MOTOR SA & MOUNT + Backbone BDE-N475499.A0 N475499	£292.33	£350.80
817 - BRAND LABEL BDE-N132863.A0 N132863	£1.66	£1.99
817 - BRAND LABEL BDE-N136307.A1 N136307	£2.87	£3.44
821 - RATING PLATE GB BDE-N429685.A0 N429685	£1.66	£1.99
826 - LABEL BDE-N207832.A0 N207832	£2.87	£3.44
861 - KITBOX BDE-N137841.A0 N137841	£53.46	£64.15
866 - BATTERY 18V - 5.0AH - 90WH GB BDE-N394624.A35 N394624	£197.90	£237.48
871 - CHARGER 10.8V - 18V GB BDE-N450537.A118 N450537	£161.89	£194.27

Attribute Name	Value
Brand	Dewalt
