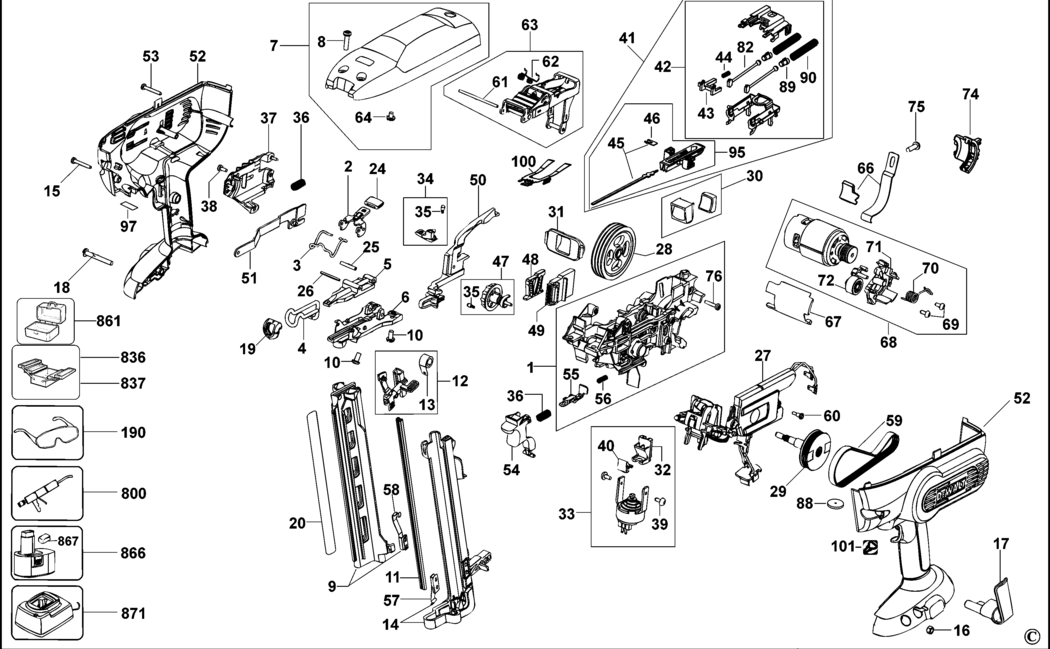

1 - HOUSING SA Inc items 55-56-76
BDE-613852-00.A5
613852-00
|
£59.41
|
£71.29
|
|
|
2 - LATCH
BDE-395123-00.A6
395123-00
|
£7.64
|
£9.17
|
|
|
3 - WIRE STEEL
BDE-392216-00.A5
392216-00
|
£7.18
|
£8.62
|
|
|
4 - ACTUATOR
BDE-392198-00.A2
392198-00
|
-
|
|
|
|
5 - COVER
BDE-392210-00.A3
392210-00
|
£12.17
|
£14.60
|
|
|
6 - NOSE
BDE-392209-00.A2
392209-00
|
£50.60
|
£60.72
|
|
|
7 - COVER-TOP
BDE-633518-00SV.A1
633518-00SV
|
£40.21
|
£48.25
|
|
|
8 - SCREW
BDE-609932-02.A3
609932-02
|
£1.66
|
£1.99
|
|
|
9 - MAGAZINE
BDE-392227-01.A1
392227-01
|
£25.05
|
£30.06
|
|
|
10 - SCREW
BDE-609932-00.A4
609932-00
|
£1.66
|
£1.99
|
|
|
11 - LINER
BDE-392193-01.A2
392193-01
|
£24.39
|
£29.27
|
|
|
12 - PUSH BLOCK
BDE-624748-01.A2
624748-01
|
£37.82
|
£45.38
|
|
|
13 - SPRING
BDE-392195-00.A3
392195-00
|
-
|
|
|
|
14 - MAGAZINE SA
BDE-613818-02.A1
613818-02
|
£23.75
|
£28.50
|
|
|
15 - SCREW
BDE-330019-07.A4
330019-07
|
£1.66
|
£1.99
|
|
|
16 - NUT
BDE-330015-04.A28
330015-04
|
£1.66
|
£1.99
|
|
|
17 - HOOK
BDE-394102-00.A4
394102-00
|
-
|
|
|
|
18 - SCREW.TEMP
BDE-330045-19.A31
330045-19
|
£1.66
|
£1.99
|
|
|
19 - RUBBER BOOT
BDE-616938-00.A7
616938-00
|
-
|
|
|
|
20 - RATING PLATE GB
BDE-N050560.A0
N050560
|
£1.66
|
£1.99
|
|
|
20 - RATING PLATE
BDE-N050560.A1
N050560
|
£1.66
|
£1.99
|
|
|
24 - GRIP
BDE-395093-00.A13
395093-00
|
£1.66
|
£1.99
|
|
|
25 - ROLL PIN
BDE-330036-21.A13
330036-21
|
£1.66
|
£1.99
|
|
|
26 - ROLL PIN
BDE-330036-27.A3
330036-27
|
£1.66
|
£1.99
|
|
|
27 - CONTROL MODULE SA
BDE-643115-00.A3
643115-00
|
£161.75
|
£194.10
|
|
|
28 - FLYWHEEL
BDE-623947-00.A0
623947-00
|
£74.15
|
£88.98
|
|
|
29 - SPINDLE SA
BDE-613835-00.A1
613835-00
|
£23.75
|
£28.50
|
|
|
30 - DAMPER
BDE-613869-00.A5
613869-00
|
£5.88
|
£7.06
|
|
|
31 - BUMPER
BDE-392240-00.A5
392240-00
|
£12.17
|
£14.60
|
|
|
32 - CLUTCH
BDE-392244-00.A4
392244-00
|
£24.39
|
£29.27
|
|
|
33 - SOLENOID ASSEMBLY Inc items 32-39-40
BDE-624709-00SV.A3
624709-00SV
|
-
|
|
|
|
34 - PADDLE Inc item 35
BDE-N001917.A8
N001917
|
-
|
|
|
|
35 - DETENT
BDE-326467-00.A93
326467-00
|
£1.66
|
£1.99
|
|
|
36 - SPRING
BDE-653099-00.A8
653099-00
|
-
|
|
|
|
37 - CAGE
BDE-604480-00.A5
604480-00
|
-
|
|
|
|
38 - SCREW
BDE-613619-01.A6
613619-01
|
£1.66
|
£1.99
|
|
|
39 - SCREW
BDE-330045-60.A4
330045-60
|
£1.66
|
£1.99
|
|
|
40 - CLIP
BDE-621980-00.A5
621980-00
|
-
|
|
|
|
41 - RETURN DEVICE ASSEMBLY Inc items 42-45
BDE-N391357.A4
N391357
|
-
|
|
|
|
42 - RETURN DEVICE ASSEMBLY Inc items 43-44
BDE-393217-00.A7
393217-00
|
-
|
|
|
|
43 - STOP
BDE-614577-00.A6
614577-00
|
£1.66
|
£1.99
|
|
|
44 - SPRING
BDE-610243-00.A3
610243-00
|
-
|
|
|
|
45 - BLADE SA Inc item 46
BDE-624742-00SV.A5
624742-00SV
|
£16.03
|
£19.24
|
|
|
46 - CLIP
BDE-392206-00.A12
392206-00
|
£1.66
|
£1.99
|
|
|
47 - KNOB SA Inc item 35
BDE-613874-00.A4
613874-00
|
£3.70
|
£4.44
|
|
|
48 - ADJUSTER PLATE
BDE-392437-00.A6
392437-00
|
£1.66
|
£1.99
|
|
|
49 - SLIDER
BDE-392438-00.A3
392438-00
|
£1.66
|
£1.99
|
|
|
50 - CONTACT BAR
BDE-393220-00SV.A2
393220-00SV
|
£9.17
|
£11.00
|
|
|
51 - LINK
BDE-396657-00.A5
396657-00
|
£5.88
|
£7.06
|
|
|
52 - CLAMSHELL SET
BDE-623375-00.A0
623375-00
|
£33.13
|
£39.76
|
|
|
53 - SCREW
BDE-330019-05.A29
330019-05
|
£1.66
|
£1.99
|
|
|
54 - TRIGGER
BDE-613670-00.A3
613670-00
|
£2.21
|
£2.65
|
|
|
55 - LINKAGE SA
BDE-392201-00.A5
392201-00
|
£1.66
|
£1.99
|
|
|
56 - SPRING COMPRESSION
BDE-394314-00.A7
394314-00
|
£1.66
|
£1.99
|
|
|
57 - CLIP
BDE-392252-00.A3
392252-00
|
£1.66
|
£1.99
|
|
|
58 - RETAINER
BDE-392229-00.A4
392229-00
|
£1.66
|
£1.99
|
|
|
59 - BELT DRIVE
BDE-392246-00.A5
392246-00
|
-
|
|
|
|
60 - SCREW
BDE-623407-00.A3
623407-00
|
£1.66
|
£1.99
|
|
|
61 - PIN
BDE-395932-00.A7
395932-00
|
£1.66
|
£1.99
|
|
|
62 - SPRING TORSION
BDE-394045-00.A7
394045-00
|
-
|
|
|
|
63 - ARM Inc items 61-62
BDE-624717-00SV.A4
624717-00SV
|
-
|
|
|
|
64 - SCREW
BDE-330045-12.A4
330045-12
|
£1.66
|
£1.99
|
|
|
66 - STRAP
BDE-606837-01.A1
606837-01
|
£1.66
|
£1.99
|
|
|
67 - RUBBER PAD
BDE-623181-00.A7
623181-00
|
£1.66
|
£1.99
|
|
|
68 - MOTOR SA
BDE-613834-02.A1
613834-02
|
£45.88
|
£55.06
|
|
|
69 - SCREW
BDE-330045-44.A32
330045-44
|
£1.66
|
£1.99
|
|
|
70 - SPRING
BDE-N044593.A3
N044593
|
£3.30
|
£3.96
|
|
|
71 - SUPPORT PLATE
BDE-628981-00.A1
628981-00
|
£3.70
|
£4.44
|
|
|
72 - IDLER ASSEMBLY
BDE-630664-00SV.A5
630664-00SV
|
£7.18
|
£8.62
|
|
|
74 - BRACKET
BDE-628978-00.A2
628978-00
|
£2.21
|
£2.65
|
|
|
75 - SCREW
BDE-609932-01.A10
609932-01
|
£1.66
|
£1.99
|
|
|
76 - SCREW
BDE-613619-00.A12
613619-00
|
£1.66
|
£1.99
|
|
|
82 - BAND
BDE-392243-00.A8
392243-00
|
-
|
|
|
|
88 - DISC
BDE-624913-00.A5
624913-00
|
-
|
|
|
|
89 - STOP
BDE-392242-00.A4
392242-00
|
£1.66
|
£1.99
|
|
|
90 - SPRING
BDE-392236-02.A5
392236-02
|
£1.66
|
£1.99
|
|
|
95 - DRIVER SA
BDE-392204-00SV.A4
392204-00SV
|
-
|
|
|
|
97 - LABEL
BDE-632383-00.A3
632383-00
|
£1.66
|
£1.99
|
|
|
100 - PLATE
BDE-N015432.A3
N015432
|
-
|
|
|
|
101 - LABEL
BDE-N015371.A3
N015371
|
£1.66
|
£1.99
|
|
|
190 - SAFETY GLASSES
BDE-609123-00.A1
609123-00
|
£11.87
|
£14.24
|
|
|
800 - GREASE
BDE-5140024-25.A0
5140024-25
|
£63.87
|
£76.64
|
|
|
836 - S.T.GAP GAUGE SEE VIDEO GB
BDE-559650-99.A5
559650-99
|
£24.39
|
£29.27
|
|
|
837 - S.T.GAP GAUGE
BDE-559650-99.A6
559650-99
|
£24.39
|
£29.27
|
|
|
861 - KITBOX
BDE-633527-00.A4
633527-00
|
£58.69
|
£70.43
|
|
|
866 - BATTERY 18V - 2.6AH DC616KEC GB
BDE-1006628-00.A44
1006628-00
|
£108.20
|
£129.84
|
|
|
866 - BATTERY 18V - 2.4AH DC616KA GB
BDE-582627-00.A23
582627-00
|
-
|
|
|
|
867 - SAFETY CAP
BDE-608522-00.A69
608522-00
|
-
|
|
|
|
871 - CHARGER 7.2V - 18V GB
BDE-572576-00.A95
572576-00
|
£110.62
|
£132.74
|
|
