Dewalt D51321 Type 1 Nailer Spare Parts

Home Details Reviews Delivery

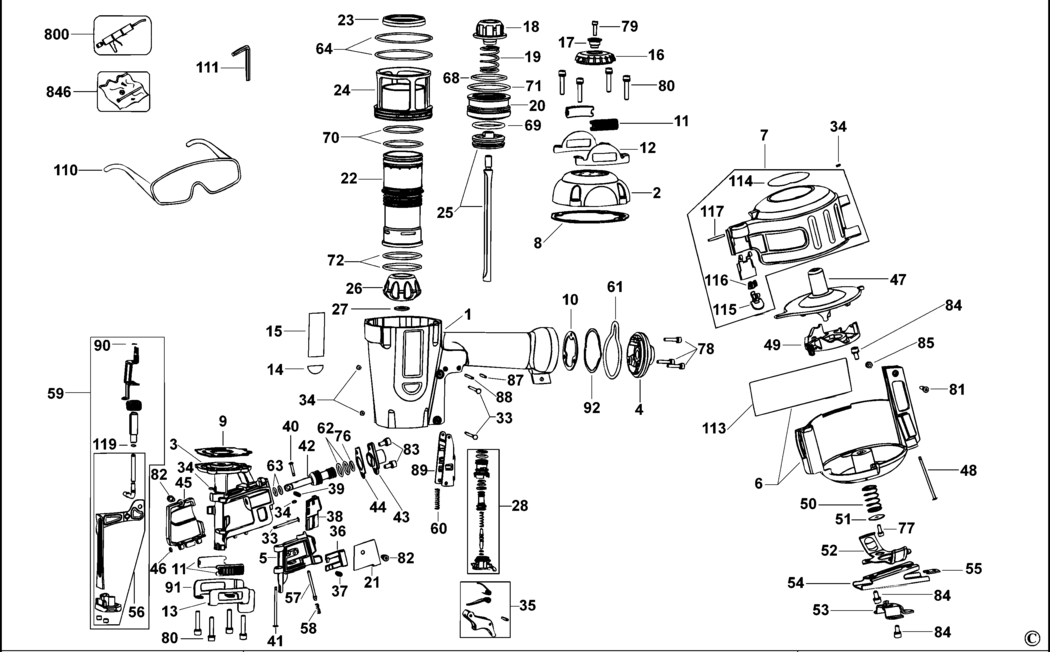

An exploded drawing and spare parts listing for the Dewalt D51321 Type 1 Nailer

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE GB BDE-000000-00.A92796 000000-00	-
2 - NO LONGER AVAILABLE BDE-000000-00.A92797 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A92798 000000-00	-
4 - NO LONGER AVAILABLE BDE-000000-00.A92799 000000-00	-
5 - NO LONGER AVAILABLE BDE-000000-00.A92800 000000-00	-
6 - NO LONGER AVAILABLE INCL 113 BDE-000000-00.A92801 000000-00	-
7 - NO LONGER AVAILABLE INCL 91114115116 BDE-000000-00.A92802 000000-00	-
8 - NO LONGER AVAILABLE BDE-000000-00.A92803 000000-00	-
9 - NO LONGER AVAILABLE BDE-000000-00.A92804 000000-00	-
10 - GASKET BDE-395430-00.A10 395430-00	£1.66	£1.99
11 - NO LONGER AVAILABLE BDE-000000-00.A92805 000000-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A92806 000000-00	-
13 - NO LONGER AVAILABLE BDE-000000-00.A92807 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A92808 000000-00	-
15 - LABEL BDE-613090-00.A5 613090-00	-
16 - NO LONGER AVAILABLE BDE-000000-00.A92809 000000-00	-
17 - BUSHING BDE-619175-00.A0 619175-00	-
18 - NO LONGER AVAILABLE BDE-000000-00.A92845 000000-00	-
19 - SPRING BDE-395064-00.A4 395064-00	£2.26	£2.71
20 - NO LONGER AVAILABLE BDE-000000-00.A92810 000000-00	-
21 - NO LONGER AVAILABLE BDE-000000-00.A92811 000000-00	-
22 - NO LONGER AVAILABLE BDE-000000-00.A92812 000000-00	-
23 - SEAL BDE-395065-00.A2 395065-00	£5.72	£6.87
24 - NO LONGER AVAILABLE BDE-000000-00.A92813 000000-00	-
25 - NO LONGER AVAILABLE BDE-000000-00.A92814 000000-00	-
26 - NO LONGER AVAILABLE BDE-000000-00.A92815 000000-00	-
27 - NO LONGER AVAILABLE BDE-000000-00.A92816 000000-00	-
28 - TRIGGER BDE-N566148.A18 N566148	£12.53	£15.04
33 - PIN BDE-395091-00.A12 395091-00	£1.88	£2.26
34 - GROMMET BDE-391814-00.A35 391814-00	£1.66	£1.99
35 - TRIGGER BDE-398219-00.A5 398219-00	£4.58	£5.49
35 - TRIGGER BDE-398230-00.A3 398230-00	£4.58	£5.49
36 - NO LONGER AVAILABLE BDE-000000-00.A92817 000000-00	-
37 - NO LONGER AVAILABLE BDE-000000-00.A92818 000000-00	-
38 - NO LONGER AVAILABLE BDE-000000-00.A92819 000000-00	-
39 - NO LONGER AVAILABLE BDE-000000-00.A92820 000000-00	-
40 - NO LONGER AVAILABLE BDE-000000-00.A92821 000000-00	-
41 - NO LONGER AVAILABLE BDE-000000-00.A92822 000000-00	-
42 - NO LONGER AVAILABLE BDE-000000-00.A92823 000000-00	-
43 - NO LONGER AVAILABLE BDE-000000-00.A92824 000000-00	-
44 - NO LONGER AVAILABLE BDE-000000-00.A92825 000000-00	-
45 - NO LONGER AVAILABLE BDE-000000-00.A92826 000000-00	-
46 - NO LONGER AVAILABLE BDE-000000-00.A92827 000000-00	-
47 - NO LONGER AVAILABLE BDE-000000-00.A92828 000000-00	-
48 - NO LONGER AVAILABLE BDE-000000-00.A92829 000000-00	-
49 - NO LONGER AVAILABLE BDE-000000-00.A92830 000000-00	-
50 - NO LONGER AVAILABLE BDE-000000-00.A92831 000000-00	-
51 - NO LONGER AVAILABLE BDE-000000-00.A92832 000000-00	-
52 - NO LONGER AVAILABLE BDE-000000-00.A92833 000000-00	-
53 - NO LONGER AVAILABLE BDE-000000-00.A92834 000000-00	-
54 - NO LONGER AVAILABLE BDE-000000-00.A92835 000000-00	-
55 - NO LONGER AVAILABLE BDE-000000-00.A92836 000000-00	-
56 - NO LONGER AVAILABLE BDE-000000-00.A92837 000000-00	-
57 - NO LONGER AVAILABLE BDE-000000-00.A92838 000000-00	-
58 - NO LONGER AVAILABLE BDE-000000-00.A92839 000000-00	-
59 - NO LONGER AVAILABLE BDE-000000-00.A92840 000000-00	-
60 - NO LONGER AVAILABLE BDE-000000-00.A92841 000000-00	-
61 - NO LONGER AVAILABLE BDE-000000-00.A92842 000000-00	-
62 - NO LONGER AVAILABLE BDE-000000-00.A92843 000000-00	-
63 - NO LONGER AVAILABLE BDE-000000-00.A92844 000000-00	-
64 - O RING BDE-614983-00.A0 614983-00	-
68 - O RING BDE-398156-00.A3 398156-00	-
69 - NO LONGER AVAILABLE BDE-000000-00.A92846 000000-00	-
70 - O RING BDE-398167-00.A6 398167-00	£1.66	£1.99
71 - NO LONGER AVAILABLE BDE-000000-00.A92847 000000-00	-
72 - O RING BDE-631427-00.A1 631427-00	-
76 - NO LONGER AVAILABLE BDE-000000-00.A92848 000000-00	-
77 - NO LONGER AVAILABLE BDE-000000-00.A92849 000000-00	-
78 - SCREW BDE-608178-00.A9 608178-00	£1.66	£1.99
79 - NO LONGER AVAILABLE BDE-000000-00.A92850 000000-00	-
80 - NO LONGER AVAILABLE BDE-000000-00.A92851 000000-00	-
81 - NO LONGER AVAILABLE BDE-000000-00.A92852 000000-00	-
82 - SCREW BDE-608179-00.A7 608179-00	£1.66	£1.99
83 - NO LONGER AVAILABLE BDE-000000-00.A92859 000000-00	-
84 - NO LONGER AVAILABLE BDE-000000-00.A92860 000000-00	-
85 - NUT BDE-607156-00.A1 607156-00	£1.66	£1.99
87 - NO LONGER AVAILABLE BDE-000000-00.A92853 000000-00	-
88 - NO LONGER AVAILABLE BDE-000000-00.A92854 000000-00	-
89 - NO LONGER AVAILABLE BDE-000000-00.A92855 000000-00	-
90 - NO LONGER AVAILABLE BDE-000000-00.A92856 000000-00	-
91 - NO LONGER AVAILABLE BDE-000000-00.A92857 000000-00	-
92 - NO LONGER AVAILABLE BDE-000000-00.A92858 000000-00	-
110 - SAFETY GLASSES BDE-609123-00.A12 609123-00	£11.87	£14.24
111 - NO LONGER AVAILABLE BDE-000000-00.A92861 000000-00	-
111 - HEX KEY 4 MM BDE-98000-09.A9 98000-09	-
113 - NO LONGER AVAILABLE BDE-000000-00.A92862 000000-00	-
114 - NO LONGER AVAILABLE BDE-000000-00.A92863 000000-00	-
115 - NO LONGER AVAILABLE BDE-000000-00.A92864 000000-00	-
116 - NO LONGER AVAILABLE BDE-000000-00.A92865 000000-00	-
117 - ROLL PIN BDE-330036-24.A1 330036-24	£1.66	£1.99
119 - NO LONGER AVAILABLE BDE-000000-00.A92866 000000-00	-
800 - NO LONGER AVAILABLE BDE-000000-00.A92867 000000-00	-
800 - GREASE 150 GMS BDE-429995-00.A16 429995-00	-
846 - NO LONGER AVAILABLE BDE-000000-00.A92868 000000-00	-
