Bostitch TU-216-1825K-E Type REV A Nailer Spare Parts

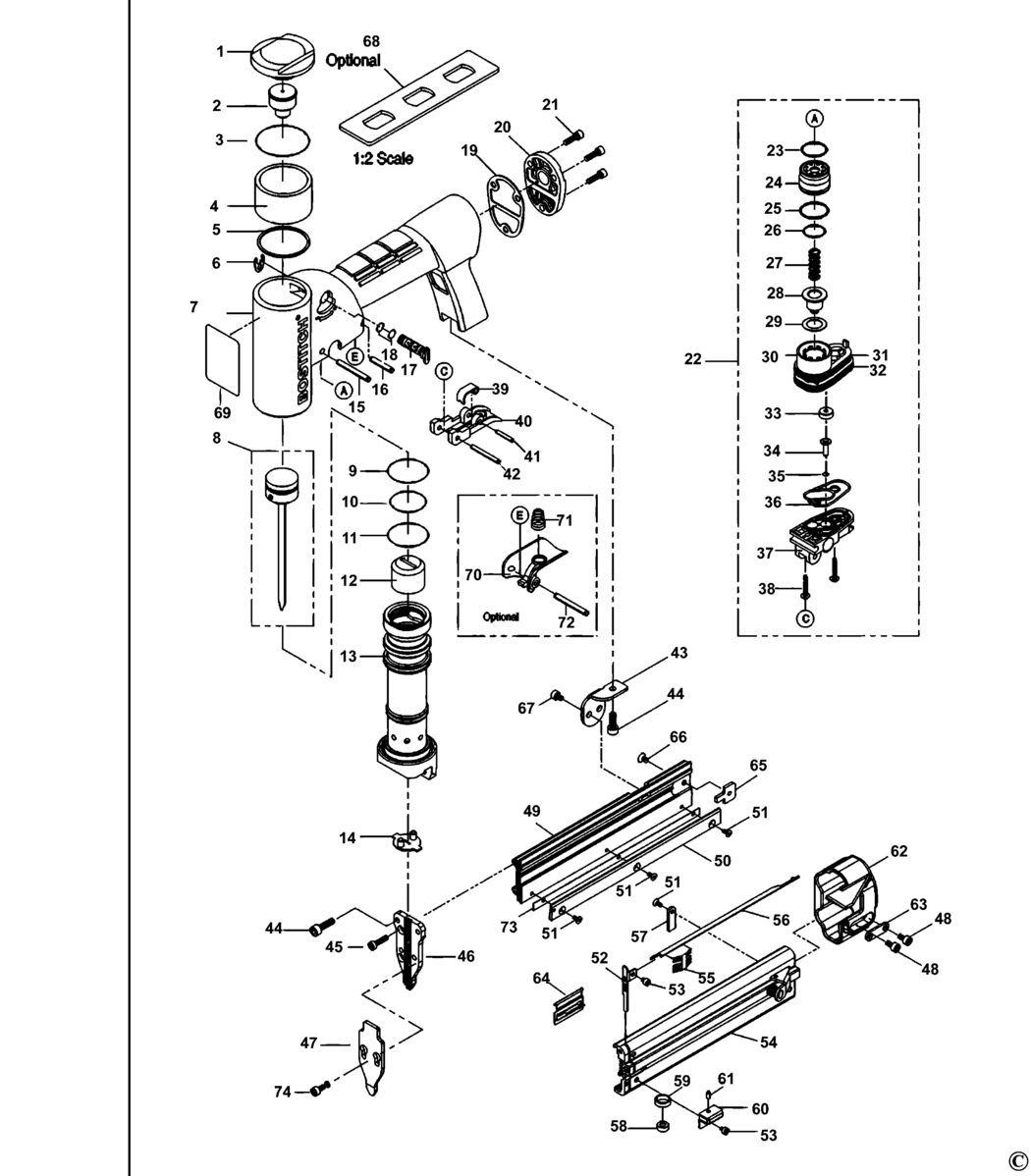

An exploded drawing and spare parts listing for the Bostitch TU-216-1825K-E Type REV A Nailer

	Ex VAT	Inc VAT
1 - CAP BDE-174288.A1 174288	£9.41	£11.29
2 - BUMPER BDE-P2860000600.A4 P2860000600	£9.41	£11.29
3 - O RING BDE-100353.A0 100353	£1.50	£1.80
4 - SPACER BDE-174329.A6 174329	£4.69	£5.63
5 - GASKET BDE-174328.A2 174328	-
6 - RETAINER BDE-174290.A7 174290	£1.50	£1.80
7 - FRAME BDE-G4227800.A1 G4227800	£38.80	£46.56
8 - NO LONGER AVAILABLE BDE-000000-00.A96752 000000-00	-
9 - O RING BDE-174309.A13 174309	£1.50	£1.80
10 - O RING BDE-174310.A20 174310	£1.50	£1.80
11 - O RING BDE-851349.A5 851349	£1.50	£1.80
12 - BUMPER BDE-P3240000200.A1 P3240000200	£2.26	£2.71
13 - CYLINDER BDE-G0505800.A2 G0505800	£45.14	£54.17
14 - GUIDE BDE-P3330000562 P3330000562	£1.50	£1.80
15 - PIN BDE-174305.A0 174305	£1.50	£1.80
16 - PIN BDE-174304.A28 174304	£1.50	£1.80
17 - NO LONGER AVAILABLE BDE-000000-00.A96753 000000-00	-
18 - O RING BDE-174311.A10 174311	£1.50	£1.80
19 - GASKET BDE-174295.A31 174295	£1.50	£1.80
20 - END CAP BDE-174296.A0 174296	£3.30	£3.96
21 - BOLT BDE-174306.A32 174306	£1.50	£1.80
22 - VALVE BDE-TVA13.A4 TVA13	£14.57	£17.48
23 - O RING BDE-S06A001600.A4 S06A001600	-
24 - VALVE BDE-174278.A9 174278	£5.88	£7.06
25 - O RING BDE-174312.A21 174312	£1.50	£1.80
26 - O RING BDE-102163.A20 102163	£12.17	£14.60
27 - SPRING COMPRESSION BDE-174280.A11 174280	£1.50	£1.80
28 - SEAL BDE-174279.A18 174279	£1.50	£1.80
29 - WASHER BDE-174281.A20 174281	£7.85	£9.42
30 - HOUSING BDE-174277.A17 174277	£3.80	£4.56
31 - O RING BDE-108467.A0 108467	£7.85	£9.42
32 - O RING BDE-100817.A35 100817	£1.50	£1.80
33 - SEAL BDE-174282.A8 174282	£1.50	£1.80
34 - SHAFT BDE-174283.A19 174283	£1.50	£1.80
35 - O RING BDE-174313.A12 174313	£1.50	£1.80
36 - SEAL BDE-174284.A8 174284	£1.50	£1.80
37 - HOUSING BDE-174276.A7 174276	£1.50	£1.80
38 - SCREW BDE-174285.A19 174285	£1.50	£1.80
39 - TRIGGER BDE-174269.A47 174269	£2.26	£2.71
40 - NO LONGER AVAILABLE BDE-000000-00.A96754 000000-00	-
41 - NO LONGER AVAILABLE BDE-000000-00.A96755 000000-00	-
42 - PIN BDE-S0803020000.A0 S0803020000	£1.50	£1.80
43 - BRACKET BDE-P2866300565.A3 P2866300565	£1.50	£1.80
44 - SCREW BDE-MSC4070-12.A21 MSC4070-12	£1.50	£1.80
45 - BOLT BDE-1A104163.A0 1A104163	£1.50	£1.80
46 - NO LONGER AVAILABLE BDE-000000-00.A96756 000000-00	-
47 - NO LONGER AVAILABLE BDE-000000-00.A96757 000000-00	-
48 - BOLT BDE-S0110408100.A3 S0110408100	£1.50	£1.80
49 - NO LONGER AVAILABLE BDE-000000-00.A96758 000000-00	-
50 - GUIDE BDE-P1245200362.A3 P1245200362	£5.88	£7.06
51 - SCREW BDE-S0310306100.A1 S0310306100	£1.50	£1.80
52 - STOP PLATE BDE-P1245200662.A3 P1245200662	£1.50	£1.80
53 - BOLT BDE-S0110304100.A2 S0110304100	£1.50	£1.80
55 - SPRING BDE-P1240000800.A3 P1240000800	£1.50	£1.80
56 - NO LONGER AVAILABLE BDE-000000-00.A96759 000000-00	-
57 - STOP PLATE BDE-P1245200762.A1 P1245200762	£1.50	£1.80
58 - BUSHING BDE-P1245201762.A2 P1245201762	£1.50	£1.80
59 - SPRING BDE-P1240001600.A1 P1240001600	£1.50	£1.80
60 - SPRING BDE-P1246301465.A2 P1246301465	£1.50	£1.80
61 - SPIROL PIN BDE-S0803006000.A4 S0803006000	£1.50	£1.80
62 - END CAP BDE-P2860000100.A1 P2860000100	£1.50	£1.80
63 - COVER BDE-JA4501I1.A6 JA4501I1	£1.50	£1.80
64 - NO LONGER AVAILABLE BDE-000000-00.A96760 000000-00	-
65 - PLATE BDE-P0645201462.A3 P0645201462	£1.50	£1.80
66 - SCREW BDE-9R199443.A4 9R199443	£1.50	£1.80
67 - BOLT BDE-1A104061.A1 1A104061	£1.50	£1.80
68 - WRENCH SPECIAL BDE-174322.A11 174322	£7.85	£9.42
69 - LABEL BDE-B214002001 B214002001	-
70 - TRIGGER BDE-9R209571.A17 9R209571	£1.50	£1.80
71 - SPRING COMPRESSION BDE-174300.A16 174300	£1.50	£1.80
72 - PIN BDE-177685.A2 177685	£1.50	£1.80
73 - NO LONGER AVAILABLE BDE-000000-00.A96761 000000-00	-
74 - BOLT BDE-S2710408100 S2710408100	£1.50	£1.80

Attribute Name	Value
Brand	Bostitch
