Bostitch N70CBM Type REV A Nailer Spare Parts

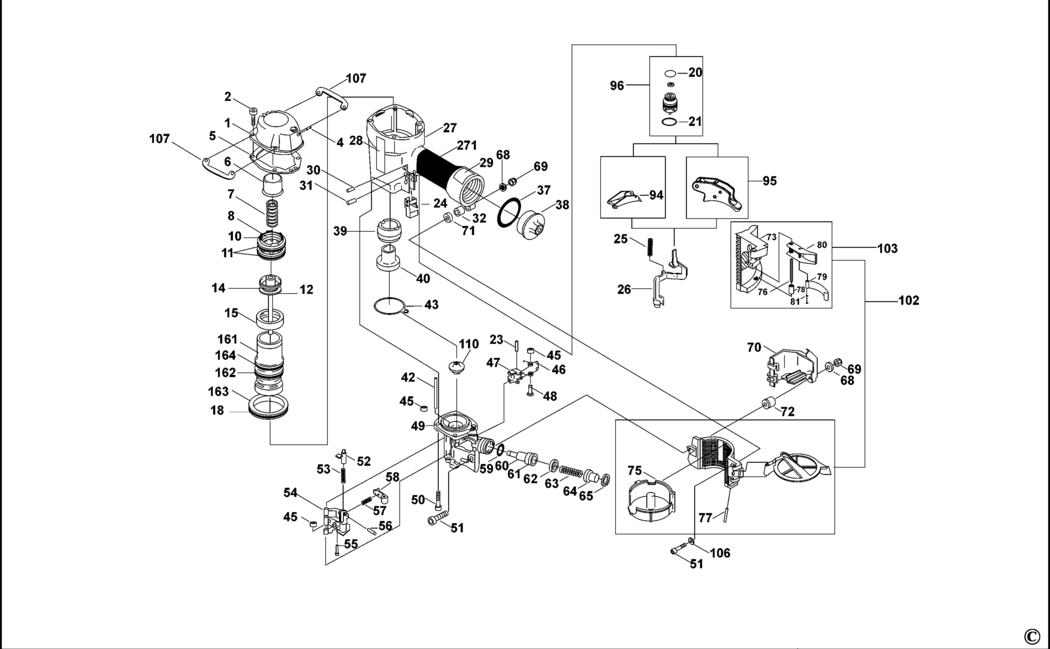

An exploded drawing and spare parts listing for the Bostitch N70CBM Type REV A Nailer

	Ex VAT	Inc VAT
1 - END CAP BDE-CN31652.A1 CN31652	£60.94	£73.13
2 - SCREW BDE-MSC6100-30.A22 MSC6100-30	£1.50	£1.80
4 - NO LONGER AVAILABLE BDE-000000-00.A96764 000000-00	-
5 - SEAL BDE-9R199852.A11 9R199852	£3.80	£4.56
6 - STOP BDE-N70153.A4 N70153	£2.26	£2.71
7 - SPRING COMPRESSION BDE-101256.A2 101256	£1.50	£1.80
8 - O RING BDE-MRG041630.A12 MRG041630	£5.88	£7.06
10 - VALVE BDE-N80337.A0 N80337	£7.85	£9.42
11 - O RING BDE-851438.A3 851438	£7.18	£8.62
12 - PISTON SA BDE-102630.A0 102630	£99.47	£119.36
14 - O RING BDE-851439.A10 851439	£2.26	£2.71
15 - SEAL BDE-N70155.A0 N70155	£1.50	£1.80
18 - O RING BDE-MRG084431.A11 MRG084431	£1.50	£1.80
20 - O RING BDE-86459.A43 86459	£1.50	£1.80
21 - O RING BDE-851554.A24 851554	£4.69	£5.63
23 - SPIROL PIN BDE-MPP030016.A14 MPP030016	£1.50	£1.80
24 - GUIDE BDE-N70145.A11 N70145	£1.82	£2.19
25 - SPRING COMPRESSION BDE-102080.A3 102080	£1.50	£1.80
26 - ARM BDE-108683 108683	£465.78	£558.94
27 - FRAME BDE-110005.A9 110005	£84.42	£101.30
28 - LABEL BDE-112767.A1 112767	£1.50	£1.80
29 - WARNING LABEL BDE-159912.A22 159912	£1.50	£1.80
30 - PIN BDE-MPP030020.A4 MPP030020	£1.50	£1.80
31 - PIN BDE-102549.A41 102549	£1.50	£1.80
32 - BUSHING BDE-N70143.A10 N70143	£1.50	£1.80
37 - O RING BDE-MRG049431.A4 MRG049431	£1.50	£1.80
38 - END CAP BDE-N70167.A0 N70167	£10.85	£13.02
39 - BUMPER BDE-N70156.A11 N70156	£10.85	£13.02
40 - BUMPER BDE-N70157.A0 N70157	£7.85	£9.42
42 - PIN BDE-N70164.A0 N70164	£3.30	£3.96
43 - SEAL BDE-107834.A0 107834	£1.50	£1.80
45 - WASHER BDE-854004.A29 854004	£1.50	£1.80
46 - SPRING TORSION BDE-854023.A11 854023	£1.50	£1.80
47 - PAWL BDE-167087.A2 167087	£58.69	£70.43
48 - PIN BDE-N50087.A1 N50087	£1.50	£1.80
49 - NOSE BDE-167085 167085	£232.38	£278.85
50 - SCREW BDE-MSC8125-28.A22 MSC8125-28	£1.50	£1.80
51 - SCREW BDE-MSC6100-40.A13 MSC6100-40	£1.50	£1.80
52 - LATCH BDE-N70150.A14 N70150	£5.88	£7.06
53 - SPRING COMPRESSION BDE-101408.A6 101408	£1.50	£1.80
54 - DOOR BDE-N70122.A2 N70122	£19.90	£23.88
55 - PIN BDE-N70140.A8 N70140	£1.50	£1.80
56 - PIN BDE-MPG030012.A41 MPG030012	£1.50	£1.80
57 - SPRING COMPRESSION BDE-854011.A10 854011	£1.50	£1.80
58 - PAWL BDE-N70149.A6 N70149	£3.80	£4.56
59 - O RING BDE-MRG009824.A21 MRG009824	£5.88	£7.06
60 - PISTON BDE-N70166.A2 N70166	£14.57	£17.48
61 - O RING BDE-851437.A8 851437	£14.57	£17.48
62 - STOP BDE-N70162.A0 N70162	£1.50	£1.80
63 - SPRING COMPRESSION BDE-854039.A0 854039	£1.50	£1.80
64 - COLLAR BDE-N70163.A2 N70163	£1.50	£1.80
65 - RETAINER BDE-MRB026.A7 MRB026	£1.50	£1.80
68 - WASHER BDE-MPW6.2.A39 MPW6.2	£1.50	£1.80
69 - NUT BDE-MHE6100-100.A23 MHE6100-100	£1.50	£1.80
70 - GUARD BDE-N70160.A2 N70160	£3.30	£3.96
71 - SPACER BDE-N80107.A1 N80107	£1.50	£1.80
72 - SPACER BDE-105973.A7 105973	£1.50	£1.80
75 - CANISTER BDE-N80103.A3 N80103	£10.85	£13.02
76 - SPIROL PIN BDE-UB2126.A3 UB2126	£1.50	£1.80
77 - SPIROL PIN BDE-UB5130.A8 UB5130	£1.50	£1.80
78 - SPACER BDE-N80106.A4 N80106	£1.50	£1.80
79 - LEAF SPRING BDE-N80108.A8 N80108	£1.50	£1.80
80 - LATCH BDE-107455.A5 107455	£7.18	£8.62
81 - SPIROL PIN BDE-UB2110.4.A8 UB2110.4	£1.50	£1.80
94 - KIT BDE-CNTK2.A17 CNTK2	£5.88	£7.06
95 - KIT BDE-SEQ6.A23 SEQ6	£10.85	£13.02
96 - VALVE BDE-TVA6.A23 TVA6	£16.03	£19.24
102 - CANISTER BDE-121635.A6 121635	£34.00	£40.80
103 - BRACKET SA BDE-121632.A1 121632	£25.70	£30.84
106 - WASHER BDE-MPW6.3.A13 MPW6.3	£1.50	£1.80
107 - PROTECTOR BDE-102473.A0 102473	£2.26	£2.71
110 - GUIDE BDE-N80130.A1 N80130	£9.41	£11.29
161 - O RING BDE-101236.A8 101236	£1.50	£1.80
162 - SLEEVE BDE-N70171.A1 N70171	£25.70	£30.84
163 - RING BDE-N80168.A9 N80168	£2.78	£3.34
164 - SEAL BDE-N80169.A0 N80169	£1.50	£1.80
271 - GRIP BDE-107490.A5 107490	£4.69	£5.63

Attribute Name	Value
Brand	Bostitch
