Bostitch N66BC Type Rev E Nailer Spare Parts

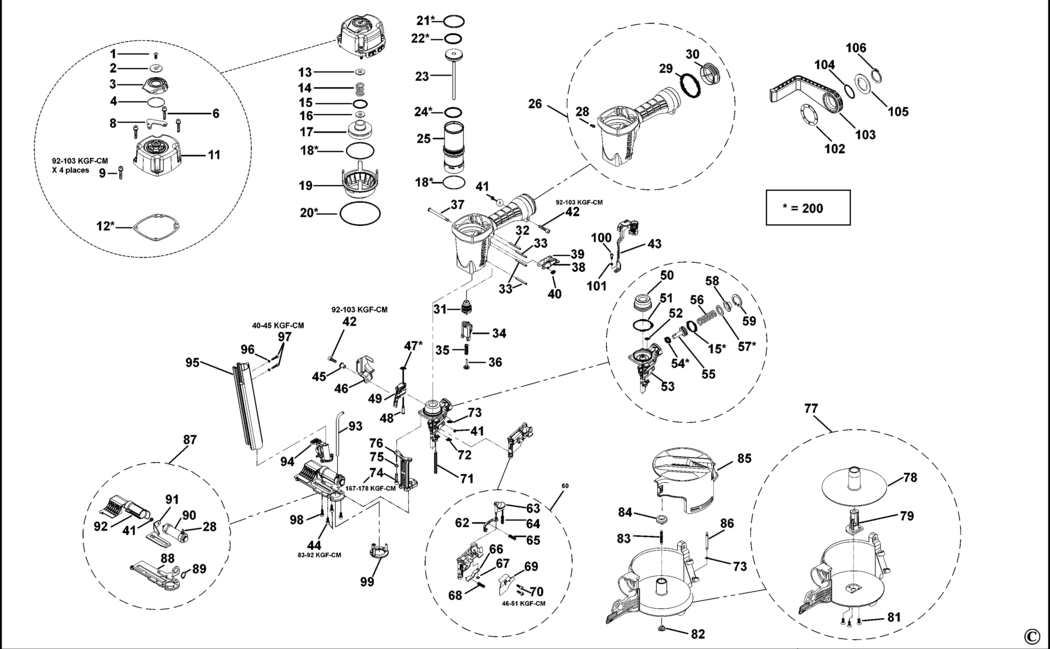

An exploded drawing and spare parts listing for the Bostitch N66BC Type Rev E Nailer

	Ex VAT	Inc VAT
1 - SCREW BDE-174041.A6 174041	£1.50	£1.80
2 - SPACER BDE-174042.A1 174042	£1.50	£1.80
3 - COVER BDE-174043.A5 174043	£1.50	£1.80
4 - O RING BDE-174044.A0 174044	£1.50	£1.80
6 - SCREW BDE-175554.A10 175554	£1.50	£1.80
8 - MOUNTING BRACKET BDE-P3186300565 P3186300565	£1.50	£1.80
9 - SCREW BDE-175554.A9 175554	£1.50	£1.80
11 - DEFLECTOR BDE-G5400700.A0 G5400700	£24.39	£29.27
12 - GASKET BDE-174050.A2 174050	£3.80	£4.56
13 - SEAL BDE-174049.A11 174049	£1.50	£1.80
14 - SPRING COMPRESSION BDE-174051.A11 174051	£1.50	£1.80
15 - O RING BDE-174053.A11 174053	£1.50	£1.80
16 - WASHER SPECIAL BDE-174052.A2 174052	£1.50	£1.80
17 - VALVE BDE-174054.A2 174054	£3.30	£3.96
18 - O RING BDE-86460.A2 86460	£7.85	£9.42
19 - COLLAR BDE-174057.A4 174057	£1.50	£1.80
20 - O RING BDE-174056.A3 174056	£1.50	£1.80
21 - SEAL BDE-P2320006600.A5 P2320006600	£1.50	£1.80
22 - O RING BDE-S06S003600.A4 S06S003600	£1.50	£1.80
23 - DRIVER SA BDE-G0315900 G0315900	£33.13	£39.76
24 - O RING BDE-174058.A3 174058	£1.50	£1.80
25 - CYLINDER BDE-9R213301.A2 9R213301	£9.41	£11.29
28 - COUPLING BDE-188636.A0 188636	£1.50	£1.80
29 - O RING BDE-174067.A9 174067	£1.50	£1.80
30 - END CAP BDE-P3490000540.A4 P3490000540	£5.88	£7.06
31 - VALVE BDE-TVA6.A6 TVA6	£16.03	£19.24
32 - PIN BDE-174070.A16 174070	£1.50	£1.80
33 - PIN BDE-100298.A76 100298	£1.50	£1.80
34 - GUIDE BDE-9R199740.A9 9R199740	£1.50	£1.80
35 - SPRING BDE-P2325202662.A2 P2325202662	£1.50	£1.80
36 - HOLDER BDE-P2845203062.A7 P2845203062	£3.30	£3.96
37 - PIN BDE-174062.A11 174062	£1.50	£1.80
38 - KIT SA BDE-SEQ4.A16 SEQ4	£7.18	£8.62
39 - KIT BDE-CNTK1.A19 CNTK1	£5.88	£7.06
40 - O RING BDE-174073.A4 174073	£1.50	£1.80
41 - LOCK-NUT BDE-174065.A2 174065	£1.50	£1.80
42 - SCREW BDE-9R199720.A1 9R199720	£1.50	£1.80
43 - CONTACT SA BDE-G4007500 G4007500	£7.64	£9.17
44 - BOLT BDE-195448 195448	£1.42	£1.70
45 - SPACER BDE-P2325205662.A6 P2325205662	£1.50	£1.80
46 - GUARD BDE-P3130000566 P3130000566	£1.42	£1.70
47 - O RING BDE-S06A000500.A8 S06A000500	£1.50	£1.80
48 - ROLLPIN BDE-P2325207562.A9 P2325207562	£1.50	£1.80
49 - JAW BDE-G7600200.A5 G7600200	£17.48	£20.97
50 - BUMPER BDE-174075.A6 174075	£9.41	£11.29
51 - O RING BDE-851483-S.A3 851483-S	£1.50	£1.80
52 - O RING BDE-S06P000400.A2 S06P000400	£1.50	£1.80
53 - NOSE BDE-P2840001065.A4 P2840001065	£104.31	£125.17
54 - O RING BDE-S06P000900.A9 S06P000900	£1.50	£1.80
55 - PISTON BDE-P2325504962.A0 P2325504962	£5.88	£7.06
56 - SPRING BDE-P2325205062.A6 P2325205062	£1.50	£1.80
57 - BUMPER BDE-P2322005100.A7 P2322005100	£1.50	£1.80
58 - COVER BDE-P2325205262.A3 P2325205262	£1.50	£1.80
59 - RING BDE-S15202800.A7 S15202800	£1.50	£1.80
60 - DOOR BDE-188721.A0 188721	£37.35	£44.82
62 - STOP BDE-P2325204262.A1 P2325204262	£10.85	£13.02
63 - LATCH BDE-P2320004400.A5 P2320004400	£1.50	£1.80
64 - SPRING BDE-P2820004162.A5 P2820004162	£1.50	£1.80
65 - SPRING BDE-188566.A1 188566	£1.50	£1.80
66 - STOP BDE-P2325204062.A3 P2325204062	£1.50	£1.80
67 - GROMMET BDE-P2840004100.A6 P2840004100	£1.50	£1.80
68 - SPRING BDE-188713.A4 188713	£1.50	£1.80
69 - COVER BDE-P2325203862.A1 P2325203862	£2.78	£3.34
70 - SCREW BDE-9R199448.A2 9R199448	£1.50	£1.80
71 - PIVOT BDE-P2325203662.A6 P2325203662	£1.50	£1.80
72 - O RING BDE-184434.A2 184434	£1.50	£1.80
73 - O RING BDE-S06P000300.A6 S06P000300	£2.26	£2.71
74 - BOLT BDE-MSC6100-25.A45 MSC6100-25	£1.50	£1.80
76 - SUPPORT BDE-P3180000265 P3180000265	£19.90	£23.88
77 - MAGAZINE SA BDE-P2840003200.A3 P2840003200	£24.39	£29.27
78 - HOLDER BDE-P2840002366.A5 P2840002366	£3.30	£3.96
79 - ADJUSTER BDE-P2840002466.A1 P2840002466	£1.50	£1.80
81 - SCREW BDE-184455.A0 184455	£1.50	£1.80
82 - CAP BDE-195013.A4 195013	£1.50	£1.80
83 - SPRING BDE-191794.A1 191794	£1.50	£1.80
84 - CAP BDE-P1960004866.A3 P1960004866	£1.50	£1.80
85 - COVER BDE-P2840002566.A5 P2840002566	£7.85	£9.42
86 - PIN BDE-P2845202662.A1 P2845202662	£1.50	£1.80
87 - CYLINDER SA BDE-G7800300 G7800300	£44.14	£52.97
88 - MAGAZINE BDE-P3136302265 P3136302265	£17.48	£20.97
89 - RING BDE-188619 188619	£1.42	£1.70
90 - CYLINDER BDE-188659 188659	£17.48	£20.97
91 - PUSHER BDE-188635 188635	£2.71	£3.25
92 - COVER BDE-188641 188641	£1.42	£1.70
93 - PIPE BDE-P3180001100 P3180001100	£2.21	£2.65
94 - SEAT BDE-G3101700 G3101700	£7.01	£8.41
95 - MAGAZINE BDE-P3180001000 P3180001000	£24.39	£29.27
96 - WASHER BDE-S31104075.A0 S31104075	£1.42	£1.70
97 - BOLT BDE-S0110408100.A13 S0110408100	£1.50	£1.80
98 - SCREW BDE-188625.A2 188625	£1.50	£1.80
99 - SAFETY KEY BDE-G3801865 G3801865	£19.90	£23.88
100 - SCREW BDE-MSC4070-10.A25 MSC4070-10	£1.50	£1.80
101 - BUSHING BDE-P3185201362 P3185201362	£1.42	£1.70
102 - SEAL BDE-175582.A7 175582	£1.50	£1.80
103 - HOOK BDE-175583.A6 175583	£1.50	£1.80
104 - O RING BDE-175557.A5 175557	£1.50	£1.80
105 - CAP BDE-175585.A7 175585	£1.50	£1.80
106 - RING BDE-175586.A6 175586	£1.50	£1.80
200 - SERVICE KIT BDE-N66C-RK.A0 N66C-RK	-
