Bostitch N60FN Type REV 0 Finish Nailer Spare Parts

Home Details Reviews Delivery

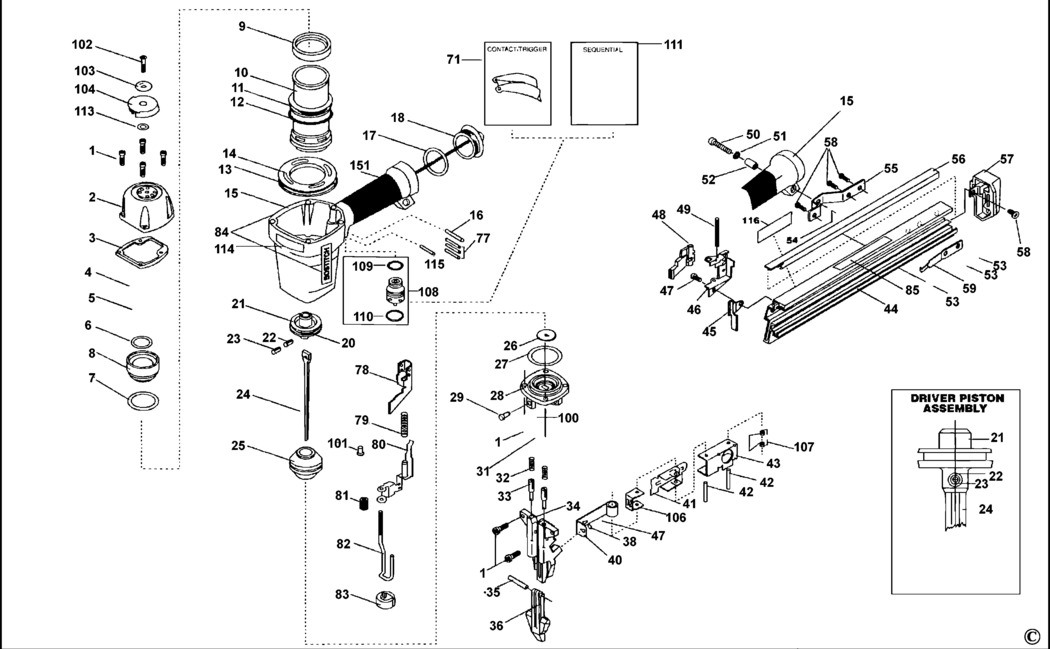

An exploded drawing and spare parts listing for the Bostitch N60FN Type REV 0 Finish Nailer

	Ex VAT	Inc VAT
1 - SCREW BDE-MSC5080-20.A47 MSC5080-20	£1.66	£1.99
2 - NO LONGER AVAILABLE BDE-000000-00.A30945 000000-00	-
3 - SEAL BDE-N50013.A1 N50013	£1.66	£1.99
4 - STOP BDE-T50002.A7 T50002	-
5 - NO LONGER AVAILABLE BDE-000000-00.A30946 000000-00	-
6 - O RING BDE-MRG039231.A7 MRG039231	£18.00	£21.60
7 - O RING BDE-RG183109.A2 RG183109	£18.42	£22.10
8 - VALVE BDE-T50003.A2 T50003	-
9 - SEAL BDE-N70151.A3 N70151	-
10 - NO LONGER AVAILABLE BDE-000000-00.A30947 000000-00	-
11 - O RING BDE-850605.A6 850605	£1.66	£1.99
12 - SEAL BDE-N50034.A8 N50034	£7.01	£8.41
13 - O RING BDE-850683.A11 850683	£1.66	£1.99
14 - NO LONGER AVAILABLE BDE-000000-00.A30948 000000-00	-
15 - NO LONGER AVAILABLE BDE-000000-00.A30949 000000-00	-
16 - PIN BDE-MPP030020.A61 MPP030020	£1.66	£1.99
17 - O RING BDE-850235.A6 850235	£1.66	£1.99
18 - END CAP BDE-11346-0954302.A16 11346-0954302	£15.01	£18.01
20 - O RING BDE-850606.A4 850606	-
21 - NO LONGER AVAILABLE BDE-000000-00.A30950 000000-00	-
22 - PIN BDE-UB3808.3.A2 UB3808.3	-
23 - PIN BDE-UB2108.5.A2 UB2108.5	-
24 - NO LONGER AVAILABLE BDE-000000-00.A30951 000000-00	-
25 - NO LONGER AVAILABLE BDE-000000-00.A30952 000000-00	-
26 - NO LONGER AVAILABLE BDE-000000-00.A30953 000000-00	-
27 - O RING BDE-851483-S.A19 851483-S	£1.66	£1.99
28 - NO LONGER AVAILABLE BDE-000000-00.A30954 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A30955 000000-00	-
31 - NO LONGER AVAILABLE BDE-000000-00.A30956 000000-00	-
32 - SPRING COMPRESSION BDE-N60032.A1 N60032	-
33 - NO LONGER AVAILABLE BDE-000000-00.A30957 000000-00	-
34 - NOSE BDE-104096.A0 104096	-
35 - PIN BDE-UB3817.A1 UB3817	-
36 - NO LONGER AVAILABLE BDE-000000-00.A30958 000000-00	-
38 - WASHER SPECIAL BDE-LW10.A1 LW10	-
40 - NO LONGER AVAILABLE BDE-000000-00.A30962 000000-00	-
41 - PUSHER BDE-N60015.A1 N60015	-
42 - NO LONGER AVAILABLE BDE-000000-00.A30959 000000-00	-
43 - NO LONGER AVAILABLE BDE-000000-00.A30960 000000-00	-
44 - NO LONGER AVAILABLE BDE-000000-00.A30961 000000-00	-
45 - GUARD BDE-N60021.A1 N60021	-
46 - NO LONGER AVAILABLE BDE-000000-00.A30963 000000-00	-
47 - BOLT BDE-MSC5080-8.A2 MSC5080-8	£1.66	£1.99
48 - NO LONGER AVAILABLE BDE-000000-00.A30964 000000-00	-
49 - PIN BDE-N60101.A0 N60101	-
50 - SCREW BDE-MSC6100-30.A31 MSC6100-30	£1.66	£1.99
51 - WASHER BDE-MPW6.2.A2 MPW6.2	£1.66	£1.99
52 - BUSHING BDE-N70143.A19 N70143	£1.66	£1.99
53 - LOCK-NUT BDE-MHE5080-100.A12 MHE5080-100	£1.66	£1.99
54 - NUT BDE-MHE6100-100.A56 MHE6100-100	£1.66	£1.99
56 - NO LONGER AVAILABLE BDE-000000-00.A30965 000000-00	-
57 - NO LONGER AVAILABLE BDE-000000-00.A30966 000000-00	-
58 - SCREW BDE-MSB5080-10.A1 MSB5080-10	-
59 - SPRING BDE-N60020.A0 N60020	-
71 - KIT BDE-CNTK2.A39 CNTK2	£6.06	£7.27
77 - PIN BDE-102549.A8 102549	£1.66	£1.99
78 - NO LONGER AVAILABLE BDE-000000-00.A30967 000000-00	-
79 - SPRING BDE-N60038.A0 N60038	-
80 - NO LONGER AVAILABLE BDE-000000-00.A30968 000000-00	-
81 - TRIP SA BDE-N60011.A1 N60011	-
82 - NO LONGER AVAILABLE BDE-000000-00.A30972 000000-00	-
83 - TIP BDE-N60013.A0 N60013	-
84 - NO LONGER AVAILABLE BDE-000000-00.A30969 000000-00	-
85 - NO LONGER AVAILABLE BDE-000000-00.A30970 000000-00	-
100 - NO LONGER AVAILABLE BDE-000000-00.A30971 000000-00	-
101 - STOP BDE-N60084.A2 N60084	-
102 - SCREW BDE-MSF6100-20.A2 MSF6100-20	-
103 - WASHER BDE-T50104.A8 T50104	-
104 - NO LONGER AVAILABLE BDE-000000-00.A30973 000000-00	-
106 - NO LONGER AVAILABLE BDE-000000-00.A30974 000000-00	-
107 - NO LONGER AVAILABLE BDE-000000-00.A30975 000000-00	-
108 - VALVE BDE-TVA6.A57 TVA6	£16.52	£19.82
109 - O RING BDE-86459.A30 86459	£1.66	£1.99
110 - O RING BDE-851554.A10 851554	£4.69	£5.63
111 - KIT BDE-SEQ6.A47 SEQ6	£11.18	£13.41
113 - WASHER BDE-MPW6.A4 MPW6	£2.78	£3.34
114 - NO LONGER AVAILABLE BDE-000000-00.A30977 000000-00	-
115 - PIN BDE-100298.A13 100298	£1.66	£1.99
116 - NO LONGER AVAILABLE BDE-000000-00.A30976 000000-00	-
151 - GRIP BDE-107490.A13 107490	£4.83	£5.80

Attribute Name	Value
Brand	Bostitch
