Bostitch N100C Type REV 0 Nailer Spare Parts

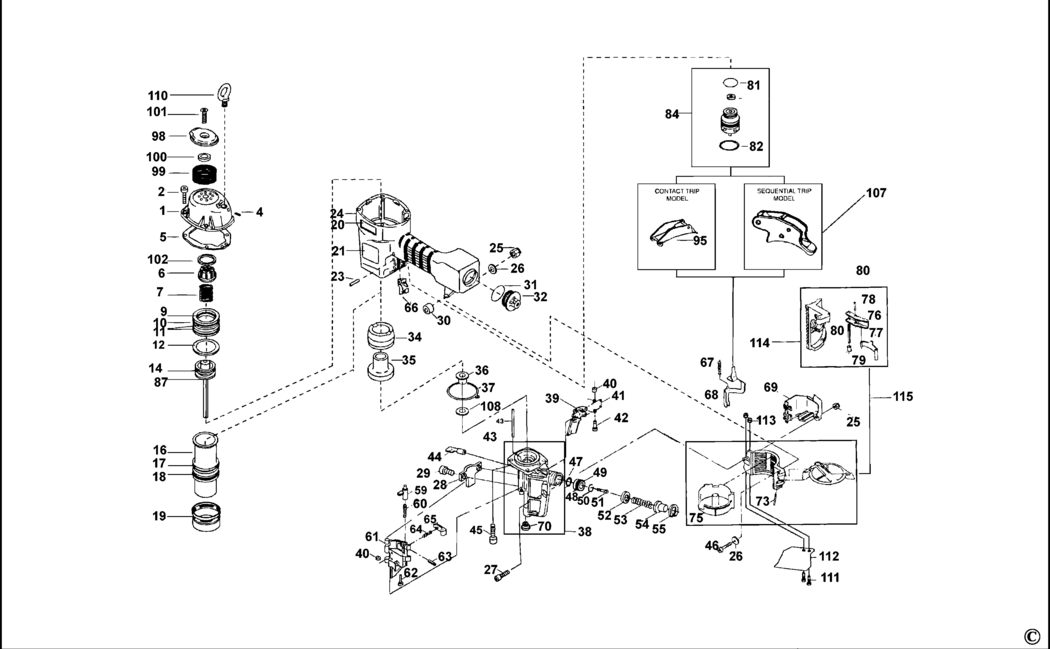

An exploded drawing and spare parts listing for the Bostitch N100C Type REV 0 Nailer

	Ex VAT	Inc VAT
1 - CAP BDE-N100140A.A0 N100140A	£140.47	£168.56
2 - BOLT BDE-MSC6100-25.A36 MSC6100-25	£1.50	£1.80
4 - SCREW BDE-MSS6100-6P.A0 MSS6100-6P	-
5 - SEAL BDE-N100131.A2 N100131	£7.64	£9.17
6 - STOP BDE-N86132.A5 N86132	£7.01	£8.41
7 - SPRING BDE-854017-S.A5 854017-S	£4.58	£5.49
9 - O RING BDE-MRG051531.A4 MRG051531	£4.58	£5.49
10 - VALVE BDE-105578.A2 105578	£78.95	£94.74
11 - SCREW BDE-MSC5080-16.A14 MSC5080-16	£1.50	£1.80
11 - O RING BDE-851538.A4 851538	-
12 - SEAL BDE-N86125.A0 N86125	£7.64	£9.17
13 - PISTON BDE-N100116 N100116	£40.21	£48.25
14 - O RING BDE-851539.A1 851539	£25.70	£30.84
16 - SLEEVE BDE-N90111.A1 N90111	£105.49	£126.59
17 - O RING BDE-RG273710.A0 RG273710	£1.42	£1.70
18 - SEAL BDE-N100128.A1 N100128	-
19 - SLEEVE BDE-N100317.A3 N100317	£94.12	£112.94
20 - LABEL BDE-113220.A3 113220	-
23 - PIN BDE-102549.A31 102549	£1.50	£1.80
24 - FRAME BDE-N90110.A1 N90110	-
25 - NUT BDE-MHE6100-100.A2 MHE6100-100	£1.50	£1.80
26 - WASHER BDE-MPW6.3.A5 MPW6.3	£1.50	£1.80
27 - SCREW BDE-MSC6100-35.A32 MSC6100-35	£1.50	£1.80
28 - RETAINER BDE-N100113.A0 N100113	£44.00	£52.80
29 - SCREW BDE-MSC6100-12.A1 MSC6100-12	£1.50	£1.80
30 - BUSHING BDE-N70143.A3 N70143	£1.50	£1.80
31 - O RING BDE-850235.A0 850235	£1.42	£1.70
32 - END CAP BDE-11346-0954302.A3 11346-0954302	£14.57	£17.48
34 - BUMPER BDE-N100129.A2 N100129	£14.57	£17.48
35 - BUMPER BDE-N100130.A1 N100130	£14.19	£17.03
36 - GUIDE BDE-N100103 N100103	£36.42	£43.70
37 - SEAL BDE-106294.A0 106294	-
38 - BUSHING BDE-105836 105836	-
39 - PAWL BDE-N100112 N100112	£29.32	£35.18
40 - WASHER BDE-854004.A39 854004	£1.50	£1.80
41 - SPRING TORSION BDE-N80120.A8 N80120	£1.50	£1.80
42 - PIN BDE-N50087.A8 N50087	£1.50	£1.80
43 - PIN BDE-N90106.A1 N90106	£9.17	£11.00
44 - ROD BDE-N80121.A1 N80121	£10.85	£13.02
45 - SCREW BDE-MSC8125-30.A4 MSC8125-30	£1.50	£1.80
46 - SCREW BDE-MSC6100-40.A4 MSC6100-40	£1.50	£1.80
47 - O RING BDE-MRG009824.A11 MRG009824	£5.88	£7.06
48 - O RING BDE-851384.A8 851384	£9.41	£11.29
49 - PISTON BDE-N80128.A8 N80128	£3.30	£3.96
50 - WASHER LOCK BDE-LW14.2.A5 LW14.2	£1.50	£1.80
51 - SCREW BDE-MSC6100-16.A5 MSC6100-16	£1.50	£1.80
52 - BUMPER BDE-N80123.A0 N80123	£1.50	£1.80
53 - SPRING COMPRESSION BDE-N80122.A8 N80122	£1.50	£1.80
54 - COVER BDE-N80124.A8 N80124	£1.50	£1.80
55 - RING BDE-851383.A1 851383	£1.50	£1.80
56 - O RING BDE-MRG004216.A2 MRG004216	£1.42	£1.70
60 - SPRING COMPRESSION BDE-854013.A13 854013	£1.50	£1.80
61 - DOOR BDE-N100101 N100101	£131.95	£158.34
62 - STUD BDE-N90107.A1 N90107	£29.32	£35.18
63 - ROLL PIN BDE-MPP030012.A4 MPP030012	£1.50	£1.80
64 - SPRING COMPRESSION BDE-854011.A1 854011	£1.50	£1.80
65 - PAWL BDE-N70149.A4 N70149	£3.80	£4.56
66 - GUIDE BDE-N70145.A18 N70145	£1.82	£2.19
67 - SPRING COMPRESSION BDE-N90103.A2 N90103	£1.42	£1.70
68 - ARM BDE-N100106 N100106	-
69 - GUARD BDE-N100114.A1 N100114	-
70 - BUSHING BDE-N100120.A0 N100120	£10.85	£13.02
73 - SPIROL PIN BDE-UB5130.A6 UB5130	£1.50	£1.80
75 - CANISTER BDE-N80103.A2 N80103	£10.85	£13.02
76 - LATCH BDE-107455.A10 107455	£7.18	£8.62
77 - LEAF SPRING BDE-N80108.A11 N80108	£1.50	£1.80
78 - SPIROL PIN BDE-UB2110.4.A11 UB2110.4	£1.50	£1.80
79 - SPACER BDE-N80106.A5 N80106	£1.50	£1.80
80 - SPIROL PIN BDE-UB2126.A0 UB2126	£1.50	£1.80
81 - O RING BDE-86459.A67 86459	£1.50	£1.80
82 - O RING BDE-MRG019824.A5 MRG019824	£11.87	£14.24
84 - VALVE BDE-TVA6.A1 TVA6	£16.03	£19.24
87 - DRIVER SA BDE-N100117A N100117A	£110.21	£132.25
95 - KIT BDE-CNTK2.A6 CNTK2	£5.88	£7.06
98 - MUFFLER BDE-N100134A.A1 N100134A	£41.24	£49.49
99 - NO LONGER AVAILABLE BDE-000000-00.A129913 000000-00	-
100 - SPACER BDE-N100138.A4 N100138	£3.22	£3.86
101 - SCREW BDE-MSC8125-28.A15 MSC8125-28	£1.50	£1.80
102 - RING BDE-N100137.A1 N100137	£17.03	£20.44
107 - KIT BDE-SEQ6.A0 SEQ6	£10.85	£13.02
108 - WASHER BDE-N100126.A1 N100126	-
110 - HOOK BDE-851756.A0 851756	£29.32	£35.18
111 - NO LONGER AVAILABLE BDE-000000-00.A129914 000000-00	-
112 - GUARD BDE-103031.A0 103031	-
113 - LOCK-NUT BDE-MHE5080-100.A37 MHE5080-100	£1.50	£1.80
114 - BRACKET SA BDE-121632.A2 121632	£25.70	£30.84
115 - CANISTER BDE-121635.A5 121635	£34.00	£40.80

Attribute Name	Value
Brand	Bostitch
