Bostitch MCN250-E Type REV 1 Nailer Spare Parts

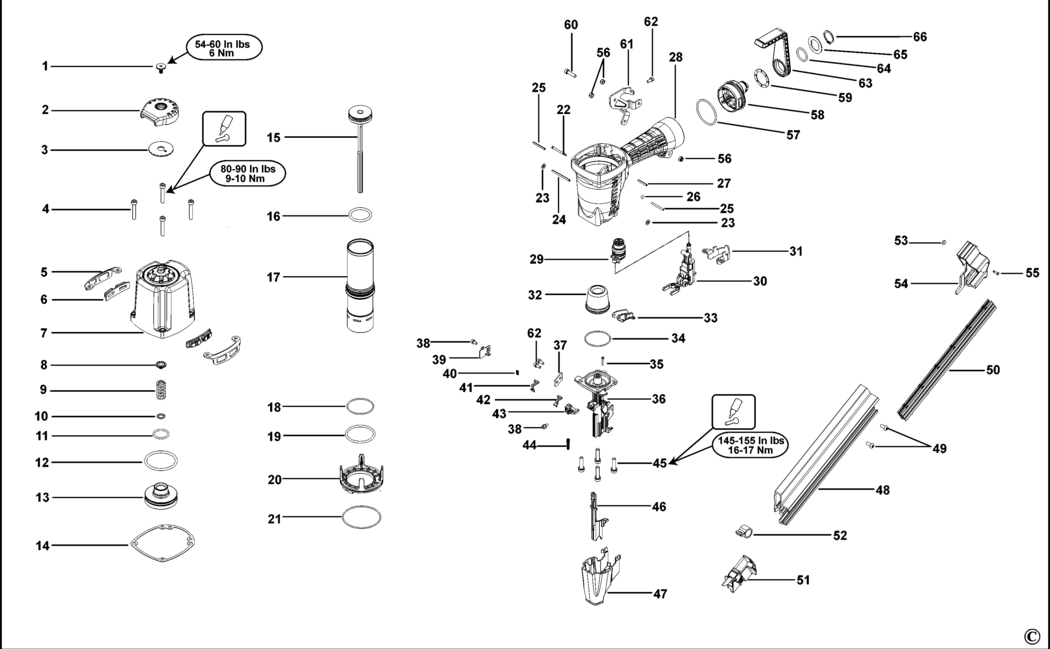

An exploded drawing and spare parts listing for the Bostitch MCN250-E Type REV 1 Nailer

	Ex VAT	Inc VAT
1 - SCREW BDE-175551.A1 175551	£1.50	£1.80
2 - COVER BDE-175552.A2 175552	£1.50	£1.80
3 - PLATE BDE-175553.A1 175553	£1.50	£1.80
4 - SCREW BDE-175554.A6 175554	£1.50	£1.80
5 - BRACKET BDE-174046.A0 174046	£1.50	£1.80
6 - RUBBER PAD BDE-174045.A8 174045	£1.50	£1.80
7 - DEFLECTOR BDE-175555 175555	£19.90	£23.88
8 - SEAL BDE-174049.A8 174049	£1.50	£1.80
9 - SPRING COMPRESSION BDE-174051.A8 174051	£1.50	£1.80
10 - WASHER SPECIAL BDE-174052.A5 174052	£1.50	£1.80
11 - O RING BDE-174053.A8 174053	£1.50	£1.80
12 - O RING BDE-174055.A8 174055	£1.50	£1.80
13 - VALVE BDE-174054.A5 174054	£3.30	£3.96
14 - GASKET BDE-174050.A5 174050	£3.80	£4.56
16 - O RING BDE-174060.A5 174060	£1.50	£1.80
17 - SLEEVE BDE-175558.A0 175558	£25.70	£30.84
18 - O RING BDE-174058.A4 174058	£1.50	£1.80
19 - O RING BDE-86460.A5 86460	£7.85	£9.42
20 - COLLAR BDE-175556.A0 175556	£2.26	£2.71
21 - O RING BDE-174056.A5 174056	£1.50	£1.80
22 - PIN BDE-174062.A13 174062	£1.50	£1.80
23 - PLUG BDE-174087.A0 174087	£1.50	£1.80
24 - ROLL PIN BDE-174086.A2 174086	£1.50	£1.80
25 - O RING BDE-174073.A0 174073	£1.50	£1.80
26 - PIN BDE-100298.A60 100298	£1.50	£1.80
27 - PIN BDE-174070.A11 174070	£1.50	£1.80
29 - VALVE BDE-174117.A1 174117	£14.57	£17.48
30 - HOUSING SA BDE-174084.A2 174084	£74.15	£88.98
31 - BRACKET BDE-174085.A0 174085	£1.82	£2.19
32 - BUMPER BDE-175562.A0 175562	£5.88	£7.06
33 - TRIGGER BDE-174072.A2 174072	£1.50	£1.80
34 - O RING BDE-851483-S.A10 851483-S	£1.50	£1.80
35 - PIN BDE-175564 175564	£1.50	£1.80
36 - NOSE SA BDE-9R209476.A1 9R209476	£110.62	£132.74
37 - SPACER BDE-175577.A0 175577	£1.50	£1.80
38 - SCREW BDE-174080.A4 174080	£1.50	£1.80
39 - COVER BDE-175565 175565	£1.50	£1.80
40 - SPRING BDE-175566 175566	£1.50	£1.80
41 - PAWL BDE-175568 175568	£4.69	£5.63
42 - PAWL BDE-175567 175567	£4.69	£5.63
43 - FOLLOWER BDE-174081.A0 174081	£4.69	£5.63
44 - SPRING COMPRESSION BDE-174082.A2 174082	£1.50	£1.80
45 - SCREW BDE-174078.A2 174078	£1.50	£1.80
46 - NOSE BDE-9R209479.A0 9R209479	£10.85	£13.02
47 - COVER BDE-175569.A0 175569	£1.50	£1.80
48 - MAGAZINE BDE-9R199710.A0 9R199710	£38.80	£46.56
49 - SCREW BDE-9R199719.A1 9R199719	£1.50	£1.80
50 - LINER BDE-9R199712.A0 9R199712	£4.69	£5.63
51 - PUSHER BDE-9R205723.A1 9R205723	£5.88	£7.06
52 - PUSHER BDE-175576.A1 175576	£10.85	£13.02
53 - WASHER BDE-174093.A0 174093	£1.50	£1.80
54 - COVER BDE-9R199711.A1 9R199711	£2.26	£2.71
55 - PIN BDE-174092.A2 174092	£1.50	£1.80
56 - LOCK-NUT BDE-MHE5080-100.A24 MHE5080-100	£1.50	£1.80
57 - O RING BDE-174067.A14 174067	£1.50	£1.80
58 - END CAP BDE-175561.A2 175561	£7.18	£8.62
59 - SEAL BDE-175582.A9 175582	£1.50	£1.80
60 - SCREW BDE-9R199720.A0 9R199720	£1.50	£1.80
61 - BRACKET BDE-9R199713 9R199713	£5.88	£7.06
62 - SCREW BDE-174069.A0 174069	£1.50	£1.80
63 - HOOK BDE-175583.A4 175583	£1.50	£1.80
64 - O RING BDE-175557.A14 175557	£1.50	£1.80
65 - CAP BDE-175585.A9 175585	£1.50	£1.80
66 - RING BDE-175586.A4 175586	£1.50	£1.80

Attribute Name	Value
Brand	Bostitch
