Bostitch FN1650SP-M Type Rev A Nailer Spare Parts

Home Details Reviews Delivery

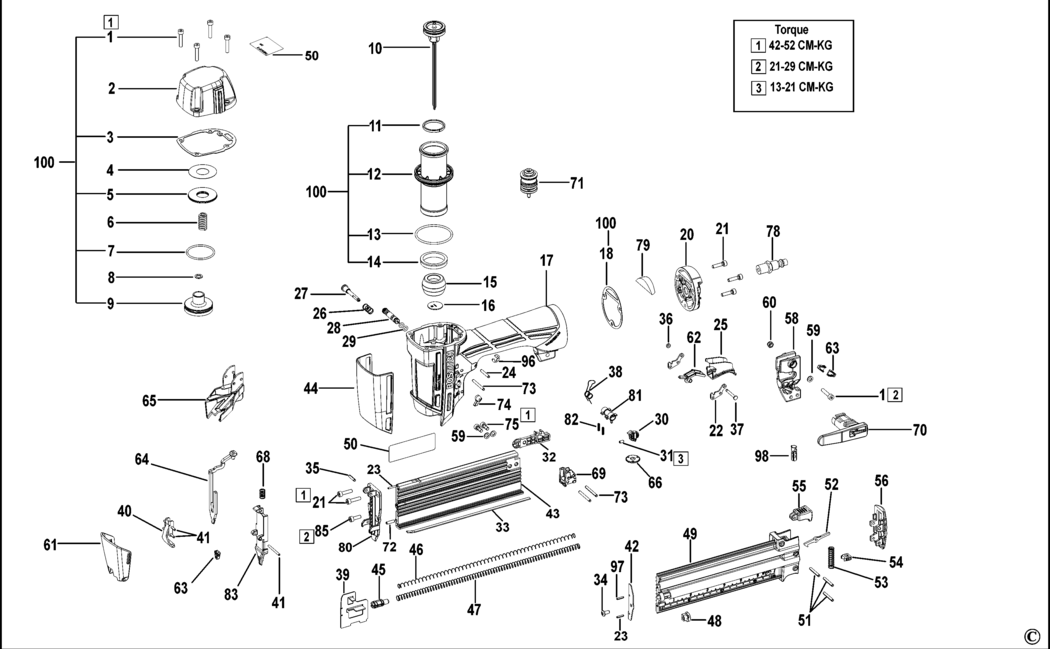

An exploded drawing and spare parts listing for the Bostitch FN1650SP-M Type Rev A Nailer

	Ex VAT	Inc VAT
1 - SCREW BDE-182237.A8 182237	£1.66	£1.99
2 - CAP BDE-9R196714.A1 9R196714	£19.48	£23.37
3 - GASKET BDE-9R196715.A0 9R196715	£1.88	£2.26
4 - PLATE BDE-N905958.A2 N905958	£1.66	£1.99
5 - SEAL BDE-180446.A8 180446	£1.66	£1.99
6 - SPRING BDE-180447.A2 180447	£1.66	£1.99
7 - O RING BDE-180448.A12 180448	£1.66	£1.99
8 - WASHER BDE-180449.A2 180449	£1.66	£1.99
9 - BODY BDE-180450-S.A10 180450-S	£1.66	£1.99
10 - DRIVER SA BDE-180670.A1 180670	£11.18	£13.41
11 - PISTON RING BDE-N905972.A8 N905972	£2.32	£2.78
12 - CYLINDER BDE-180458.A1 180458	£2.87	£3.44
13 - O RING BDE-180459.A7 180459	£1.66	£1.99
14 - SEAL BDE-180460.A1 180460	£1.66	£1.99
15 - BUMPER BDE-180461.A9 180461	£1.66	£1.99
16 - GUIDE BDE-180661.A1 180661	£1.66	£1.99
17 - FRAME BDE-9R196723.A0 9R196723	£80.46	£96.55
18 - GASKET BDE-180463.A7 180463	£1.66	£1.99
20 - CAP BDE-180465.A5 180465	£6.06	£7.27
21 - SCREW BDE-MSC4070-16.A14 MSC4070-16	£1.66	£1.99
22 - BRACKET BDE-9R201812.A5 9R201812	£1.66	£1.99
23 - PIN BDE-180490.A9 180490	£1.66	£1.99
24 - PIN BDE-180475.A4 180475	£1.66	£1.99
25 - TRIGGER BDE-9R205611.A6 9R205611	£7.40	£8.88
26 - SPRING BDE-180481.A5 180481	£1.66	£1.99
27 - PIN BDE-9R195255.A2 9R195255	£2.32	£2.78
28 - PIN BDE-9R196671.A3 9R196671	£2.71	£3.25
29 - O RING BDE-9R196690.A1 9R196690	£1.66	£1.99
30 - BUTTON BDE-9R195254.A3 9R195254	£1.66	£1.99
31 - GRUB SCREW BDE-9R198788.A3 9R198788	£1.66	£1.99
32 - PLATE BDE-182250.A0 182250	£11.18	£13.41
33 - GUIDE ROD BDE-182251.A1 182251	£1.66	£1.99
34 - SCREW BDE-9R196691.A0 9R196691	£1.66	£1.99
35 - ROLLPIN BDE-192046.A0 192046	£1.66	£1.99
36 - GROMMET BDE-391814-C3D1.A3 391814-C3D1	£1.66	£1.99
37 - PIN BDE-9R196682.A1 9R196682	£1.66	£1.99
38 - SPRING BDE-9R205607.A4 9R205607	£1.66	£1.99
39 - PUSHER BDE-9R196677.A0 9R196677	£1.88	£2.26
40 - LATCH BDE-9R196742.A2 9R196742	£9.69	£11.63
41 - SPIROL PIN BDE-195327.A1 195327	£1.66	£1.99
42 - PLATE BDE-9R196737.A0 9R196737	£1.66	£1.99
44 - COVER BDE-9R196718.A1 9R196718	£1.66	£1.99
45 - ROLLER BDE-180499.A2 180499	£1.66	£1.99
46 - SPRING BDE-182255.A0 182255	£1.66	£1.99
47 - SPRING BDE-182252.A0 182252	£1.66	£1.99
48 - NUT BDE-180238.A1 180238	£1.66	£1.99
49 - MAGAZINE BDE-181959.A1 181959	£12.53	£15.04
51 - PIN BDE-180503.A6 180503	£1.66	£1.99
52 - LATCH BDE-180501.A5 180501	£1.66	£1.99
53 - SPRING BDE-180502.A1 180502	£1.66	£1.99
54 - SUPPORT BDE-180319.A6 180319	£1.66	£1.99
55 - COVER BDE-175666.A2 175666	£1.66	£1.99
56 - END CAP BDE-175665.A1 175665	£1.66	£1.99
58 - BRACKET BDE-9R196726.A1 9R196726	£2.87	£3.44
59 - WASHER BDE-N905878.A2 N905878	-
60 - NUT M4 BDE-MHE4070-100.A78 MHE4070-100	£1.66	£1.99
61 - COVER BDE-9R196736.A1 9R196736	£1.66	£1.99
62 - ROCKER BDE-9R205614.A6 9R205614	£7.40	£8.88
63 - FOOT BDE-9R196744.A0 9R196744	£1.66	£1.99
64 - TRIP SA BDE-9R198740 9R198740	£12.53	£15.04
65 - COVER BDE-9R196681.A1 9R196681	£1.66	£1.99
66 - WHEEL ADJUSTER BDE-9R198779.A2 9R198779	£1.66	£1.99
68 - SPRING BDE-9R207509.A0 9R207509	£1.66	£1.99
69 - GUIDE BDE-9R198774.A0 9R198774	£1.66	£1.99
70 - HOOK BDE-182272.A6 182272	£3.92	£4.70
71 - VALVE BDE-9R205626.A1 9R205626	£12.53	£15.04
72 - PIN BDE-MPG030012.A4 MPG030012	£1.66	£1.99
73 - PIN BDE-174345.A19 174345	£1.66	£1.99
74 - BUTTON LOCK-ON BDE-184518.A7 184518	£1.66	£1.99
75 - SCREW BDE-MSC4070-10.A34 MSC4070-10	£1.66	£1.99
78 - CONNECTOR MALE BDE-152183.A2 152183	£1.66	£1.99
79 - MUFFLER BDE-180577.A4 180577	£1.66	£1.99
80 - NOSE BDE-9R198735 9R198735	£19.48	£23.37
81 - PAWL BDE-9R201813.A3 9R201813	£6.06	£7.27
82 - SPRING BDE-9R201809.A4 9R201809	£1.66	£1.99
83 - DOOR BDE-9R198737 9R198737	£16.52	£19.82
85 - SCREW BDE-MSC4070-12.A3 MSC4070-12	£1.66	£1.99
96 - CIRCLIP BDE-9R200515.A1 9R200515	£1.66	£1.99
97 - PIN BDE-110071.A5 110071	£1.66	£1.99
98 - CONTACT SA BDE-9R201814.A1 9R201814	£11.18	£13.41
100 - REPAIR KIT BDE-BT55/SX38-RK.A1 BT55/SX38-RK	£16.52	£19.82

Attribute Name	Value
Brand	Bostitch
