Bostitch F28WW-E Type Rev C Nailer Spare Parts

Home Details Reviews Delivery

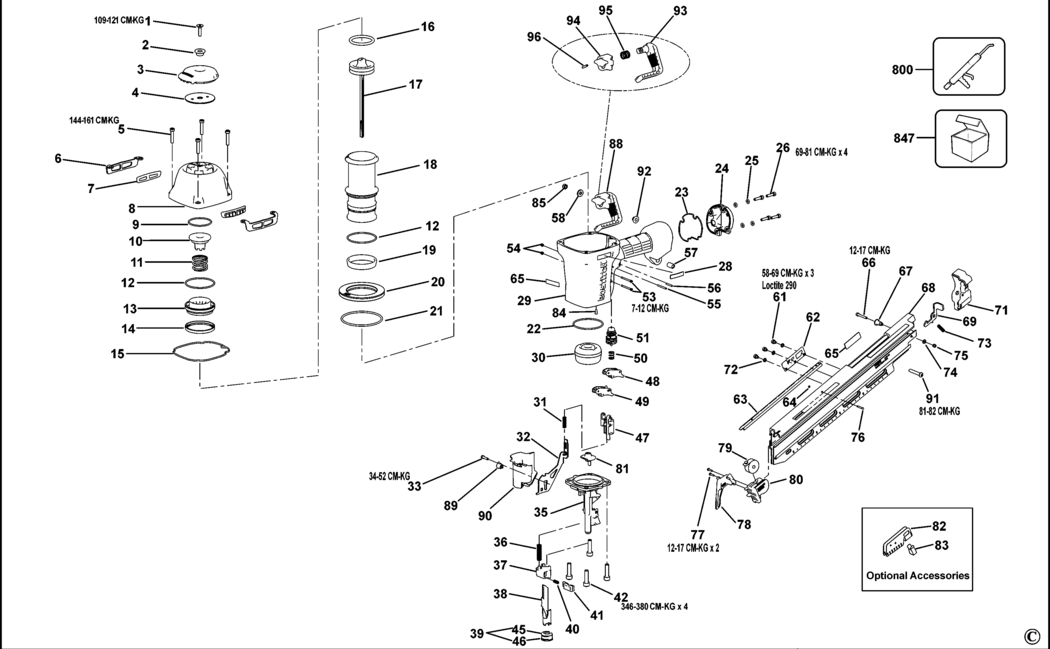

An exploded drawing and spare parts listing for the Bostitch F28WW-E Type Rev C Nailer

	Ex VAT	Inc VAT
1 - SCREW BDE-MSF6100-25.A3 MSF6100-25	£1.66	£1.99
2 - BUSHING BDE-163859.A2 163859	£2.87	£3.44
3 - EXHAUST BDE-163818.A4 163818	£3.39	£4.07
4 - PLATE BDE-163830.A0 163830	£1.66	£1.99
5 - SCREW BDE-MSC6100-30.A56 MSC6100-30	£1.66	£1.99
6 - PLATE BDE-163827.A3 163827	£1.88	£2.26
7 - GUIDE BDE-149819.A1 149819	£1.66	£1.99
8 - END CAP BDE-163848.A0 163848	£35.02	£42.02
9 - O RING BDE-105814.A10 105814	£11.18	£13.41
10 - BUMPER BDE-163820.A9 163820	£2.32	£2.78
11 - SPRING BDE-163844.A0 163844	£1.66	£1.99
12 - O RING BDE-163822.A9 163822	£3.92	£4.70
13 - VALVE BODY BDE-163821.A5 163821	£1.66	£1.99
14 - SEAL BDE-163823.A5 163823	£1.66	£1.99
15 - SEAL BDE-163845.A14 163845	£1.66	£1.99
16 - O RING BDE-851606-S.A11 851606-S	£1.66	£1.99
17 - PISTON KIT BDE-163922.A1 163922	£53.46	£64.15
18 - SLEEVE BDE-163824.A9 163824	£30.98	£37.18
19 - SEAL BDE-175520.A6 175520	£1.66	£1.99
20 - RING BDE-163855.A12 163855	£2.87	£3.44
21 - O RING BDE-108718.A14 108718	£1.66	£1.99
22 - O RING BDE-89673.A14 89673	£2.32	£2.78
23 - SEAL BDE-163856.A2 163856	£1.66	£1.99
24 - END CAP BDE-163843.A14 163843	£11.18	£13.41
25 - WASHER BDE-T50118.A8 T50118	£1.66	£1.99
26 - SCREW BDE-MSC5080-20.A34 MSC5080-20	£1.66	£1.99
28 - LABEL BDE-171432.A3 171432	£1.66	£1.99
29 - HOUSING BDE-171127.A4 171127	£80.46	£96.55
30 - BUMPER BDE-107231.A8 107231	£15.01	£18.01
31 - SPRING BDE-166781.A11 166781	£1.66	£1.99
32 - ARM BDE-163899 163899	£2.32	£2.78
33 - SCREW BDE-MSC4070-16.A22 MSC4070-16	£1.66	£1.99
35 - NOSE BDE-163927 163927	£86.95	£104.34
36 - SPRING BDE-166772.A8 166772	£1.66	£1.99
37 - HOUSING BDE-108224.A7 108224	£8.08	£9.70
38 - CONTACT BDE-108227.A1 108227	£15.01	£18.01
39 - FOOT SA Inc 45 46 BDE-121072.A10 121072	£1.66	£1.99
40 - SPRING BDE-115230.A15 115230	£1.66	£1.99
41 - CASTING BDE-166777.A8 166777	£4.83	£5.80
42 - SCREW BDE-MSC8125-30.A13 MSC8125-30	£1.66	£1.99
45 - FOOT BDE-121070.A8 121070	£1.66	£1.99
46 - CLIP BDE-121071.A4 121071	£1.66	£1.99
47 - GUIDE BDE-163883.A0 163883	£1.66	£1.99
48 - SWITCH KIT BDE-SEQ7.A4 SEQ7	£6.06	£7.27
49 - KIT SA BDE-CNTK5.A3 CNTK5	£2.32	£2.78
50 - SPRING BDE-100387.A8 100387	£1.66	£1.99
51 - VALVE BDE-TVA6.A35 TVA6	£16.52	£19.82
53 - SCREW BDE-108562.A18 108562	£1.66	£1.99
54 - NUT BDE-MHE3050-100.A22 MHE3050-100	£1.66	£1.99
55 - PIN BDE-100298.A38 100298	£1.66	£1.99
56 - PIN BDE-MPP030020.A41 MPP030020	£1.66	£1.99
57 - BUSHING BDE-N70143.A21 N70143	£1.66	£1.99
58 - WASHER BDE-MPW6.2.A24 MPW6.2	£1.66	£1.99
61 - SCREW BDE-MSC5080-6.A2 MSC5080-6	£1.66	£1.99
62 - NUT BDE-163828 163828	£12.53	£15.04
63 - LINER BDE-159718.A1 159718	£4.83	£5.80
64 - O RING BDE-166797.A11 166797	£1.66	£1.99
66 - SCREW BDE-100261.A8 100261	£1.66	£1.99
67 - SPACER BDE-121472.A6 121472	£1.66	£1.99
68 - MAGAZINE BDE-166784 166784	£56.97	£68.36
69 - LATCH BDE-166778.A2 166778	£1.66	£1.99
71 - END CAP BDE-116563.A0 116563	£2.87	£3.44
72 - WASHER BDE-116965.A2 116965	£1.66	£1.99
73 - SPRING BDE-120878.A7 120878	£1.66	£1.99
74 - WASHER BDE-MPW4.A14 MPW4	£1.66	£1.99
75 - NUT M4 BDE-MHE4070-100.A52 MHE4070-100	£1.66	£1.99
76 - PIN BDE-121407.A7 121407	£1.66	£1.99
77 - SCREW BDE-100209.A5 100209	£1.66	£1.99
78 - PUSHER BDE-158767.A1 158767	£11.18	£13.41
79 - SPRING BDE-115143.A9 115143	£7.40	£8.88
80 - HANDLE BDE-120945.A0 120945	£1.66	£1.99
81 - GUIDE BDE-163882 163882	£7.40	£8.88
82 - SHIELD BDE-112630.A14 112630	£2.26	£2.71
83 - SPRING BDE-112631.A1 112631	£1.66	£1.99
84 - PLUG BDE-163858.A9 163858	£1.66	£1.99
85 - NUT BDE-MHE6100-100.A75 MHE6100-100	£1.66	£1.99
88 - HOOK BDE-171354.A4 171354	£12.53	£15.04
89 - BUSHING BDE-163903.A6 163903	£2.32	£2.78
90 - COVER BDE-171338.A1 171338	£2.32	£2.78
91 - SCREW BDE-MSB6100-40 MSB6100-40	£1.66	£1.99
92 - WASHER BDE-171342.A1 171342	£1.66	£1.99
93 - HOOK BDE-171339.A5 171339	£4.83	£5.80
94 - MOUNT BDE-171340.A1 171340	£3.92	£4.70
95 - SPRING BDE-171341.A5 171341	£1.66	£1.99
96 - SPIROL PIN BDE-UB3811.2.A2 UB3811.2	£1.66	£1.99
800 - GREASE BDE-100653.A4 100653	£2.32	£2.78
800 - GREASE BDE-100679.A17 100679	£80.46	£96.55
876 - O RING KIT BDE-N89ORK.A1 N89ORK	£45.47	£54.56
