Bostitch DA1564SP Type 1 Finish Nailer Spare Parts

Home Details Reviews Delivery

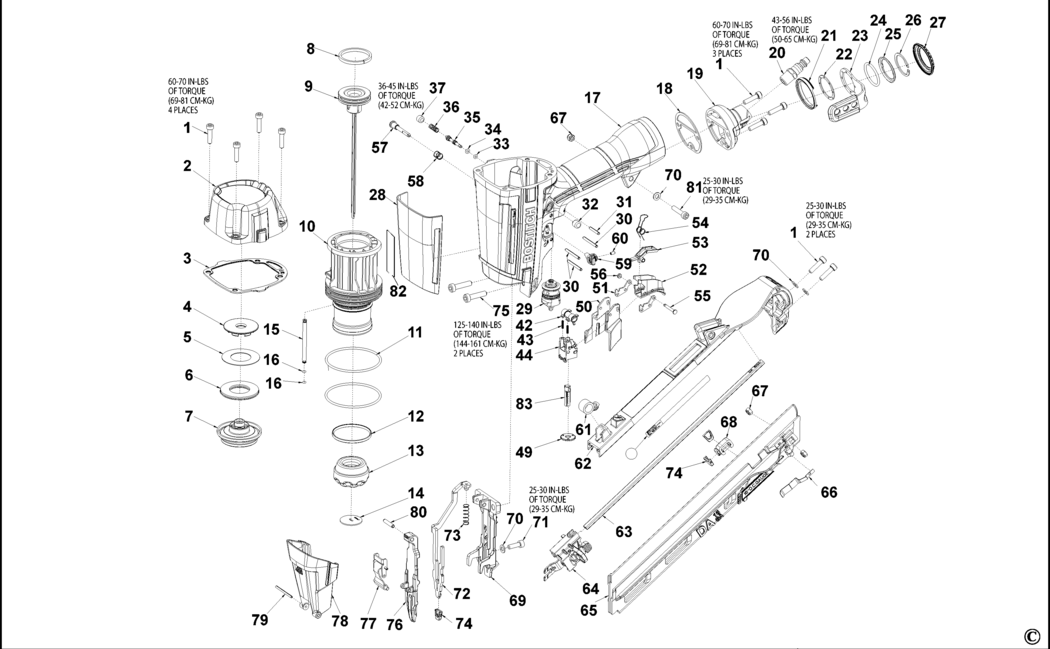

An exploded drawing and spare parts listing for the Bostitch DA1564SP Type 1 Finish Nailer

	Ex VAT	Inc VAT
1 - SCREW BDE-MSC5080-20.A19 MSC5080-20	£1.66	£1.99
2 - CAP BDE-9R203925.A1 9R203925	£42.48	£50.98
3 - GASKET BDE-9R203928.A0 9R203928	£3.92	£4.70
4 - COVER & SEAL BDE-9R188810.A4 9R188810	£1.66	£1.99
5 - PLATE BDE-9R188852.A4 9R188852	£1.66	£1.99
6 - SEAL BDE-9R188849.A7 9R188849	£1.66	£1.99
7 - VALVE BDE-9R188859.A7 9R188859	£12.53	£15.04
8 - PISTON RING BDE-9R188846.A0 9R188846	£1.88	£2.26
9 - PISTON SA BDE-9R203880.A1 9R203880	£45.47	£54.56
10 - CYLINDER BDE-9R192035.A2 9R192035	£11.18	£13.41
11 - O RING BDE-9R188836.A0 9R188836	£1.66	£1.99
12 - SEAL BDE-9R188835.A4 9R188835	£1.66	£1.99
13 - BUMPER BDE-9R188807.A4 9R188807	£7.40	£8.88
14 - GUIDE BDE-9R188847.A4 9R188847	£1.66	£1.99
15 - TUBE OUTLET BDE-9R192036.A0 9R192036	£1.66	£1.99
16 - O RING BDE-166797.A15 166797	£1.66	£1.99
17 - FRAME BDE-9R203800 9R203800	£99.44	£119.33
18 - GASKET BDE-9R192039.A2 9R192039	£1.66	£1.99
19 - END CAP BDE-9R215126 9R215126	£16.52	£19.82
20 - CONNECTOR BDE-9R213377.A0 9R213377	£1.66	£1.99
21 - HOUSING BDE-9R188829.A0 9R188829	£1.66	£1.99
22 - PLATE BDE-9R188830.A4 9R188830	£1.66	£1.99
23 - HOOK BDE-9R188815.A4 9R188815	£2.87	£3.44
24 - O RING BDE-174309.A15 174309	£1.66	£1.99
25 - CAP BDE-9R188812.A4 9R188812	£1.66	£1.99
26 - CIRCLIP BDE-9R188811.A0 9R188811	£1.66	£1.99
27 - COVER BDE-9R188828.A4 9R188828	£1.66	£1.99
28 - FRAME BDE-9R203889 9R203889	£1.66	£1.99
29 - VALVE KIT BDE-TVA17.A1 TVA17	£20.50	£24.60
30 - SPIROL PIN BDE-9R203788.A3 9R203788	£1.66	£1.99
31 - PIN BDE-180475.A10 180475	£1.66	£1.99
32 - BUTTON BDE-9R188824.A0 9R188824	£1.66	£1.99
33 - O RING BDE-MRG002514.A14 MRG002514	£4.83	£5.80
34 - O RING BDE-9R188768.A0 9R188768	£1.66	£1.99
35 - ROD BDE-9R188823.A4 9R188823	£1.66	£1.99
36 - SPRING BDE-9R188832.A4 9R188832	£1.66	£1.99
37 - SCREW BDE-9R188837.A4 9R188837	£1.66	£1.99
42 - PAWL BDE-9R201813.A6 9R201813	£6.06	£7.27
43 - SPRING BDE-9R201809.A6 9R201809	£1.66	£1.99
44 - GUIDE BDE-9R205579.A4 9R205579	£1.66	£1.99
49 - WHEEL ADJUSTER BDE-9R198779.A0 9R198779	£1.66	£1.99
50 - COVER BDE-9R203896 9R203896	£1.66	£1.99
51 - BRACKET BDE-9R201812.A1 9R201812	£1.66	£1.99
52 - TRIGGER BDE-9R205611.A1 9R205611	£7.40	£8.88
53 - ROCKER BDE-9R205614.A1 9R205614	£7.40	£8.88
54 - SPRING BDE-9R205607.A1 9R205607	£1.66	£1.99
55 - PIN BDE-9R196682.A7 9R196682	£1.66	£1.99
56 - GROMMET BDE-391814-C3D1.A1 391814-C3D1	£1.66	£1.99
57 - PIN BDE-9R195255.A0 9R195255	£2.32	£2.78
58 - SPRING BDE-9R188850.A0 9R188850	£1.66	£1.99
59 - BUTTON BDE-9R195254.A4 9R195254	£1.66	£1.99
60 - GRUB SCREW BDE-9R198788.A6 9R198788	£1.66	£1.99
61 - SPRING BDE-9R188831.A0 9R188831	£4.83	£5.80
62 - MAGAZINE BDE-9R192012.A1 9R192012	£15.01	£18.01
63 - LINER BDE-9R192015.A1 9R192015	£7.40	£8.88
64 - PUSHER BDE-9R203917 9R203917	£11.18	£13.41
65 - MAGAZINE BDE-9R192043.A0 9R192043	£19.48	£23.37
66 - STOP BDE-9R188801.A4 9R188801	£1.66	£1.99
67 - LOCK-NUT BDE-MHE5080-100.A34 MHE5080-100	£1.66	£1.99
68 - ADAPTOR BDE-9R203923.A0 9R203923	£1.66	£1.99
69 - NOSE BDE-9R203885.A0 9R203885	£35.02	£42.02
70 - WASHER BDE-180569.A12 180569	£1.66	£1.99
71 - SCREW BDE-9R188771.A1 9R188771	£1.66	£1.99
72 - TRIP SA BDE-9R203891.A0 9R203891	£15.01	£18.01
73 - SPRING BDE-9R203787.A0 9R203787	£1.66	£1.99
74 - FOOT BDE-9R203909.A0 9R203909	£1.66	£1.99
75 - BOLT BDE-MSC6100-25.A31 MSC6100-25	£1.66	£1.99
76 - DOOR BDE-9R203887.A1 9R203887	£16.52	£19.82
77 - PLATE SA BDE-9R188794.A4 9R188794	£2.87	£3.44
78 - COVER BDE-9R203890 9R203890	£3.92	£4.70
79 - PIN BDE-9R203790.A0 9R203790	£1.66	£1.99
80 - PIN BDE-103858.A19 103858	£1.66	£1.99
81 - SCREW BDE-MSC5080-25.A16 MSC5080-25	£1.66	£1.99
83 - PIN SA BDE-9R203784.A2 9R203784	£7.40	£8.88

Attribute Name	Value
Brand	Bostitch
