Bostitch BT1855-E Type Rev 1 Nailer Spare Parts

Home Details Reviews Delivery

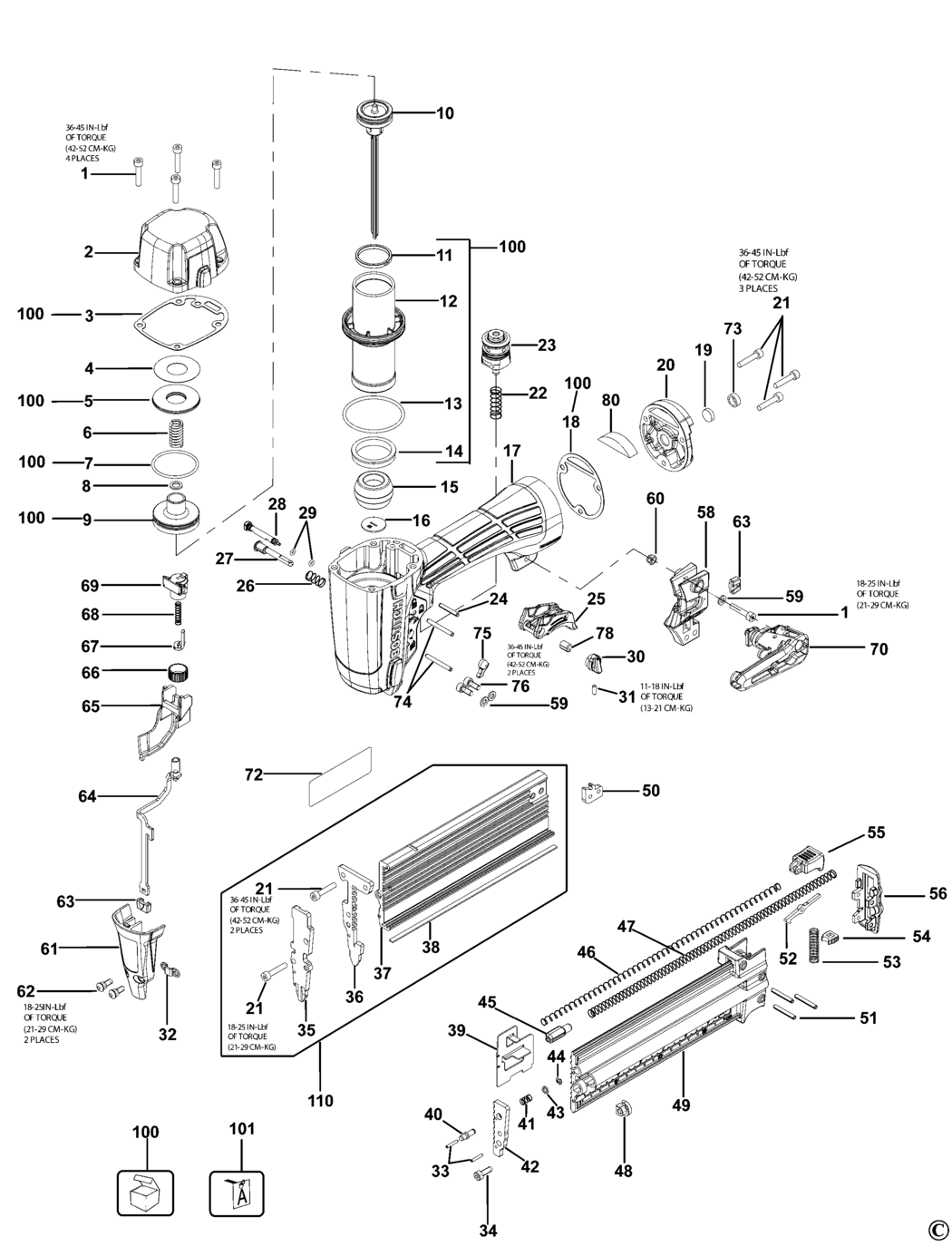

An exploded drawing and spare parts listing for the Bostitch BT1855-E Type Rev 1 Nailer

	Ex VAT	Inc VAT
1 - SCREW BDE-100260.A15 100260	£1.66	£1.99
2 - CAP SA BDE-9R207412.A3 9R207412	£16.52	£19.82
3 - GASKET BDE-175682.A1 175682	£1.66	£1.99
4 - PLATE BDE-N905958.A0 N905958	£1.66	£1.99
5 - SEAL BDE-180446.A10 180446	£1.66	£1.99
6 - SPRING BDE-180447.A0 180447	£1.66	£1.99
7 - O RING BDE-180448.A14 180448	£1.66	£1.99
8 - WASHER BDE-180449.A0 180449	£1.66	£1.99
9 - BODY BDE-180450-S.A2 180450-S	£1.66	£1.99
10 - PISTON SA BDE-180451.A2 180451	£11.18	£13.41
11 - PISTON RING BDE-N905972.A0 N905972	£2.32	£2.78
12 - CYLINDER BDE-180458.A8 180458	£2.87	£3.44
13 - O RING BDE-180459.A0 180459	£1.66	£1.99
14 - SEAL BDE-180460.A10 180460	£1.66	£1.99
15 - BUMPER BDE-180461.A0 180461	£1.66	£1.99
16 - GUIDE BDE-N906034.A5 N906034	£1.66	£1.99
17 - HOUSING BDE-175656.A0 175656	£48.48	£58.17
18 - GASKET BDE-180463.A0 180463	£1.66	£1.99
19 - FILTER BDE-180578 180578	£1.66	£1.99
20 - CAP BDE-180465.A12 180465	£6.06	£7.27
21 - SCREW BDE-182237.A5 182237	£1.66	£1.99
22 - SPRING BDE-180476.A3 180476	£1.66	£1.99
23 - VALVE BDE-9R202265-TW.A4 9R202265-TW	£7.40	£8.88
24 - PIN BDE-180475.A8 180475	£1.66	£1.99
25 - TRIGGER BDE-184513.A8 184513	£7.40	£8.88
26 - SPRING BDE-180481.A8 180481	£1.66	£1.99
27 - PIN BDE-184507.A9 184507	£3.92	£4.70
28 - PIN BDE-184519.A9 184519	£2.32	£2.78
29 - O RING BDE-MRG002514.A15 MRG002514	£4.83	£5.80
30 - BUTTON BDE-184506.A0 184506	£1.66	£1.99
31 - SCREW BDE-180484.A3 180484	£1.66	£1.99
32 - BRACKET BDE-180207.A1 180207	£1.66	£1.99
33 - PIN BDE-180490.A0 180490	£1.66	£1.99
34 - SCREW BDE-MSC4070-12.A18 MSC4070-12	£1.66	£1.99
35 - NOSE BDE-180489 180489	£7.40	£8.88
36 - TIP BDE-175661 175661	£6.06	£7.27
37 - MAGAZINE BDE-180488 180488	£15.01	£18.01
38 - GUIDE BDE-180497.A2 180497	£1.66	£1.99
39 - PUSHER BDE-180498.A1 180498	£1.66	£1.99
40 - PLUNGER BDE-180491 180491	£1.66	£1.99
41 - SPRING BDE-180492.A0 180492	£1.66	£1.99
42 - PLATE BDE-175662.A0 175662	£2.87	£3.44
43 - SPACER BDE-180493.A3 180493	£1.66	£1.99
44 - CIRCLIP BDE-180494.A0 180494	£1.66	£1.99
45 - ROLLER BDE-180499.A0 180499	£1.66	£1.99
46 - SPRING BDE-180496.A1 180496	£1.66	£1.99
47 - SPRING BDE-180495.A4 180495	£1.66	£1.99
48 - NUT BDE-180238.A6 180238	£1.66	£1.99
49 - MAGAZINE Sliding BDE-180221.A2 180221	£16.52	£19.82
50 - BACKPLATE BDE-180500.A1 180500	£1.66	£1.99
51 - PIN BDE-180503.A4 180503	£1.66	£1.99
52 - LATCH BDE-180501.A3 180501	£1.66	£1.99
53 - SPRING BDE-180502.A3 180502	£1.66	£1.99
54 - SUPPORT BDE-180319.A4 180319	£1.66	£1.99
55 - COVER BDE-175666.A0 175666	£1.66	£1.99
56 - END CAP BDE-175665.A3 175665	£1.66	£1.99
58 - BRACKET BDE-175664.A0 175664	£1.66	£1.99
59 - WASHER BDE-N905878.A4 N905878	-
60 - NUT M4 BDE-MHE4070-100.A42 MHE4070-100	£1.66	£1.99
61 - COVER BDE-175663.A1 175663	£1.66	£1.99
62 - SCREW BDE-180505.A0 180505	£1.66	£1.99
63 - FOOT BDE-179760.A1 179760	£1.66	£1.99
64 - TRIP SA BDE-180314.A1 180314	£4.83	£5.80
65 - GUIDE BDE-180508.A1 180508	£1.66	£1.99
66 - ADJUSTER BDE-180509.A0 180509	£1.66	£1.99
67 - ARM BDE-180510.A9 180510	£1.66	£1.99
68 - SPRING BDE-180513.A0 180513	£1.66	£1.99
69 - GUIDE BDE-180514.A9 180514	£1.66	£1.99
70 - HOOK BDE-182272.A2 182272	£3.92	£4.70
72 - IDENTITY LABEL BDE-182241 182241	£1.66	£1.99
73 - NO LONGER AVAILABLE BDE-000000-00.A96687 000000-00	-
74 - PIN BDE-174345.A5 174345	£1.66	£1.99
75 - BUTTON LOCK-ON BDE-184518.A0 184518	£1.66	£1.99
76 - SCREW BDE-MSC4070-10.A9 MSC4070-10	£1.66	£1.99
78 - BUSHING BDE-184508.A0 184508	£1.66	£1.99
80 - MUFFLER BDE-180577.A0 180577	£1.66	£1.99
100 - REPAIR KIT BT1855/SX15838 BDE-BT55/SX38-RK.A2 BT55/SX38-RK	£16.52	£19.82
101 - PACK BDE-BT55-SX38-TIPS.A1 BT55-SX38-TIPS	£17.48	£20.97

Attribute Name	Value
Brand	Bostitch
