Dremel 276 / F013027607 / --- 220 Volt Spare Parts

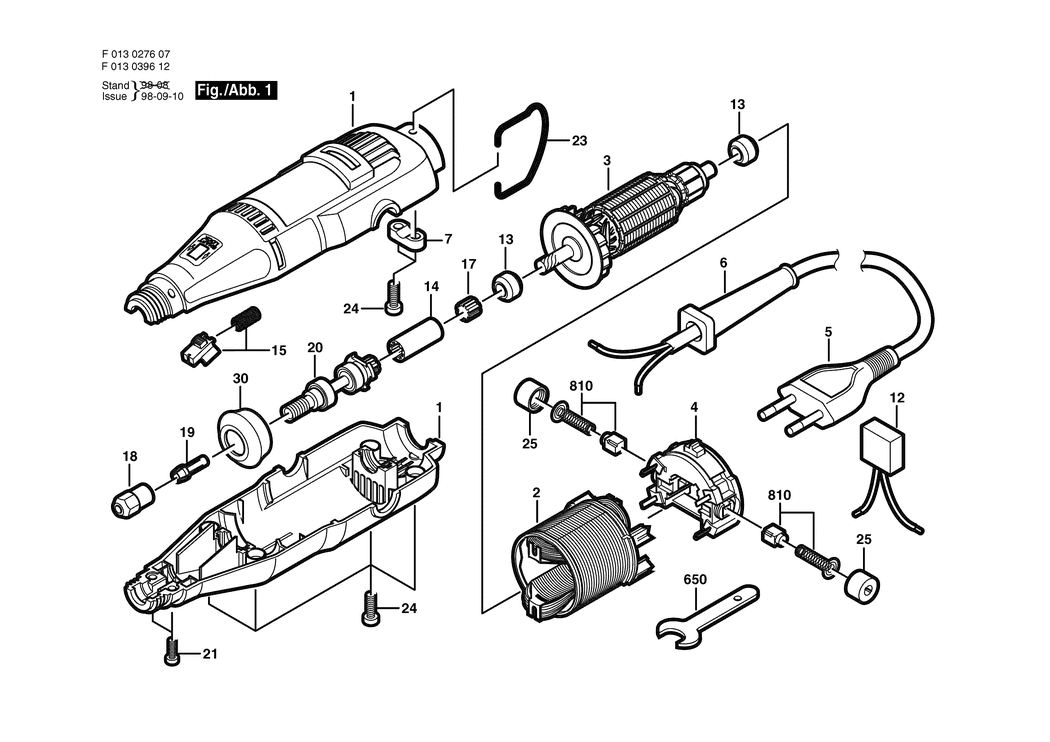

An exploded drawing and listing for the Dremel 276 / F013027607 / --- 220 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2615294801.A0 2615294801	-
2 - FIELD 220V BSD-2615294816.A1 2615294816	-
3 - ARMATURE 220V BSD-2615294323.A1 2615294323	-
4 - ON-OFF SWITCH BSD-2615294847.A0 2615294847	-
5 - POWER SUPPLY CORD EU 230V 2m 2 x 0.75mm H05 VV-F BSD-2615302694.A7 2615302694	£14.91	£17.89
6 - GROMMET BSD-2610360176.A465 2610360176	-
7 - CABLE CLIP BSD-2615650007.A27 2615650007	£2.61	£3.13
12 - CONTROL UNIT BSD-2610999112.A6 2610999112	-
13 - BEARING SLEEVE BSD-2615294029.A1 2615294029	£2.33	£2.80
14 - CLUTCH BSD-2615294309.A2 2615294309	£5.30	£6.36
15 - FUSE BSD-2615530005.A0 2615530005	-
17 - PINION BSD-2615294308.A0 2615294308	-
18 - NUT BSD-2610014582.A39 2610014582	£2.49	£2.99
19 - CONTOUR SLEEVE 1/8 BSD-2615110480.A43 2615110480	£3.72	£4.47
19 - CONTOUR SLEEVE 3/32 BSD-2615000481.A19 2615000481	-
19 - CONTOUR SLEEVE 1/16 BSD-2615000482.A0 2615000482	-
19 - CONTOUR SLEEVE 1/32 BSD-2615000483.A19 2615000483	-
20 - SHAFT BSD-2615294311.A0 2615294311	-
21 - SCREW BSD-2615530013.A0 2615530013	£1.95	£2.34
23 - PICKUP CLIP BSD-2615294043.A19 2615294043	£3.72	£4.47
24 - SERVICE KIT BSD-2615530007.A2 2615530007	-
25 - SEALING CAP BSD-2615302217.A7 2615302217	£4.26	£5.11
30 - COVER BSD-2615294800.A1 2615294800	-
650 - CHUCK WRENCH BSD-2610930692.A32 2610930692	£2.61	£3.13
810 - BRUSH-SPRING SET BSD-2610009829.A4 2610009829	£8.67	£10.41
