Dewalt DW718XPS Type 4 Mitre Saw Spare Parts

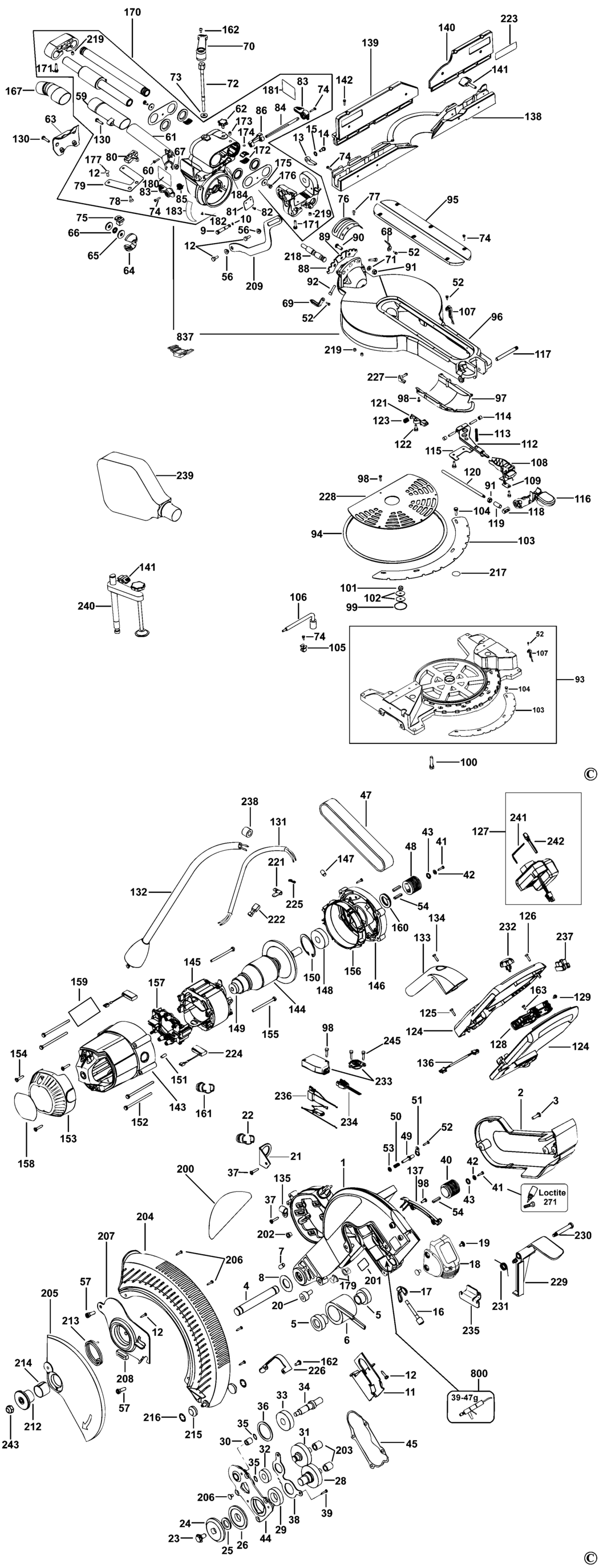

An exploded drawing and spare parts listing for the Dewalt DW718XPS Type 4 Mitre Saw

	Ex VAT	Inc VAT
1 - ARM BDE-618175-01SV.A1 618175-01SV	-
2 - BELT COVER BDE-618193-00.A10 618193-00	£14.57	£17.48
3 - SCREW BDE-330045-14.A77 330045-14	£1.50	£1.80
4 - SHAFT BDE-146751-00.A5 146751-00	£3.30	£3.96
5 - SPACER BDE-146732-00.A5 146732-00	£1.50	£1.80
6 - SPRING BDE-N039404.A3 N039404	£17.48	£20.97
7 - SCREW BDE-150075-00.A93 150075-00	£1.50	£1.80
8 - WASHER BDE-148296-00.A25 148296-00	£1.50	£1.80
9 - LOCKING PIN BDE-387130-00.A23 387130-00	£4.69	£5.63
10 - SEAL BDE-34158-00.A54 34158-00	£1.50	£1.80
11 - GUARD REAR BDE-618190-00.A0 618190-00	£7.18	£8.62
12 - SCREW.SPECIAL BDE-330045-23.A40 330045-23	£1.50	£1.80
13 - PAWL BDE-153603-01.A34 153603-01	£1.82	£2.19
14 - SCREW BDE-153639-00.A74 153639-00	£1.50	£1.80
15 - WASHER BDE-153655-00.A6 153655-00	£1.50	£1.80
16 - SCREW BDE-N185664.A4 N185664	£3.30	£3.96
17 - NUT WING BDE-150718-00.A1 150718-00	£1.50	£1.80
18 - LED & POWER SUPPLY KIT GB BDE-DWS7085.A12 DWS7085	£114.00	£136.80
18 - LED & POWER SUPPLY KIT LX BDE-DWS7085.A13 DWS7085	£114.00	£136.80
19 - SCREW BDE-385915-02.A6 385915-02	£1.50	£1.80
20 - SCREW BDE-618198-00.A21 618198-00	£1.50	£1.80
21 - BRACKET BDE-624195-01.A11 624195-01	£1.50	£1.80
22 - BUSHING BDE-615851-00.A20 615851-00	£1.50	£1.80
23 - BLADE BOLT BDE-647776-00.A2 647776-00	£1.66	£1.99
24 - CLAMP OUTER BDE-604765-00.A3 604765-00	£5.88	£7.06
25 - WASHER INNER CLAMP BDE-N081035.A1 N081035	£10.85	£13.02
26 - WASHER INNER CLAMP BDE-N081035.A2 N081035	£10.85	£13.02
28 - SPINDLE & GEAR BDE-N086159.A16 N086159	£25.70	£30.84
29 - BEARING BALL BDE-330003-66.A5 330003-66	£14.57	£17.48
30 - BEARING NEEDLE BDE-391616-00.A9 391616-00	£4.69	£5.63
31 - GEAR SA BDE-NA135793.A3 NA135793	£44.14	£52.97
32 - BEARING BDE-605040-59.A23 605040-59	£3.30	£3.96
33 - BEARING BDE-605040-33.A16 605040-33	£5.88	£7.06
34 - PULLEY SA BDE-N105443.A12 N105443	£51.90	£62.28
35 - RETAINER BDE-153752-00.A24 153752-00	£1.50	£1.80
36 - RETAINING PLATE BDE-618244-00.A1 618244-00	£1.50	£1.80
37 - SCREW BDE-330045-49.A5 330045-49	£1.50	£1.80
38 - BEARING PLATE BDE-391310-00.A19 391310-00	£1.82	£2.19
39 - SCREW BDE-98094-13.A21 98094-13	£1.50	£1.80
40 - PULLEY BDE-153796-00.A14 153796-00	£10.85	£13.02
41 - BOLT BDE-616717-00.A0 616717-00	£1.50	£1.80
42 - WASHER BDE-931429-00.A19 931429-00	£3.30	£3.96
43 - WASHER BDE-153782-00.A5 153782-00	£1.50	£1.80
44 - GEARCASE BDE-653809-01.A2 653809-01	£12.17	£14.60
45 - GASKET BDE-391315-00.A28 391315-00	£2.78	£3.34
47 - BELT BDE-153555-00.A4 153555-00	£19.90	£23.88
48 - DRIVE PULLEY BDE-153554-00.A15 153554-00	£10.85	£13.02
49 - LOCKING PIN BDE-153561-00.A38 153561-00	£1.50	£1.80
50 - SPRING BDE-448176-00.A8 448176-00	£1.50	£1.80
51 - PLATE BDE-393071-00.A43 393071-00	£1.50	£1.80
52 - SCREW BDE-330045-45.A73 330045-45	£1.50	£1.80
53 - WASHER BDE-153559-00.A25 153559-00	£1.50	£1.80
54 - KEY BDE-153638-00.A1 153638-00	£1.82	£2.19
56 - SLEEVE BDE-146740-00.A14 146740-00	£1.66	£1.99
57 - SCREW BDE-330045-55.A8 330045-55	£1.50	£1.80
59 - DUCT BDE-618157-00.A1 618157-00	-
60 - SCREW BDE-330045-15.A49 330045-15	£1.50	£1.80
61 - DUCT BDE-624719-00.A1 624719-00	£12.17	£14.60
62 - LOCK KNOB BDE-618156-00.A10 618156-00	£3.80	£4.56
63 - SUPPORT PLATE BDE-618238-00.A7 618238-00	-
64 - BUSHING BDE-618145-00.A5 618145-00	£3.30	£3.96
65 - WASHER THRUST BDE-153769-01.A5 153769-01	£1.50	£1.80
66 - BEARING THRUST BDE-153451-00.A40 153451-00	£1.82	£2.19
67 - LOCK NUT BDE-625393-00.A9 625393-00	£1.50	£1.80
68 - POINTER BDE-618211-00.A1 618211-00	£1.42	£1.70
69 - POINTER BDE-618235-00.A7 618235-00	£1.42	£1.70
70 - HANDLE BDE-618236-00.A1 618236-00	£3.80	£4.56
71 - WASHER BDE-330016-03.A42 330016-03	£1.50	£1.80
72 - ROD BDE-618148-00.A10 618148-00	£3.80	£4.56
73 - WASHER THRUST BDE-603636-00.A15 603636-00	£1.50	£1.80
74 - SCREW BDE-330045-06.A80 330045-06	£1.50	£1.80
75 - BLOCK BDE-618160-00.A11 618160-00	£3.80	£4.56
76 - SPRING BDE-626440-00.A4 626440-00	£3.80	£4.56
77 - SCREW BDE-098103-18.A4 098103-18	£1.50	£1.80
78 - SCREW BDE-98104-17.A0 98104-17	£1.50	£1.80
79 - SPRING BDE-641466-00.A13 641466-00	£3.80	£4.56
80 - PAWL BDE-641467-00.A1 641467-00	£7.18	£8.62
81 - COVER BDE-618162-00.A2 618162-00	£1.50	£1.80
82 - SCREW BDE-330045-44.A4 330045-44	£1.50	£1.80
83 - LEVER SA BDE-N019349.A2 N019349	£1.50	£1.80
84 - ROD BDE-618153-00.A14 618153-00	£7.18	£8.62
85 - SPRING TORSION BDE-618259-00.A2 618259-00	£1.50	£1.80
86 - CAM BDE-618232-00.A7 618232-00	-
88 - PLATE BDE-641471-00.A10 641471-00	-
89 - PLATE BDE-641468-00.A9 641468-00	-
90 - CARRIAGE BOLT BDE-98130-25.A9 98130-25	£1.50	£1.80
91 - NUT BDE-330015-03.A85 330015-03	£1.50	£1.80
92 - SCREW BDE-391346-00.A7 391346-00	£1.50	£1.80
93 - BASE SA BDE-645751-00SV.A1 645751-00SV	£336.69	£404.03
94 - PLATE BDE-N528183.A8 N528183	£7.18	£8.62
95 - PLATE BDE-618199-00.A1 618199-00	£3.80	£4.56
96 - TABLE SA BDE-630711-03.A3 630711-03	£192.14	£230.57
97 - COVER BDE-N401778.A4 N401778	£7.18	£8.62
98 - SCREW BDE-330045-05.A145 330045-05	£1.50	£1.80
99 - RING BDE-49787-00.A29 49787-00	£1.50	£1.80
100 - SCREW BDE-98025-35.A24 98025-35	£1.50	£1.80
101 - LOCK NUT BDE-N044739.A5 N044739	£1.50	£1.80
102 - WASHER BDE-153792-00.A20 153792-00	£1.50	£1.80
103 - PLATE BDE-618168-00.A1 618168-00	£24.39	£29.27
104 - SCREW BDE-604410-00.A42 604410-00	£1.50	£1.80
105 - HOLDER BDE-391358-01.A30 391358-01	£1.50	£1.80
106 - WRENCH SPECIAL BDE-N040940.A18 N040940	£9.41	£11.29
107 - POINTER BDE-618209-00.A7 618209-00	£1.42	£1.70
108 - ACTUATOR BDE-618169-00.A7 618169-00	£4.69	£5.63
109 - PLATE BDE-618243-00.A7 618243-00	£1.42	£1.70
112 - DETENT BDE-N488468.A12 N488468	£41.24	£49.49
113 - SPRING COMPRESSION BDE-618176-00.A1 618176-00	£1.50	£1.80
114 - BEARING NEEDLE BDE-093128-00.A84 093128-00	£1.50	£1.80
115 - RETAINER BDE-618254-00.A11 618254-00	£1.50	£1.80
116 - LEVER BDE-N082785.A0 N082785	£5.88	£7.06
117 - PIN BDE-618187-00.A7 618187-00	£3.30	£3.96
118 - PIN BDE-624460-00.A16 624460-00	£1.50	£1.80
119 - SLEEVE BDE-624461-00.A3 624461-00	£1.50	£1.80
120 - ROD BDE-618186-00.A1 618186-00	£5.88	£7.06
121 - BLOCK BDE-618185-00.A11 618185-00	£5.88	£7.06
122 - SCREW BDE-385915-03.A9 385915-03	£1.50	£1.80
123 - SPRING COMPRESSION BDE-618253-00.A3 618253-00	£1.50	£1.80
124 - HANDLE SA BDE-N502790.A15 N502790	£25.70	£30.84
125 - SCREW BDE-330045-18.A36 330045-18	£1.50	£1.80
126 - SCREW BDE-330019-32.A28 330019-32	£1.50	£1.80
127 - SA POWER SUPPLY GB BDE-DWS7085.A25 DWS7085	£114.00	£136.80
128 - SWITCH BDE-N548978V.A37 N548978V	£19.90	£23.88
129 - SCREW BDE-384127-01.A12 384127-01	£1.50	£1.80
130 - SCREW.TEMP BDE-330045-25.A6 330045-25	£1.50	£1.80
131 - MOTOR CABLE BDE-N029242.A4 N029242	£12.17	£14.60
132 - CORDSET LX BDE-N045585.A0 N045585	£59.41	£71.29
132 - CORDSET GB BDE-604807-03.A7 604807-03	£60.94	£73.13
133 - HANDLE BDE-N083060.A17 N083060	£7.85	£9.42
134 - SCREW BDE-330019-22.A3 330019-22	£1.50	£1.80
135 - CABLE CLAMP BDE-398443-00.A1 398443-00	£1.50	£1.80
136 - CABLE SA BDE-N467585.A27 N467585	£9.41	£11.29
137 - COVER BDE-618269-00.A14 618269-00	£1.42	£1.70
138 - FENCE BDE-618202-01.A8 618202-01	-
139 - FENCE LH BDE-618203-01.A1 618203-01	-
140 - FENCE RH BDE-N024409.A2 N024409	-
141 - KNOB LOWER BDE-147107-02.A3 147107-02	£2.26	£2.71
142 - SCREW BDE-098105-03.A36 098105-03	£3.80	£4.56
143 - FIELDCASE BDE-391317-00.A3 391317-00	£12.17	£14.60
144 - ARMATURE SA GB BDE-N093107.A17 N093107	£157.49	£188.99
144 - ARMATURE 115V LX BDE-N093108.A2 N093108	£165.92	£199.11
145 - FIELD 115V LX BDE-869045-01.A22 869045-01	£47.08	£56.49
145 - FIELD 230V GB BDE-869045-00.A1 869045-00	£47.08	£56.49
146 - MOUNTING BRACKET BDE-391282-00.A27 391282-00	£16.03	£19.24
147 - SCREW BDE-394034-00.A4 394034-00	£1.50	£1.80
148 - BEARING BALL BDE-605040-32.A3 605040-32	£7.18	£8.62
149 - BEARING BDE-330003-60.A182 330003-60	£2.78	£3.34
150 - CIRCLIP BDE-144803-00.A12 144803-00	£1.50	£1.80
151 - PLUG BDE-145312-00.A29 145312-00	£1.50	£1.80
152 - SCREW BDE-98094-55.A63 98094-55	£1.50	£1.80
153 - END CAP BDE-391933-00.A2 391933-00	£4.69	£5.63
154 - SCREW BDE-330019-13.A488 330019-13	£1.50	£1.80
155 - SCREW BDE-330019-19.A199 330019-19	£1.50	£1.80
156 - BAFFLE FAN BDE-391375-00.A48 391375-00	£1.82	£2.19
157 - BRUSH PLATE BDE-389512-01.A26 389512-01	£16.03	£19.24
158 - NO LONGER AVAILABLE BDE-000000-00.A129252 000000-00	-
159 - RATING PLATE LX BDE-N047354 N047354	£3.70	£4.44
159 - RATING PLATE GB BDE-N047352 N047352	£3.70	£4.44
160 - RING BDE-153783-00.A19 153783-00	£1.50	£1.80
161 - BUSHING BDE-605155-00.A41 605155-00	£1.66	£1.99
162 - SCREW BDE-330045-13.A29 330045-13	£1.50	£1.80
163 - SCREW BDE-330019-12.A5 330019-12	£1.50	£1.80
167 - ADAPTOR BDE-618240-00.A1 618240-00	-
170 - TRUNION BDE-650852-00.A2 650852-00	-
171 - SCREW BDE-603390-00.A25 603390-00	£1.50	£1.80
172 - GUIDE BDE-397118-00.A34 397118-00	£3.30	£3.96
173 - SCREW BDE-153576-04.A8 153576-04	£1.50	£1.80
174 - THRUST PLATE BDE-613497-00.A11 613497-00	£1.50	£1.80
175 - WASHER BDE-153586-00.A9 153586-00	£1.50	£1.80
176 - SCREW BDE-616001-00.A0 616001-00	£1.50	£1.80
179 - BUSHING BDE-645746-00.A14 645746-00	£1.50	£1.80
180 - LABEL PIVOT BDE-618278-00.A0 618278-00	£1.50	£1.80
181 - LABEL PIVOT BDE-618277-00.A14 618277-00	£1.50	£1.80
182 - RIVET BDE-147439-07.A1 147439-07	£1.42	£1.70
183 - SCALE LH BDE-618262-00.A0 618262-00	£1.42	£1.70
184 - SCALE RH BDE-618261-00.A7 618261-00	£1.42	£1.70
200 - LABEL BDE-393706-00.A13 393706-00	£1.50	£1.80
201 - WARNING LABEL BDE-662575-00.A1 662575-00	£7.85	£9.42
202 - INSERT BDE-148608-00.A45 148608-00	£1.50	£1.80
203 - BEARING BDE-386780-00.A42 386780-00	£2.26	£2.71
204 - GUARD LOWER BDE-618231-01.A3 618231-01	£24.39	£29.27
205 - PLATE BDE-N020822.A7 N020822	£12.17	£14.60
206 - SCREW BDE-385915-01.A34 385915-01	£1.50	£1.80
207 - PLATE BDE-N041973.A9 N041973	£10.85	£13.02
208 - BUMPER BDE-146768-00.A50 146768-00	£1.66	£1.99
209 - LINK BDE-N142523.A4 N142523	£17.48	£20.97
212 - FSO KIT BDE-N390418.A10 N390418	£7.85	£9.42
213 - SPRING BDE-661454-00.A1 661454-00	£1.50	£1.80
214 - SLEEVE BDE-148295-00.A39 148295-00	£1.66	£1.99
215 - ROLLER BDE-625825-00.A13 625825-00	£1.66	£1.99
216 - RING BDE-142273-00.A1 142273-00	£1.50	£1.80
217 - LABEL BDE-394976-00.A54 394976-00	£1.82	£2.19
218 - STUD BDE-618234-00.A1 618234-00	£7.18	£8.62
219 - SCREW BDE-153666-00.A29 153666-00	£1.50	£1.80
220 - WARNING LABEL BDE-618274-00.A8 618274-00	£1.42	£1.70
221 - TERMINAL BDE-145332-00.A13 145332-00	£1.50	£1.80
222 - TERMINAL BDE-450212-00.A24 450212-00	£2.78	£3.34
223 - LABEL BDE-395301-00.A29 395301-00	£1.50	£1.80
224 - BRUSH & LEAD BDE-381028-08.A58 381028-08	£7.18	£8.62
225 - TERMINAL BDE-395716-00.A1 395716-00	£1.50	£1.80
226 - GUARD BDE-623957-00.A3 623957-00	£3.80	£4.56
227 - NO LONGER AVAILABLE BDE-000000-00.A129253 000000-00	-
228 - COVER BDE-391355-00.A1 391355-00	£15.63	£18.76
229 - LEVER LOCK BDE-624399-00.A6 624399-00	-
230 - BOLT BDE-152852-00.A56 152852-00	£1.82	£2.19
231 - SPRING BDE-386196-00.A12 386196-00	£1.66	£1.99
232 - KNOB BDE-392131-00.A26 392131-00	£1.50	£1.80
233 - CONTROL MODULE SA GB BDE-N033994.A2 N033994	£93.62	£112.35
233 - CONTROL MODULE SA LX BDE-628744-01.A11 628744-01	£76.16	£91.39
234 - LEAD SA BDE-622950-00.A2 622950-00	£34.00	£40.80
235 - PLATE BDE-393791-00.A2 393791-00	£1.50	£1.80
236 - LEAD SA BDE-618159-00.A13 618159-00	£17.48	£20.97
237 - TERMINAL BLOCK BDE-393520-00.A43 393520-00	£5.88	£7.06
238 - BUSH BDE-388414-01.A51 388414-01	£1.50	£1.80
239 - DUSTBAG BDE-147734-06.A29 147734-06	£16.03	£19.24
240 - CLAMP SA BDE-630065-00.A7 630065-00	£14.57	£17.48
241 - HEX KEY 2.5 MM BDE-604407-01.A4 604407-01	£3.30	£3.96
242 - SWITCH LOCK OFF BDE-627271-00.A14 627271-00	£1.50	£1.80
243 - FSO KIT BDE-N390418.A11 N390418	£7.85	£9.42
245 - SCREW BDE-330019-03.A327 330019-03	£1.50	£1.80
800 - GREASE BDE-429698-00.A108 429698-00	£84.42	£101.30
800 - GREASE BDE-93488-00.A6 93488-00	£17.48	£20.97
837 - S.T.SQUARE BDE-559626-99.A12 559626-99	£108.20	£129.84

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

For further delivery and international shipping information please click here
