Dewalt DW711 Type 5 Table Saw Spare Parts

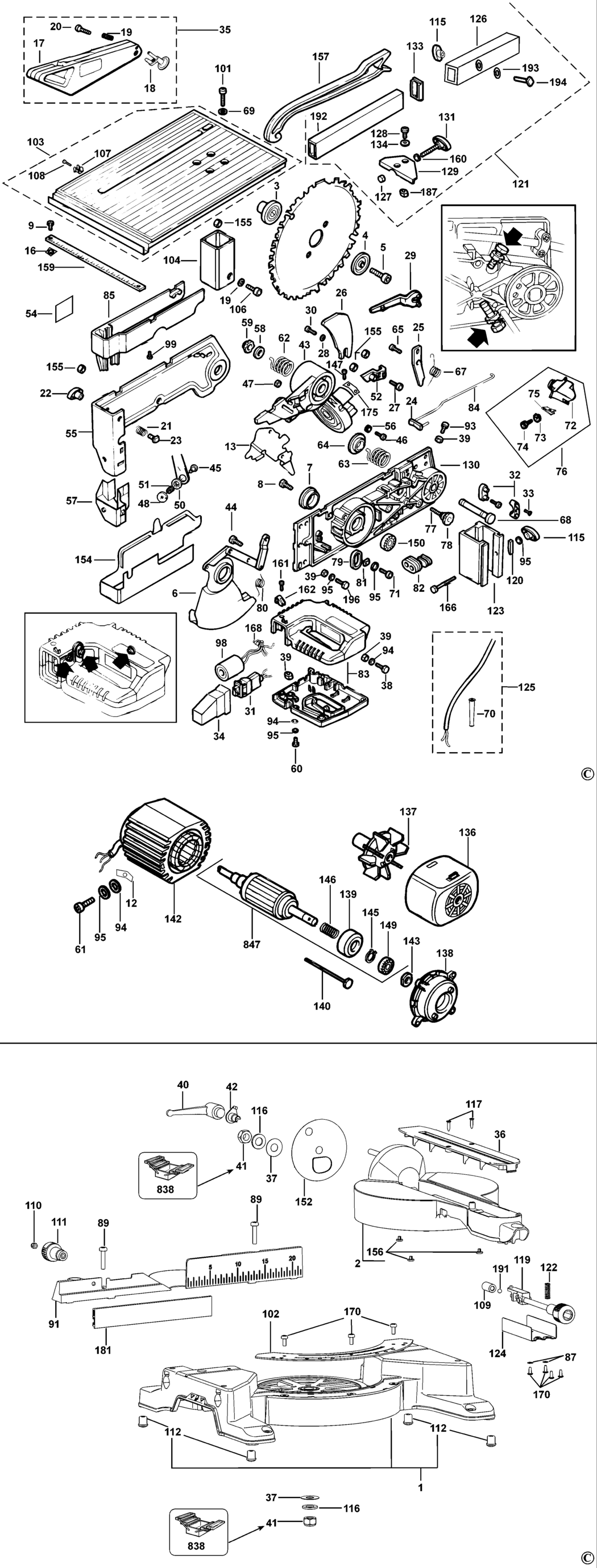

An exploded drawing and spare parts listing for the Dewalt DW711 Type 5 Table Saw

	Ex VAT	Inc VAT
1 - TABLE SA BDE-869313-00.A15 869313-00	£119.32	£143.19
2 - TABLE ROTARY BDE-869313-01.A0 869313-01	£93.62	£112.35
3 - INNER FLANGE BDE-861057-01.A2 861057-01	£4.69	£5.63
4 - OUTER FLANGE BDE-861056-00.A11 861056-00	£3.30	£3.96
5 - BOLT BDE-949886-21.A1 949886-21	£1.82	£2.19
6 - GUARD SA BDE-864693-04.A15 864693-04	£34.00	£40.80
7 - HUB BDE-863039-02.A11 863039-02	£1.50	£1.80
8 - SCREW BDE-330045-49.A3 330045-49	£1.50	£1.80
9 - SCREW BDE-930085-00.A7 930085-00	£1.50	£1.80
12 - WASHER BDE-949761-01.A12 949761-01	£1.50	£1.80
13 - GUARD BDE-861918-04.A2 861918-04	£10.85	£13.02
16 - PLATE BDE-943025-00.A2 943025-00	£1.50	£1.80
17 - GUARD UPPER BDE-N162669.A31 N162669	£17.48	£20.97
18 - PIVOT BDE-N162670.A10 N162670	£3.80	£4.56
19 - SPRING BDE-941622-00.A9 941622-00	£1.50	£1.80
20 - SCREW BDE-860084-11.A16 860084-11	£1.50	£1.80
21 - SPRING BDE-868082-00.A146 868082-00	£1.50	£1.80
22 - KNOB BDE-861464-00.A18 861464-00	£1.82	£2.19
23 - LOCKING PIN BDE-861963-00.A4 861963-00	£1.82	£2.19
24 - CAP BDE-861953-00.A3 861953-00	£1.50	£1.80
25 - PLATE BDE-863610-00.A15 863610-00	£1.50	£1.80
26 - RIVING KNIFE BDE-861919-01.A2 861919-01	£12.17	£14.60
27 - SCREW BDE-949886-16.A49 949886-16	£1.50	£1.80
28 - WASHER BDE-860074-03.A134 860074-03	£1.50	£1.80
29 - SPANNER BDE-939072-00.A43 939072-00	£9.41	£11.29
30 - SCREW BDE-860093-00.A110 860093-00	£1.50	£1.80
31 - SWITCH SA LX BDE-868319-03.A7 868319-03	-
31 - SWITCH GB BDE-N060327.A1 N060327	£18.91	£22.69
32 - CLAMP BDE-861692-00.A8 861692-00	£1.50	£1.80
33 - SCREW GB BDE-949889-02.A23 949889-02	£1.50	£1.80
33 - SCREW LX BDE-249412-22.A9 249412-22	£1.50	£1.80
34 - COVER BDE-868320-00.A3 868320-00	£5.88	£7.06
35 - GUARD SA BDE-N164678.A0 N164678	£38.80	£46.56
36 - INSERT BDE-868688-01.A2 868688-01	£3.80	£4.56
37 - WASHER BDE-949705-01.A27 949705-01	£1.50	£1.80
38 - SCREW.TEMP BDE-860085-09.A51 860085-09	£1.50	£1.80
39 - NUT M6 BDE-860083-12.A241 860083-12	£1.50	£1.80
40 - LEVER BDE-861840-03.A7 861840-03	£7.29	£8.75
41 - NUT BDE-860092-07.A20 860092-07	£1.50	£1.80
42 - INSERT BDE-868680-00.A20 868680-00	£4.79	£5.75
43 - SEGMENT SA BDE-861913-02.A0 861913-02	£38.80	£46.56
44 - SCREW BDE-863262-00.A12 863262-00	£1.82	£2.19
45 - LOCK SCREW BDE-863046-00.A6 863046-00	£2.26	£2.71
46 - SCREW BDE-860093-07.A48 860093-07	£1.50	£1.80
47 - NUT BDE-860083-04.A391 860083-04	£1.50	£1.80
48 - CAP BDE-863047-00.A3 863047-00	£1.50	£1.80
50 - BUSH BDE-863048-00.A6 863048-00	£1.50	£1.80
51 - SPRING BDE-949722-18.A15 949722-18	£1.50	£1.80
52 - SPACER BDE-862075-01.A4 862075-01	£7.18	£8.62
54 - LABEL BDE-868693-01.A2 868693-01	£1.42	£1.70
55 - FRAME BDE-861890-02.A0 861890-02	£17.03	£20.44
56 - SPACER BDE-863599-02.A33 863599-02	£1.50	£1.80
57 - SPACER BDE-861920-00.A7 861920-00	£1.82	£2.19
58 - SHIM BDE-949761-02.A0 949761-02	£1.50	£1.80
59 - LOCK NUT BDE-949759-01.A13 949759-01	£2.78	£3.34
60 - SCREW BDE-860085-07.A9 860085-07	£1.50	£1.80
61 - SCREW BDE-930076-00.A24 930076-00	£1.50	£1.80
62 - SPRING LH BDE-863606-00.A7 863606-00	£10.85	£13.02
63 - SPRING RH BDE-863590-00.A7 863590-00	£10.85	£13.02
64 - SHIM BDE-863611-00.A0 863611-00	£1.50	£1.80
65 - SCREW BDE-863602-00.A7 863602-00	£1.50	£1.80
67 - SPRING BDE-863604-01.A3 863604-01	£1.50	£1.80
68 - PIN BDE-863607-00.A8 863607-00	£14.57	£17.48
69 - WASHER BDE-860074-01.A56 860074-01	£1.50	£1.80
70 - CORD PROTECTOR GB BDE-868520-00.A0 868520-00	£1.82	£2.19
70 - PROTECTOR LX BDE-933551-00.A10 933551-00	£1.50	£1.80
71 - SCREW BDE-860094-02.A98 860094-02	£1.50	£1.80
72 - DUST EXTRACTOR BDE-868478-00.A9 868478-00	£10.85	£13.02
73 - WASHER BDE-939625-00.A2 939625-00	£3.80	£4.56
74 - SCREW BDE-860084-21.A51 860084-21	£1.50	£1.80
75 - FASTENER BDE-865410-00.A11 865410-00	£1.50	£1.80
76 - DUST EXTRACTOR BDE-868478-00.A8 868478-00	£10.85	£13.02
77 - PIN BDE-863605-00.A5 863605-00	£1.82	£2.19
78 - KNOB BDE-946469-00.A78 946469-00	£1.50	£1.80
79 - GASKET BDE-863026-00.A10 863026-00	£1.50	£1.80
80 - SPRING BDE-863604-01.A4 863604-01	£1.50	£1.80
81 - WASHER SPRING BDE-944650-00.A63 944650-00	£1.50	£1.80
82 - INLET BDE-863573-00.A7 863573-00	£1.50	£1.80
83 - HANDLE & COVER BDE-862429-05.A5 862429-05	£16.03	£19.24
84 - ROD BDE-863613-01.A2 863613-01	£7.18	£8.62
85 - GUARD UPPER BDE-402803-02.A4 402803-02	£7.18	£8.62
87 - WASHER SPRING BDE-860074-00.A17 860074-00	£1.50	£1.80
89 - SCREW BDE-330045-26.A33 330045-26	£1.82	£2.19
91 - FENCE BDE-N783370.A11 N783370	£45.14	£54.17
93 - SCREW BDE-860084-09.A4 860084-09	£1.50	£1.80
94 - SHEATH BDE-863025-00.A9 863025-00	£1.50	£1.80
95 - WASHER BDE-860075-00.A110 860075-00	£1.50	£1.80
98 - CAPACITOR GB BDE-949772-23.A13 949772-23	£14.57	£17.48
98 - CAPACITOR 115V LX BDE-949772-48.A2 949772-48	£9.41	£11.29
99 - SCREW BDE-860094-03.A121 860094-03	£1.50	£1.80
101 - SCREW BDE-860084-22.A0 860084-22	£1.50	£1.80
102 - SCALE BDE-868677-00.A5 868677-00	£18.91	£22.69
103 - TABLE SA BDE-869189-02.A1 869189-02	£80.98	£97.18
104 - BRACKET BDE-402801-00.A6 402801-00	£4.69	£5.63
106 - SCREW BDE-949886-16.A48 949886-16	£1.50	£1.80
107 - HOLDER BDE-391358-01.A27 391358-01	£1.50	£1.80
108 - SCREW BDE-720688-02.A9 720688-02	£1.50	£1.80
109 - BUSH BDE-868707-01.A7 868707-01	£1.66	£1.99
110 - NUT M5 BDE-860092-03.A101 860092-03	£1.50	£1.80
111 - KNOB BDE-869195-00.A5 869195-00	£7.18	£8.62
112 - FOOT BDE-868777-00.A18 868777-00	£1.50	£1.80
115 - KNOB BDE-861464-00.A17 861464-00	£1.82	£2.19
116 - WASHER BDE-860073-05.A20 860073-05	£1.50	£1.80
117 - SCREW BDE-860205-08.A16 860205-08	£1.50	£1.80
119 - LOCKING DEVICE BDE-868943-02.A26 868943-02	£24.39	£29.27
120 - PLASTIC INSERT BDE-861748-00.A6 861748-00	£1.50	£1.80
121 - FENCE SA BDE-861982-00.A3 861982-00	£44.14	£52.97
122 - SPRING BDE-868778-00.A10 868778-00	£1.50	£1.80
123 - BRACKET BDE-402800-01.A2 402800-01	£10.85	£13.02
124 - PLATE BDE-868737-00.A14 868737-00	-
125 - CORDSET LX BDE-868313-12.A3 868313-12	£37.35	£44.82
125 - CORDSET GB BDE-868313-11.A2 868313-11	£23.75	£28.50
126 - FENCE BDE-861422-02.A6 861422-02	£10.85	£13.02
127 - SPACER BDE-861453-00.A4 861453-00	£1.50	£1.80
128 - SCREW BDE-949886-11.A10 949886-11	£1.50	£1.80
129 - SUPPORT BDE-861421-01.A9 861421-01	£12.17	£14.60
130 - SUPPORT BRACKET BDE-862180-08.A6 862180-08	£41.24	£49.49
131 - KNOB BDE-861452-00.A9 861452-00	£2.78	£3.34
133 - END CAP BDE-861423-00.A5 861423-00	£3.30	£3.96
134 - WASHER BDE-860073-14.A21 860073-14	£1.50	£1.80
136 - COVER BDE-860445-00.A77 860445-00	£7.18	£8.62
137 - FAN BDE-945841-00.A5 945841-00	£2.78	£3.34
138 - HOUSING SA BDE-861345-00.A20 861345-00	£17.48	£20.97
139 - BRAKE BDE-861336-02.A15 861336-02	£9.41	£11.29
140 - TIE ROD BDE-863015-00.A10 863015-00	£1.50	£1.80
142 - STATOR 115V 115V LX BDE-868412-02.A8 868412-02	£192.14	£230.57
142 - STATOR SA 230V GB BDE-868412-04.A0 868412-04	£183.42	£220.10
143 - RING BDE-860080-02.A150 860080-02	£1.50	£1.80
145 - CIRCLIP BDE-861349-00.A22 861349-00	£1.50	£1.80
146 - SPRING BDE-861338-00.A15 861338-00	£1.50	£1.80
147 - SCREW BDE-949894-12.A32 949894-12	£1.50	£1.80
149 - BEARING BDE-868768-07.A142 868768-07	£7.85	£9.42
150 - BEARING BDE-861721-12.A21 861721-12	£7.85	£9.42
152 - PLATE BDE-947614-00.A11 947614-00	£2.08	£2.50
154 - GUARD BDE-861917-02 861917-02	£10.57	£12.68
155 - NUT BDE-860083-04.A390 860083-04	£1.50	£1.80
156 - INSERT BDE-760298-01.A20 760298-01	£1.66	£1.99
157 - PUSHROD BDE-860610-01.A37 860610-01	£7.85	£9.42
159 - SCALE BDE-861923-00.A3 861923-00	£5.88	£7.06
160 - NUT BDE-941535-00.A8 941535-00	£1.50	£1.80
161 - SCREW BDE-860084-03.A18 860084-03	£1.50	£1.80
162 - STRAP BDE-123106-00.A34 123106-00	£1.50	£1.80
166 - SCREW BDE-949702-42.A6 949702-42	£1.50	£1.80
168 - CONNECTOR BDE-861257-00.A22 861257-00	£1.50	£1.80
170 - SCREW BDE-330045-49.A4 330045-49	£1.50	£1.80
175 - SCALE BDE-946862-01.A14 946862-01	£10.85	£13.02
181 - FENCE BDE-868743-03.A2 868743-03	£17.48	£20.97
187 - NUT BDE-860083-13.A2 860083-13	£1.50	£1.80
191 - BALL BDE-868708-00.A19 868708-00	£1.50	£1.80
192 - FENCE BDE-861978-00.A7 861978-00	£12.17	£14.60
193 - WASHER BDE-860073-08.A45 860073-08	£1.50	£1.80
194 - SCREW BDE-931997-00.A4 931997-00	£1.50	£1.80
196 - SCREW BDE-949743-02.A36 949743-02	£1.66	£1.99
838 - SOCKET BDE-559570-99.A7 559570-99	£47.08	£56.49
847 - ROTOR SA BDE-868411-01.A0 868411-01	£74.15	£88.98
