Dewalt DW706 Type 1 Mitre Saw Spare Parts

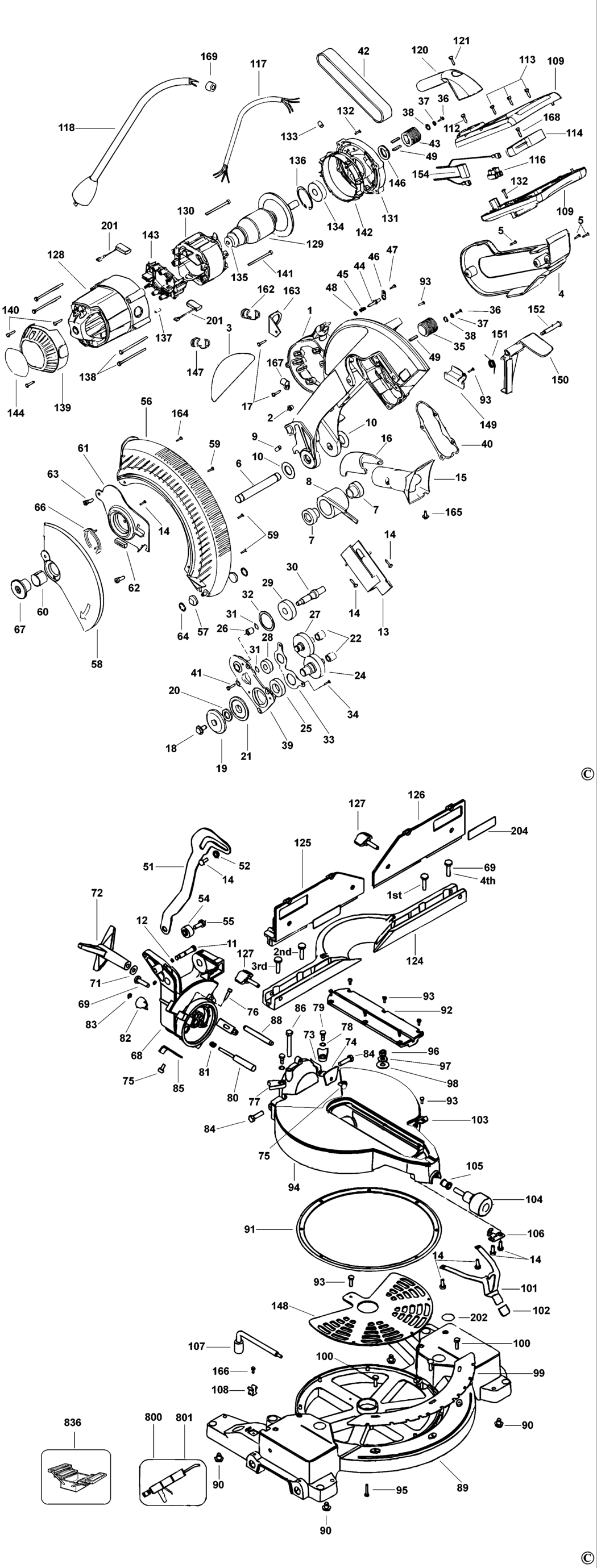

An exploded drawing and spare parts listing for the Dewalt DW706 Type 1 Mitre Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A90067 000000-00	-
2 - INSERT BDE-148608-00.A57 148608-00	£1.50	£1.80
3 - LABEL BDE-393706-00.A16 393706-00	£1.50	£1.80
4 - BELT COVER BDE-391326-00.A0 391326-00	-
5 - SCREW BDE-330045-14.A174 330045-14	£1.50	£1.80
6 - SHAFT BDE-146751-00.A49 146751-00	£3.30	£3.96
7 - SPACER BDE-146732-00.A63 146732-00	£1.50	£1.80
8 - SPRING TORSION BDE-N039405.A7 N039405	£23.75	£28.50
9 - SCREW BDE-150075-00.A67 150075-00	£1.50	£1.80
10 - WASHER BDE-148296-00.A10 148296-00	£1.50	£1.80
11 - LOCKING PIN BDE-387130-00.A0 387130-00	£4.69	£5.63
12 - SEAL BDE-34158-00.A63 34158-00	£1.50	£1.80
13 - NO LONGER AVAILABLE BDE-000000-00.A90068 000000-00	-
14 - SCREW.SPECIAL BDE-330045-23.A1 330045-23	£1.50	£1.80
15 - DUST DEFLECTOR BDE-391336-00.A7 391336-00	£2.26	£2.71
16 - DEFLECTOR BDE-148520-00.A19 148520-00	£1.66	£1.99
17 - SCREW BDE-330045-49.A25 330045-49	£1.50	£1.80
18 - BLADE BOLT BDE-869245-00.A35 869245-00	£3.54	£4.25
19 - CLAMP OUTER BDE-604765-00.A10 604765-00	£5.88	£7.06
20 - ADAPTOR BDE-604770-00.A16 604770-00	£3.80	£4.56
21 - WASHER INNER CLAMP BDE-645000-00.A2 645000-00	£14.57	£17.48
22 - BEARING BDE-386780-00.A57 386780-00	£2.26	£2.71
24 - SPINDLE & GEAR BDE-N086159.A18 N086159	£25.70	£30.84
25 - BEARING BALL BDE-330003-66.A14 330003-66	£14.57	£17.48
26 - BEARING NEEDLE BDE-391616-00.A0 391616-00	£4.69	£5.63
27 - GEAR SA BDE-NA135793.A1 NA135793	£44.14	£52.97
28 - BEARING BDE-605040-20.A24 605040-20	£4.69	£5.63
29 - BEARING BDE-605040-33.A14 605040-33	£5.88	£7.06
30 - PULLEY SA BDE-N105443.A14 N105443	£51.90	£62.28
31 - RETAINER BDE-153752-00.A20 153752-00	£1.50	£1.80
32 - NO LONGER AVAILABLE BDE-000000-00.A90069 000000-00	-
33 - BEARING PLATE BDE-391310-00.A17 391310-00	£1.82	£2.19
34 - SCREW BDE-98094-13.A17 98094-13	£1.50	£1.80
35 - PULLEY BDE-153796-00.A15 153796-00	£10.85	£13.02
36 - SCREW BDE-153778-00.A15 153778-00	£1.50	£1.80
37 - WASHER BDE-098198-05.A2 098198-05	£1.50	£1.80
38 - WASHER BDE-153782-00.A3 153782-00	£1.50	£1.80
39 - GEARCASE BDE-653809-01.A1 653809-01	£12.17	£14.60
40 - GASKET BDE-391315-00.A26 391315-00	£2.78	£3.34
41 - SCREW BDE-385915-01.A40 385915-01	£1.50	£1.80
42 - BELT BDE-153555-00.A3 153555-00	£19.90	£23.88
43 - DRIVE PULLEY BDE-153554-00.A16 153554-00	£10.85	£13.02
44 - LOCKING PIN BDE-153561-00.A31 153561-00	£1.50	£1.80
45 - SPRING BDE-448176-00.A2 448176-00	£1.50	£1.80
46 - PLATE BDE-393071-00.A32 393071-00	£1.50	£1.80
47 - SCREW BDE-330045-45.A38 330045-45	£1.50	£1.80
48 - WASHER BDE-153559-00.A26 153559-00	£1.50	£1.80
49 - KEY BDE-153638-00.A4 153638-00	£1.82	£2.19
51 - LINK BDE-391314-00.A1 391314-00	£7.85	£9.42
52 - BUSH BDE-146740-01.A3 146740-01	£3.80	£4.56
54 - BUSH BDE-385756-01.A4 385756-01	£1.50	£1.80
55 - SCREW BDE-330045-32.A11 330045-32	£1.50	£1.80
56 - GUARD LOWER BDE-393519-00.A0 393519-00	-
57 - ROLLER BDE-146774-00.A17 146774-00	£1.82	£2.19
58 - GUARD PLATE BDE-391286-00.A4 391286-00	-
59 - SCREW BDE-394211-00.A0 394211-00	£1.42	£1.70
60 - SLEEVE BDE-148295-00.A46 148295-00	£1.66	£1.99
61 - PLATE BDE-621037-00.A0 621037-00	£7.18	£8.62
62 - BUMPER BDE-146768-00.A39 146768-00	£1.66	£1.99
63 - SCREW BDE-394589-01.A4 394589-01	£1.50	£1.80
64 - RING . BDE-142273-00.A13 142273-00	£1.50	£1.80
66 - SPRING BDE-661454-00.A10 661454-00	£1.58	£1.90
67 - RETAINING PLATE BDE-146750-03.A3 146750-03	£2.78	£3.34
68 - TRUNION BDE-5140103-70.A7 5140103-70	£45.14	£54.17
69 - SCREW BDE-330045-33.A43 330045-33	£1.50	£1.80
71 - WASHER BDE-330016-04.A9 330016-04	£1.50	£1.80
72 - HANDLE BDE-391344-00.A1 391344-00	£7.85	£9.42
73 - POINTER BDE-391345-00.A7 391345-00	£1.50	£1.80
74 - DUST DEFLECTOR BDE-393570-00.A9 393570-00	£1.50	£1.80
75 - SCREW BDE-330045-55.A42 330045-55	£1.50	£1.80
76 - SCREW BDE-391346-00.A5 391346-00	£1.50	£1.80
77 - PAWL BDE-391347-00.A18 391347-00	£1.50	£1.80
78 - WASHER BDE-153655-00.A21 153655-00	£1.50	£1.80
79 - SCREW BDE-153639-00.A51 153639-00	£1.50	£1.80
80 - PIN BDE-391348-00.A0 391348-00	£7.18	£8.62
81 - SPRING BDE-167785-00.A2 167785-00	£1.50	£1.80
82 - KNOB BDE-391349-00.A7 391349-00	£1.50	£1.80
83 - RING BDE-060325-01.A10 060325-01	£1.50	£1.80
84 - SCREW BDE-153797-01.A8 153797-01	£1.50	£1.80
85 - STOP PLATE BDE-391350-00.A0 391350-00	£1.50	£1.80
86 - SCREW BDE-153797-02.A0 153797-02	£1.50	£1.80
88 - STUD BDE-146760-02.A5 146760-02	£1.50	£1.80
89 - NO LONGER AVAILABLE BDE-000000-00.A90070 000000-00	-
90 - FOOT BDE-153612-00.A8 153612-00	£1.50	£1.80
91 - PLATE BDE-391353-00.A11 391353-00	£14.57	£17.48
92 - PLATE BDE-146726-02.A22 146726-02	£7.85	£9.42
93 - SCREW BDE-330045-05.A180 330045-05	£1.50	£1.80
94 - NO LONGER AVAILABLE BDE-000000-00.A90071 000000-00	-
95 - SCREW BDE-98025-25.A3 98025-25	£1.50	£1.80
96 - LOCK NUT BDE-N044739.A0 N044739	£1.50	£1.80
97 - WASHER BDE-153792-00.A10 153792-00	£1.50	£1.80
98 - WASHER BDE-153781-00.A52 153781-00	£1.50	£1.80
99 - DETENT BDE-391292-01.A0 391292-01	£30.08	£36.10
100 - SCREW BDE-604410-00.A37 604410-00	£1.50	£1.80
101 - SPRING BDE-146745-00.A3 146745-00	-
102 - COVER BDE-148611-00.A9 148611-00	£1.50	£1.80
103 - POINTER BDE-398693-00.A9 398693-00	£1.50	£1.80
104 - KNOB BDE-145439-10.A1 145439-10	£3.80	£4.56
105 - NO LONGER AVAILABLE BDE-000000-00.A90072 000000-00	-
106 - CLAMP BDE-391357-00.A7 391357-00	-
107 - WRENCH SPECIAL BDE-608563-01.A33 608563-01	£7.18	£8.62
108 - HOLDER BDE-391358-01.A11 391358-01	£1.50	£1.80
109 - NO LONGER AVAILABLE BDE-000000-00.A90073 000000-00	-
112 - SCREW BDE-330045-18.A37 330045-18	£1.50	£1.80
113 - SCREW BDE-330019-32.A73 330019-32	£1.50	£1.80
114 - SWITCH GB BDE-391926-01.A10 391926-01	£25.70	£30.84
114 - SWITCH LX BDE-391926-01.A11 391926-01	£25.70	£30.84
116 - TERMINAL BLOCK BDE-393520-00.A33 393520-00	£5.88	£7.06
117 - MOTOR CABLE BDE-393206-00 393206-00	£17.03	£20.44
118 - NO LONGER AVAILABLE LX BDE-000000-00.A90074 000000-00	-
118 - NO LONGER AVAILABLE GB BDE-000000-00.A90075 000000-00	-
120 - HANDLE BDE-N083060.A20 N083060	£7.85	£9.42
121 - SCREW BDE-330019-22.A12 330019-22	£1.50	£1.80
124 - FENCE SA BDE-153627-00.A4 153627-00	£113.07	£135.68
125 - FENCE LH BDE-153766-03SV.A2 153766-03SV	-
126 - FENCE LH BDE-394134-00.A1 394134-00	£43.02	£51.63
127 - KNOB LOWER BDE-147107-02.A20 147107-02	£2.26	£2.71
128 - FIELDCASE BDE-391317-00.A9 391317-00	£12.17	£14.60
129 - ARMATURE SA GB BDE-N093107.A14 N093107	£157.49	£188.99
129 - NO LONGER AVAILABLE LX BDE-000000-00.A90076 000000-00	-
130 - FIELD 115V LX BDE-391318-00SV.A14 391318-00SV	-
130 - FIELD GB BDE-391318-01SV.A1 391318-01SV	-
131 - MOUNTING BRACKET BDE-391282-00.A20 391282-00	£16.03	£19.24
132 - SCREW BDE-330045-15.A6 330045-15	£1.50	£1.80
133 - SCREW BDE-394034-00.A8 394034-00	£1.50	£1.80
134 - BEARING BALL BDE-605040-32.A9 605040-32	£7.92	£9.50
135 - BEARING BDE-330003-60.A99 330003-60	£2.78	£3.34
136 - CIRCLIP BDE-144803-00.A45 144803-00	£1.50	£1.80
137 - PLUG BDE-145312-00.A0 145312-00	£1.50	£1.80
138 - SCREW BDE-98094-55.A50 98094-55	£1.50	£1.80
139 - END CAP BDE-391933-00.A13 391933-00	£4.69	£5.63
140 - SCREW BDE-330019-13.A421 330019-13	£1.50	£1.80
141 - SCREW BDE-330019-19.A144 330019-19	£1.50	£1.80
142 - BAFFLE FAN BDE-391375-00.A61 391375-00	-
143 - BRUSH PLATE BDE-389512-01.A31 389512-01	£16.03	£19.24
144 - NO LONGER AVAILABLE BDE-000000-00.A90077 000000-00	-
146 - RING BDE-153783-00.A24 153783-00	£1.50	£1.80
147 - BUSHING BDE-605155-00.A36 605155-00	£1.66	£1.99
148 - COVER BDE-391355-00.A0 391355-00	£15.63	£18.76
149 - PLATE BDE-393791-00.A4 393791-00	£1.50	£1.80
150 - LEVER LOCK BDE-391925-00.A1 391925-00	-
151 - SPRING BDE-386196-00.A0 386196-00	£1.66	£1.99
152 - BOLT BDE-152852-00.A80 152852-00	£1.82	£2.19
154 - NO LONGER AVAILABLE BDE-000000-00.A90079 000000-00	-
162 - BUSHING BDE-33821-00.A5 33821-00	£1.50	£1.80
163 - BRACKET BDE-394643-00.A7 394643-00	£2.78	£3.34
164 - NO LONGER AVAILABLE BDE-000000-00.A90078 000000-00	-
165 - SCREW BDE-153460-00.A8 153460-00	£1.50	£1.80
166 - SCREW BDE-330045-06.A41 330045-06	£1.50	£1.80
167 - CABLE CLAMP BDE-398443-00.A3 398443-00	£1.50	£1.80
168 - SCREW BDE-330019-12.A18 330019-12	£1.50	£1.80
169 - BUSH BDE-388414-01.A43 388414-01	£1.50	£1.80
201 - BRUSH & LEAD LX BDE-381028-08.A51 381028-08	£7.18	£8.62
201 - BRUSH & LEAD GB BDE-381028-08.A52 381028-08	£7.18	£8.62
202 - LABEL BDE-394976-00.A35 394976-00	£1.82	£2.19
204 - LABEL BDE-395301-00.A34 395301-00	£1.50	£1.80
800 - GREASE BDE-429698-00.A70 429698-00	£84.42	£101.30
801 - GREASE BDE-93488-00.A21 93488-00	£17.48	£20.97
836 - S.T.SQUARE BDE-559626-99.A0 559626-99	£108.20	£129.84
