Dewalt DW705 Type 4 Mitre Saw Spare Parts

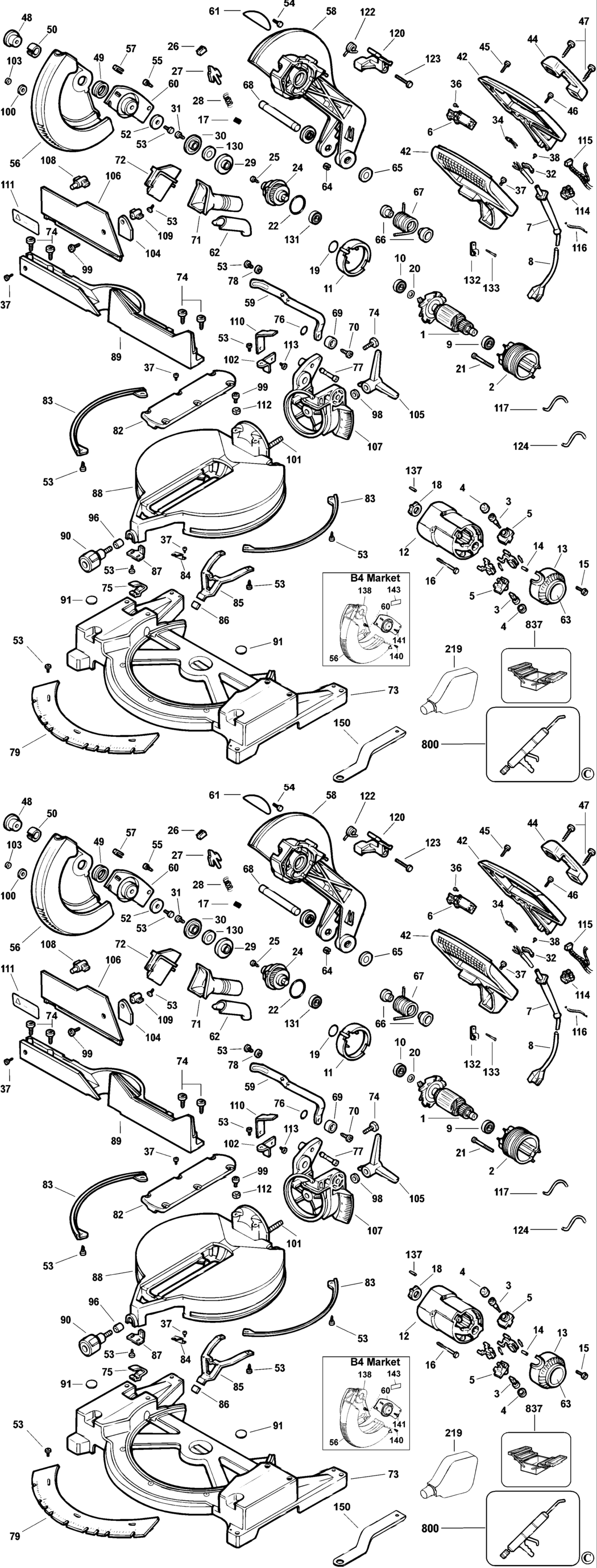

An exploded drawing and spare parts listing for the Dewalt DW705 Type 4 Mitre Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE LX BDE-000000-00.A123957 000000-00	-
1 - ARMATURE KIT GB BDE-5140021-94.A2 5140021-94	-
2 - FIELD 115V LX BDE-N078040SV.A6 N078040SV	-
2 - FIELD 230V GB BDE-N113577.A1 N113577	-
2 - FIELD BDE-144798-07.A1 144798-07	-
3 - BRUSH SA LX BDE-145323-06.A13 145323-06	£5.88	£7.06
3 - BRUSH SA GB BDE-145323-06.A14 145323-06	£5.88	£7.06
4 - BRUSH CAP BDE-448084-01.A20 448084-01	-
4 - BRUSH CAP BDE-448084-01.A21 448084-01	-
5 - BRUSH HOLDER SA GB BDE-147097-09.A26 147097-09	£16.03	£19.24
5 - BRUSH HOLDER SA LX BDE-147097-09.A27 147097-09	£16.03	£19.24
6 - NO LONGER AVAILABLE GB BDE-000000-00.A123959 000000-00	-
6 - SWITCH LX BDE-391926-01.A14 391926-01	£25.70	£30.84
7 - CORD PROTECTOR BDE-445338-00.A0 445338-00	£1.50	£1.80
7 - CORD PROTECTOR BDE-445338-00.A1 445338-00	£1.50	£1.80
8 - NO LONGER AVAILABLE GB BDE-000000-00.A123960 000000-00	-
8 - CORDSET LX BDE-330061-20.A13 330061-20	£50.60	£60.72
9 - BEARING GB BDE-605040-20.A178 605040-20	£4.69	£5.63
9 - BEARING LX BDE-605040-20.A179 605040-20	£4.69	£5.63
10 - BEARING BDE-868768-07.A140 868768-07	£7.85	£9.42
10 - BEARING BDE-868768-07.A141 868768-07	£7.85	£9.42
11 - BAFFLE BDE-146723-01.A2 146723-01	-
11 - BAFFLE BDE-146723-01.A3 146723-01	-
12 - NO LONGER AVAILABLE LX BDE-000000-00.A123961 000000-00	-
12 - ARMATURE KIT GB BDE-5140021-94.A3 5140021-94	-
12 - FIELDCASE BDE-389786-07.A1 389786-07	£16.03	£19.24
13 - END CAP BDE-387678-00.A11 387678-00	£24.39	£29.27
13 - END CAP BDE-387678-00.A12 387678-00	£24.39	£29.27
14 - PLUG BDE-87205-00.A39 87205-00	£1.50	£1.80
14 - PLUG BDE-87205-00.A40 87205-00	£1.50	£1.80
15 - SCREW BDE-330019-20.A9 330019-20	£1.50	£1.80
15 - SCREW BDE-330019-20.A10 330019-20	£1.50	£1.80
16 - SCREW BDE-98094-55.A67 98094-55	£1.50	£1.80
16 - SCREW BDE-98094-55.A68 98094-55	£1.50	£1.80
17 - FELT BDE-387732-00.A3 387732-00	£1.50	£1.80
17 - FELT BDE-387732-00.A4 387732-00	£1.50	£1.80
18 - SLEEVE BDE-137382-01.A14 137382-01	£1.50	£1.80
18 - SLEEVE BDE-137382-01.A15 137382-01	£1.50	£1.80
19 - SEAL BDE-701297-00.A9 701297-00	£1.50	£1.80
19 - SEAL BDE-701297-00.A10 701297-00	£1.50	£1.80
20 - CIRCLIP BDE-144803-00.A1 144803-00	£1.50	£1.80
20 - CIRCLIP BDE-144803-00.A2 144803-00	£1.50	£1.80
21 - SCREW BDE-330019-19.A181 330019-19	£1.50	£1.80
21 - SCREW BDE-330019-19.A182 330019-19	£1.50	£1.80
22 - GASKET BDE-383470-00.A1 383470-00	-
22 - NO LONGER AVAILABLE BDE-000000-00.A123962 000000-00	-
24 - GEAR & SPINDLE SA GB BDE-386824-03SV.A5 386824-03SV	-
24 - GEAR & SPINDLE SA BDE-386824-03.A1 386824-03	-
24 - GEAR & SPINDLE SA LX BDE-386824-03SV.A4 386824-03SV	-
25 - SCREW BDE-330045-14.A117 330045-14	£1.50	£1.80
25 - SCREW BDE-330045-14.A118 330045-14	£1.50	£1.80
26 - BUTTON BDE-145350-00.A21 145350-00	£1.50	£1.80
26 - BUTTON BDE-145350-00.A22 145350-00	£1.50	£1.80
27 - LOCK BDE-146714-00.A8 146714-00	£1.50	£1.80
27 - LOCK BDE-146714-00.A9 146714-00	£1.50	£1.80
28 - SPRING BDE-58698-00.A27 58698-00	£1.50	£1.80
28 - SPRING BDE-58698-00.A28 58698-00	£1.50	£1.80
29 - NO LONGER AVAILABLE LX BDE-000000-00.A123963 000000-00	-
29 - NO LONGER AVAILABLE GB BDE-000000-00.A123964 000000-00	-
30 - NO LONGER AVAILABLE GB BDE-000000-00.A123965 000000-00	-
30 - NO LONGER AVAILABLE XW BDE-000000-00.A123966 000000-00	-
31 - BLADE BOLT BDE-869245-00.A38 869245-00	£3.54	£4.25
31 - BLADE BOLT BDE-869245-00.A39 869245-00	£3.54	£4.25
32 - CORD CLAMP GB BDE-003618-00.A4 003618-00	£1.50	£1.80
32 - CORD CLAMP LX BDE-381065-00.A4 381065-00	£1.50	£1.80
32 - CORD CLAMP BDE-381065-00.A5 381065-00	£1.50	£1.80
34 - CONNECTOR BDE-32114-01.A1 32114-01	-
34 - CONNECTOR BDE-32114-01.A2 32114-01	-
36 - SCREW BDE-330019-12.A2 330019-12	£1.50	£1.80
36 - SCREW BDE-330019-12.A3 330019-12	£1.50	£1.80
37 - SCREW BDE-330045-05.A126 330045-05	£1.50	£1.80
37 - SCREW BDE-330045-05.A127 330045-05	£1.50	£1.80
38 - SCREW GB BDE-330019-03.A298 330019-03	£1.50	£1.80
38 - SCREW LX BDE-330019-03.A299 330019-03	£1.50	£1.80
42 - NO LONGER AVAILABLE GB BDE-000000-00.A123967 000000-00	-
42 - HANDLE & COVER BDE-395674-02.A2 395674-02	-
42 - NO LONGER AVAILABLE LX BDE-000000-00.A123968 000000-00	-
44 - HANDLE BDE-396375-00.A7 396375-00	-
44 - HANDLE BDE-396375-00.A8 396375-00	-
45 - SCREW BDE-330019-32.A20 330019-32	£1.50	£1.80
45 - SCREW BDE-330019-32.A21 330019-32	£1.50	£1.80
46 - SCREW BDE-330045-08.A23 330045-08	£1.50	£1.80
46 - SCREW BDE-330045-08.A24 330045-08	£1.50	£1.80
47 - SCREW BDE-330019-22.A6 330019-22	£1.50	£1.80
47 - SCREW BDE-330019-22.A7 330019-22	£1.50	£1.80
48 - RETAINING PLATE LX BDE-146750-03.A8 146750-03	£2.78	£3.34
48 - RETAINING PLATE GB BDE-146750-03.A9 146750-03	£2.78	£3.34
49 - SPRING BDE-661454-00.A3 661454-00	£1.58	£1.90
49 - SPRING BDE-661454-00.A4 661454-00	£1.58	£1.90
50 - SLEEVE BDE-148295-00.A33 148295-00	£1.66	£1.99
50 - SLEEVE BDE-148295-00.A34 148295-00	£1.66	£1.99
52 - WASHER BDE-148612-00.A14 148612-00	-
52 - WASHER BDE-148612-00.A15 148612-00	-
53 - SCREW BDE-151891-00.A17 151891-00	£1.50	£1.80
53 - SCREW BDE-151891-00.A18 151891-00	£1.50	£1.80
54 - INSERT BDE-148608-00.A42 148608-00	£1.50	£1.80
54 - INSERT BDE-148608-00.A43 148608-00	£1.50	£1.80
55 - SCREW BDE-394589-01.A15 394589-01	£1.50	£1.80
55 - SCREW BDE-394589-01.A16 394589-01	£1.50	£1.80
56 - NO LONGER AVAILABLE LX BDE-000000-00.A123969 000000-00	-
56 - GUARD LOWER BDE-391285-00.A1 391285-00	-
56 - NO LONGER AVAILABLE GB BDE-000000-00.A123970 000000-00	-
56 - NO LONGER AVAILABLE BDE-000000-00.A123971 000000-00	-
57 - BUMPER BDE-146768-00.A51 146768-00	£1.66	£1.99
57 - BUMPER BDE-146768-00.A52 146768-00	£1.66	£1.99
58 - NO LONGER AVAILABLE LX BDE-000000-00.A123972 000000-00	-
58 - NO LONGER AVAILABLE GB BDE-000000-00.A123973 000000-00	-
59 - LINK BDE-146752-02.A0 146752-02	-
59 - LINK BDE-146752-02.A1 146752-02	-
60 - PLATE GB BDE-429986-01.A0 429986-01	-
60 - PLATE LX BDE-429986-01.A1 429986-01	-
61 - IDENTITY LABEL BDE-149365-01.A1 149365-01	£5.72	£6.87
61 - IDENTITY LABEL BDE-149365-01.A2 149365-01	£5.72	£6.87
62 - DEFLECTOR BDE-148520-00.A25 148520-00	£1.66	£1.99
62 - DEFLECTOR BDE-148520-00.A26 148520-00	£1.66	£1.99
63 - NAMEPLATE BDE-149521-01.A11 149521-01	£1.42	£1.70
63 - NAMEPLATE BDE-149521-01.A12 149521-01	£1.42	£1.70
64 - SCREW BDE-150075-00.A87 150075-00	£1.50	£1.80
64 - SCREW BDE-150075-00.A88 150075-00	£1.50	£1.80
65 - WASHER BDE-148296-00.A33 148296-00	£1.50	£1.80
65 - WASHER BDE-148296-00.A34 148296-00	£1.50	£1.80
66 - SPACER BDE-146732-00.A42 146732-00	£1.50	£1.80
66 - SPACER BDE-146732-00.A43 146732-00	£1.50	£1.80
67 - SPRING BDE-N039404.A5 N039404	£17.48	£20.97
67 - SPRING BDE-N039404.A6 N039404	£17.48	£20.97
68 - SHAFT BDE-146751-00.A42 146751-00	£3.30	£3.96
68 - SHAFT BDE-146751-00.A43 146751-00	£3.30	£3.96
69 - BUSHING BDE-146753-00.A29 146753-00	£1.50	£1.80
69 - BUSHING BDE-146753-00.A30 146753-00	£1.50	£1.80
70 - SCREW BDE-330045-32.A15 330045-32	£1.50	£1.80
70 - SCREW BDE-330045-32.A16 330045-32	£1.50	£1.80
71 - DUCT BDE-146717-00.A8 146717-00	-
71 - DUCT BDE-146717-00.A9 146717-00	-
72 - GUARD REAR BDE-146772-03.A2 146772-03	£3.70	£4.44
72 - GUARD REAR BDE-146772-03.A3 146772-03	£3.70	£4.44
73 - NO LONGER AVAILABLE BDE-000000-00.A123975 000000-00	-
73 - NO LONGER AVAILABLE BDE-000000-00.A123976 000000-00	-
74 - SCREW BDE-330045-33.A39 330045-33	£1.50	£1.80
74 - NO LONGER AVAILABLE BDE-000000-00.A123974 000000-00	-
75 - SPRING BDE-146758-00.A0 146758-00	£1.42	£1.70
75 - SPRING BDE-146758-00.A1 146758-00	£1.42	£1.70
76 - SEAL BDE-34158-00.A52 34158-00	£1.50	£1.80
76 - SEAL BDE-34158-00.A53 34158-00	£1.50	£1.80
77 - LOCKING PIN BDE-387130-00.A18 387130-00	£4.69	£5.63
77 - LOCKING PIN BDE-387130-00.A19 387130-00	£4.69	£5.63
78 - BUSH BDE-146740-01.A11 146740-01	£3.80	£4.56
78 - BUSH BDE-146740-01.A12 146740-01	£3.80	£4.56
79 - NO LONGER AVAILABLE GB BDE-000000-00.A123977 000000-00	-
79 - NO LONGER AVAILABLE LX BDE-000000-00.A123978 000000-00	-
82 - PLATE BDE-146726-02.A31 146726-02	£7.85	£9.42
82 - PLATE BDE-146726-02.A32 146726-02	£7.85	£9.42
83 - PLATE BDE-146773-01.A8 146773-01	-
83 - PLATE BDE-146773-01.A9 146773-01	-
84 - POINTER . BDE-398693-00.A2 398693-00	£1.50	£1.80
84 - POINTER . BDE-398693-00.A3 398693-00	£1.50	£1.80
85 - SPRING BDE-146745-00.A8 146745-00	-
85 - SPRING BDE-146745-00.A9 146745-00	-
86 - COVER BDE-148611-00.A0 148611-00	£1.50	£1.80
86 - COVER BDE-148611-00.A1 148611-00	£1.50	£1.80
87 - CLAMP BDE-148297-00.A9 148297-00	£1.78	£2.13
87 - CLAMP BDE-148297-00.A10 148297-00	£1.78	£2.13
88 - TABLE KIT BDE-429987-00.A1 429987-00	-
88 - NO LONGER AVAILABLE BDE-000000-00.A123979 000000-00	-
89 - NO LONGER AVAILABLE GB BDE-000000-00.A123980 000000-00	-
89 - NO LONGER AVAILABLE LX BDE-000000-00.A123981 000000-00	-
90 - KNOB BDE-145439-09.A9 145439-09	-
90 - KNOB BDE-145439-09.A10 145439-09	-
91 - LABEL BDE-394976-00.A52 394976-00	£1.82	£2.19
91 - LABEL BDE-394976-00.A53 394976-00	£1.82	£2.19
96 - NO LONGER AVAILABLE BDE-000000-00.A123982 000000-00	-
96 - CLAMP BDE-146733-00.A0 146733-00	£3.70	£4.44
98 - WASHER BDE-330016-04.A21 330016-04	£1.50	£1.80
98 - WASHER BDE-330016-04.A22 330016-04	£1.50	£1.80
99 - SCREW BDE-149368-00.A13 149368-00	£1.82	£2.19
99 - SCREW BDE-149368-00.A14 149368-00	£1.82	£2.19
100 - ROLLER BDE-146774-00.A2 146774-00	£1.82	£2.19
100 - ROLLER BDE-146774-00.A3 146774-00	£1.82	£2.19
101 - STUD BDE-146760-01.A7 146760-01	£1.42	£1.70
101 - STUD BDE-146760-01.A8 146760-01	£1.42	£1.70
102 - BRACKET BDE-148292-00.A0 148292-00	-
102 - NO LONGER AVAILABLE BDE-000000-00.A123983 000000-00	-
103 - RING BDE-142273-00.A3 142273-00	£1.50	£1.80
103 - RING BDE-142273-00.A4 142273-00	£1.50	£1.80
104 - CLAMP BDE-146737-00.A7 146737-00	£1.78	£2.13
104 - CLAMP BDE-146737-00.A8 146737-00	£1.78	£2.13
105 - HANDLE BDE-392422-00.A11 392422-00	-
105 - HANDLE BDE-392422-00.A12 392422-00	-
106 - NO LONGER AVAILABLE GB BDE-000000-00.A123984 000000-00	-
106 - NO LONGER AVAILABLE LX BDE-000000-00.A123985 000000-00	-
107 - NO LONGER AVAILABLE GB BDE-000000-00.A123986 000000-00	-
107 - NO LONGER AVAILABLE LX BDE-000000-00.A123987 000000-00	-
108 - KNOB LOWER BDE-147107-02.A1 147107-02	£2.26	£2.71
108 - KNOB LOWER BDE-147107-02.A2 147107-02	£2.26	£2.71
109 - KNOB UPPER BDE-147107-01.A6 147107-01	£3.70	£4.44
109 - KNOB UPPER BDE-147107-01.A7 147107-01	£3.70	£4.44
110 - POINTER BDE-148299-00.A0 148299-00	£1.42	£1.70
110 - POINTER BDE-148299-00.A1 148299-00	£1.42	£1.70
111 - NO LONGER AVAILABLE GB BDE-000000-00.A123988 000000-00	-
111 - NO LONGER AVAILABLE LX BDE-000000-00.A123989 000000-00	-
112 - NUT BDE-99368-04.A1 99368-04	£1.50	£1.80
112 - NUT BDE-99368-04.A2 99368-04	£1.50	£1.80
113 - SCREW BDE-151895-00.A0 151895-00	£1.42	£1.70
113 - SCREW BDE-151895-00.A1 151895-00	£1.42	£1.70
114 - TERMINAL BLOCK BDE-320078-00.A77 320078-00	£2.26	£2.71
114 - TERMINAL BLOCK BDE-320078-00.A78 320078-00	£2.26	£2.71
115 - NO LONGER AVAILABLE BDE-000000-00.A123990 000000-00	-
115 - NO LONGER AVAILABLE LX BDE-000000-00.A123991 000000-00	-
115 - NO LONGER AVAILABLE GB BDE-000000-00.A123992 000000-00	-
116 - LEAD BLACK BDE-398563-00.A6 398563-00	£1.42	£1.70
116 - LEAD BLACK BDE-398563-00.A7 398563-00	£1.42	£1.70
117 - NO LONGER AVAILABLE BDE-000000-00.A123993 000000-00	-
117 - NO LONGER AVAILABLE LX BDE-000000-00.A123994 000000-00	-
120 - NO LONGER AVAILABLE BDE-000000-00.A123995 000000-00	-
120 - NO LONGER AVAILABLE BDE-000000-00.A123996 000000-00	-
122 - SPRING BDE-386196-00.A16 386196-00	£1.66	£1.99
122 - SPRING BDE-386196-00.A17 386196-00	£1.66	£1.99
123 - BOLT BDE-152852-00.A51 152852-00	£1.82	£2.19
123 - BOLT BDE-152852-00.A52 152852-00	£1.82	£2.19
124 - LEAD WHITE GB BDE-398565-00.A2 398565-00	£1.42	£1.70
124 - LEAD WHITE LX BDE-398564-00.A0 398564-00	£1.78	£2.13
131 - BEARING BDE-386780-00.A36 386780-00	£2.26	£2.71
131 - BEARING BDE-386780-00.A37 386780-00	£2.26	£2.71
132 - CORD CLAMP BDE-153669-00.A20 153669-00	£1.50	£1.80
132 - CORD CLAMP BDE-153669-00.A21 153669-00	£1.50	£1.80
133 - SCREW BDE-330045-13.A32 330045-13	£1.50	£1.80
133 - SCREW BDE-330045-13.A33 330045-13	£1.50	£1.80
137 - PLUG BDE-145312-00.A21 145312-00	£1.50	£1.80
138 - GUARD PLATE BDE-391286-00.A2 391286-00	-
140 - SCREW BDE-394211-00.A3 394211-00	£1.42	£1.70
141 - SCREW.SPECIAL BDE-330045-23.A50 330045-23	£1.50	£1.80
150 - WRENCH BDE-145378-01.A33 145378-01	£1.50	£1.80
150 - WRENCH BDE-145378-01.A34 145378-01	£1.50	£1.80
160 - SCREW BDE-330045-06.A86 330045-06	£1.50	£1.80
160 - SCREW BDE-330045-06.A87 330045-06	£1.50	£1.80
219 - DUSTBAG BDE-147734-06.A28 147734-06	£16.03	£19.24
800 - GREASE BDE-93488-00.A1 93488-00	£17.48	£20.97
800 - GREASE BDE-5140061-28.A20 5140061-28	£51.90	£62.28
800 - GREASE BDE-5140061-28.A21 5140061-28	£51.90	£62.28
800 - GREASE BDE-93488-00.A0 93488-00	£17.48	£20.97
837 - S.T.SQUARE BDE-559626-99.A9 559626-99	£108.20	£129.84
837 - S.T.SQUARE BDE-559626-99.A10 559626-99	£108.20	£129.84

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt DW705 Type 4 Mitre Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
