Dewalt DW704 Type 4 Mitre Saw Spare Parts

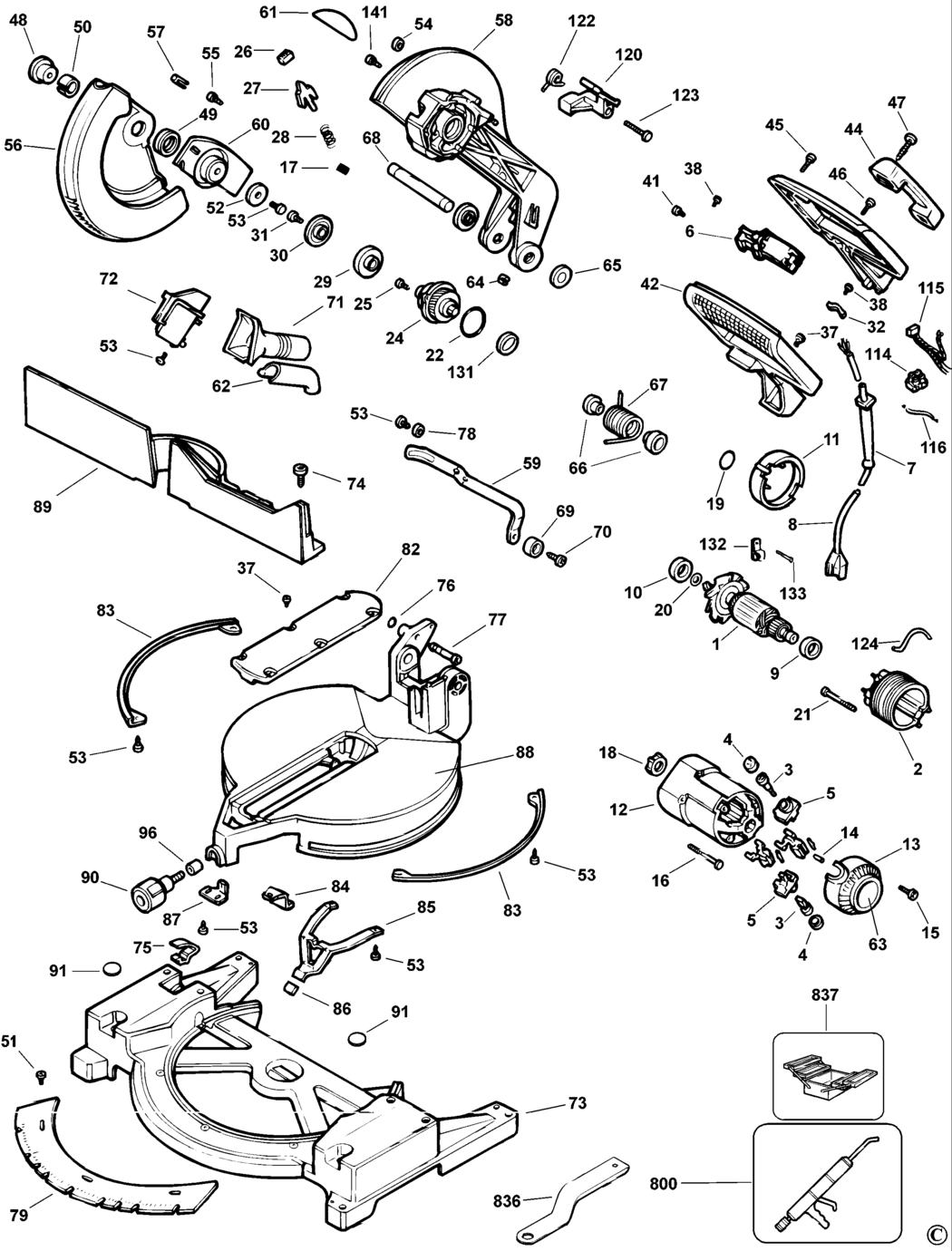

An exploded drawing and spare parts listing for the Dewalt DW704 Type 4 Mitre Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE LX BDE-000000-00.A123876 000000-00	-
1 - ARMATURE KIT GB BDE-5140021-94.A4 5140021-94	-
2 - FIELD 230V GB BDE-N113577.A2 N113577	-
2 - FIELD 115V LX BDE-N078040SV.A5 N078040SV	-
3 - BRUSH SA LX BDE-145323-06.A11 145323-06	£5.88	£7.06
3 - BRUSH SA GB BDE-145323-06.A12 145323-06	£5.88	£7.06
4 - BRUSH CAP BDE-448084-01.A19 448084-01	-
5 - BRUSH HOLDER SA GB BDE-147097-09.A24 147097-09	£16.03	£19.24
5 - BRUSH HOLDER SA LX BDE-147097-09.A25 147097-09	£16.03	£19.24
6 - NO LONGER AVAILABLE GB BDE-000000-00.A123877 000000-00	-
7 - CORD PROTECTOR BDE-445338-00.A2 445338-00	£1.50	£1.80
8 - NO LONGER AVAILABLE GB BDE-000000-00.A123878 000000-00	-
8 - CORDSET LX BDE-330061-20.A12 330061-20	£50.60	£60.72
9 - BEARING BDE-605040-06.A242 605040-06	£3.80	£4.56
10 - BEARING BDE-868768-07.A139 868768-07	£7.85	£9.42
11 - BAFFLE BDE-146723-01.A1 146723-01	-
12 - NO LONGER AVAILABLE LX BDE-000000-00.A123879 000000-00	-
12 - ARMATURE KIT GB BDE-5140021-94.A5 5140021-94	-
13 - END CAP BDE-387678-00.A10 387678-00	£24.39	£29.27
14 - PLUG BDE-87205-00.A41 87205-00	£1.50	£1.80
15 - SCREW BDE-330019-20.A8 330019-20	£1.50	£1.80
16 - SCREW BDE-98094-55.A66 98094-55	£1.50	£1.80
17 - FELT BDE-387732-00.A2 387732-00	£1.50	£1.80
18 - SLEEVE BDE-137382-01.A13 137382-01	£1.50	£1.80
19 - SEAL BDE-701297-00.A8 701297-00	£1.50	£1.80
20 - CIRCLIP BDE-144803-00.A0 144803-00	£1.50	£1.80
21 - SCREW BDE-330019-19.A183 330019-19	£1.50	£1.80
22 - NO LONGER AVAILABLE BDE-000000-00.A123880 000000-00	-
24 - GEAR & SPINDLE SA BDE-386824-03SV.A6 386824-03SV	-
25 - SCREW BDE-330045-14.A119 330045-14	£1.50	£1.80
26 - BUTTON BDE-145350-00.A23 145350-00	£1.50	£1.80
27 - LOCK BDE-146714-00.A7 146714-00	£1.50	£1.80
28 - SPRING BDE-58698-00.A29 58698-00	£1.50	£1.80
29 - NO LONGER AVAILABLE BDE-000000-00.A123881 000000-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A123882 000000-00	-
31 - BLADE BOLT BDE-869245-00.A36 869245-00	£3.54	£4.25
32 - CORD CLAMP BDE-003618-00.A3 003618-00	£1.50	£1.80
37 - SCREW BDE-330045-05.A128 330045-05	£1.50	£1.80
38 - SCREW BDE-330019-03.A300 330019-03	£1.50	£1.80
41 - SCREW BDE-330019-12.A1 330019-12	£1.50	£1.80
42 - NO LONGER AVAILABLE GB BDE-000000-00.A123883 000000-00	-
42 - NO LONGER AVAILABLE LX BDE-000000-00.A123884 000000-00	-
44 - HANDLE BDE-396375-00.A9 396375-00	-
45 - SCREW BDE-330019-32.A22 330019-32	£1.50	£1.80
46 - SCREW BDE-330045-08.A25 330045-08	£1.50	£1.80
47 - SCREW BDE-330019-22.A5 330019-22	£1.50	£1.80
48 - RETAINING PLATE BDE-146750-03.A10 146750-03	£2.78	£3.34
49 - SPRING BDE-661454-00.A5 661454-00	£1.58	£1.90
50 - SLEEVE BDE-148295-00.A35 148295-00	£1.66	£1.99
51 - SCREW BDE-153778-02.A1 153778-02	-
52 - WASHER BDE-148612-00.A13 148612-00	-
53 - SCREW BDE-151891-00.A19 151891-00	£1.50	£1.80
54 - INSERT BDE-148608-00.A41 148608-00	£1.50	£1.80
55 - SCREW BDE-394589-01.A17 394589-01	£1.50	£1.80
56 - NO LONGER AVAILABLE BDE-000000-00.A123885 000000-00	-
57 - BUMPER BDE-146768-00.A53 146768-00	£1.66	£1.99
58 - NO LONGER AVAILABLE BDE-000000-00.A123886 000000-00	-
59 - LINK BDE-146752-02.A2 146752-02	-
60 - PLATE BDE-429986-01.A2 429986-01	-
61 - IDENTITY LABEL BDE-149365-01.A3 149365-01	£5.72	£6.87
62 - DEFLECTOR BDE-148520-00.A27 148520-00	£1.66	£1.99
63 - NAMEPLATE BDE-149521-01.A13 149521-01	£1.42	£1.70
64 - SCREW BDE-150075-00.A86 150075-00	£1.50	£1.80
65 - WASHER BDE-148296-00.A32 148296-00	£1.50	£1.80
66 - SPACER BDE-146732-00.A44 146732-00	£1.50	£1.80
67 - SPRING BDE-N039404.A7 N039404	£17.48	£20.97
68 - SHAFT BDE-146751-00.A41 146751-00	£3.30	£3.96
69 - BUSHING BDE-146753-00.A28 146753-00	£1.50	£1.80
70 - SCREW BDE-330045-32.A17 330045-32	£1.50	£1.80
71 - DUCT BDE-146717-00.A10 146717-00	-
72 - GUARD REAR BDE-146772-03.A1 146772-03	£3.70	£4.44
73 - NO LONGER AVAILABLE BDE-000000-00.A123887 000000-00	-
74 - SCREW BDE-330045-33.A38 330045-33	£1.50	£1.80
75 - SPRING BDE-146758-00.A2 146758-00	£1.42	£1.70
76 - SEAL BDE-34158-00.A51 34158-00	£1.50	£1.80
77 - LOCKING PIN BDE-387130-00.A17 387130-00	£4.69	£5.63
78 - BUSH BDE-146740-01.A13 146740-01	£3.80	£4.56
79 - NO LONGER AVAILABLE GB BDE-000000-00.A123888 000000-00	-
82 - PLATE BDE-146726-02.A30 146726-02	£7.85	£9.42
83 - PLATE BDE-146773-01.A10 146773-01	-
84 - POINTER BDE-398693-00.A1 398693-00	£1.50	£1.80
85 - SPRING BDE-146745-00.A7 146745-00	-
86 - COVER BDE-148611-00.A2 148611-00	£1.50	£1.80
87 - CLAMP BDE-148297-00.A11 148297-00	£1.78	£2.13
88 - NO LONGER AVAILABLE BDE-000000-00.A123889 000000-00	-
89 - NO LONGER AVAILABLE BDE-000000-00.A123890 000000-00	-
90 - KNOB BDE-145439-09.A11 145439-09	-
91 - LABEL BDE-394976-00.A51 394976-00	£1.82	£2.19
96 - NO LONGER AVAILABLE BDE-000000-00.A123891 000000-00	-
114 - TERMINAL BLOCK BDE-320078-00.A79 320078-00	£2.26	£2.71
115 - NO LONGER AVAILABLE BDE-000000-00.A123892 000000-00	-
116 - LEAD BLACK BDE-398563-00.A5 398563-00	£1.42	£1.70
120 - NO LONGER AVAILABLE BDE-000000-00.A123893 000000-00	-
122 - SPRING BDE-386196-00.A18 386196-00	£1.66	£1.99
123 - BOLT BDE-152852-00.A53 152852-00	£1.82	£2.19
124 - LEAD WHITE BDE-398565-00.A3 398565-00	£1.42	£1.70
131 - BEARING BDE-386780-00.A35 386780-00	£2.26	£2.71
132 - CORD CLAMP BDE-153669-00.A19 153669-00	£1.50	£1.80
133 - SCREW BDE-330045-13.A31 330045-13	£1.50	£1.80
141 - BOLT BDE-489128-00.A1 489128-00	£1.50	£1.80
800 - GREASE BDE-93488-00.A19 93488-00	£17.48	£20.97
836 - WRENCH BDE-145378-01.A26 145378-01	£1.50	£1.80
837 - S.T.SQUARE BDE-559626-99.A1 559626-99	£108.20	£129.84

Attribute Name	Value
Brand	Dewalt
