Dewalt DW704 Type 1 Mitre Saw Spare Parts

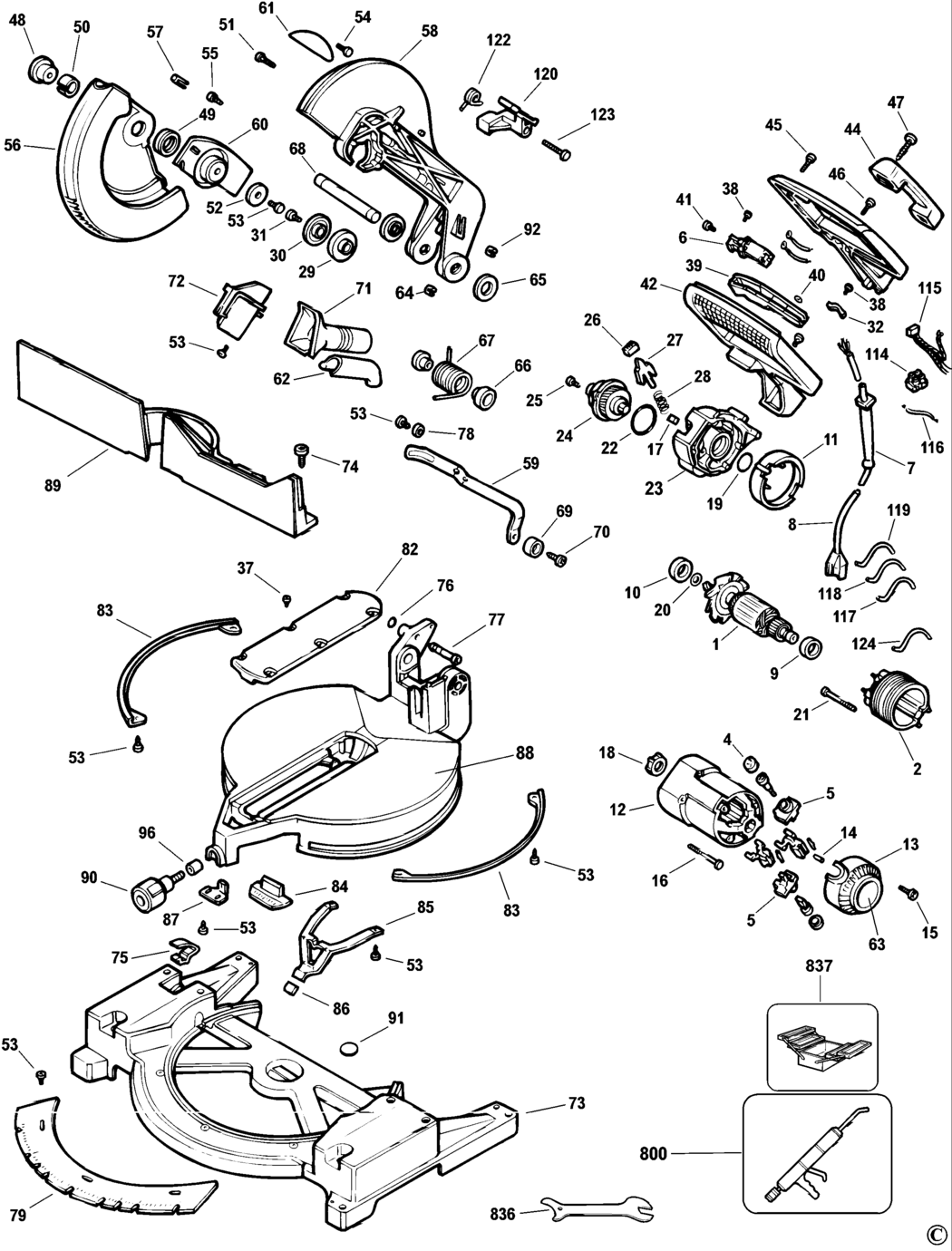

An exploded drawing and spare parts listing for the Dewalt DW704 Type 1 Mitre Saw

	Ex VAT	Inc VAT
1 - ARMATURE & FAN GB 240v GB BDE-397100-01SV.A2 397100-01SV	£131.46	£157.75
1 - NO LONGER AVAILABLE GB 115v XW BDE-000000-00.A113915 000000-00	-
2 - FIELD 115V GB 115v XW BDE-N078040SV.A7 N078040SV	-
2 - NO LONGER AVAILABLE GB 240v GB BDE-000000-00.A113916 000000-00	-
4 - BRUSH CAP BDE-448084-01.A3 448084-01	-
5 - BRUSH HOLDER SA XW BDE-147097-09.A22 147097-09	£16.03	£19.24
5 - BRUSH HOLDER SA GB BDE-147097-09.A23 147097-09	£16.03	£19.24
6 - NO LONGER AVAILABLE GB 115v XW BDE-000000-00.A113917 000000-00	-
6 - NO LONGER AVAILABLE GB 240v GB BDE-000000-00.A113918 000000-00	-
7 - CORD PROTECTOR BDE-445338-00.A10 445338-00	£1.50	£1.80
8 - NO LONGER AVAILABLE GB 240v GB BDE-000000-00.A113919 000000-00	-
8 - CORDSET GB 115v XW BDE-330061-20.A10 330061-20	£50.60	£60.72
9 - BEARING BDE-605040-20.A76 605040-20	£4.69	£5.63
10 - BEARING BDE-868768-07.A109 868768-07	£7.85	£9.42
11 - BAFFLE BDE-146723-01.A4 146723-01	-
12 - NO LONGER AVAILABLE GB BDE-000000-00.A113920 000000-00	-
12 - NO LONGER AVAILABLE XW BDE-000000-00.A113921 000000-00	-
13 - END CAP BDE-387678-00.A6 387678-00	£24.39	£29.27
14 - PLUG BDE-87205-00.A13 87205-00	£1.50	£1.80
15 - SCREW BDE-330019-20.A32 330019-20	£1.50	£1.80
16 - SCREW BDE-98094-55.A15 98094-55	£1.50	£1.80
17 - WIPER BDE-146710-00.A7 146710-00	£1.50	£1.80
18 - SLEEVE BDE-137382-01.A0 137382-01	£1.50	£1.80
19 - SEAL BDE-701297-00.A40 701297-00	£1.50	£1.80
20 - CIRCLIP BDE-144803-00.A81 144803-00	£1.50	£1.80
21 - SCREW BDE-330019-19.A100 330019-19	£1.50	£1.80
22 - NO LONGER AVAILABLE BDE-000000-00.A47873 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A47874 000000-00	-
24 - NO LONGER AVAILABLE BDE-000000-00.A47875 000000-00	-
25 - SCREW BDE-330045-14.A1 330045-14	£1.50	£1.80
26 - BUTTON BDE-145350-00.A44 145350-00	£1.50	£1.80
27 - LOCK BDE-146714-00.A13 146714-00	£1.50	£1.80
28 - SPRING BDE-58698-00.A9 58698-00	£1.50	£1.80
29 - NO LONGER AVAILABLE BDE-000000-00.A47876 000000-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A47877 000000-00	-
31 - BLADE BOLT BDE-869245-00.A25 869245-00	£3.54	£4.25
32 - CORD CLAMP BDE-003618-00.A33 003618-00	£1.50	£1.80
37 - SCREW BDE-330045-05.A5 330045-05	£1.50	£1.80
38 - SCREW BDE-330019-03.A101 330019-03	£1.50	£1.80
39 - NO LONGER AVAILABLE BDE-000000-00.A47878 000000-00	-
40 - RING BDE-701901-00.A5 701901-00	£1.42	£1.70
41 - SCREW BDE-384127-01.A84 384127-01	£1.50	£1.80
42 - CLAMSHELL PAIR BDE-380452-00.A3 380452-00	£30.08	£36.10
44 - NO LONGER AVAILABLE BDE-000000-00.A47879 000000-00	-
45 - SCREW BDE-330019-14.A130 330019-14	£1.50	£1.80
46 - SCREW BDE-330045-08.A64 330045-08	£1.50	£1.80
47 - SCREW BDE-330019-22.A48 330019-22	£1.50	£1.80
48 - RETAINING PLATE BDE-146750-03.A25 146750-03	£2.78	£3.34
49 - SPRING BDE-661454-00.A30 661454-00	£1.50	£1.80
50 - SLEEVE BDE-148295-00.A4 148295-00	£1.66	£1.99
51 - SCREW BDE-330045-18.A0 330045-18	£1.50	£1.80
52 - WASHER BDE-148612-00.A2 148612-00	-
53 - SCREW BDE-151891-00.A11 151891-00	£1.50	£1.80
54 - INSERT BDE-148608-00.A15 148608-00	£1.50	£1.80
55 - SCREW BDE-394589-01.A35 394589-01	£1.50	£1.80
56 - NO LONGER AVAILABLE BDE-000000-00.A47880 000000-00	-
57 - BUMPER BDE-146768-00.A31 146768-00	£1.66	£1.99
58 - NO LONGER AVAILABLE BDE-000000-00.A47881 000000-00	-
59 - LINK BDE-146752-02.A8 146752-02	-
60 - PLATE BDE-429986-01.A7 429986-01	-
61 - IDENTITY LABEL BDE-149365-01.A10 149365-01	£5.72	£6.87
62 - DEFLECTOR BDE-148520-00.A9 148520-00	£1.50	£1.80
63 - NAMEPLATE BDE-149521-01.A2 149521-01	£1.42	£1.70
64 - SCREW BDE-150075-00.A25 150075-00	£1.50	£1.80
65 - WASHER BDE-148296-00.A87 148296-00	£1.50	£1.80
66 - SPACER BDE-146732-00.A28 146732-00	£1.50	£1.80
67 - SPRING BDE-N039404.A29 N039404	£17.48	£20.97
68 - SHAFT BDE-146751-00.A11 146751-00	£3.30	£3.96
69 - BUSHING BDE-146753-00.A14 146753-00	£1.50	£1.80
70 - SCREW BDE-330045-32.A53 330045-32	£1.50	£1.80
71 - DUCT BDE-146717-00.A4 146717-00	-
72 - GUARD REAR BDE-146772-03.A4 146772-03	£3.70	£4.44
73 - NO LONGER AVAILABLE BDE-000000-00.A47882 000000-00	-
74 - SCREW BDE-330045-33.A12 330045-33	£1.50	£1.80
75 - SPRING BDE-146758-00.A8 146758-00	£1.42	£1.70
76 - SEAL BDE-34158-00.A25 34158-00	£1.50	£1.80
77 - LOCKING PIN BDE-387130-00.A42 387130-00	£4.69	£5.63
78 - BUSH BDE-146740-01.A27 146740-01	£3.80	£4.56
79 - NO LONGER AVAILABLE BDE-000000-00.A47883 000000-00	-
82 - PLATE BDE-146726-02.A14 146726-02	£7.85	£9.42
83 - PLATE BDE-146773-01.A7 146773-01	-
84 - NO LONGER AVAILABLE BDE-000000-00.A47884 000000-00	-
85 - SPRING BDE-146745-00.A18 146745-00	-
86 - COVER BDE-148611-00.A25 148611-00	£1.50	£1.80
87 - CLAMP BDE-148297-00.A4 148297-00	£1.78	£2.13
88 - NO LONGER AVAILABLE BDE-000000-00.A47885 000000-00	-
89 - NO LONGER AVAILABLE BDE-000000-00.A47886 000000-00	-
90 - KNOB BDE-145439-09.A2 145439-09	-
91 - LABEL BDE-394976-00.A23 394976-00	£1.82	£2.19
92 - NO LONGER AVAILABLE BDE-000000-00.A47887 000000-00	-
96 - NO LONGER AVAILABLE BDE-000000-00.A47888 000000-00	-
114 - TERMINAL BLOCK BDE-320078-00.A8 320078-00	£2.26	£2.71
115 - NO LONGER AVAILABLE GB 115v XW BDE-000000-00.A47889 000000-00	-
115 - CAPACITOR GB 240v GB BDE-148679-02.A3 148679-02	-
116 - NO LONGER AVAILABLE BDE-000000-00.A47890 000000-00	-
117 - NO LONGER AVAILABLE GB 115v XW BDE-000000-00.A47891 000000-00	-
118 - NO LONGER AVAILABLE BDE-000000-00.A47892 000000-00	-
119 - NO LONGER AVAILABLE GB 115v XW BDE-000000-00.A47893 000000-00	-
120 - NO LONGER AVAILABLE BDE-000000-00.A47894 000000-00	-
122 - SPRING BDE-386196-00.A54 386196-00	£1.66	£1.99
123 - BOLT BDE-152852-00.A2 152852-00	£1.82	£2.19
124 - NO LONGER AVAILABLE BDE-000000-00.A47895 000000-00	-
800 - GREASE BDE-93488-00.A56 93488-00	£17.48	£20.97
836 - WRENCH BDE-145378-01.A9 145378-01	£1.50	£1.80
837 - S.T.SQUARE BDE-559626-99.A23 559626-99	£108.20	£129.84
