Dewalt DW017 Type 1 Mitre Saw Spare Parts

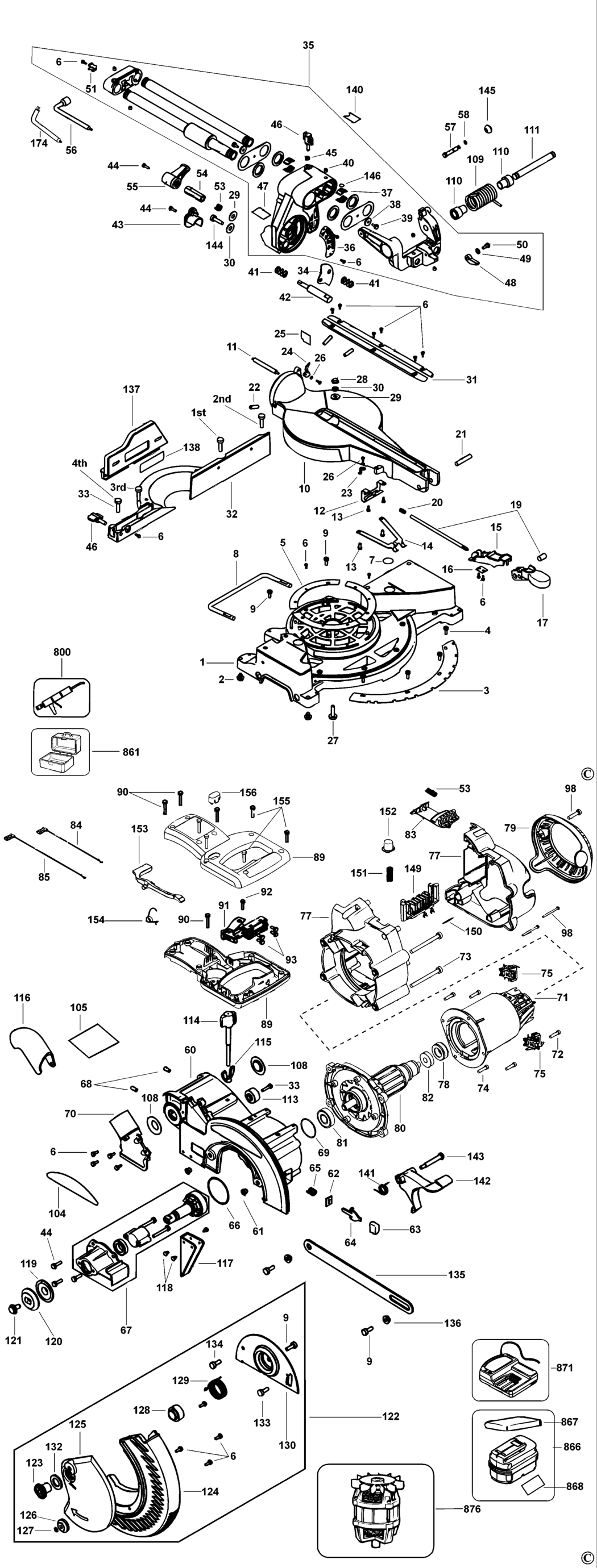

An exploded drawing and spare parts listing for the Dewalt DW017 Type 1 Mitre Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A25064 000000-00	-
2 - FOOT BDE-153612-00.A19 153612-00	£1.50	£1.80
3 - DETENT BDE-397041-00.A7 397041-00	£44.14	£52.97
4 - SCREW BDE-604987-00.A11 604987-00	£1.50	£1.80
5 - NO LONGER AVAILABLE BDE-000000-00.A25065 000000-00	-
6 - SCREW BDE-330045-05.A81 330045-05	£1.50	£1.80
7 - WARNING LABEL BDE-610707-00.A2 610707-00	£1.50	£1.80
8 - NO LONGER AVAILABLE BDE-000000-00.A25066 000000-00	-
9 - SCREW.SPECIAL BDE-330045-23.A77 330045-23	£1.50	£1.80
10 - NO LONGER AVAILABLE BDE-000000-00.A25067 000000-00	-
11 - NO LONGER AVAILABLE BDE-000000-00.A25068 000000-00	-
12 - PLATE BDE-397062-00.A7 397062-00	£7.18	£8.62
13 - SCREW BDE-330045-55.A69 330045-55	£1.50	£1.80
14 - SPRING BDE-397070-00.A13 397070-00	£3.80	£4.56
15 - ACTUATOR BDE-397073-00.A7 397073-00	£3.30	£3.96
16 - CLAMP BDE-397075-00.A7 397075-00	£4.69	£5.63
17 - LEVER BDE-397065-00.A7 397065-00	£5.88	£7.06
19 - LOCK SA BDE-629395-00.A3 629395-00	£18.91	£22.69
20 - SPRING BDE-761054-00.A84 761054-00	£1.50	£1.80
21 - PIN BDE-397063-00.A7 397063-00	£1.50	£1.80
22 - SCREW BDE-153576-03.A5 153576-03	£1.50	£1.80
23 - POINTER BDE-397048-00.A7 397048-00	£1.50	£1.80
24 - POINTER BDE-397090-00.A13 397090-00	£1.50	£1.80
25 - LABEL BDE-605153-00.A9 605153-00	£1.50	£1.80
26 - WASHER BDE-249233-00.A78 249233-00	£1.50	£1.80
27 - SCREW BDE-860085-19.A78 860085-19	£1.50	£1.80
28 - NUT BDE-860092-05.A21 860092-05	£1.50	£1.80
29 - WASHER BDE-153781-00.A5 153781-00	£1.50	£1.80
30 - WASHER BDE-613270-00.A9 613270-00	£1.50	£1.80
31 - PLATE BDE-N714363.A7 N714363	£7.18	£8.62
32 - FENCE BDE-397077-00.A1 397077-00	-
33 - SCREW BDE-330045-33.A29 330045-33	£1.50	£1.80
34 - NO LONGER AVAILABLE BDE-000000-00.A25069 000000-00	-
35 - TRUNNION BDE-605699-00.A2 605699-00	£393.38	£472.06
36 - BEVEL SCALE BDE-397084-00.A10 397084-00	£4.69	£5.63
37 - GUIDE BDE-397118-00.A12 397118-00	£3.30	£3.96
38 - WASHER BDE-153586-00.A23 153586-00	£1.50	£1.80
39 - SCREW BDE-616001-00.A34 616001-00	£1.50	£1.80
40 - SCREW BDE-153576-04.A27 153576-04	£1.50	£1.80
41 - SPRING BDE-397088-00.A3 397088-00	£1.50	£1.80
42 - PIN BDE-397083-00.A5 397083-00	£9.41	£11.29
43 - KNOB BDE-397086-00.A7 397086-00	£1.82	£2.19
44 - SCREW BDE-330045-14.A121 330045-14	£1.50	£1.80
45 - SPRING BDE-606014-00.A19 606014-00	£1.50	£1.80
46 - KNOB BDE-147107-06.A5 147107-06	£3.80	£4.56
47 - LABEL BDE-397081-00.A0 397081-00	£1.42	£1.70
48 - PAWL BDE-153603-01.A35 153603-01	£1.82	£2.19
49 - WASHER BDE-153655-00.A0 153655-00	£1.50	£1.80
50 - SCREW BDE-153639-00.A81 153639-00	£1.50	£1.80
51 - HOLDER BDE-391358-01.A37 391358-01	£1.50	£1.80
53 - NO LONGER AVAILABLE BDE-000000-00.A124524 000000-00	-
54 - NUT BDE-397089-00.A12 397089-00	£10.85	£13.02
55 - HANDLE BDE-397080-00.A16 397080-00	£3.80	£4.56
56 - WRENCH SPECIAL BDE-608563-01.A24 608563-01	£7.18	£8.62
57 - LOCKING PIN BDE-387130-00.A21 387130-00	£4.69	£5.63
58 - SEAL BDE-34158-00.A50 34158-00	£1.50	£1.80
60 - ARM BDE-397209-01.A4 397209-01	-
61 - INSERT BDE-148608-00.A39 148608-00	£1.50	£1.80
62 - FELT BDE-387732-00.A1 387732-00	£1.50	£1.80
63 - BUTTON BDE-145350-00.A18 145350-00	£1.50	£1.80
64 - SPINDLE LOCK BDE-397135-00.A2 397135-00	£3.30	£3.96
65 - SPRING BDE-941586-00.A0 941586-00	£1.50	£1.80
66 - O RING AFTER WK 18 2003 BDE-616979-00.A5 616979-00	£1.50	£1.80
66 - NO LONGER AVAILABLE BEFORE WK 18 2003 BDE-000000-00.A124525 000000-00	-
67 - NO LONGER AVAILABLE BDE-000000-00.A124526 000000-00	-
68 - SCREW BDE-150075-00.A85 150075-00	£1.50	£1.80
69 - RING BDE-696519-00.A2 696519-00	£1.50	£1.80
70 - DUST PORT BDE-603726-00.A4 603726-00	£2.71	£3.25
71 - NO LONGER AVAILABLE BDE-000000-00.A124527 000000-00	-
72 - SCREW BDE-176951-00.A7 176951-00	£1.50	£1.80
73 - SCREW BDE-98094-35.A0 98094-35	£1.50	£1.80
74 - SCREW BDE-330045-45.A77 330045-45	£1.50	£1.80
75 - NO LONGER AVAILABLE BDE-000000-00.A124528 000000-00	-
77 - NO LONGER AVAILABLE BDE-000000-00.A124529 000000-00	-
78 - NO LONGER AVAILABLE BDE-000000-00.A124530 000000-00	-
79 - NO LONGER AVAILABLE BDE-000000-00.A124531 000000-00	-
80 - NO LONGER AVAILABLE BDE-000000-00.A124532 000000-00	-
81 - BEARING BDE-330003-64.A77 330003-64	£4.69	£5.63
82 - BEARING BDE-330003-60.A160 330003-60	£2.78	£3.34
83 - NO LONGER AVAILABLE BDE-000000-00.A124533 000000-00	-
84 - NO LONGER AVAILABLE BDE-000000-00.A124534 000000-00	-
85 - NO LONGER AVAILABLE BDE-000000-00.A124535 000000-00	-
89 - NO LONGER AVAILABLE BDE-000000-00.A124536 000000-00	-
90 - SCREW BDE-330045-08.A27 330045-08	£1.50	£1.80
91 - SWITCH BDE-397182-00.A1 397182-00	-
92 - SCREW BDE-330013-22.A20 330013-22	-
93 - SCREW BDE-384127-01.A0 384127-01	£1.50	£1.80
98 - SCREW BDE-90611830.A131 90611830	£1.50	£1.80
104 - LABEL BDE-397134-00.A8 397134-00	£1.50	£1.80
105 - NO LONGER AVAILABLE BDE-000000-00.A124537 000000-00	-
106 - NO LONGER AVAILABLE BDE-000000-00.A124538 000000-00	-
108 - WASHER BDE-148296-00.A36 148296-00	£1.50	£1.80
109 - SPRING BDE-397130-00.A2 397130-00	£7.18	£8.62
110 - SPACER BDE-397129-00.A10 397129-00	£1.50	£1.80
111 - PIVOT SHAFT BDE-397128-00.A2 397128-00	£5.88	£7.06
113 - BUSHING BDE-146753-00.A27 146753-00	£1.50	£1.80
114 - DEPTH STOP BDE-147107-05.A8 147107-05	£7.18	£8.62
115 - WING NUT BDE-613365-00.A4 613365-00	£1.50	£1.80
116 - DEFLECTOR BDE-148520-00.A29 148520-00	£1.66	£1.99
117 - CHUTE BDE-612788-00.A5 612788-00	£1.82	£2.19
118 - RIVET BDE-607491-00.A4 607491-00	£1.62	£1.95
119 - WASHER BDE-397138-00.A2 397138-00	£4.69	£5.63
120 - WASHER OUTER CLAMP BDE-397136-00.A8 397136-00	£5.88	£7.06
121 - BLADE BOLT BDE-869245-00.A41 869245-00	£3.54	£4.25
122 - GUARD KIT BDE-N164918.A3 N164918	£58.69	£70.43
123 - RETAINER BDE-399182-00.A0 399182-00	£3.80	£4.56
124 - GUARD LOWER BDE-N164683.A1 N164683	£18.91	£22.69
125 - GUARD COVER BDE-613460-00.A2 613460-00	£17.48	£20.97
126 - ROLLER BDE-146774-00.A1 146774-00	£1.82	£2.19
127 - LOCKING RING BDE-604728-00.A7 604728-00	£1.66	£1.99
128 - SLEEVE BDE-603440-00.A9 603440-00	£1.50	£1.80
129 - SPRING BDE-603439-00.A3 603439-00	£1.50	£1.80
130 - PLATE BDE-399181-00.A4 399181-00	£4.69	£5.63
132 - WASHER BDE-612923-00.A7 612923-00	£1.50	£1.80
133 - SCREW BDE-153778-04.A0 153778-04	-
134 - SCREW BDE-394589-01.A14 394589-01	£1.50	£1.80
135 - LINK BDE-397159-00.A10 397159-00	£3.80	£4.56
136 - SLEEVE BDE-146740-02.A18 146740-02	£1.50	£1.80
137 - FENCE BDE-397208-01.A0 397208-01	-
138 - WARNING LABEL BDE-610710-00.A12 610710-00	£1.50	£1.80
140 - NO LONGER AVAILABLE BDE-000000-00.A124539 000000-00	-
141 - SPRING TORSION BDE-398472-00.A24 398472-00	£2.26	£2.71
142 - LEVER LOCK BDE-397150-00.A2 397150-00	£2.78	£3.34
143 - BOLT BDE-152852-00.A50 152852-00	£1.82	£2.19
144 - SCREW BDE-612008-00.A5 612008-00	£1.50	£1.80
145 - NO LONGER AVAILABLE BDE-000000-00.A124540 000000-00	-
146 - THRUST PLATE BDE-613497-00.A8 613497-00	£1.50	£1.80
149 - NO LONGER AVAILABLE BDE-000000-00.A124541 000000-00	-
150 - NO LONGER AVAILABLE BDE-000000-00.A124542 000000-00	-
151 - NO LONGER AVAILABLE BDE-000000-00.A124543 000000-00	-
152 - NO LONGER AVAILABLE BDE-000000-00.A124544 000000-00	-
153 - NO LONGER AVAILABLE BDE-000000-00.A124545 000000-00	-
154 - NO LONGER AVAILABLE BDE-000000-00.A124546 000000-00	-
155 - SCREW BDE-330019-13.A530 330019-13	£1.50	£1.80
156 - NO LONGER AVAILABLE BDE-000000-00.A124547 000000-00	-
174 - WRENCH SPECIAL BDE-385567-01.A4 385567-01	-
800 - GREASE BDE-93488-00.A2 93488-00	£17.48	£20.97
800 - GREASE BDE-610817-00.A3 610817-00	£119.32	£143.19
800 - GREASE BDE-5140061-28.A19 5140061-28	£51.90	£62.28
861 - NO LONGER AVAILABLE BDE-000000-00.A124548 000000-00	-
866 - NO LONGER AVAILABLE DW017K GB BDE-000000-00.A124549 000000-00	-
866 - NO LONGER AVAILABLE DW017K2H GB BDE-000000-00.A124550 000000-00	-
867 - NO LONGER AVAILABLE BDE-000000-00.A124551 000000-00	-
868 - NO LONGER AVAILABLE BDE-000000-00.A124552 000000-00	-
871 - NO LONGER AVAILABLE GB BDE-000000-00.A124553 000000-00	-
876 - NO LONGER AVAILABLE BDE-000000-00.A124554 000000-00	-

Attribute Name	Value
Brand	Dewalt
