Fein KBE 50-2 M (C) / 72708200230 Spare Parts

Fein KBE 50-2 M ʌ) / 72708200230 Spare Parts

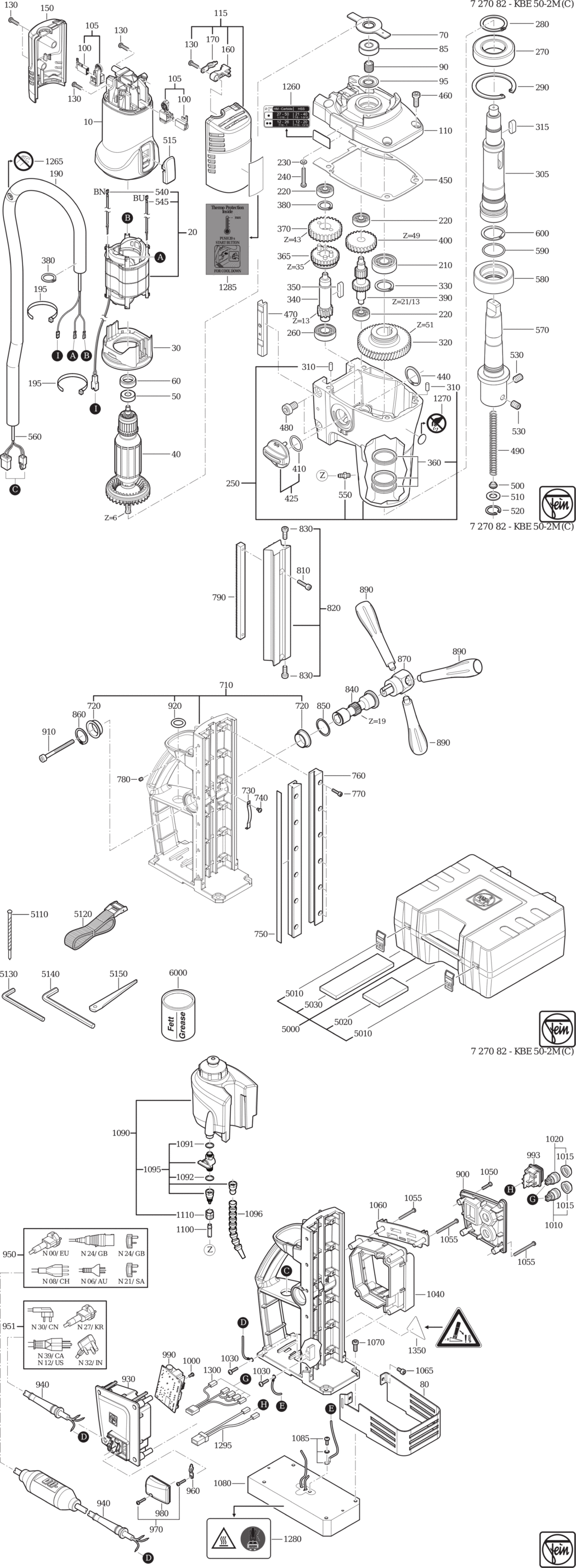

An exploded diagram and spare parts listing for the Fein KBE 50-2 M (C) / 72708200230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901175000.A24 31901175000	£36.82	£44.19
20 - STATOR 220/230V 50/60HZ FEI-51279008230.A4 51279008230	-
30 - AIR GUIDE RING FEI-31428198000.A1 31428198000	-
40 - ARMATURE 50H230V FEI-53279005230.A5 53279005230	-
50 - GROOVED BALL BEARING FEI-41701000029.A4 41701000029	-
60 - BEARING BUSH FEI-30507236000.A142 30507236000	£3.19	£3.83
70 - PLATE FEI-32416117000.A35 32416117000	£1.60	£1.92
80 - PROTECTIVE GRILLE FEI-31810286000.A2 31810286000	-
85 - GROOVED BALL BEARING FEI-41701207260.A49 41701207260	£7.41	£8.89
85 - GROOVED BALL BEARING FEI-41701000023.A4 41701000023	£4.92	£5.90
90 - SEALING RING FEI-32612135000.A12 32612135000	£9.45	£11.34
95 - SEALING RING FEI-42639028003.A39 42639028003	£5.74	£6.89
100 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711158000.A95 30711158000	£8.15	£9.78
105 - BRUSH HOLDER SET 50HZ230V FEI-30712096010.A64 30712096010	£11.45	£13.74
110 - INTERMEDIATE GEAR BOX FEI-31506410000.A4 31506410000	-
115 - COVER OT FEI-32427150010.A16 32427150010	£15.07	£18.08
130 - SCREW FEI-43072000000.A137 43072000000	£1.60	£1.92
150 - COVER UT FEI-32427152000.A51 32427152000	£6.62	£7.95
160 - CABLE CLAMPING PIECE FEI-32431047000.A97 32431047000	-
170 - CABLE CLAMPING PIECE FEI-32431043002.A189 32431043002	£1.60	£1.92
190 - PROTECTIVE HOSE FEI-31414071000.A0 31414071000	-
195 - CABLE TIE FEI-30234026008.A5 30234026008	£1.60	£1.92
210 - GROOVED BALL BEARING FEI-41701000028.A4 41701000028	-
220 - GROOVED BALL BEARING FEI-41701000026.A7 41701000026	-
230 - SEALING RING FEI-40611000000.A3 40611000000	-
240 - SCREW FEI-43074012000.A124 43074012000	£1.60	£1.92
250 - GEARBOX HOUSING FEI-31508288020.A9 31508288020	£256.90	£308.28
260 - GROOVED BALL BEARING FEI-41701000027.A4 41701000027	-
270 - GROOVED BALL BEARING FEI-41701025051.A36 41701025051	£34.83	£41.80
280 - CIRCLIP FEI-42616015003.A6 42616015003	£1.60	£1.92
290 - CIRCLIP FEI-42616074003.A3 42616074003	£1.60	£1.92
305 - SHAFT MK3 FEI-33402055000.A7 33402055000	-
310 - STRAIGHT PIN FEI-40201035003.A16 40201035003	-
315 - FEATHER KEY FEI-40221061003.A27 40221061003	-
320 - GEAR-WHEEL Z=51 FEI-33665060000.A2 33665060000	-
330 - CIRCLIP FEI-42616009003.A5 42616009003	£1.60	£1.92
340 - SHAFT TOOTHED Z=13 FEI-33765019007.A3 33765019007	£90.30	£108.36
350 - FEATHER KEY FEI-40221067009.A2 40221067009	£5.66	£6.79
360 - SEALING RING FEI-40608000000.A28 40608000000	£7.02	£8.43
365 - GEAR-WHEEL Z=35 FEI-33613128002.A21 33613128002	£81.20	£97.44
370 - GEAR-WHEEL Z=43 FEI-33613127004.A13 33613127004	£68.43	£82.12
380 - CIRCLIP FEI-42616007001.A9 42616007001	£1.60	£1.92
390 - SHAFT TOOTHED Z=21/13 FEI-33811068002.A3 33811068002	£99.99	£119.99
400 - GEAR-WHEEL Z=49 FEI-33657169005.A18 33657169005	£42.31	£50.77
410 - SEALING RING FEI-40612115003.A30 40612115003	£1.60	£1.92
425 - SWITCH PUSHBUTTON FEI-32805310010.A26 32805310010	£21.60	£25.92
440 - CIRCLIP FEI-42644003001.A12 42644003001	-
450 - SEAL FEI-30610047000.A17 30610047000	£9.92	£11.91
460 - CYLINDER HEAD SCREW FEI-43033064066.A17 43033064066	£1.60	£1.92
470 - PRESSURE PIECE FEI-33218134000.A3 33218134000	-
480 - CYLINDER HEAD SCREW FEI-43035119083.A17 43035119083	-
490 - SPIRAL SPRING FEI-30901341000.A8 30901341000	£5.99	£7.19
500 - SEALING RING FEI-30503145006.A32 30503145006	£3.52	£4.23
510 - DISC FEI-32408389000.A67 32408389000	£1.60	£1.92
515 - COVER FEI-32429158000.A0 32429158000	-
520 - CIRCLIP FEI-42616033009.A84 42616033009	£1.60	£1.92
530 - SCREW FEI-43098709000.A7 43098709000	£1.60	£1.92
540 - CONNECTING CABLE FEI-30719851010.A3 30719851010	-
545 - CONNECTING CABLE FEI-30719854010.A8 30719854010	-
550 - HOSE SOCKET FEI-41138025006.A3 41138025006	£8.40	£10.08
560 - CONNECTING CABLE FEI-30720009010.A11 30720009010	-
570 - SHAFT FEI-33401112000.A0 33401112000	-
580 - NUT FEI-42015000010.A13 42015000010	-
590 - SEALING RING FEI-40612038007.A35 40612038007	£10.08	£12.10
600 - CIRCLIP FEI-42643016008.A0 42643016008	£2.59	£3.11
710 - HOUSING FEI-31207295010.A6 31207295010	-
720 - BUSH FEI-31602089009.A25 31602089009	-
730 - LEAF SPRING FEI-30904041001.A53 30904041001	£5.78	£6.94
740 - FILLISTER HEAD SCREW FEI-43041026994.A2 43041026994	-
750 - PRESSURE PIECE FEI-33216054000.A34 33216054000	-
760 - GUIDE STRIP FEI-33218126000.A35 33218126000	-
770 - CYLINDER HEAD SCREW FEI-43035076041.A74 43035076041	£1.60	£1.92
780 - SET SCREW FEI-43058008051.A12 43058008051	-
790 - GEAR RACK FEI-33812007004.A1 33812007004	£101.03	£121.24
810 - CYLINDER HEAD SCREW FEI-43035017057.A20 43035017057	£1.60	£1.92
820 - GUIDE FEI-34300000047.A26 34300000047	-
830 - FLAT HEADED SCREW FEI-33218118010.A25 33218118010	£1.60	£1.92
840 - SHAFT TOOTHED Z=19 FEI-33713071000.A1 33713071000	-
850 - DISC FEI-42446003009.A52 42446003009	£1.60	£1.92
860 - CIRCLIP FEI-42616065008.A7 42616065008	-
870 - CONNECTING PIECE FEI-30109201010.A49 30109201010	-
890 - HANDLE FEI-32119114014.A31 32119114014	£19.35	£23.22
900 - COVER FEI-32424044000.A7 32424044000	-
910 - CYLINDER HEAD SCREW FEI-43035084062.A8 43035084062	-
920 - SEALING RING FEI-40612171000.A56 40612171000	-
930 - COVER FEI-32429155000.A0 32429155000	-
940 - PROTECTIVE HOSE FEI-31413237000.A98 31413237000	£2.74	£3.29
950 - CABLE PRCD_DE FEI-30707586010.A1 30707586010	-
960 - CABLE CLAMPING PIECE FEI-32431043002.A188 32431043002	£1.60	£1.92
970 - SCREW FEI-43074010000.A22 43074010000	£1.60	£1.92
980 - COVER FEI-32424031000.A13 32424031000	£12.77	£15.32
990 - ELECTRONICS 50H230V FEI-30762511990.A2 30762511990	£109.28	£131.14
993 - SWITCH FEI-30701281000.A27 30701281000	£34.57	£41.48
1000 - SCREW FEI-43074013000.A1 43074013000	-
1010 - BUTTON FEI-30701311000.A15 30701311000	-
1015 - CAP FEI-30701224003.A17 30701224003	£5.50	£6.60
1020 - BUTTON FEI-30701223005.A30 30701223005	£14.97	£17.96
1030 - FILLISTER HEAD SCREW FEI-43064023045.A72 43064023045	£1.60	£1.92
1040 - COVER FEI-32429156000.A13 32429156000	-
1050 - SCREW FEI-43074008000.A23 43074008000	£1.60	£1.92
1055 - SCREW FEI-43072013005.A37 43072013005	£1.60	£1.92
1060 - HOLDER FEI-32424043000.A2 32424043000	-
1065 - CYLINDER HEAD SCREW FEI-43035013058.A70 43035013058	£1.60	£1.92
1070 - CYLINDER HEAD SCREW FEI-43033064066.A18 43033064066	£1.60	£1.92
1080 - MAGNETIC FOOT FEI-33216058000.A5 33216058000	-
1085 - CONNECTING CABLE FEI-33216058010.A7 33216058010	-
1090 - CONTAINER FEI-32132035010.A56 32132035010	£44.58	£53.50
1091 - SEALING RING FEI-40612112007.A57 40612112007	£1.60	£1.92
1092 - SEALING RING FEI-40612087004.A40 40612087004	£1.60	£1.92
1095 - BALL COCK SET FEI-30240357010.A20 30240357010	£22.73	£27.28
1096 - FLEX-JOINTED HOSE FEI-31414070010.A50 31414070010	£25.70	£30.84
1100 - HOSE FEI-31414069000.A2 31414069000	£2.65	£3.18
1110 - NUT FEI-42015000000.A28 42015000000	£6.83	£8.20
1260 - INFORMATION SIGN FEI-32217470060.A19 32217470060	-
1265 - STICKER FEI-32217468060.A20 32217468060	-
1270 - STICKER FEI-32217406002.A70 32217406002	£1.60	£1.92
1280 - INFORMATION SIGN FEI-32217507060.A23 32217507060	-
1295 - CABLE FEI-30719978010.A6 30719978010	-
1300 - CABLE HARNESS FEI-30720008010.A0 30720008010	-
1350 - INFORMATION SIGN FEI-32217552000.A4 32217552000	£1.60	£1.92
5000 - CASE FEI-33901142140.A30 33901142140	£127.98	£153.57
5010 - WIRE CLAMP FEI-30232050000.A210 30232050000	£10.78	£12.94
5020 - PLATE FEI-33904486000.A5 33904486000	-
5030 - PLATE FEI-33904487000.A27 33904487000	-
5110 - CENTERING PIN FEI-63134998310.A61 63134998310	£25.18	£30.21
5120 - STRAP SAFETY FEI-32174008007.A36 32174008007	£33.23	£39.88
5130 - ALLEN KEY SW5 FEI-62907011009.A7 62907011009	£3.29	£3.95
5140 - ALLEN KEY SW6 FEI-62907004005.A55 62907004005	£3.35	£4.02
5150 - DRIFT KEYS FEI-63305003003.A6 63305003003	£10.56	£12.67
6000 - LUBRICANT CAN 1000 G FEI-32132041000.A5 32132041000	-
