Stanley STSC2135 Type 1 Chop Saw Spare Parts

Home Details Reviews Delivery

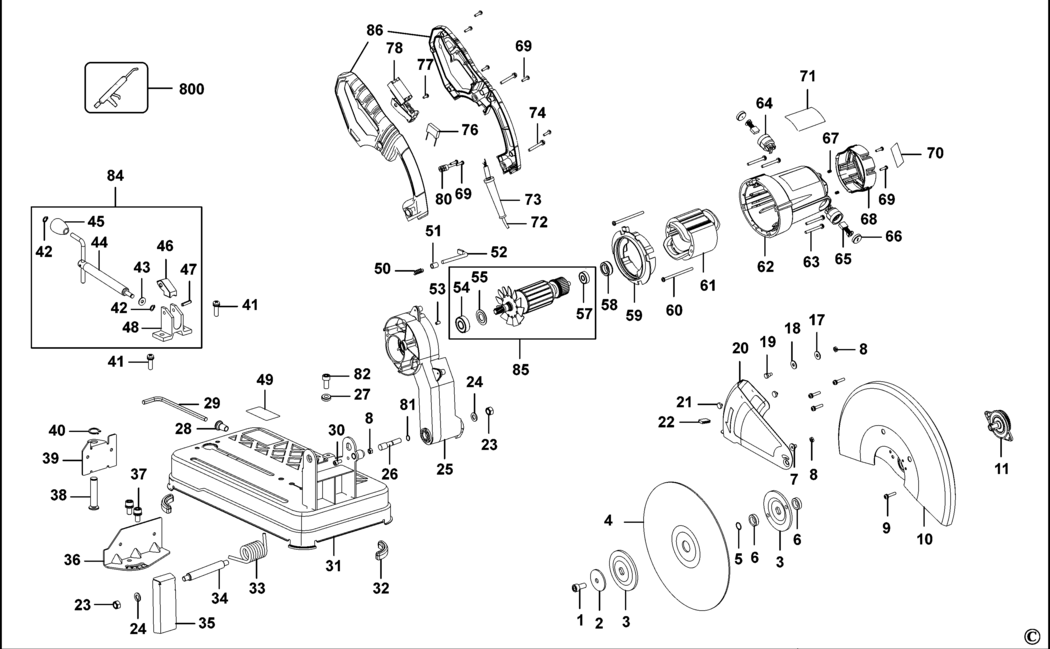

An exploded drawing and spare parts listing for the Stanley STSC2135 Type 1 Chop Saw

	Ex VAT	Inc VAT
1 - BOLT BDE-5170002-60.A5 5170002-60	-
1 - BOLT BDE-5170002-60.A6 5170002-60	-
2 - FLANGE BDE-5170002-61.A0 5170002-61	£1.66	£1.99
2 - FLANGE BDE-5170002-61.A1 5170002-61	£1.66	£1.99
3 - FLANGE BDE-5170002-62.A5 5170002-62	£7.85	£9.42
3 - FLANGE BDE-5170002-62.A6 5170002-62	£7.85	£9.42
4 - WHEEL BDE-5170002-63.A0 5170002-63	£14.57	£17.48
4 - WHEEL BDE-5170002-63.A1 5170002-63	£14.57	£17.48
5 - O RING BDE-5140062-47.A7 5140062-47	£1.66	£1.99
5 - O RING BDE-5140062-47.A8 5140062-47	£1.66	£1.99
6 - BUSH BDE-5140062-48.A6 5140062-48	£1.66	£1.99
6 - BUSH BDE-5140062-48.A7 5140062-48	£1.66	£1.99
7 - SCREW BDE-5140062-49.A7 5140062-49	£1.66	£1.99
7 - SCREW BDE-5140062-49.A8 5140062-49	£1.66	£1.99
8 - LOCK NUT BDE-5140062-50.A6 5140062-50	£1.66	£1.99
8 - LOCK NUT BDE-5140062-50.A7 5140062-50	£1.66	£1.99
9 - SCREW BDE-5140062-51.A7 5140062-51	£1.66	£1.99
9 - SCREW BDE-5140062-51.A8 5140062-51	£1.66	£1.99
10 - GUARD BDE-5170006-97.A1 5170006-97	£29.32	£35.18
10 - GUARD BDE-5170006-97.A2 5170006-97	£29.32	£35.18
11 - SPINDLE & GEAR SA BDE-5170002-65.A2 5170002-65	£34.00	£40.80
11 - SPINDLE & GEAR SA BDE-5170002-65.A3 5170002-65	£34.00	£40.80
17 - WASHER BDE-5140062-54.A8 5140062-54	£1.66	£1.99
17 - WASHER BDE-5140062-54.A9 5140062-54	£1.66	£1.99
18 - WASHER BDE-5140062-55.A5 5140062-55	£1.66	£1.99
18 - WASHER BDE-5140062-55.A6 5140062-55	£1.66	£1.99
19 - SCREW BDE-5140062-56.A8 5140062-56	£1.66	£1.99
19 - SCREW BDE-5140062-56.A9 5140062-56	£1.66	£1.99
20 - GUARD LOWER BDE-5170002-66.A2 5170002-66	£24.39	£29.27
20 - GUARD LOWER BDE-5170002-66.A3 5170002-66	£24.39	£29.27
21 - RUBBER BDE-5140062-58.A8 5140062-58	£1.66	£1.99
21 - RUBBER BDE-5140062-58.A9 5140062-58	£1.66	£1.99
22 - PROTECTOR BDE-5140062-59.A5 5140062-59	£1.66	£1.99
22 - PROTECTOR BDE-5140062-59.A6 5140062-59	£1.66	£1.99
23 - NUT BDE-5140062-60.A10 5140062-60	£1.66	£1.99
23 - NUT BDE-5140062-60.A11 5140062-60	£1.66	£1.99
24 - WASHER BDE-5140062-76.A15 5140062-76	£1.66	£1.99
24 - WASHER BDE-5140062-76.A16 5140062-76	£1.66	£1.99
25 - ARM ELEVATING BDE-5170002-67.A2 5170002-67	£55.30	£66.36
25 - ARM ELEVATING BDE-5170002-67.A3 5170002-67	£55.30	£66.36
26 - BOLT BDE-5170002-68.A2 5170002-68	£1.66	£1.99
26 - BOLT BDE-5170002-68.A3 5170002-68	£1.66	£1.99
27 - NUT BDE-5170002-69.A3 5170002-69	£1.66	£1.99
27 - NUT BDE-5170002-69.A4 5170002-69	£1.66	£1.99
28 - WRENCH SPECIAL BDE-5170002-70.A2 5170002-70	£1.66	£1.99
28 - WRENCH SPECIAL BDE-5170002-70.A3 5170002-70	£1.66	£1.99
29 - WRENCH SPECIAL BDE-5170002-71.A3 5170002-71	£2.78	£3.34
29 - WRENCH SPECIAL BDE-5170002-71.A4 5170002-71	£2.78	£3.34
30 - BOLT BDE-5140062-66.A10 5140062-66	£1.66	£1.99
30 - BOLT BDE-5140062-66.A11 5140062-66	£1.66	£1.99
31 - BASE BDE-5170002-72.A2 5170002-72	£45.14	£54.17
32 - FOOT BDE-5140062-68.A13 5140062-68	£1.66	£1.99
32 - FOOT BDE-5140062-68.A14 5140062-68	£1.66	£1.99
33 - SPRING TORSION BDE-5140062-70.A11 5140062-70	£7.85	£9.42
33 - SPRING TORSION BDE-5140062-70.A12 5140062-70	£7.85	£9.42
34 - SCREW BDE-5170002-73.A3 5170002-73	£3.80	£4.56
34 - SCREW BDE-5170002-73.A4 5170002-73	£3.80	£4.56
35 - PROTECTOR BDE-5170002-74.A2 5170002-74	£1.66	£1.99
35 - PROTECTOR BDE-5170002-74.A3 5170002-74	£1.66	£1.99
36 - FENCE BDE-5170002-75.A3 5170002-75	£14.57	£17.48
36 - FENCE BDE-5170002-75.A4 5170002-75	£14.57	£17.48
37 - BOLT BDE-5170002-76.A2 5170002-76	£1.66	£1.99
37 - BOLT BDE-5170002-76.A3 5170002-76	£1.66	£1.99
38 - SHAFT BDE-5170002-77.A3 5170002-77	£3.30	£3.96
38 - SHAFT BDE-5170002-77.A4 5170002-77	£3.30	£3.96
39 - CLAMP BDE-5170002-78.A1 5170002-78	£4.69	£5.63
39 - CLAMP BDE-5170002-78.A2 5170002-78	£4.69	£5.63
40 - RETAINER BDE-5140063-27.A13 5140063-27	£1.66	£1.99
40 - RETAINER BDE-5140063-27.A14 5140063-27	£1.66	£1.99
41 - SCREW BDE-5170002-79.A3 5170002-79	£1.66	£1.99
41 - SCREW BDE-5170002-79.A4 5170002-79	£1.66	£1.99
42 - RETAINER BDE-5170002-80.A2 5170002-80	£1.66	£1.99
42 - RETAINER BDE-5170002-80.A3 5170002-80	£1.66	£1.99
43 - WASHER BDE-5170002-81.A3 5170002-81	£1.66	£1.99
43 - WASHER BDE-5170002-81.A4 5170002-81	£1.66	£1.99
44 - HANDLE SA BDE-5170002-82.A2 5170002-82	£7.85	£9.42
44 - HANDLE SA BDE-5170002-82.A3 5170002-82	£7.85	£9.42
45 - CRANK BDE-5170002-83.A3 5170002-83	£1.66	£1.99
45 - CRANK BDE-5170002-83.A4 5170002-83	£1.66	£1.99
46 - NUT BDE-5170002-84.A2 5170002-84	£2.78	£3.34
46 - NUT BDE-5170002-84.A3 5170002-84	£2.78	£3.34
47 - PIN BDE-5170002-85.A3 5170002-85	£1.66	£1.99
47 - PIN BDE-5170002-85.A4 5170002-85	£1.66	£1.99
48 - SEAT BDE-5170002-86.A2 5170002-86	£7.18	£8.62
48 - SEAT BDE-5170002-86.A3 5170002-86	£7.18	£8.62
49 - LABEL BDE-5170002-87.A2 5170002-87	£1.66	£1.99
49 - LABEL BDE-5170002-87.A3 5170002-87	£1.66	£1.99
50 - SPRING BDE-5170002-88.A0 5170002-88	£1.66	£1.99
50 - SPRING BDE-5170002-88.A1 5170002-88	£1.66	£1.99
51 - SLEEVE BDE-5170002-89.A5 5170002-89	£1.66	£1.99
51 - SLEEVE BDE-5170002-89.A6 5170002-89	£1.66	£1.99
52 - PIN BDE-5170002-90.A0 5170002-90	£1.66	£1.99
52 - PIN BDE-5170002-90.A1 5170002-90	£1.66	£1.99
53 - PIN BDE-5140062-89.A2 5140062-89	£1.66	£1.99
53 - PIN BDE-5140062-89.A3 5140062-89	£1.66	£1.99
54 - BEARING BDE-5170002-91.A5 5170002-91	£10.85	£13.02
54 - BEARING BDE-5170002-91.A6 5170002-91	£10.85	£13.02
55 - WASHER BDE-5140062-92.A15 5140062-92	£1.66	£1.99
55 - WASHER BDE-5140062-92.A16 5140062-92	£1.66	£1.99
57 - BEARING BDE-5170002-94.A3 5170002-94	£5.88	£7.06
57 - BEARING BDE-5170002-94.A4 5170002-94	£5.88	£7.06
58 - SLEEVE BEARING BDE-5140062-97.A6 5140062-97	£2.78	£3.34
58 - SLEEVE BEARING BDE-5140062-97.A7 5140062-97	£2.78	£3.34
59 - DUST DEFLECTOR BDE-5170002-95.A2 5170002-95	£1.66	£1.99
59 - DUST DEFLECTOR BDE-5170002-95.A3 5170002-95	£1.66	£1.99
60 - SCREW BDE-5170002-96.A3 5170002-96	£1.66	£1.99
60 - SCREW BDE-5170002-96.A4 5170002-96	£1.66	£1.99
61 - FIELD BDE-5170002-98.A1 5170002-98	£80.46	£96.55
61 - FIELD BDE-5170002-98.A2 5170002-98	£80.46	£96.55
62 - HOUSING MOTOR BDE-5170006-98.A0 5170006-98	£24.39	£29.27
62 - HOUSING MOTOR BDE-5170006-98.A1 5170006-98	£24.39	£29.27
63 - SCREW BDE-5170003-00.A3 5170003-00	£1.66	£1.99
63 - SCREW BDE-5170003-00.A4 5170003-00	£1.66	£1.99
64 - BRUSH HOLDER BDE-5140063-04.A11 5140063-04	£2.87	£3.44
64 - BRUSH HOLDER BDE-5140063-04.A12 5140063-04	£2.87	£3.44
65 - BRUSH PAIR BDE-5140063-06.A2 5140063-06	£7.85	£9.42
65 - BRUSH PAIR BDE-5140063-06.A3 5140063-06	£7.85	£9.42
66 - BRUSH CAP BDE-5140063-07.A9 5140063-07	£1.66	£1.99
66 - BRUSH CAP BDE-5140063-07.A10 5140063-07	£1.66	£1.99
67 - SCREW BDE-5140063-08.A6 5140063-08	£1.66	£1.99
67 - SCREW BDE-5140063-08.A7 5140063-08	£1.66	£1.99
68 - COVER REAR BDE-5170003-01.A2 5170003-01	£3.30	£3.96
68 - COVER REAR BDE-5170003-01.A3 5170003-01	£3.30	£3.96
69 - SCREW BDE-5140063-10.A4 5140063-10	£1.66	£1.99
69 - SCREW BDE-5140063-10.A5 5140063-10	£1.66	£1.99
70 - LABEL BDE-5170014-38 5170014-38	-
73 - CORD PROTECTOR BDE-5140063-19.A11 5140063-19	£7.18	£8.62
73 - CORD PROTECTOR BDE-5140063-19.A12 5140063-19	£7.18	£8.62
74 - SCREW BDE-5140063-20.A4 5140063-20	£1.66	£1.99
74 - SCREW BDE-5140063-20.A5 5140063-20	£1.66	£1.99
76 - CAPACITOR BDE-5170003-12.A3 5170003-12	£1.66	£1.99
76 - CAPACITOR BDE-5170003-12.A4 5170003-12	£1.66	£1.99
77 - SCREW BDE-5140062-93.A0 5140062-93	£1.66	£1.99
77 - SCREW BDE-5140062-93.A1 5140062-93	£1.66	£1.99
78 - SWITCH BDE-5170003-13.A1 5170003-13	£24.39	£29.27
78 - SWITCH BDE-5170003-13.A2 5170003-13	£24.39	£29.27
80 - CORD CLAMP BDE-5140063-26.A2 5140063-26	£1.66	£1.99
80 - CORD CLAMP BDE-5140063-26.A3 5140063-26	£1.66	£1.99
81 - O RING BDE-5170003-15.A4 5170003-15	£1.66	£1.99
81 - O RING BDE-5170003-15.A5 5170003-15	£1.66	£1.99
82 - SCREW BDE-5170003-16.A0 5170003-16	£1.66	£1.99
82 - SCREW BDE-5170003-16.A1 5170003-16	£1.66	£1.99
84 - HANDLE SA BDE-5170003-11.A0 5170003-11	£18.91	£22.69
84 - HANDLE SA BDE-5170003-11.A1 5170003-11	£18.91	£22.69
85 - ARMATURE 220/240V BDE-5170002-92.A0 5170002-92	£113.93	£136.72
85 - ARMATURE 220/240V BDE-5170002-92.A1 5170002-92	£113.93	£136.72
86 - HANDLE SA BDE-5170007-04.A2 5170007-04	£16.03	£19.24
800 - GREASE 90 GMS 25g BDE-870889-02.A714 870889-02	£8.08	£9.70
800 - GREASE 90 GMS 25g BDE-870889-02.A715 870889-02	£8.08	£9.70

Attribute Name	Value
Brand	Stanley
