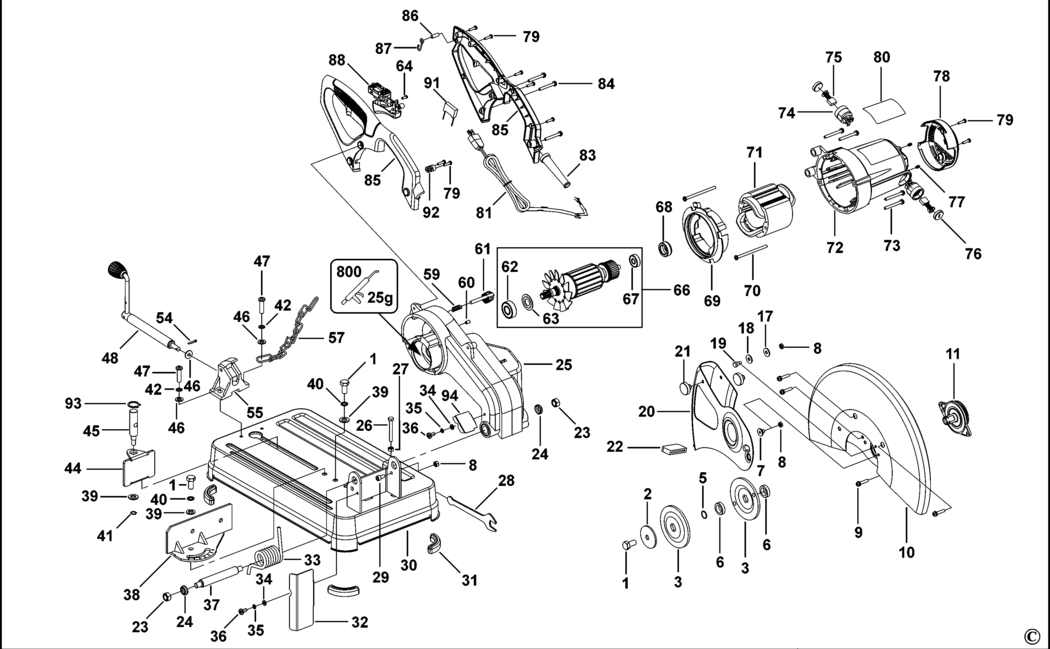

1 - BOLT
BDE-5140062-44.A5
5140062-44
|
£1.50
|
£1.80
|
|
|
2 - FLANGE
BDE-5140062-45.A3
5140062-45
|
£1.50
|
£1.80
|
|
|
3 - FLANGE
BDE-5140062-46.A3
5140062-46
|
£10.85
|
£13.02
|
|
|
5 - O RING
BDE-5140062-47.A1
5140062-47
|
£1.50
|
£1.80
|
|
|
6 - BUSH
BDE-5140062-48.A12
5140062-48
|
£1.50
|
£1.80
|
|
|
7 - SCREW
BDE-5140062-49.A1
5140062-49
|
£1.50
|
£1.80
|
|
|
8 - LOCK NUT
BDE-5140062-50.A12
5140062-50
|
£1.50
|
£1.80
|
|
|
9 - SCREW
BDE-5140062-51.A1
5140062-51
|
£1.50
|
£1.80
|
|
|
10 - GUARD
BDE-1004683-62
1004683-62
|
£34.00
|
£40.80
|
|
|
11 - GEAR & SPINDLE SA
BDE-5140062-53.A1
5140062-53
|
£34.00
|
£40.80
|
|
|
17 - WASHER
BDE-5140062-54.A10
5140062-54
|
£1.50
|
£1.80
|
|
|
18 - WASHER
BDE-5140062-55.A4
5140062-55
|
£1.50
|
£1.80
|
|
|
19 - SCREW
BDE-5140062-56.A10
5140062-56
|
£1.50
|
£1.80
|
|
|
20 - GUARD LOWER
BDE-5140062-57.A1
5140062-57
|
£25.70
|
£30.84
|
|
|
21 - RUBBER
BDE-5140062-58.A10
5140062-58
|
£1.50
|
£1.80
|
|
|
22 - PROTECTOR
BDE-5140062-59.A4
5140062-59
|
£1.50
|
£1.80
|
|
|
23 - NUT
BDE-5140062-60.A12
5140062-60
|
£1.50
|
£1.80
|
|
|
24 - WASHER. CUP
BDE-5140062-61.A2
5140062-61
|
£1.50
|
£1.80
|
|
|
25 - ARM ELEVATING
BDE-5140062-62.A3
5140062-62
|
£78.12
|
£93.74
|
|
|
26 - BOLT
BDE-5140062-63.A1
5140062-63
|
£1.50
|
£1.80
|
|
|
27 - NUT
BDE-5140062-64.A8
5140062-64
|
£1.50
|
£1.80
|
|
|
28 - WRENCH SPECIAL
BDE-5140062-65.A1
5140062-65
|
£3.30
|
£3.96
|
|
|
29 - BOLT
BDE-5140062-66.A12
5140062-66
|
£1.50
|
£1.80
|
|
|
30 - BASE
BDE-1004683-63
1004683-63
|
£71.44
|
£85.73
|
|
|
31 - FOOT
BDE-5140062-68.A12
5140062-68
|
£1.50
|
£1.80
|
|
|
32 - PROTECTOR
BDE-5140062-69.A2
5140062-69
|
£2.78
|
£3.34
|
|
|
33 - SPRING TORSION
BDE-5140062-70.A6
5140062-70
|
£7.85
|
£9.42
|
|
|
34 - WASHER
BDE-5140062-71.A2
5140062-71
|
£1.50
|
£1.80
|
|
|
35 - WASHER SPRING
BDE-5140062-72.A4
5140062-72
|
£1.50
|
£1.80
|
|
|
36 - SCREW
BDE-5140062-73.A2
5140062-73
|
£1.50
|
£1.80
|
|
|
37 - SHAFT
BDE-5140062-74.A4
5140062-74
|
£5.88
|
£7.06
|
|
|
38 - FENCE
BDE-5140062-75.A2
5140062-75
|
£17.48
|
£20.97
|
|
|
39 - WASHER
BDE-5140062-76.A10
5140062-76
|
£1.50
|
£1.80
|
|
|
40 - WASHER SPRING
BDE-5140062-77.A2
5140062-77
|
£1.50
|
£1.80
|
|
|
41 - RETAINER
BDE-5140062-78.A4
5140062-78
|
£1.50
|
£1.80
|
|
|
42 - WASHER SPRING
BDE-5140062-79.A2
5140062-79
|
£1.50
|
£1.80
|
|
|
44 - CLAMP
BDE-5140062-80.A4
5140062-80
|
£5.88
|
£7.06
|
|
|
45 - SHAFT
BDE-5140062-81.A2
5140062-81
|
£3.30
|
£3.96
|
|
|
46 - WASHER
BDE-5140062-82.A7
5140062-82
|
£1.50
|
£1.80
|
|
|
47 - SCREW
BDE-5140062-83.A2
5140062-83
|
£1.50
|
£1.80
|
|
|
48 - HANDLE SA
BDE-5140062-84.A6
5140062-84
|
£12.17
|
£14.60
|
|
|
54 - PIN
BDE-5140062-85.A2
5140062-85
|
£1.50
|
£1.80
|
|
|
55 - LOCKING DEVICE
BDE-5140062-86.A7
5140062-86
|
£10.85
|
£13.02
|
|
|
57 - CHAIN
BDE-5140062-87.A2
5140062-87
|
£1.50
|
£1.80
|
|
|
59 - SPRING
BDE-5140062-88.A4
5140062-88
|
£1.50
|
£1.80
|
|
|
60 - PIN
BDE-5140062-89.A4
5140062-89
|
£1.50
|
£1.80
|
|
|
61 - LOCK PIN
BDE-5140062-90.A3
5140062-90
|
£3.30
|
£3.96
|
|
|
62 - BEARING
BDE-5140062-91.A2
5140062-91
|
£12.17
|
£14.60
|
|
|
63 - WASHER
BDE-5140062-92.A10
5140062-92
|
£1.50
|
£1.80
|
|
|
64 - SCREW
BDE-5140062-93.A6
5140062-93
|
£1.50
|
£1.80
|
|
|
66 - ARMATURE SA
BDE-5140062-94.A4
5140062-94
|
£115.77
|
£138.92
|
|
|
67 - BEARING
BDE-5140062-96.A8
5140062-96
|
£5.88
|
£7.06
|
|
|
68 - SLEEVE BEARING
BDE-5140062-97.A1
5140062-97
|
£2.78
|
£3.34
|
|
|
69 - DUST DEFLECTOR
BDE-5140062-98.A8
5140062-98
|
£2.78
|
£3.34
|
|
|
70 - SCREW
BDE-5140062-99.A1
5140062-99
|
£1.50
|
£1.80
|
|
|
71 - FIELD
BDE-5140063-00.A5
5140063-00
|
-
|
|
|
|
72 - HOUSING MOTOR
BDE-1004683-64
1004683-64
|
£25.05
|
£30.06
|
|
|
73 - SCREW
BDE-5140063-03.A1
5140063-03
|
£1.50
|
£1.80
|
|
|
74 - BRUSH HOLDER
BDE-1004492-07.A0
1004492-07
|
£2.78
|
£3.34
|
|
|
75 - BRUSH PAIR
BDE-N381908.A5
N381908
|
-
|
|
|
|
76 - BRUSH CAP
BDE-1004492-08.A1
1004492-08
|
£1.50
|
£1.80
|
|
|
77 - SCREW
BDE-5140063-08.A2
5140063-08
|
£1.50
|
£1.80
|
|
|
78 - COVER REAR
BDE-1004683-65
1004683-65
|
£5.88
|
£7.06
|
|
|
79 - SCREW
BDE-5140063-10.A1
5140063-10
|
£1.50
|
£1.80
|
|
|
81 - CORDSET
BDE-1004492-11
1004492-11
|
£30.08
|
£36.10
|
|
|
83 - CORD PROTECTOR
BDE-5140063-19.A15
5140063-19
|
£7.18
|
£8.62
|
|
|
84 - SCREW
BDE-5140063-20.A1
5140063-20
|
£1.50
|
£1.80
|
|
|
85 - HANDLE SA
BDE-1004683-67
1004683-67
|
£17.48
|
£20.97
|
|
|
86 - PIN
BDE-5140063-22.A1
5140063-22
|
£1.50
|
£1.80
|
|
|
87 - HOOK
BDE-5140063-23.A8
5140063-23
|
£1.50
|
£1.80
|
|
|
88 - SWITCH
BDE-5140063-24.A1
5140063-24
|
£23.75
|
£28.50
|
|
|
91 - CAPACITOR
BDE-5140063-25.A3
5140063-25
|
£1.50
|
£1.80
|
|
|
92 - CORD CLAMP
BDE-5140063-26.A6
5140063-26
|
£1.50
|
£1.80
|
|
|
93 - RETAINER
BDE-5140063-27.A10
5140063-27
|
£1.50
|
£1.80
|
|
|
94 - GUARD LOWER
BDE-1004492-06.A1
1004492-06
|
£3.80
|
£4.56
|
|
|
800 - GREASE 90 GMS 25g
BDE-870889-02.A366
870889-02
|
£7.85
|
£9.42
|
|
