Stanley STGB3715 Type 1 Bench Grinder Spare Parts

Home Details Reviews Delivery

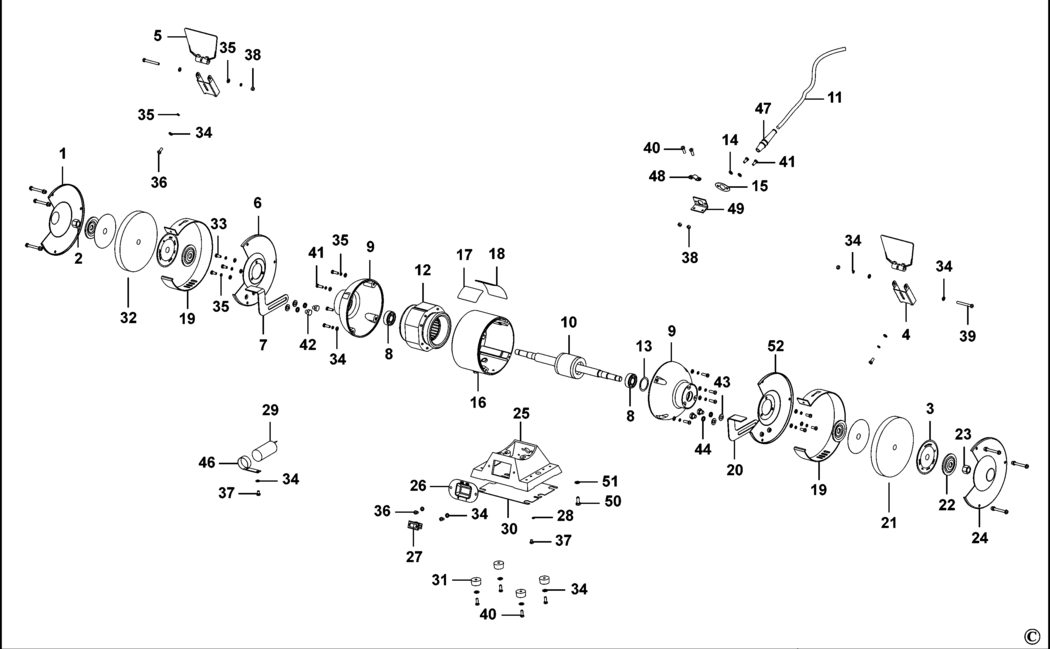

An exploded drawing and spare parts listing for the Stanley STGB3715 Type 1 Bench Grinder

	Ex VAT	Inc VAT
1 - GUARD LH Left BDE-5140013-61.A3 5140013-61	£6.06	£7.27
2 - NUT BDE-5140013-62.A1 5140013-62	£1.66	£1.99
3 - DISC BDE-5140013-63.A3 5140013-63	£1.66	£1.99
4 - BRACKET BDE-5140023-62.A2 5140023-62	£1.66	£1.99
5 - SHIELD BDE-186172-00.A1 186172-00	£2.87	£3.44
6 - COVER LH BDE-5140013-66.A3 5140013-66	£4.83	£5.80
7 - TOOL REST LH BDE-5140013-67.A0 5140013-67	£3.39	£4.07
8 - BEARING BALL BDE-5140013-68.A3 5140013-68	£4.83	£5.80
9 - HOUSING BEARING BDE-5140013-69.A0 5140013-69	£12.53	£15.04
10 - ARMATURE BDE-6010358-44 6010358-44	£30.98	£37.18
11 - CORDSET BDE-5170000-34 5170000-34	-
12 - FIELD BDE-6010358-46 6010358-46	£80.98	£97.18
13 - WASHER BDE-5140013-73.A3 5140013-73	£1.66	£1.99
14 - CABLE CLAMP BDE-5140013-74.A1 5140013-74	£1.66	£1.99
15 - MOUNTING BRACKET BDE-5140013-75.A3 5140013-75	£1.66	£1.99
16 - HOUSING MOTOR BDE-5140013-76.A0 5140013-76	£18.00	£21.60
17 - IDENTITY LABEL BDE-6010358-47 6010358-47	£1.66	£1.99
19 - WHEEL GUIDE BDE-5140013-79.A3 5140013-79	£1.88	£2.26
20 - TOOL REST RH BDE-5140013-80.A0 5140013-80	£3.39	£4.07
22 - FLANGE BDE-6010358-50 6010358-50	£3.92	£4.70
23 - NUT BDE-5140013-83.A3 5140013-83	£1.66	£1.99
24 - GUARD RH BDE-5140013-84.A1 5140013-84	£6.06	£7.27
25 - BASE BDE-5140013-85.A3 5140013-85	£25.12	£30.15
26 - SWITCH COVER BDE-5140013-86.A0 5140013-86	£1.66	£1.99
27 - SWITCH BDE-6010358-51 6010358-51	£3.92	£4.70
28 - WASHER BDE-6010358-58.A0 6010358-58	£1.66	£1.99
29 - CAPACITOR BDE-6010358-52 6010358-52	£3.92	£4.70
30 - BASEPLATE BDE-5140013-90.A4 5140013-90	£1.66	£1.99
31 - RUBBER BOOT BDE-5140013-91.A0 5140013-91	£1.66	£1.99
33 - SCREW BDE-5140023-86.A0 5140023-86	£1.66	£1.99
34 - WASHER 5 MM BDE-5140023-73.A0 5140023-73	£1.66	£1.99
35 - WASHER SPRING BDE-5140023-74.A4 5140023-74	£1.66	£1.99
36 - SCREW BDE-5140023-75.A0 5140023-75	£1.66	£1.99
37 - SCREW BDE-5140023-76.A4 5140023-76	£1.66	£1.99
38 - NUT M5 BDE-5140023-77.A0 5140023-77	£1.66	£1.99
39 - SCREW BDE-5140023-78.A4 5140023-78	£1.66	£1.99
40 - SCREW BDE-5140013-60.A1 5140013-60	£1.66	£1.99
41 - SCREW BDE-5140014-01.A1 5140014-01	£1.66	£1.99
42 - BOLT BDE-5140014-02.A2 5140014-02	£1.66	£1.99
43 - WASHER BDE-5140014-03.A1 5140014-03	£1.66	£1.99
44 - BOLT BDE-5140013-64.A1 5140013-64	£1.66	£1.99
46 - BRACKET CAPACTIOR BDE-5140023-79.A0 5140023-79	£1.66	£1.99
47 - CORD PROTECTOR BDE-5140023-80.A4 5140023-80	£1.66	£1.99
48 - CORD CLAMP BDE-5140023-81.A0 5140023-81	£1.66	£1.99
49 - PLATE CLAMP PLATE BDE-5140023-82.A4 5140023-82	£1.66	£1.99
50 - BOLT BDE-5140023-83.A0 5140023-83	£1.66	£1.99
51 - WASHER BDE-5140023-84.A4 5140023-84	£1.66	£1.99
52 - COVER RH BDE-5140023-71.A4 5140023-71	£4.83	£5.80
