Metabo Workstand UK220/PK200 / 0910017047 10 / - Spare Parts

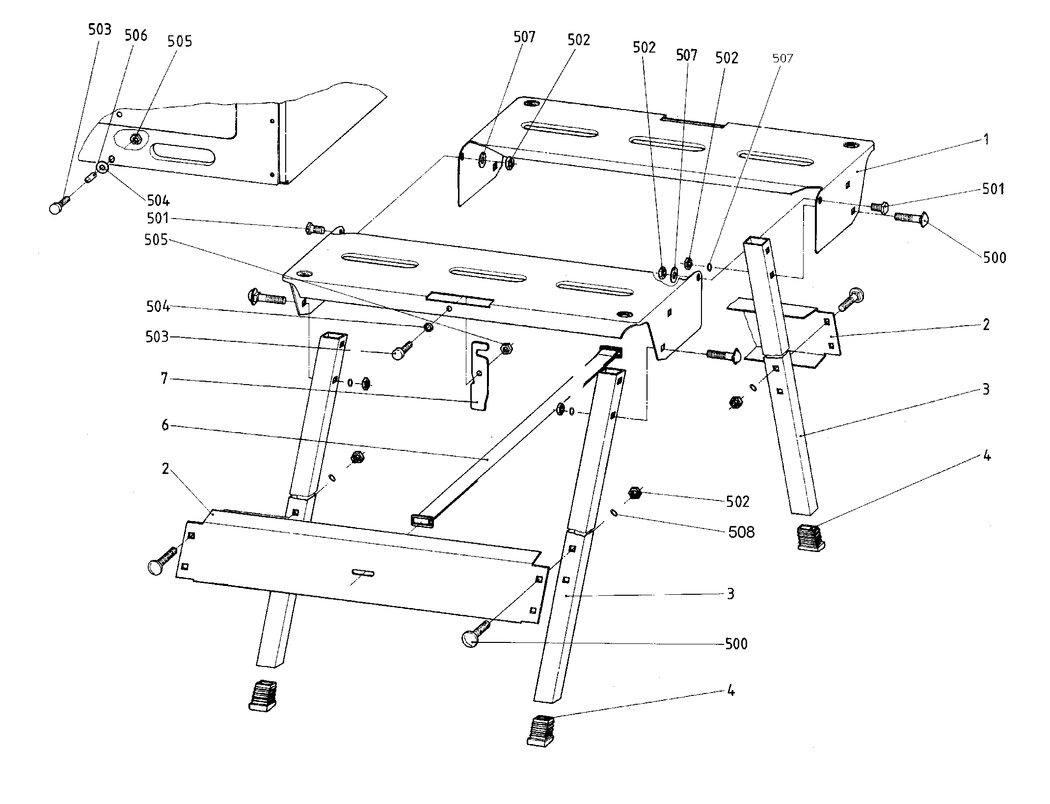

An exploded diagram and spare parts listing for the Metabo Workstand UK220/PK200 / 0910017047 10 / -

	Ex VAT	Inc VAT
1 - TABLE PANEL BL 2X264X752 MET-1382222098.A0 1382222098	-
2 - STANCHION BL 2X140X578 MET-1382222101.A1 1382222101	-
3 - LEG 4KT 30X30X1 5X581 MET-1382222110.A0 1382222110	-
4 - FOOT MET-1381726173.A11 1381726173	£4.76	£5.71
6 - STRAP 25X550 -1 MET-4841203459.A2 4841203459	-
7 - FASTENING HOOK BL 2 50X33 MET-1482222125.A1 1482222125	£3.11	£3.73
500 - TRUSS HEAD SCREW MET-6110059297.A10 6110059297	£1.50	£1.80
501 - HEX HEAD SCREW MET-6103001178.A2 6103001178	£1.50	£1.80
502 - HEXAGON NUT PREV. TORQUE TYPE MET-6202002305.A42 6202002305	£1.50	£1.80
503 - CAP SCREW MET-6121023081.A30 6121023081	£1.50	£1.80
504 - CUP SPRING MET-141155660.A1 141155660	£1.50	£1.80
505 - HEXAGONAL LOCK NUT MET-141130650.A17 141130650	£3.20	£3.84
506 - SPACER SLEEVE MET-6442059304.A12 6442059304	£1.50	£1.80
507 - CUP SPRING MET-7053016795.A10 7053016795	£1.50	£1.80
508 - WASHER MET-6305002486.A60 6305002486	-
