1 - ARMATURE COMPL. 230V
MET-310011050.A4
310011050
|
-
|
|
|
|
2 - FIELD COIL W.FIELD COIL 230 V
MET-311011980.A8
311011980
|
£54.94
|
£65.93
|
|
|
3 - SWITCH 2-POLE X2
MET-343410270.A22
343410270
|
£13.63
|
£16.36
|
|
|
4 - CABLE SLEEVE
MET-344100970.A367
344100970
|
£3.20
|
£3.84
|
|
|
5 - CABLE WITH PLUG
MET-344499660.A11
344499660
|
-
|
|
|
|
6 - CABLE CLIP
MET-343362490.A584
343362490
|
£3.20
|
£3.84
|
|
|
7 - MOTOR HOUSING
MET-315013710.A12
315013710
|
£13.63
|
£16.36
|
|
|
8 - BAFFLE
MET-339151210.A65
339151210
|
£2.94
|
£3.53
|
|
|
9 - BAFFLE
MET-339151200.A118
339151200
|
£2.94
|
£3.53
|
|
|
11 - BALL BEARING 6X19X6
MET-143115690.A660
143115690
|
£3.82
|
£4.59
|
|
|
12 - RUBBER BUSHING
MET-344097870.A401
344097870
|
£1.50
|
£1.80
|
|
|
14 - BALL BEARING 8X22X7
MET-143115700.A513
143115700
|
£4.76
|
£5.71
|
|
|
15 - WASHER
MET-339006390.A401
339006390
|
£1.50
|
£1.80
|
|
|
16 - HEXAGON NUT W.RECESS
MET-341100940.A194
341100940
|
£3.20
|
£3.84
|
|
|
17 - SHIFT LEVER
MET-343434570.A32
343434570
|
£4.76
|
£5.71
|
|
|
18 - MOTOR CAP 2 PARTS BLACK
MET-316070230.A13
316070230
|
-
|
|
|
|
21 - CLAMPING FLANGE
MET-341031160.A327
341031160
|
£15.41
|
£18.49
|
|
|
23 - WHEEL GUARD D125
MET-339204500.A185
339204500
|
£11.78
|
£14.13
|
|
|
24 - ANTI-VIBRATION HANDLE M 8
MET-314000970.A210
314000970
|
£19.18
|
£23.02
|
|
|
26 - SPRING CLIP
MET-342022490.A140
342022490
|
£2.94
|
£3.53
|
|
|
30 - GASKET
MET-339011970.A181
339011970
|
£1.50
|
£1.80
|
|
|
31 - FILL. HEAD SCREW(DIN 7985)
MET-141121640.A223
141121640
|
£1.50
|
£1.80
|
|
|
32 - SELF-TAP. FILL. H. SCREW
MET-341701470.A77
341701470
|
£1.50
|
£1.80
|
|
|
33 - SELF-TAP. FILL. H. SCREW
MET-141116980.A397
141116980
|
£1.50
|
£1.80
|
|
|
34 - RATING PLATE
MET-338064470.A0
338064470
|
-
|
|
|
|
36 - PART NOT NEEDED
MET-399999990.A779
399999990
|
-
|
|
|
|
40 - SPINDLE
MET-316054520.A2
316054520
|
-
|
|
|
|
41 - CLAMPING NUT COMPL. M14
MET-316055350.A2
316055350
|
£15.41
|
£18.49
|
|
|
42 - WASHER 10 2 X 14
MET-141151120.A80
141151120
|
£1.50
|
£1.80
|
|
|
43 - WASHER 10 2 X 14
MET-141152300.A254
141152300
|
£3.20
|
£3.84
|
|
|
44 - WASHER 10 2 X 14
MET-141153920.A30
141153920
|
£1.50
|
£1.80
|
|
|
49 - SELF-TAP. FILL. H. SCREW
MET-141117060.A486
141117060
|
£3.20
|
£3.84
|
|
|
50 - FLANGE COMPL.
MET-343433280.A172
343433280
|
£11.78
|
£14.13
|
|
|
51 - NUT
MET-341102460.A171
341102460
|
£3.82
|
£4.59
|
|
|
52 - BEVEL GEAR W.PINION
MET-316054960.A46
316054960
|
£19.18
|
£23.02
|
|
|
53 - FRICTION WASHER SET COMPL.
MET-316055080.A3
316055080
|
£17.55
|
£21.06
|
|
|
54 - GEAR HOUSING COMPL.
MET-316055100.A6
316055100
|
£54.94
|
£65.93
|
|
|
55 - SAFETY CLUTCH W.PINION
MET-316054350.A4
316054350
|
-
|
|
|
|
56 - BRUSH HOLDER COMPL.
MET-316055240.A27
316055240
|
£17.55
|
£21.06
|
|
|
57 - FAN W. DUST GUARD
MET-316054850.A251
316054850
|
£5.62
|
£6.75
|
|
|
58 - CARBON BRUSH SET CUT-OFF
MET-316055210.A14
316055210
|
£13.63
|
£16.36
|
|
|
59 - CLAMPING LEVER COMPL.
MET-316066040.A54
316066040
|
£15.41
|
£18.49
|
|
|
61 - RETAINING RING
MET-141156650.A97
141156650
|
£1.50
|
£1.80
|
|
|
62 - O-RING
MET-143196000.A259
143196000
|
-
|
|
|
|
63 - PRESSURE SPRING
MET-342003390.A491
342003390
|
£1.50
|
£1.80
|
|
|
64 - PUSH BUTTON
MET-343433130.A181
343433130
|
£1.66
|
£1.99
|
|
|
65 - BOLT
MET-341515640.A171
341515640
|
£2.94
|
£3.53
|
|
|
72 - WASHER
MET-339007800.A26
339007800
|
£1.50
|
£1.80
|
|
|
79 - FOAM RUBBER SELF-ADHESIVE 20 X 8 X 6
MET-344101400.A3
344101400
|
-
|
|
|
|
80 - BUTTING PLATE
MET-339011590.A61
339011590
|
£9.62
|
£11.54
|
|
|
81 - BRAKE DISC
MET-341013460.A5
341013460
|
£17.55
|
£21.06
|
|
|
82 - SUPPORTING PLATE
MET-343433710.A20
343433710
|
£2.94
|
£3.53
|
|
|
83 - SHIFT LEVER
MET-339136010.A3
339136010
|
£3.20
|
£3.84
|
|
|
84 - SHIFT ELEMENT
MET-343433700.A81
343433700
|
£2.94
|
£3.53
|
|
|
85 - PRESSURE SPRING
MET-342003420.A117
342003420
|
£1.50
|
£1.80
|
|
|
86 - PRESSURE SPRING
MET-342003930.A36
342003930
|
£2.94
|
£3.53
|
|
|
87 - SPACER SLEEVE
MET-341212170.A58
341212170
|
£3.82
|
£4.59
|
|
|
88 - INTERMEDIATE FLANGE
MET-343435920.A30
343435920
|
£7.36
|
£8.83
|
|
|
92 - O-RING
MET-143195640.A68
143195640
|
£2.94
|
£3.53
|
|
|
104 - PART NOT NEEDED
MET-399999990.A780
399999990
|
-
|
|
|
|
105 - PART NOT NEEDED
MET-399999990.A781
399999990
|
-
|
|
|
|
880 - GREASE 100G
MET-344130920.A161
344130920
|
£19.18
|
£23.02
|
|
|
885 - GREASE SF 011 50GR 1.8oz
MET-344130560.A567
344130560
|
£19.18
|
£23.02
|
|
|

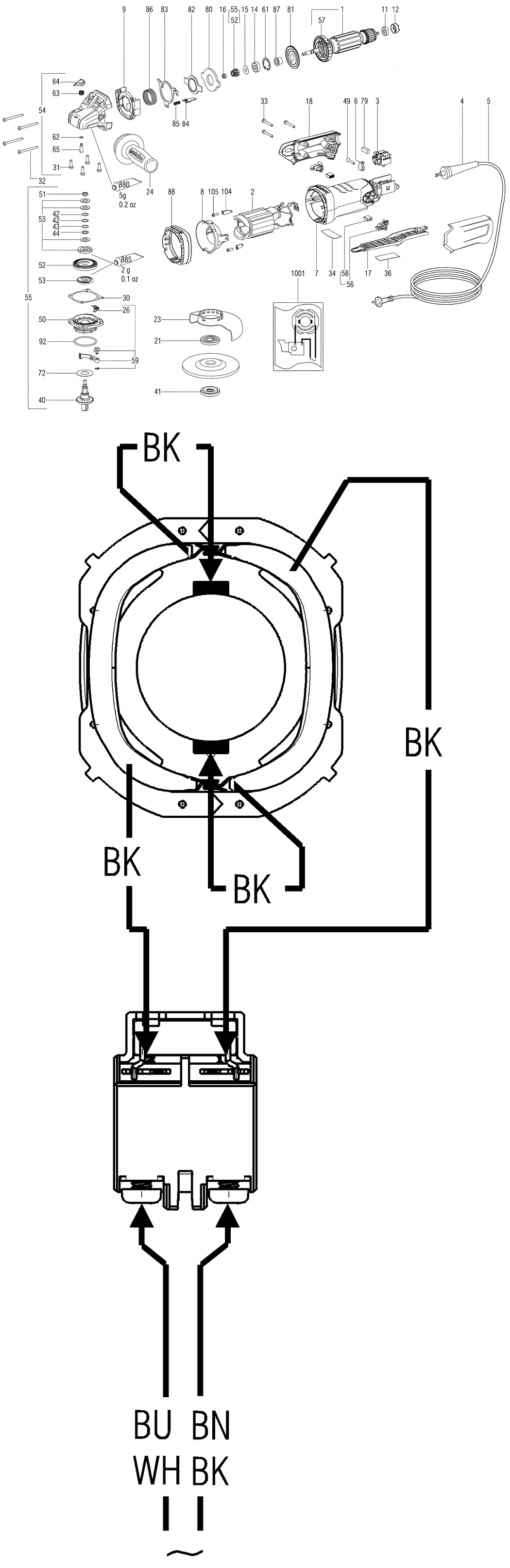

1001 - DIAGRAM
MET-338505940.A18
338505940
|
-
|
|
|
