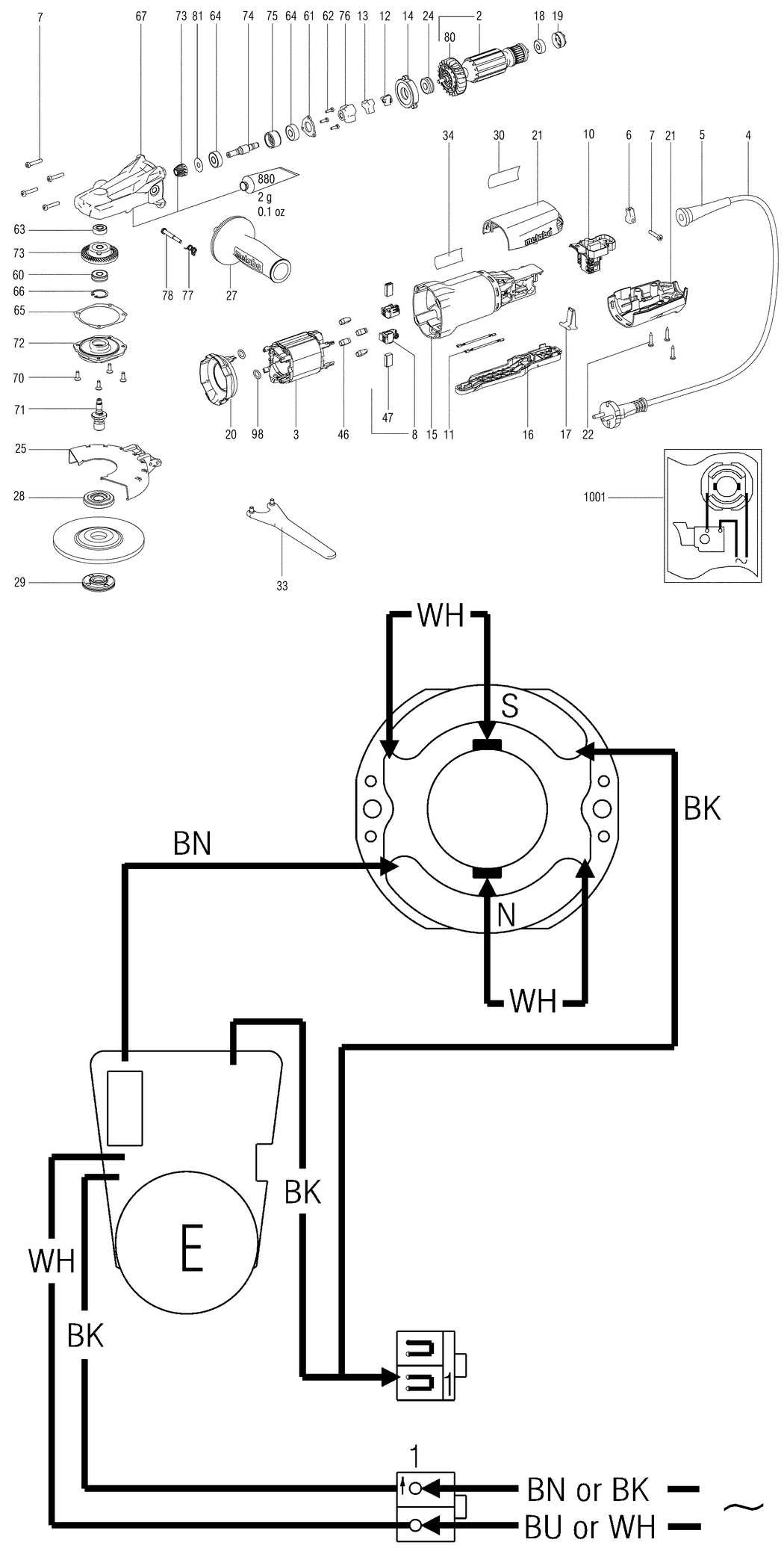

2 - ARMATURE COMPL. 230V
MET-310013070.A3
310013070
|
-
|
|
|
|
3 - FIELD COIL W.ADAPT. 230 V
MET-311012090.A1
311012090
|
£42.65
|
£51.18
|
|
|
4 - CABLE WITH PLUG
MET-344493180.A26
344493180
|
£26.35
|
£31.62
|
|
|
5 - CABLE SLEEVE
MET-344100970.A9
344100970
|
£3.20
|
£3.84
|
|
|
6 - CABLE CLIP
MET-343362490.A1265
343362490
|
£3.20
|
£3.84
|
|
|
7 - SELF-TAP. FILL. H. SCREW
MET-141117060.A109
141117060
|
£3.20
|
£3.84
|
|
|
8 - BRUSH HOLDER COMPL. CUT OUT 230V
MET-316046890.A35
316046890
|
£15.42
|
£18.51
|
|
|
10 - SWITCH WITH ELEKTRONIC 230 V / 50-60 HZ
MET-316051290.A10
316051290
|
£48.88
|
£58.66
|
|
|
11 - STRAND COMPL.
MET-344498880.A70
344498880
|
£1.50
|
£1.80
|
|
|
12 - CARRIER
MET-341071720.A5
341071720
|
-
|
|
|
|
13 - BUFFER
MET-344099140.A22
344099140
|
£3.82
|
£4.59
|
|
|
14 - BEARING FLANGE
MET-315202620.A42
315202620
|
£22.61
|
£27.13
|
|
|
15 - MOTOR HOUSING
MET-315013660.A8
315013660
|
£15.41
|
£18.49
|
|
|
16 - SHIFT LEVER COMPL.
MET-316053640.A19
316053640
|
£7.36
|
£8.83
|
|
|
17 - PIVOTING SWITCH
MET-343437890.A2
343437890
|
£2.94
|
£3.53
|
|
|
18 - BALL BEARING 6X19X6
MET-143115690.A99
143115690
|
£3.82
|
£4.59
|
|
|
19 - RUBBER BUSHING
MET-344097870.A107
344097870
|
£1.50
|
£1.80
|
|
|
20 - BAFFLE
MET-343436590.A50
343436590
|
£3.82
|
£4.59
|
|
|
21 - MOTOR CAP 2-PART
MET-343433790.A1
343433790
|
-
|
|
|
|
22 - SELF-TAP. FILL. H. SCREW
MET-141113180.A28
141113180
|
£1.50
|
£1.80
|
|
|
24 - BALL BEARING 8X22X7
MET-143115560.A29
143115560
|
£8.37
|
£10.04
|
|
|
25 - WHEEL GUARD COMPL.
MET-316055590.A23
316055590
|
£48.88
|
£58.66
|
|
|
27 - SIDE SUPPORT HANDLE COMPL.
MET-316046590.A83
316046590
|
£11.78
|
£14.13
|
|
|
28 - CLAMPING FLANGE
MET-341031160.A100
341031160
|
£15.41
|
£18.49
|
|
|
29 - QUICKNUT M14
MET-316064680.A3
316064680
|
£13.63
|
£16.36
|
|
|
30 - RATING PLATE
MET-338062480.A0
338062480
|
-
|
|
|
|
33 - PART NOT NEEDED
MET-399999990.A2151
399999990
|
-
|
|
|
|
34 - PART NOT NEEDED
MET-399999990.A2152
399999990
|
-
|
|
|
|
46 - SHRINK HOSE
MET-344099590.A17
344099590
|
£1.50
|
£1.80
|
|
|
47 - CARBON BRUSH SET CUT-OFF
MET-316046900.A29
316046900
|
£15.41
|
£18.49
|
|
|
49 - FLANGE COMPL.
MET-316068750.A5
316068750
|
£60.03
|
£72.04
|
|
|
60 - BALL BEARING 8X22X7
MET-143115560.A28
143115560
|
£8.37
|
£10.04
|
|
|
61 - BEARING COVER
MET-315418240.A1
315418240
|
£3.20
|
£3.84
|
|
|
62 - FILLISTER HEAD SCREW
MET-141124260.A10
141124260
|
£2.94
|
£3.53
|
|
|
63 - RI.KU.LA. 6X 19X 6
MET-143114790.A23
143114790
|
£5.62
|
£6.75
|
|
|
64 - BALL BEARING 8X22X7
MET-143115700.A308
143115700
|
£4.76
|
£5.71
|
|
|
65 - COMPENSATING WASHER
MET-339012160.A38
339012160
|
£2.94
|
£3.53
|
|
|
66 - RETAINING RING
MET-141156860.A25
141156860
|
-
|
|
|
|
67 - GEAR HOUSING COMPL.
MET-316055700.A14
316055700
|
£32.88
|
£39.45
|
|
|
70 - COUNTERSUNK SCREW
MET-141120200.A12
141120200
|
£1.50
|
£1.80
|
|
|
72 - FLANGE
MET-315202970.A26
315202970
|
£11.78
|
£14.13
|
|
|
73 - BEVEL GEAR AND BEVEL GEAR
MET-316068740.A0
316068740
|
£42.65
|
£51.18
|
|
|
74 - DRIVE SHAFT
MET-341604480.A15
341604480
|
£7.36
|
£8.83
|
|
|
75 - SPACER BUSH
MET-341006140.A17
341006140
|
£7.36
|
£8.83
|
|
|
76 - CARRIER
MET-341071350.A12
341071350
|
£9.62
|
£11.54
|
|
|
77 - SPRING CLIP
MET-342022040.A9
342022040
|
£1.50
|
£1.80
|
|
|
78 - TIGHT-FIT SCREW
MET-341701490.A28
341701490
|
£1.50
|
£1.80
|
|
|
80 - FAN
MET-330002060.A26
330002060
|
-
|
|
|
|
81 - SPINDLE COMPL. M14
MET-316069020.A22
316069020
|
-
|
|
|
|
98 - O-RING
MET-143195530.A4
143195530
|
£2.94
|
£3.53
|
|
|
880 - GREASE 100G
MET-344130920.A540
344130920
|
£19.18
|
£23.02
|
|
|
1001 - WIRING DIAGRAM
MET-338505710.A8
338505710
|
-
|
|
|
