1 - ARMATURE COMPL. 230V
MET-310011140.A5
310011140
|
£55.90
|
£67.08
|
|
|
2 - FIELD COIL W.FIELD COIL 230 V
MET-311011990.A0
311011990
|
£54.94
|
£65.93
|
|
|
3 - SWITCH 2-POLE
MET-343410120.A57
343410120
|
£13.63
|
£16.36
|
|
|
4 - CABLE SLEEVE
MET-344102180.A1
344102180
|
-
|
|
|
|
5 - CABLE WITH PLUG
MET-344487800.A26
344487800
|
£36.59
|
£43.91
|
|
|
6 - CABLE CLIP
MET-343362490.A217
343362490
|
£3.20
|
£3.84
|
|
|
7 - MOTOR HOUSING 2 PART
MET-315013520.A38
315013520
|
£13.63
|
£16.36
|
|
|
8 - BAFFLE
MET-339151210.A90
339151210
|
£2.94
|
£3.53
|
|
|
9 - BAFFLE
MET-339151200.A32
339151200
|
£2.94
|
£3.53
|
|
|
10 - ELECTRONIC UNIT 230V 50/60HZ
MET-343084110.A2
343084110
|
£48.88
|
£58.66
|
|
|
11 - BALL BEARING 6X19X6
MET-143115690.A474
143115690
|
£3.82
|
£4.59
|
|
|
12 - RUBBER BUSHING
MET-344097870.A479
344097870
|
£1.50
|
£1.80
|
|
|
14 - BALL BEARING 8X22X7
MET-143115700.A161
143115700
|
£4.76
|
£5.71
|
|
|
15 - WASHER
MET-339006390.A344
339006390
|
£1.50
|
£1.80
|
|
|
16 - HEXAGON NUT W.RECESS
MET-341100940.A102
341100940
|
£3.20
|
£3.84
|
|
|
17 - SWITCH ROD
MET-343433070.A23
343433070
|
£1.50
|
£1.80
|
|
|
18 - CAP
MET-343433030.A136
343433030
|
£5.62
|
£6.75
|
|
|
19 - END CAP
MET-343433100.A122
343433100
|
£2.94
|
£3.53
|
|
|
20 - SWITCH SLIDE
MET-343437100.A30
343437100
|
£2.94
|
£3.53
|
|
|
23 - WHEEL GUARD D150
MET-339204510.A34
339204510
|
£13.63
|
£16.36
|
|
|
24 - ANTI-VIBRATION HANDLE M 8
MET-314000970.A75
314000970
|
£19.18
|
£23.02
|
|
|
26 - SPRING CLIP
MET-342022490.A232
342022490
|
£2.94
|
£3.53
|
|
|
28 - FILL. HEAD SCREW(DIN 7985)
MET-141121430.A10
141121430
|
£1.50
|
£1.80
|
|
|
30 - GASKET
MET-339011970.A289
339011970
|
£1.50
|
£1.80
|
|
|
31 - FILL. HEAD SCREW(DIN 7985)
MET-141121640.A89
141121640
|
£1.50
|
£1.80
|
|
|
32 - SELF-TAP. FILL. H. SCREW
MET-341701470.A106
341701470
|
£1.50
|
£1.80
|
|
|
33 - SELF-TAP. FILL. H. SCREW
MET-141117060.A661
141117060
|
£3.20
|
£3.84
|
|
|
34 - RATING PLATE
MET-338071170.A0
338071170
|
-
|
|
|
|
40 - SPINDLE COMPL. WBA M14
MET-316054500.A36
316054500
|
£36.59
|
£43.91
|
|
|
41 - CLAMPING NUT COMPL. M14
MET-316055350.A77
316055350
|
£15.41
|
£18.49
|
|
|
42 - WASHER 10 2 X 14
MET-141151120.A132
141151120
|
£1.50
|
£1.80
|
|
|
43 - WASHER 10 2 X 14
MET-141152300.A366
141152300
|
£3.20
|
£3.84
|
|
|
44 - WASHER 10 2 X 14
MET-141153920.A182
141153920
|
£1.50
|
£1.80
|
|
|
50 - FLANGE COMPL.
MET-343433280.A227
343433280
|
£11.78
|
£14.13
|
|
|
51 - NUT
MET-341102460.A294
341102460
|
£3.82
|
£4.59
|
|
|
52 - BEVEL GEAR W.PINION
MET-316054980.A28
316054980
|
£22.61
|
£27.13
|
|
|
53 - FRICTION WASHER SET COMPL.
MET-316055080.A114
316055080
|
£17.55
|
£21.06
|
|
|
54 - GEAR HOUSING COMPL.
MET-316055100.A93
316055100
|
£54.94
|
£65.93
|
|
|
55 - SAFETY CLUTCH W.PINION
MET-316054410.A24
316054410
|
£75.74
|
£90.89
|
|
|
56 - BRUSH HOLDER SET
MET-316065420.A134
316065420
|
£17.55
|
£21.06
|
|
|
57 - FAN W. DUST GUARD
MET-316054850.A220
316054850
|
£5.62
|
£6.75
|
|
|
58 - CARBON BRUSH SET CUT-OFF
MET-316065450.A56
316065450
|
£15.41
|
£18.49
|
|
|
59 - CLAMPING LEVER COMPL.
MET-316066040.A93
316066040
|
£15.41
|
£18.49
|
|
|
61 - RETAINING RING
MET-141156650.A29
141156650
|
£1.50
|
£1.80
|
|
|
62 - O-RING
MET-143196000.A198
143196000
|
-
|
|
|
|
63 - PRESSURE SPRING
MET-342003390.A371
342003390
|
£1.50
|
£1.80
|
|
|
64 - PUSH BUTTON
MET-343433130.A220
343433130
|
£1.50
|
£1.80
|
|
|
65 - BOLT
MET-341515640.A290
341515640
|
£2.94
|
£3.53
|
|
|
70 - TACHO DISC
MET-343433060.A221
343433060
|
£3.82
|
£4.59
|
|
|
71 - PIVOTING SWITCH
MET-343433090.A23
343433090
|
£1.50
|
£1.80
|
|
|
72 - WASHER
MET-339007800.A97
339007800
|
£1.50
|
£1.80
|
|
|
80 - BUTTING PLATE
MET-339011590.A17
339011590
|
£9.62
|
£11.54
|
|
|
81 - BRAKE DISC
MET-341013460.A31
341013460
|
£17.55
|
£21.06
|
|
|
82 - SUPPORTING PLATE
MET-343433710.A50
343433710
|
£2.94
|
£3.53
|
|
|
83 - SHIFT LEVER
MET-339136010.A34
339136010
|
£3.20
|
£3.84
|
|
|
84 - SHIFT ELEMENT
MET-343433700.A51
343433700
|
£2.94
|
£3.53
|
|
|
85 - PRESSURE SPRING
MET-342003420.A81
342003420
|
£1.50
|
£1.80
|
|
|
86 - PRESSURE SPRING
MET-342003930.A19
342003930
|
£2.94
|
£3.53
|
|
|
87 - SPACER SLEEVE
MET-341212170.A40
341212170
|
£3.82
|
£4.59
|
|
|
88 - INTERMEDIATE FLANGE
MET-343433690.A5
343433690
|
-
|
|
|
|
92 - O-RING
MET-143195640.A134
143195640
|
£2.94
|
£3.53
|
|
|
124 - CARBONBRUSH WITH BRUSHOLDER SET 230V
MET-316067170.A108
316067170
|
£17.55
|
£21.06
|
|
|
880 - GREASE 100G
MET-344130920.A189
344130920
|
£19.18
|
£23.02
|
|
|
885 - GREASE SF 011 50GR 1.8oz
MET-344130560.A377
344130560
|
£19.18
|
£23.02
|
|
|

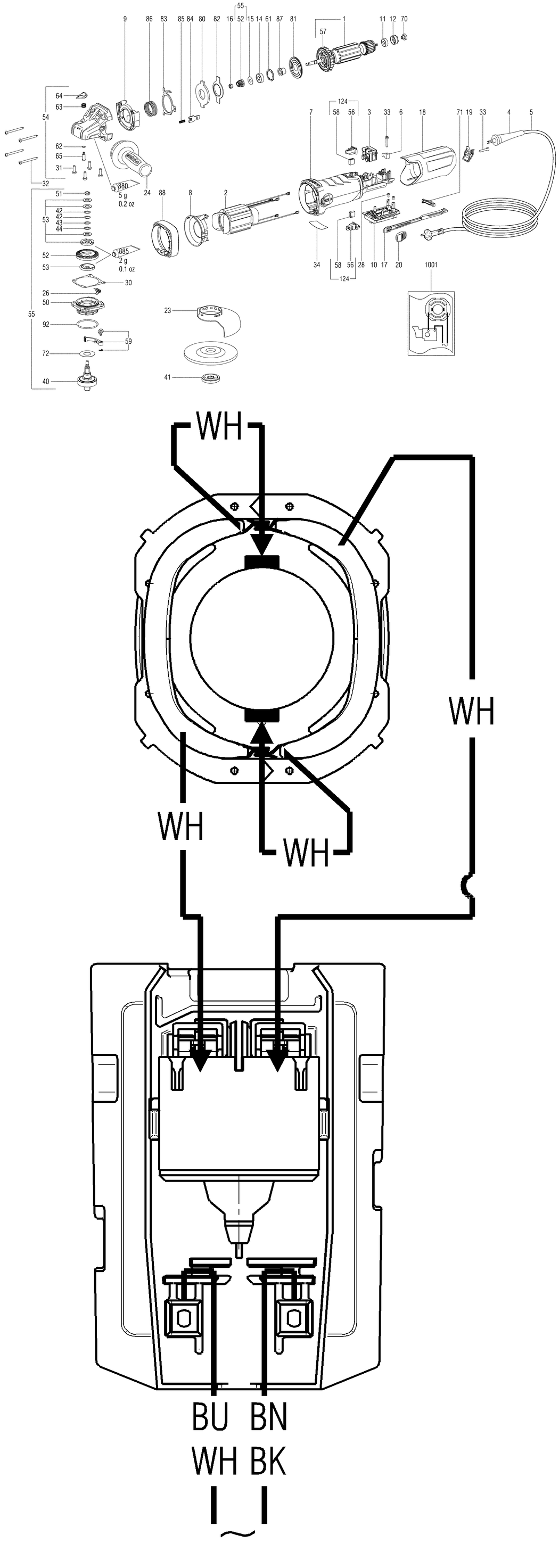

1001 - DIAGRAM
MET-338505780.A106
338505780
|
-
|
|
|
